Question 1

How to remove and install the timing chain cover and timing chain in 5.7L,6.0L,6.2L V8 engine on Cadillac CTS?

Accepted Answer

Loosen the cable from the negative terminal of the battery Fuse, then, Front engine cover bolts and the cover, the rear cover bolts, and the rear cover. Drop the cooling system and the engine oil, and also to remove the drivebelt. Remove the air filter and air intake resonator from the engine compartment, then the upper and lower radiator hoses, cooling fans and water pump. For 6 0L and 6 2L engines remove the crankshaft balancer and the Camshaft Position (CMP) sensor. Following this, take out the oil pan, alternator and the bolts of the alternator bracket together with the bracket itself. The timing chain cover bolts were then removed and the timing chain cover was pulled off the block with a putty knife to break the old gasket seal, the aluminum cover can easily be scratched. Cause the oil pick-up tube and oil pump to be taken off and the gears, chain, and dampener of the R&P should be checked for signs of wear, cracks, or deep grooves and replace them if there is any sign of damage. Relax camshaft sprocket bolts, install crankshaft balancer bolt at the end of the crankshaft and turn until timing marks are matched and the number one piston is on TDC. The bolts should be withdrawn from the end of the camshaft; the camshaft sprocket and the chain come out as a unit; the state of the camshaft and crankshaft sprockets should be assessed. Should a replacement of the timing chain be required, gently take off the sprocket on the crankshaft with a two or three-jaw puller. Smooth the two surfaces of the cylinder head cover with gasket scraper to remove all the old gasket and sealant, then line the crankshaft sprocket with the woodruff key and fit into the crankshaft. Start the new chain over the camshaft sprocket, rotate the sprocket so that the timing mark is facing down, engagement the chain with the crankshaft sprocket and align the camshaft sprocket on the end of the camshaft. Dip the camshaft sprocket bolt threads with a thread locking compound and tighten the bolts and lubricant the chain with clean Engine Oil. Also fit the oil pump and the oil pick-up tube on the engine and loosely fit the timing chain cover along with a new gasket. If a front cover alignment tool is not available then fit the crankshaft balancer, measure the distance from the oil pan rail to the timing chain cover on both sides and align the cover in such away that both measurements are equal before and after tightening the cover bolts. Rotate front timing cover as required in order to be able to take equal measurements on both sides of the timing chain cover and then tighten the cover bolts. Rubberized the joint where the timing chain cover rubs against the cylinder block and fit the oil pan. Then pour some coolant and oil to the engine and start the engine and inspect of oil and coolant dripping on the ground.

Question 2

What are the steps and precautions involved in replacing the Timing Chain and Variable Timing Sprocket in V8 engine on Cadillac Escalade?

Accepted Answer

The use of timing system is quite delicate and if an error is made on the same, there will be severe damages to the engine, thus, it is advisable that, only professionals try this process and in case there is any doubt, one should consult an expert. Start with the removal of the first end terminal of the battery then empty the cooling system and the engine oil. For 5.3L and 6.2L models, the oil pan, vacuum pump and coolant manifold need to be removed while on the other hand the AC compressor needs to be held in place while the lines do not need to be disconnected. On 6.0L models, some of the crops include; If equipped, disconnect the wiring from the camshaft position sensor and actuator magnet, remove the water pump, and take off the crankshaft balancer. The timing chain cover mounting bolts must be removed, care being taken not to mar the cover, and the oil pump must be detached. Force the timing chain tensioner towards the chain until a special tool or a 3 mm drill bit can be inserted, then turn the crankshaft until you have the timing marks lined up at twelve and six but do not or turn the camshaft or crankshaft until the chain is back into its position. After that, eliminate the solenoid valve that was attached to the upper sprocket assembly, and dispose of it Later, unbolt, the actuator from the camshaft and exhaust the actuator assembly with the chain as well. Check the wear condition and conditions of timing chain tensioner, camshaft and crankshaft sprockets and in case where the crankshaft sprocket has to be removed from the crank shaft do it gently. Timing chains should be replaced at one time with the camshaft and crankshaft sprockets; gasket material should be cleaned off the cover and engine block. Check the position of the crankshaft sprocket in regard to the Woodruff key and place it on the crankshaft but do not hammer it. New chain place the new chain over the camshaft sprocket and make sure that the chain marks are lined correctly and no part of the chain is out of the engine block. Check the new camshaft position actuator valve snugly and compress the timing chain tensioner then install it and rotate the crank shaft manually to as much as possible for resistance. Bolt on the oil pump, perform cleaning of sealing surfaces, apply RTV on sealing surfaces, tighten this loosely with gasket and use a cover aligner tool to rightly align the timing chain cover. Last, fit a new crankshaft oil seal, and follow the reverse procedure to that of the removal part for the rest of the fitting process; refill the cooling and engine oil, replace the engine oil filter, and look for leaks after the vehicle has been run for some time.

OEM Cadillac Timing Chain

28 Timing Chains found

Cadillac Timing Chain Part Number: 14087014

Cadillac Timing Chain Part Number: 12646386

Cadillac Timing Chain Part Number: 12627107

Cadillac Timing Chain Part Number: 12637743

Cadillac Timing Chain Part Number: 10128485

Cadillac Timing Chain Part Number: 12671642

Cadillac Chain Part Number: 55508496

Cadillac Timing Chain Part Number: 14062702

Cadillac Timing Chain Part Number: 55515943

Cadillac Chain Part Number: 55516894

Cadillac Timing Chain Part Number: 55489211

Cadillac Chain Part Number: 12663795

Cadillac Timing Chain Part Number: 12666061

Cadillac Timing Chain Part Number: 55514729

Cadillac Timing Chain Part Number: 12694716

Cadillac Timing Chain Part Number: 12647895

Cadillac Timing Chain Part Number: 12564273

Cadillac Timing Chain Part Number: 14102671

Cadillac Timing Chain Part Number: 3522470

Cadillac Timing Chain Part Number: 1640122

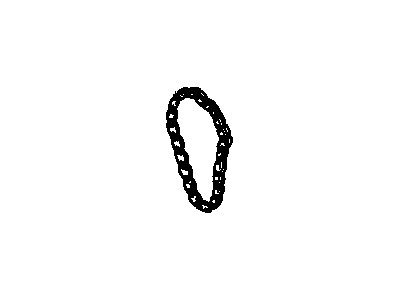

Cadillac Timing Chain
