Question 1

How to replace the engine front timing cover on Cadillac CTS?

Accepted Answer

In order to replace the engine front cover, start with the removal of the engine cover, for lp1 and ly7 engines, upper and lower Intake Manifold is removed as well. For llt engines, take off the Intake Manifold. After that, remove the camshaft covers, drain the engine coolants, separate the purge vent hose from the water outlet, and take down the water outlet with the Radiator Hose. Move on and remove the accessory drive belts, follow this by A/C Compressor and power steering belt tensioner, and then the generator bracket that includes the generator and belt tensioner without disconnecting the power steering pipes or draining the fluid. Thereafter you would need to reposition the power steering fluid reservoir, remove the Power Steering Pump pulley; the Power Steering Pump upper front bolt, while loosening all the remaining ones. Next, pull off the crankshaft balancer, camshaft position sensors, and camshaft position actuator solenoid valves from the front cover. Take off the engine front cover with the Water Pump and disengage it carefully, making sure not to encounter sharp or metal gasket scrapers on the edges of the sealing. Clean the sealing surfaces and blow the engine coolant from the cooling passage with compressed air. For installation, install the engine front cover with the en 46109, install cam shaft position actuator solenoid valves and cam shaft position sensors and install the crankshaft balancer. Replace the Power Steering Pump with its pulley, followed by the power steering fluid reservoir, generator bracket with the generator and belt tensioner, a/c compressor and power steering belt tensioner, and accessory drive belts. Finally install the water outlet, reconnect the purge vent hose, fill the cooling system followed by reinstallation of the camshaft covers, intake manifold for llt or the upper and lower Intake Manifold lp1 and ly7 engines and then finally set the engine cover back up and fill the cooling system again.

Question 2

How to replace the engine front Timing Cover for RPOs LY6/L76/L92 on Cadillac Escalade?

Accepted Answer

To replace the engine front cover for rpos ly6/l76/l92, start by removing the Water Pump, crankshaft balancer, as well as disconnecting the engine harness electrical connecter from the camshaft position (CMP) sensor wire harness. Next, loosen the oil pan-to-front cover bolts, front cover bolts (501), and then remove the front cover (502) and gasket (503), and discard the old gasket. Take off the crankshaft front oil seal, and if the engine front cover is to be replaced, proceed to remove the cmp sensor wire harness bolts (738), disconnect the wire harness from the cmp sensor, and remove the cmp sensor wire harness (737) and cmp sensor (703). Alsoimitive recover the cmp actuator magnet bolts (751) & magnet (752) discarding the cmp actuator magnet gasket (753). For installation, be careful not to reuse the crankshaft oil seal or front cover gasket and use no sealant unless stated. Center the crankshaft front oil seal correctly to avoid premature wear or leaking. When replacing the front cover, install a new cmp actuator magnet gasket (753), the cmp actuator magnet (752) and the bolts (751) applying 12 n.m (106 lb in). Check for wear and tear and lubricate the cmp sensor o-ring seal (704) with clean engine oil and then install the cmp sensor (703). Mount the cmp sensor wire harness (737) to the front cover, take it to the cmp sensor, then take the wire harness bolts (738) and tighten them to 12 n.m (106 lb in). Apply 5 mm (0.20 in) bead of sealant to the oil pan-to-engine block junction, place a new engine front cover gasket- (503) and front cover (502) onto the engine, and tighten front cover bolts (501) and oil pan to the front cover bolts until tight. Apply the j 41476 front and rear cover alignment tool (J 41476) to align the front cover, install the crankshaft balancer bolt snugly. Lastly, tighten the oil pan to front cover bolts at 25 n.m (18 lb ft), tighten the engine front cover bolts at 25 n.m (18 lb ft), remove the j41476, connect the engine harness electrical connector back to cmp sensor wire harness, replace a new crankshaft front oil seal and install the Water Pump.

OEM Cadillac Timing Cover

45 Timing Covers found

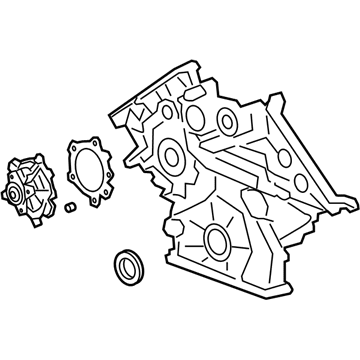

Cadillac Front Cover Part Number: 12698470

Cadillac Timing Cover Part Number: 93800970

Cadillac Front Cover, Upper Part Number: 55514491

Cadillac Water Pump, Front Part Number: 12693557

Cadillac Rear Cover Part Number: 12731559

Cadillac Front Cover Part Number: 12728654

Cadillac Thermostat Cover, Front Part Number: 55581013

Cadillac Timing Cover, Front Part Number: 12622483

Cadillac Front Cover Part Number: 12716029

Cadillac Rear Cover, Lower Part Number: 55515618

Cadillac Front Cover Part Number: 55512356

Cadillac Front Cover Part Number: 12623400

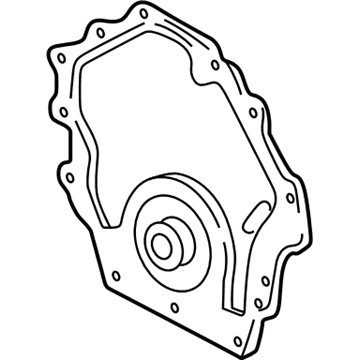

Cadillac Timing Cover Part Number: 12576050

Cadillac Timing Cover Part Number: 90572780

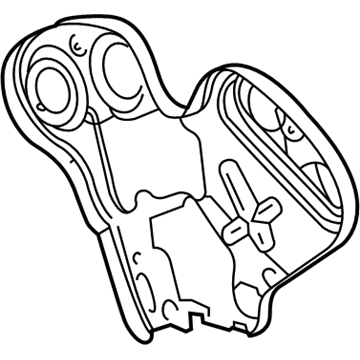

Cadillac Timing Cover, Front Part Number: 24449774

Cadillac Timing Cover Part Number: 12552427

Cadillac Timing Cover, Front Part Number: 14089019

Cadillac Timing Cover, Front Part Number: 3540170

Cadillac Timing Cover Part Number: 12523974

Cadillac Timing Cover, Front Part Number: 22525282
