How to replace the engine front timing cover on Cadillac STS?

To remove the engine front cover, one must first remove the engine cover, and for lp1 and ly7 engines, they also need to remove the upper Intake Manifold, and lower Intake Manifold but for llt engines, only remove the Intake Manifold. Next, take off the camshaft covers, drain the engine-cooling system, unhook the purge vent hose from the water outlet, and take off the water outlet and Radiator Hose. After that, remove the accessory drive belts, remove the A/C Compressor and power steering belt tensioner, and then remove the generator bracket with the generator and the belt tensioner without draining the a/c refrigerant or power steering pipes. Remove the power steering fluid reservoir, lift Power Steering Pump pulley, and then unscrew the Power Steering Pump upper front bolt and loosen others. After disconnecting the crankshaft balancer and the oil valves, remove the front cover of the engine with the Water Pump. Clean the sealing surfaces of the engine front cover nicely so that there are no contaminants running into the oil pan. Fit the engine front cover as required and use en 46109 to do so. Replace oil control valves, crankshaft balancer, power steering pump, and the Power Steering Pump pulley. Then reinstall the power steering fluid reserve, generator bracket with generator and belt tensioner, a/c compressor and power steering belt tensioner, and accessory drive belts. Install the water outlet and connect the purge vent hose and refill the cooling system. Lastly, fit the camshaft covers, intake manifold for llt engines or the upper and lower Intake Manifold for lp1 and ly7 engines, and engine cover and then refill the cooling system as well as changing the engine oil.

OEM Cadillac STS Timing Cover

Engine Timing Cover

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Timing Covers found

View related parts
Cadillac STS Timing Cover, Front Part Number: 12622483
$344.06 MSRP: $541.34
You Save: $197.28 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover, Engine Front Cover; Front Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2011 Cadillac STS | Base | 6 Cyl 3.6 L GAS
View related parts
Cadillac STS Timing Cover Part Number: 89017798
Product Specifications
- Other Name: Cover, Engine Front; Front Cover; Front Cover Seal; Cover, Engine Front Cover
- Position: Front
- Replaces: 89017529, 89017437
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Cadillac STS | Base, Platinum | 8 Cyl 4.6 L GAS
View related parts
Cadillac STS Timing Cover, Front Part Number: 12611883
$406.69 MSRP: $639.62
You Save: $232.93 (37%)
Product Specifications
- Other Name: Cover, Engine Front (W/Water Pump); Front Cover; Cover, Engine Front Cover
- Position: Front
- Replaces: 12608799
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac STS | Base, Platinum | 6 Cyl 3.6 L GAS
View related parts

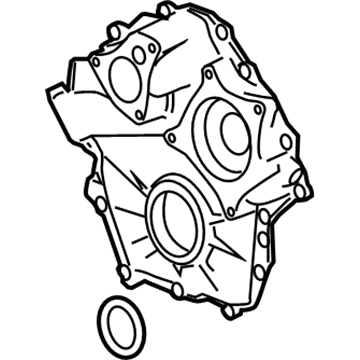

Cadillac STS Timing Cover Part Number: 89018044
Product Specifications
- Other Name: Cover Assembly, Engine Front; Front Cover; Front Cover Seal; Cover, Engine Front Cover
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Cadillac STS | V | 8 Cyl 4.4 L GAS
View related parts
Cadillac STS Timing Cover, Front Part Number: 12598349
Product Specifications
- Other Name: Cover Assembly-Engine Front (W/Water Pump); Front Cover; Cover, Engine Front Cover
- Position: Front
- Replaces: 12594059, 12587272
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Cadillac STS | Base | 6 Cyl 3.6 L GAS

Cadillac STS Timing Cover

Want to cut long-term maintenance and repair costs? Choose OEM Timing Cover. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac STS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac STS Timing Cover includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Cadillac STS Timing Cover can be described as a significant part that exemplifies the company's ethos revolving around dependability and speed. A Timing Cover is manufactured to shield the engine's timing mechanism, including a belt or a chain; the part is made of aluminum, plastic, or steel to provide the needed durability and safeguard the timing system against contaminants that may be damaging to other delicate parts of an engine. Beneficial for Cadillac STS brand new or used, this spare part maintains the efficiency and security of the car's engine. It is crucial to note that the Timing Cover may have gaskets that increase its protective functions, reinforcing the protective function of the engine's structure. One of the most important aspects that should be considered with reference to the Cadillac STS Timing Cover is its maintenance, any neglect of which may provoke emergence of different problems which have a negative impact on vehicle safety. The Cadillac STS is a remarkable car which has accustom to luxury design and modern technologies; with the latest model of car being an improvement of the previous one due to better engineering and enhanced performance components. The high-performance versions of the STS include models like the STS-V, stating the brand's promise of providing the prime driving experiences. Being an element of the Cadillac STS automobile, the Cadillac STS Timing Cover has significant defensive capacities in addition to its durability; these characteristics place it among the leaders in the automotive market as a protective cover that guarantees the STS's reliability as a luxury automobile. By paying attention to the Time Cover, Cadillac STS owners will be in a position to improve on the performance and safety of their cars hence supporting Cadillac's tradition of quality.

Cadillac STS Timing Cover Parts and Q&A

Timing Cover, Front
12611883
Q: How to replace the engine front timing cover on Cadillac STS?
A:
To remove the engine front cover, one must first remove the engine cover, and for lp1 and ly7 engines, they also need to remove the upper Intake Manifold, and lower Intake Manifold but for llt engines, only remove the Intake Manifold. Next, take off the camshaft covers, drain the engine-cooling system, unhook the purge vent hose from the water outlet, and take off the water outlet and Radiator Hose. After that, remove the accessory Drive Belts, remove the A/C Compressor and power steering belt tensioner, and then remove the generator bracket with the generator and the belt tensioner without draining the a/c refrigerant or power steering pipes. Remove the power steering fluid reservoir, lift Power Steering Pump pulley, and then unscrew the Power Steering Pump upper front bolt and loosen others. After disconnecting the crankshaft balancer and the oil valves, remove the front cover of the engine with the Water Pump. Clean the sealing surfaces of the engine front cover nicely so that there are no contaminants running into the oil pan. Fit the engine front cover as required and use en 46109 to do so. Replace oil control valves, crankshaft balancer, power steering pump, and the Power Steering Pump pulley. Then reinstall the power steering fluid reserve, generator bracket with generator and belt tensioner, a/c compressor and power steering belt tensioner, and accessory drive belts. Install the water outlet and connect the purge vent hose and refill the cooling system. Lastly, fit the camshaft covers, intake manifold for llt engines or the upper and lower Intake Manifold for lp1 and ly7 engines, and engine cover and then refill the cooling system as well as changing the engine oil.
