OEM Cadillac Oil Pan
Oil Drain Pan- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
87 Oil Pans found

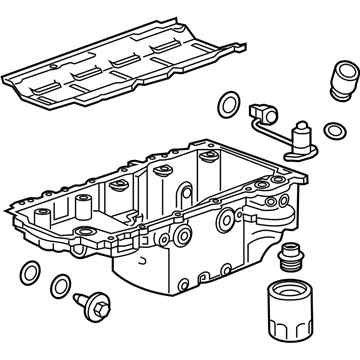

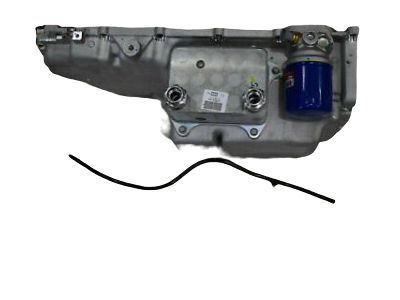

Cadillac Oil Pan Part Number: 12639931
$1682.69 MSRP: $2771.91You Save: $1089.22 (40%)Product Specifications- Other Name: Pan, Engine Oil
- Replaced by: 12732265

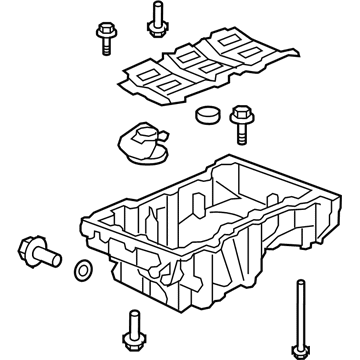

Cadillac Oil Pan Part Number: 12657496
$44.76 MSRP: $67.09You Save: $22.33 (34%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Pan, Engine Oil

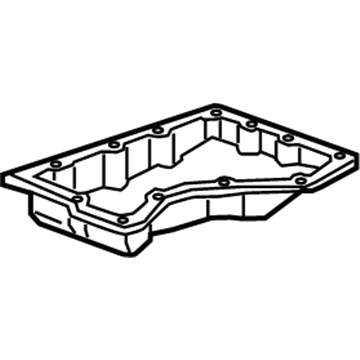

Cadillac Oil Pan Part Number: 12693973
$237.48 MSRP: $391.13You Save: $153.65 (40%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Upper Oil Pan
- Replaces: 12671426, 12677474, 12679236

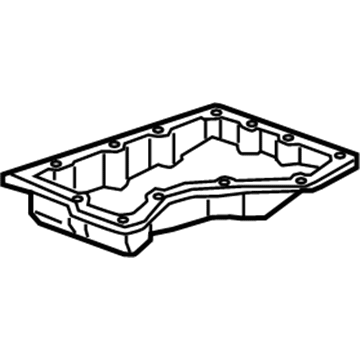

Cadillac Oil Pan Part Number: 12673902
$25.30 MSRP: $40.18You Save: $14.88 (38%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Lower Oil Pan
- Position: Lower
- Replaces: 12666876

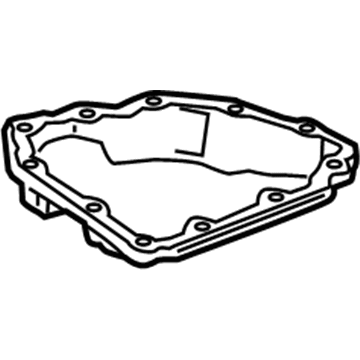

Cadillac Oil Pan Part Number: 12643620
$56.87 MSRP: $89.09You Save: $32.22 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Lower Oil Pan
- Position: Lower

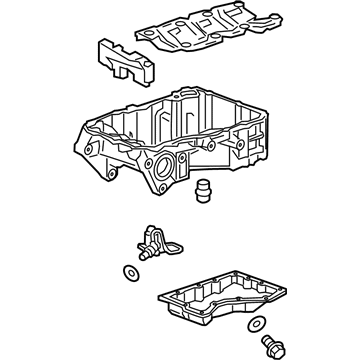

Cadillac Oil Pan Part Number: 12688962
$213.42 MSRP: $338.85You Save: $125.43 (38%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Upper Oil Pan
- Replaces: 12679348, 12671423

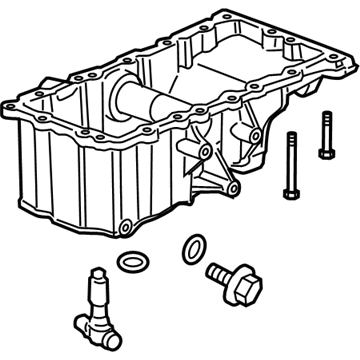

Cadillac Oil Pan Part Number: 12612258
$206.54 MSRP: $324.99You Save: $118.45 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil
- Replaces: 12603137
Cadillac Oil Pan Part Number: 12671425
$245.38 MSRP: $386.09You Save: $140.71 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Upper Oil Pan
- Replaced by: 12693506

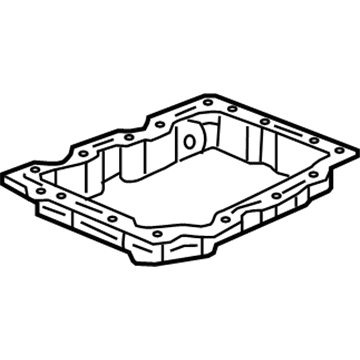

Cadillac Lower Oil Pan Part Number: 12642187
$47.99 MSRP: $76.17You Save: $28.18 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Oil Pan
- Position: Lower
Cadillac Oil Pan Part Number: 12651559
$226.61 MSRP: $356.56You Save: $129.95 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil

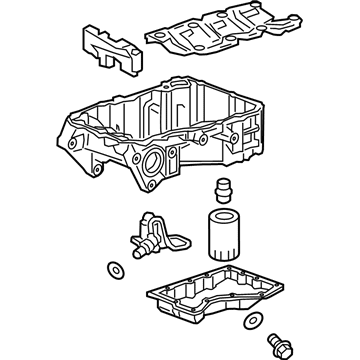

Cadillac Oil Pan Part Number: 12679238
$236.66 MSRP: $389.78You Save: $153.12 (40%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Upper Oil Pan
- Replaced by: 12693972
Cadillac Oil Pan Part Number: 12716570
$337.05 MSRP: $555.23You Save: $218.18 (40%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Pan Assembly-Oil (W/Engine Oil Level Sensor); Pan, Engine Oil
- Replaces: 12656995

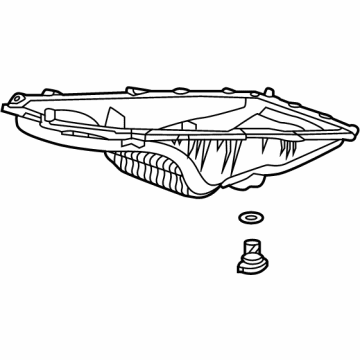

Cadillac Oil Pan Part Number: 12717171
$32.74 MSRP: $51.27You Save: $18.53 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil
- Position: Lower
- Replaces: 55511564

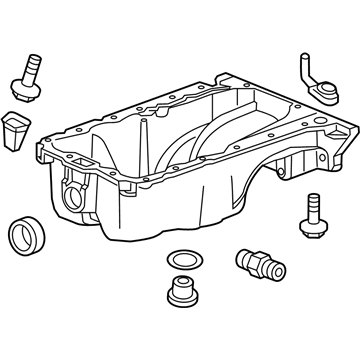

Cadillac Oil Pan Part Number: 55573108
$673.30 MSRP: $1109.15You Save: $435.85 (40%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil
- Replaces: 55568940

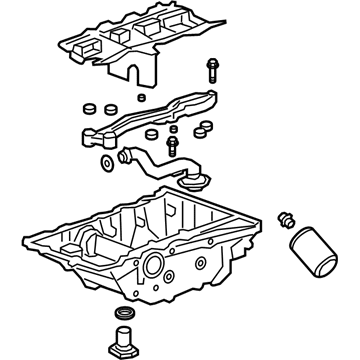

Cadillac Oil Pan Part Number: 12700106
$702.30 MSRP: $1156.66You Save: $454.36 (40%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil
- Replaces: 12693651
Cadillac Oil Pan Part Number: 12666372
$219.77 MSRP: $348.80You Save: $129.03 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil

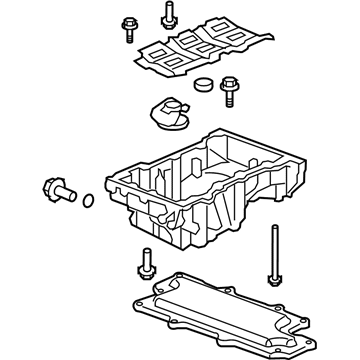

Cadillac Oil Pan Part Number: 12648929
$226.13 MSRP: $372.36You Save: $146.23 (40%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil
- Replaces: 12636677, 12596502, 12641017
Cadillac Oil Pan Part Number: 12658512
$104.33 MSRP: $171.86You Save: $67.53 (40%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Pan, Engine Oil; Upper Oil Pan
- Position: Upper
- Replaces: 12639937
Cadillac Oil Pan Part Number: 12670438
$312.67 MSRP: $491.97You Save: $179.30 (37%)Product Specifications- Other Name: Pan Assembly-Oil (W/Engine Oil Level Sensor); Pan, Engine Oil
- Replaces: 12653541, 12656111

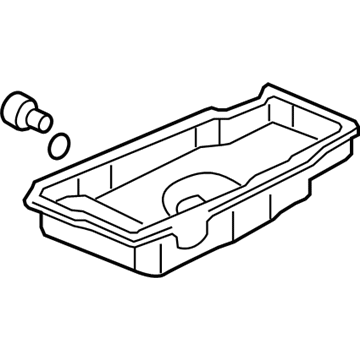

Cadillac Oil Pan Part Number: 12603135
$408.09 MSRP: $642.10You Save: $234.01 (37%)Product Specifications- Other Name: Pan, Engine Oil
| Page 1 of 5 |Next >
1-20 of 87 Results
Cadillac Oil Pan
Choose OEM Oil Pan, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Oil Pan. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.
Cadillac Oil Pan is the oil that is standing by when needed to reduce friction and heat on every drive. Cadillac vehicles are based on an extensive tradition of assuredness of power, crisp style, and cabin finish that transform routine drives into performance. Cadillac began in the year 1902 and has continued to amaze drivers with smooth V engines and sharp steering and dashboards that present clear information to the eyes rather than messy data. Cadillac pamper seats, hush glass, and easy touch screens in its sedans and SUVs so that you remain calm when traffic is an inch away. The brand also is going electric, and launching the dramatic Celestiq demonstrates that being luxurious does not mean losing the drama when operating on battery power. All of the models share the promise of fast reaction, pure comfort, and an appearance that never whispers. Drivers have the feeling that they are in real confidence as the chassis feels grounded and the powertrain responds to the impulse. Oil Pan is positioned at the engine bottom as an emergency supply, which by the conclusion of the lap would absorb the slick fluid. On spinning the crank, the pump draws the Oil Pan by a pickup tube that sprays the oil upon the bearings and cylinder walls to cut off wear. When the liquid subsides back down to the Oil Pan, air under the car carries away heat and so the lubricant comes back cooler thus capable of again protecting the metal. The older rides were built with stamped steel and many of the cast aluminum in the newer models are becoming dent-resistant and temperature-resistant without the addition of extra weight.
Cadillac Oil Pan Parts and Q&A
- Q: How to remove and install an oil pan in 5.7L,6.0L,6.2L V8 engine on Cadillac CTS?A:To remove the oil pan, first disconnect the cable from the negative battery terminal. Raise the vehicle securely on jackstands, drain the engine oil, and remove the oil filter, followed by the air filter housing and air intake resonator. Disconnect the front exhaust Y pipe from the engine and exhaust system, although this is not strictly necessary, it aids in the oil pan removal. Remove the starter motor and the plastic covers on each side of the bellhousing. Detach any wiring harness brackets connected to the oil pan and those securing the transmission oil cooler lines, if equipped, and disconnect the electrical connector from the oil level sensor located on the right side of the oil pan. Attach a support fixture to the engine and raise it slightly to allow for the removal of the engine mount through-bolts or the engine mount-to-subframe bolts. Lift the engine approximately 1/2-inch, ensuring no upper engine components or wiring harnesses are obstructing. Unbolt the shock absorbers from the lower control arms and loosen the steering shaft coupler from the steering gear, then loosen the front suspension subframe bolts four to five turns to create clearance for the oil pan removal, taking care not to loosen them more than five turns without proper support. Remove the transmission-to-oil pan bolts, and if equipped, take out the engine oil cooler lines and adapter from the driver's side of the oil pan. Remove any access plugs covering the nuts at the rear of the oil pan, then take out all the oil pan bolts and lower the oil pan from the engine, using a rubber mallet if necessary to break the gasket seal. For installation, remove the old gasket and wash the oil pan with solvent, then clean the mounting surfaces of the oil pan and engine block thoroughly. Apply a 0.2 inch (5 mm) wide bead of RTV sealant to the corners of the block where the front and rear covers meet the engine block, attach the new gasket to the oil pan, install it, and tighten the bolts lightly, ensuring proper alignment of the oil gallery passages. Measure the clearance between the rear face of the aluminum oil pan and the front face of the transmission bellhousing, ensuring it is flush, and if acceptable, tighten the oil pan bolts/studs in sequence to the specified torque. If not, install the two lower oil pan-to-bellhousing bolts and tighten them finger tight to draw the oil pan flush. Finally, complete the installation in reverse order, refill the engine oil, start the engine, and check for leaks before driving.
- Q: How to remove and install the oil pan in V8 engine on Cadillac Escalade?A:To remove the oil pan, first disconnect the cable from the negative terminal of the battery, then remove the oil dipstick tube. Raise the vehicle securely on jackstands, drain the engine oil, and remove the oil filter. If equipped, take off the oil pan skid plate. For 5.3L and 6.2L models, remove the electric steering gear assembly, and for 4WD vehicles, remove the front differential carrier. Next, take off the transmission bellhousing covers from the rear of the engine block, remove the crossmember bar support bolts and bar, and then remove the lower transmission-to-engine bolts, which vary by transmission model but all screw into the oil pan. Disconnect the wiring from the engine oil level sensor and the wiring harness retainers from the oil pan, as well as the oil cooler lines on models with automatic transmissions. Remove all oil pan bolts, then lower the pan from the engine, using a rubber mallet if necessary to break the gasket seal. For installation on 6.0L models, drill out the rivets securing the old oil pan gasket and clean the oil pan with solvent. Clean the mounting surfaces of the oil pan and engine block, then apply a bead of RTV sealant to the corners where the front and rear covers meet the engine block. Attach the new gasket to the pan, install the pan, and tighten the bolts finger-tight, ensuring proper alignment of the oil gallery passages. Install all oil pan mounting bolts snugly, followed by the lower transmission mounting bolts, and then tighten the oil pan and transmission bolts to the specified torque. The remainder of the installation follows the reverse order of removal. Finally, add the correct type and quantity of oil, start the engine, and check for leaks before returning the vehicle to service.
