Question 1

How to replace the wheel axle shaft on Cadillac CTS?

Accepted Answer

The procedure of replacing a wheel drive shaft requires users to first lift their vehicle before removing the tire assembly. A drift or punch tool should go inside the brake rotor to stop Wheel Hub and bearing movement. Discard the wheel drive shaft Spindle Nut since its reuse is not allowed and remove it before moving ahead. The drift or punch action should be taken off before proceeding with the removal of the rear knuckle assembly. Use a recommended tool to detach the wheel drive shaft from the rear Differential portion just enough to place the j44394 seal protector (J44394). Place the j44394 over the wheel drive shaft than install it into the Differential output shaft seal before wheel drive shaft removal to protect the seal from damage. Climb into the vehicle to remove the wheel drive shaft keeping the retaining ring on the splined shaft of the cross groove joint unless replacing it with a new one. To install first place the new wheel drive shaft retaining ring and subsequently insert the j44394 into the Differential output shaft seal if this component was removed previously. Insert the wheel drive shaft into the Differential until its splines extend beyond the j44394 while confirming that the retaining ring remains upright. Prevent lubricant leaks by handling the oil seal gently to avoid damage because changing it may be needed. First replace the wheel drive shaft with the retaining ring in position before inserting the wheels drive shaft until the ring becomes engaged. A pull on the inner housing part should exhibit full engagement of the retaining ring. Install the rear knuckle and tighten the new wheel drive shaft Spindle Nut only loosely. Drive a drift or punch through the brake rotor to stop caliper movement and use the new Spindle Nut to reach the Wheel Hub and bearing assembly by pulling down the spindle before tightening it to 160 nm (118 ft. Lbs.). Afterwards install the tire and wheel assembly while checking the Differential lubricant level then lower the vehicle down.

Question 2

How to replace the rear axle shaft on Cadillac Escalade?

Accepted Answer

The first stage to replace the rear Axle Shaft requires the driver to lift the vehicle before removing tire and wheel components. The procedure starts with releasing the brake caliper mounting bracket along with the rear Wheel Speed Sensor. Perform the sequence of steps which begins with removing the gasket alongside the rear axle housing cover then continue with the pinion shaft locking bolt. Owners must remove the pinion shaft completely from axles without a locking differential but should only partially remove it from locking differential axles before rotating the case until the pinion shaft contacts the housing. The screwdriver serves to turn the c-lock while it approaches the thrust block alignment configuration and afterward push the Axle Shaft flange toward the differential until the c-lock releases from the Axle Shaft's button where the shaft remains untwisted to maintain proper alignment. The j 2619-01 (slide hammer) alongside the j 45859 (remover/installer) should be used for axle shafts which prove difficult to extract. Insert the Axle Shaft into the rear axle housing while it enters the differential side gear splines properly. To install lock type axles set the c-lock onto the button end of the shaft whereas lock type axles should position the pinion shaft partially out with c-lock flat against the thrust block before insertion into the differential gear. Attach the pinion shaft through its hole until it lines up with the differential case bolt hole before installing a new locking pinion bolt that needs a torque of 36 nm (27 lb ft) for 8.6-inch axle installation or 50 nm (37 lb ft) for 9.5 ld-inch axle tightening. After securing the rear Wheel Speed Sensor reattach the brake caliper mounting bracket then the rear axle housing cover together with its gasket. The last step consists of reattaching the tire along with wheel assembly followed by adding proper lubricant to the rear axle and lowering the vehicle.

OEM Cadillac Axle Shaft

280 Axle Shafts found

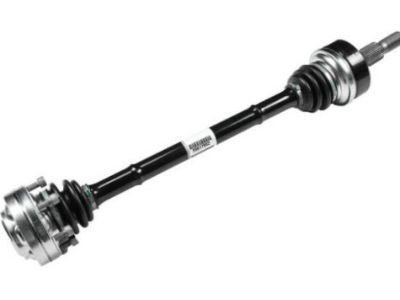

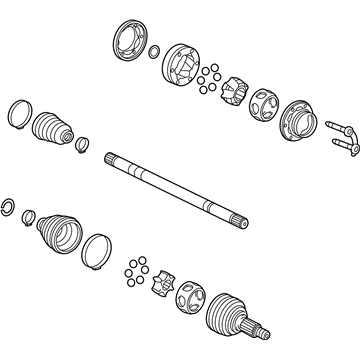

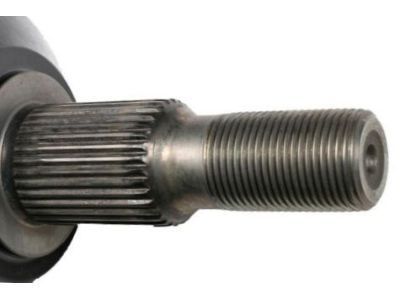

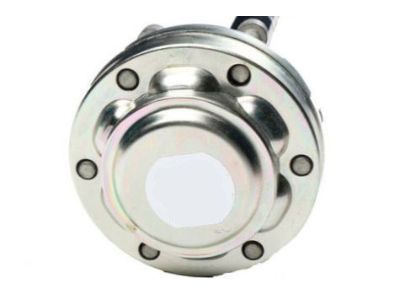

Cadillac Axle Assembly, Rear Passenger Side Part Number: 20817952

Cadillac Axle Assembly, Rear Driver Side Part Number: 84550225

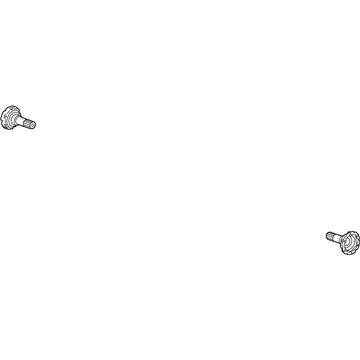

Cadillac Output Shaft, Rear Passenger Side Part Number: 23154589

Cadillac Output Shaft, Rear Driver Side Part Number: 23154590

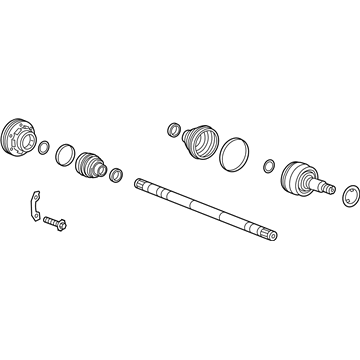

Cadillac Axle Assembly, Rear Passenger Side Part Number: 84550230

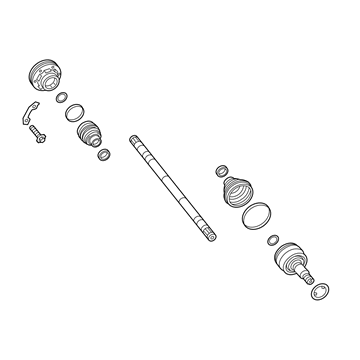

Cadillac Axle Assembly, Rear Passenger Side Part Number: 23401013

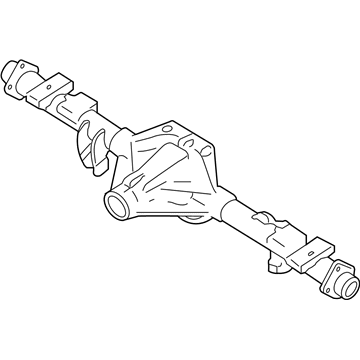

Cadillac Axle Housing, Rear Part Number: 22968246

Cadillac Axle Housing, Rear Part Number: 22968252

Cadillac Axle Housing, Rear Part Number: 22968251

Cadillac Axle Assembly, Rear Driver Side Part Number: 20817951

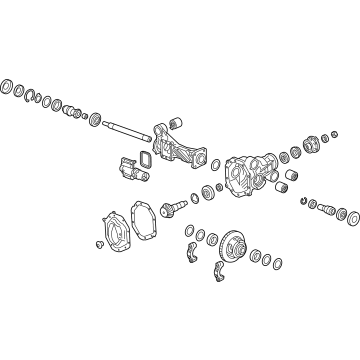

Cadillac Axle Assembly, Front Part Number: 84865593

Cadillac Axle Assembly, Front Part Number: 84865594

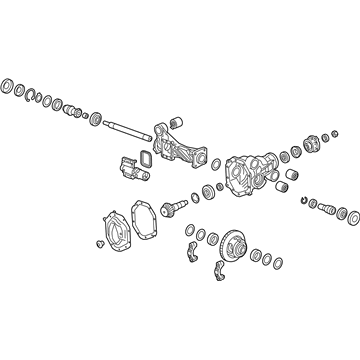

Cadillac Differential Assembly, Front Part Number: 87836729

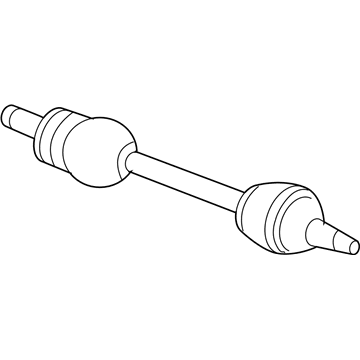

Cadillac Axle Assembly Part Number: 89060311

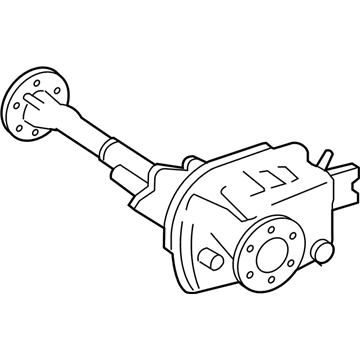

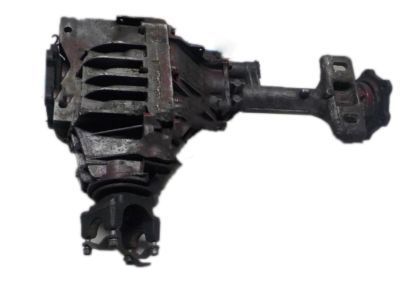

Cadillac Differential Assembly, Front Part Number: 23312174

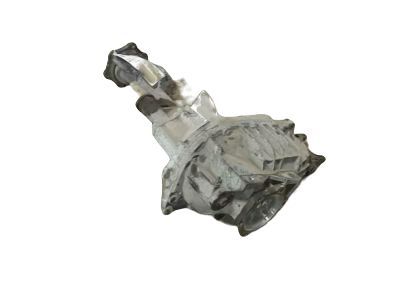

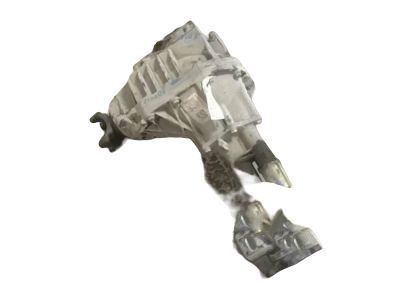

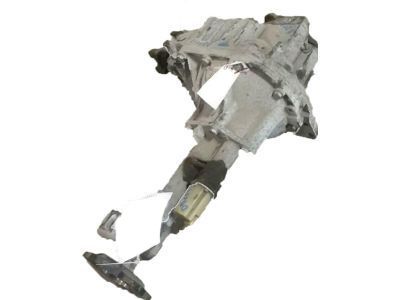

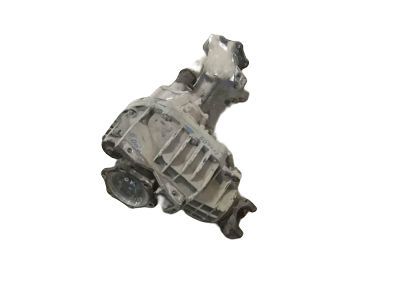

Cadillac Differential Assembly, Front Part Number: 23312177

Cadillac Axle Assembly, Front Part Number: 85524479

Cadillac Axle Shafts, Rear Part Number: 12380993

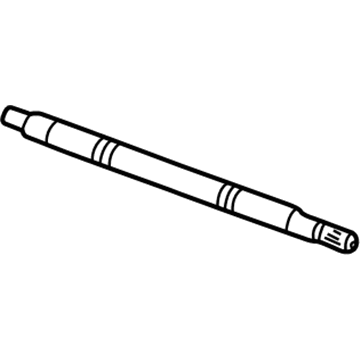

Cadillac Axle Shaft, Front Part Number: 26056795

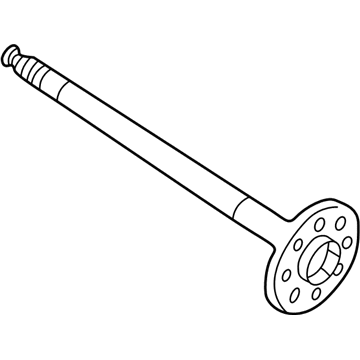

Cadillac Axle Shaft, Rear Part Number: 26010417

Cadillac Axle Shaft
