260 Fan Shrouds found

View related parts
Chevrolet Lower Shroud Part Number: 15560556
$33.07 MSRP: $119.53
You Save: $86.46 (73%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Shroud; Fan Shroud
- Position: Lower
Fits the following Chevrolet Models:
- S10 | 1985-1993 | Base, Durango, EL, Sport, Tahoe | 4 Cyl 2.5 L GAS
- S10 Blazer | 1985-1988 | Base, High Country, Sport, Tahoe | 4 Cyl 2.5 L GAS
View related parts
Chevrolet Lower Shroud Part Number: 15593186
$25.94 MSRP: $48.71
You Save: $22.77 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Shroud; Fan Shroud
- Position: Lower
Fits the following Chevrolet Models:
- C1500 | 1988-1993 | Cheyenne, Scottsdale, Silverado, WT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- C2500 | 1988-1993 | Cheyenne, Scottsdale, Silverado | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- C3500 | 1988-1993 | Cheyenne, Scottsdale, Silverado | 8 Cyl 5.7 L GAS
- K1500 | 1988-1993 | Cheyenne, Scottsdale, Silverado, Sport, WT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- K2500 | 1988-1993 | Cheyenne, Scottsdale, Silverado | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- K3500 | 1988-1993 | Cheyenne, Scottsdale, Silverado | 8 Cyl 5.7 L GAS
View More
View related parts

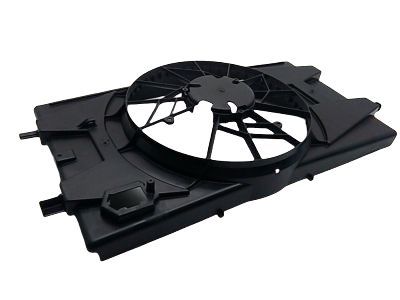

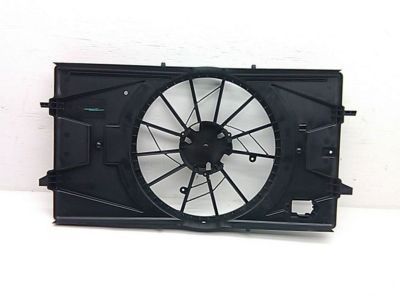

Chevrolet Shroud Part Number: 15849632
$124.07 MSRP: $263.11
You Save: $139.04 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Kit, Radiator Fan Shroud; Fan Shroud
- Replaces: 22731541
Fits the following Chevrolet Models:
- Cobalt | 2005-2007 | Base, LS, LT, LTZ | 4 Cyl 2.2 L GAS
View related parts
Chevrolet Fan Shroud, Rear Part Number: 23123635
$125.49 MSRP: $247.47
You Save: $121.98 (50%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Rear; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly; Shroud, Radiator Fan Shroud
- Position: Rear
Fits the following Chevrolet Models:
- Silverado 1500 | 2014-2018 | Custom, High Country, LS, LT, LTZ, SSV, WT | 6 Cyl 4.3 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
- Silverado 1500 LD | 2019 | Custom, LT, WT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Suburban | 2015-2020 | LS, LT, LTZ, Premier | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Tahoe | 2015-2020 | LS, LT, LTZ, PPV, Premier, SSV | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts
Chevrolet Fan Shroud Part Number: 15117016
$73.98 MSRP: $144.65
You Save: $70.67 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Assembly-Engine Coolant Fan
Fits the following Chevrolet Models:
- Colorado | 2004-2012 | Base, LS, LT, Sport, Sport LS, WT, Z71, Z71 LS, Z85, Z85 LS | 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts
Chevrolet Lower Shroud Part Number: 15228379
$81.60 MSRP: $155.65
You Save: $74.05 (48%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Fan Shroud
- Position: Lower
Fits the following Chevrolet Models:
- Express 2500 | 2006-2016 | Base, LS, LT | 8 Cyl 6.6 L DIESEL
- Express 3500 | 2006-2016 | Base, LS, LT | 8 Cyl 6.6 L DIESEL
View related parts
Chevrolet Fan Shroud Part Number: 89018697
$159.42 MSRP: $304.10
You Save: $144.68 (48%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Kit, Engine Electrical Coolant Fan; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly; Shroud; Shroud Kit, Radiator Fan Shroud
Fits the following Chevrolet Models:
- Impala | 2006-2013 | 50th Anniversary Edition, LS, LT, LTZ, Police, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
- Impala Limited | 2014-2016 | LS, LT, LTZ, Police | 6 Cyl 3.6 L FLEX
- Monte Carlo | 2006-2007 | LS, LT, LTZ, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts

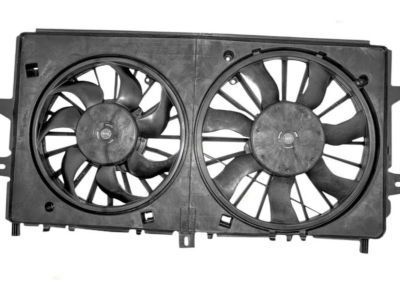

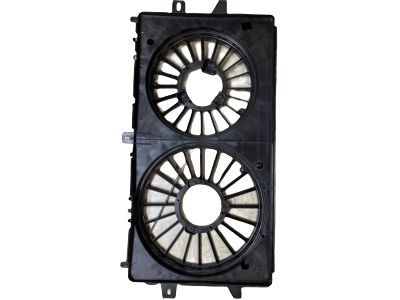

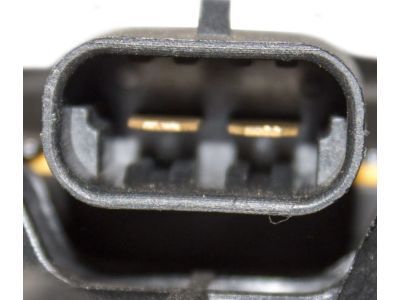

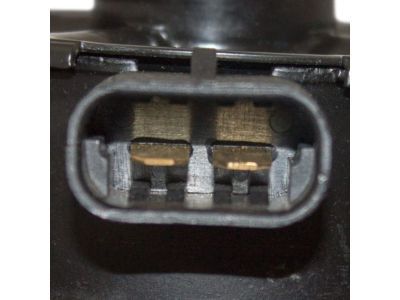

Chevrolet Fan Shroud Part Number: 89018694
$168.97 MSRP: $322.31
You Save: $153.34 (48%)
ADD TO CART
Product Specifications
- Other Name: Shroud Kit, Engine Electrical Coolant Fan; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly; Shroud; Shroud Kit, Radiator Fan Shroud
Fits the following Chevrolet Models:
- Impala | 2009-2011 | LS, LT, LTZ | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L FLEX
View related parts
Chevrolet Fan Shroud Part Number: 15780789
$224.71 MSRP: $424.99
You Save: $200.28 (48%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Kit, Radiator Fan Shroud; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly; Shroud
Fits the following Chevrolet Models:
- Avalanche | 2007-2013 | Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 | 2007-2013 | Hybrid, LS, LT, LTZ, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
- Silverado 2500 HD | 2007-2010 | LT, LTZ, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Silverado 3500 HD | 2007-2010 | LT, LTZ, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Suburban 1500 | 2007-2014 | LS, LT, LTZ | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Suburban 2500 | 2007-2013 | LS, LT, LTZ | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Tahoe | 2007-2014 | LS, LT, LTZ, PPV, SSV | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts
Chevrolet Fan & Motor Part Number: 19130418
$318.47 MSRP: $584.75
You Save: $266.28 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Assembly, Engine Coolant Fan; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly
- Replaces: 10435233, 89022511
Fits the following Chevrolet Models:
- Impala | 2000-2003 | Base, LS, LS Sport, Police | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

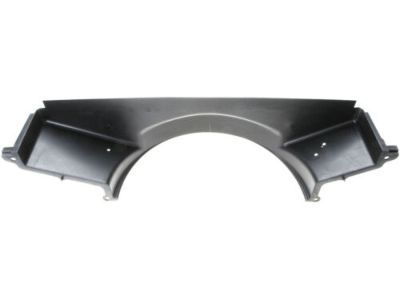

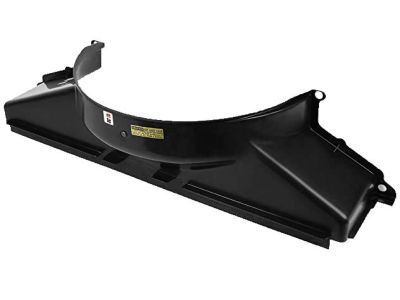

Chevrolet Lower Shroud Part Number: 25835451
$69.34 MSRP: $108.60
You Save: $39.26 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Lower; Fan Shroud; Shroud, Radiator Fan Shroud
- Position: Lower
- Replaces: 15765441, 15067754, 15267486
Fits the following Chevrolet Models:
- Silverado 1500 | 2003-2007 | LS, LT, LTZ, SS, Z71 Off-Road | 8 Cyl 6.0 L GAS
- Silverado 1500 Classic | 2007 | LT, SS | 8 Cyl 6.0 L GAS
- Silverado 1500 HD | 2005-2006, 2001-2003 | Base, LS, LT | 8 Cyl 6.0 L GAS
- Silverado 1500 HD Classic | 2007 | LT | 8 Cyl 6.0 L GAS
- Silverado 2500 | 1999-2004 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Silverado 2500 HD | 2001-2010 | Base, LS, LT, LTZ, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Silverado 2500 HD Classic | 2007 | LS, LT, WT | 8 Cyl 6.0 L GAS
- Silverado 3500 | 2001-2006 | Base, LS, LT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Silverado 3500 Classic | 2007 | LS, LT, WT | 8 Cyl 6.0 L GAS
- Silverado 3500 HD | 2007-2010 | LT, LTZ, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View More
View related parts

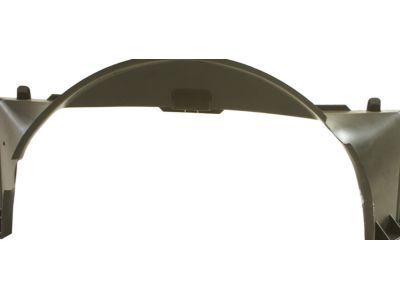

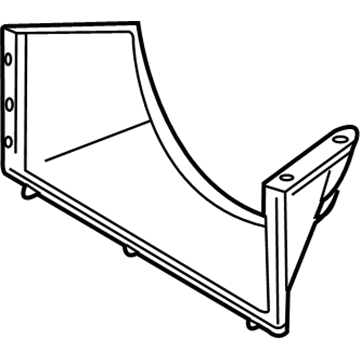

Chevrolet Lower Shroud Part Number: 15736666
$79.87 MSRP: $125.10
You Save: $45.23 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Fan Shroud
- Position: Lower
- Replaces: 15731696, 15708284
Fits the following Chevrolet Models:
- Blazer | 1995-2005 | Base, LS, LT, Trailblazer, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
- S10 | 1994-2004 | Base, LS, SS, Xtreme, ZR2, ZR5 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Fan Shroud, Rear Part Number: 23390829
$133.36 MSRP: $208.69
You Save: $75.33 (37%)
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Rear; Shroud, Radiator Fan Shroud
- Position: Rear
- Replaces: 23445428
Fits the following Chevrolet Models:
- Suburban | 2018-2020 | LS, LT, Premier | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Suburban 3500 HD | 2016-2019 | LS, LT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Tahoe | 2018-2020, 2015 | LS, LT, LTZ, PPV, Premier, SSV | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts
Chevrolet Fan Shroud, Lower Part Number: 22739141
$116.39 MSRP: $173.99
You Save: $57.60 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Lower; Lower Shroud; Shroud, Radiator Fan Shroud
- Position: Lower
- Replaces: 25855351
Fits the following Chevrolet Models:
- Silverado 2500 HD | 2011-2019 | High Country, LT, LTZ, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Silverado 3500 HD | 2011-2019 | High Country, LT, LTZ, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Fan Shroud Part Number: 15751221
$119.75 MSRP: $179.00
You Save: $59.25 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Lower Shroud
Fits the following Chevrolet Models:
- Express 1500 | 2008-2014 | Base, LS, LT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Express 2500 | 2003-2020 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Express 3500 | 2003-2020 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

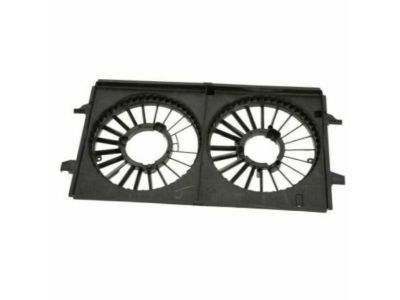

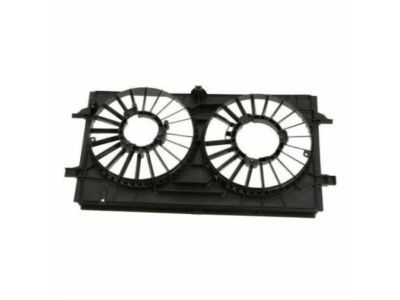

Chevrolet Fan Shroud Part Number: 20757667
$121.45 MSRP: $181.54
You Save: $60.09 (34%)
ADD TO CART
Product Specifications
- Other Name: Shroud Kit, Radiator Fan Shroud; Dual Radiator and Condenser Fan Assembly; Radiator Fan Assembly; Cooling Fan Assembly; Fan Assembly
Fits the following Chevrolet Models:
- Malibu | 2007-2012 | Classic LS, Classic LT, LS, LT, LTZ, Maxx LS, Maxx LT, Maxx LTZ, Maxx SS, SS | 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L GAS, 6 Cyl 3.9 L GAS
View related parts
Chevrolet Fan Shroud, Upper Part Number: 25868538
$125.75 MSRP: $187.95
You Save: $62.20 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud Assembly-Engine Coolant Fan Upper; Upper Shroud; Shroud, Radiator Fan Shroud
- Position: Upper
- Replaces: 15751225, 25758047
Fits the following Chevrolet Models:
- Express 1500 | 2008-2014 | Base, LS, LT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Express 2500 | 2003-2020 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Express 3500 | 2003-2020 | Base, LS, LT | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

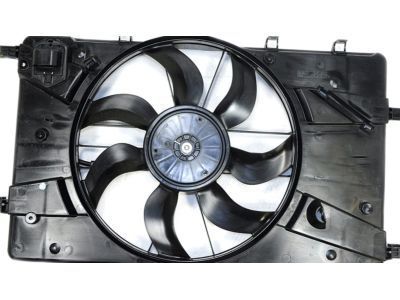

Chevrolet Fan Shroud Part Number: 13289627
$137.87 MSRP: $206.08
You Save: $68.21 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly
Fits the following Chevrolet Models:
- Cruze | 2011-2016 | Eco, L, LS, LT, LTZ, Premier | 4 Cyl 1.4 L GAS, 4 Cyl 1.8 L FLEX, 4 Cyl 1.8 L GAS
- Cruze Limited | 2016 | Eco, L, LS, LT, LTZ | 4 Cyl 1.4 L GAS, 4 Cyl 1.8 L FLEX, 4 Cyl 1.8 L GAS
View related parts

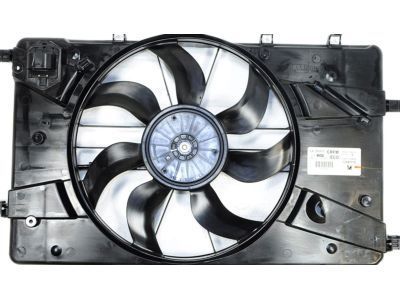

Chevrolet Fan Shroud Part Number: 13360890
$154.62 MSRP: $231.12
You Save: $76.50 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shroud, Radiator Fan Shroud; Dual Radiator and Condenser Fan Assembly; Cooling Fan Assembly
Fits the following Chevrolet Models:
- Cruze | 2011-2014 | Eco, LS, LT, LTZ | 4 Cyl 1.4 L GAS, 4 Cyl 1.8 L FLEX, 4 Cyl 1.8 L GAS
View related parts
Chevrolet Lower Shroud Part Number: 94756646
$165.62 MSRP: $247.55
You Save: $81.93 (34%)
ADD TO CART
Product Specifications
- Other Name: Shroud-Engine Coolant Fan Lower; Fan Shroud; Shroud, Radiator Fan Shroud
- Position: Lower
Fits the following Chevrolet Models:
- Colorado | 2016-2022 | LT, Z71, ZR2 | 4 Cyl 2.8 L DIESEL

| Page 1 of 13 |Next >

1-20 of 260 Results

Chevrolet Fan Shroud

Choose OEM Fan Shroud, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Chevrolet's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Chevrolet Fan Shroud. You can shop at highly competitive prices and protect your budget. All our genuine Chevrolet parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

The Chevrolet Fan Shroud channels the engine airflow to maintain the temperatures at a constant and the ride non-concerned. Since 1911 Chevrolet has driven motoring to the future with its combination of day-to-day utility and assertive style. Since the agile small cars, Chevy provides your bodies with real life fit rather than fantasy brains. The attraction to the lineup is the fact that power is accompanied by the easy to drive cabin and playful technology that will never get in their way. New models such as Super Cruise demonstrate Chevy not resting on its laurels, but offering substantial support and not empty gimmicks. Weekend getaways, workweek rides, unplanned digressions, the badge is always a constant companion to every schedule. Chevrolet is loyal to its commitments by ensuring that maintenance is simple and that components are readily available all over the world. Change the point of focus to the cooling bay where the Fan Shroud would be a silent custodian of combustion sanity. By completely enveloping the fan blades, it directs the air through the radiator rather than swirling in circles to no avail. That aimed discharge deprives coolant of heat more quickly, keeps the needle below the red and prevents the loss of stray tools or loose gravel against spinning fins. The Fan Shroud keeps the airflow in check in summer traffic when the engine is idling such that temperature creep never has a runaway. Since all Chevy models have the same fundamental requirement of consistent thermal control, the component crosses across the models without much effort.

Chevrolet Fan Shroud Parts and Q&A

Fan Shroud
15132136
Q: How to replace the fan shroud on Chevrolet Colorado?
A:
Start replacement of the Fan Shroud by removing the Radiator Hose-outlet and then detachment of the Fan Shroud slip ring retaining clip before removing the transmission oil cooler lines that rest on the Fan Shroud retainer. The slip ring must be rotated from underneath the Fan Shroud before you uninstall the bolts from the Fan Shroud. Place the Fan Shroud on position on the vehicle before installing bolts while torquing them to 9 nm (80 inch lbs.). Start by placing the transmission oil cooler lines onto the Fan Shroud retainer then rotate the slip ring to its proper position. After that, install the retaining clip to the Fan Shroud. Lastly, put back the Radiator Hose-outlet.
Upper Shroud
15133506
Q: How to Properly Service and Repair the Fan Shroud on Chevrolet S10?
A:
The first step to replace the Fan Shroud involves air intake duct assembly removal from the 2.2l vehicle by unclamping air ducts and removing air duct rivets until the intake duct assembly can be extracted from the Fan Shroud. Start by removing the upper Fan Shroud screws followed by detaching the coolant recovery reservoir hose from the lower Fan Shroud after which you can lift the lower Fan Shroud until the locating tabs release from the Radiator then take it off the vehicle. To install insert the lower Fan Shroud to the Radiator and apply pressure through the Fan Shroud tabs to set them inside the Radiator. The upper Fan Shroud should be installed through its attaching screws which need to be tightened to 10 nm (89 inch lbs.). The vehicle needs its coolant recovery reservoir hose attaching to the lower Fan Shroud while customers with 2.2l engines must install the air intake duct assembly through Fan Shroud air duct clamp loosening followed by air duct rivets removal then intake duct assembly retrieval from the shroud and finally duct installation and air duct clamp tightening of 5 nm (44 inch lbs.) before rivet refit.
