OEM Chevrolet Impala Fan Shroud
Radiator Fan Shroud- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
15 Fan Shrouds found

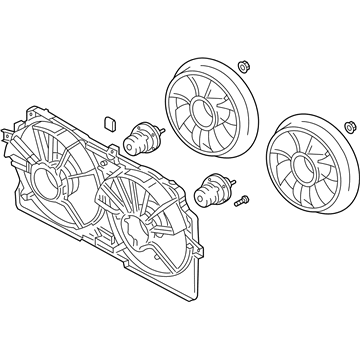

Chevrolet Impala Fan & Motor Part Number: 19130418
$318.47 MSRP: $584.75You Save: $266.28 (46%)Ships in 1-2 Business Days
Chevrolet Impala Fan Shroud Part Number: 89018697
$159.42 MSRP: $304.10You Save: $144.68 (48%)Ships in 1-3 Business Days
Chevrolet Impala Fan Shroud Part Number: 23131503
$297.71 MSRP: $445.01You Save: $147.30 (34%)Ships in 1-3 Business Days
Chevrolet Impala Fan Shroud Part Number: 22747159
$305.45 MSRP: $456.58You Save: $151.13 (34%)Ships in 1-3 Business Days
Chevrolet Impala Fan Shroud Part Number: 20970655
$311.90 MSRP: $466.22You Save: $154.32 (34%)Ships in 1-3 Business Days
Chevrolet Impala Fan Shroud Part Number: 89019107
Chevrolet Impala Fan Shroud Part Number: 89018694
Chevrolet Impala Lower Shroud Part Number: 10260565
Chevrolet Impala Fan Shroud Part Number: 89018447
Chevrolet Impala Lower Shroud Part Number: 14010526
Chevrolet Impala Lower Shroud Part Number: 14010508
Chevrolet Impala Shroud Part Number: 10065719
Chevrolet Impala Shroud Part Number: 10065718
Chevrolet Impala Fan & Motor Part Number: 19130419
Chevrolet Impala Upper Shroud Part Number: 10281083
Chevrolet Impala Fan Shroud
Want to cut long-term maintenance and repair costs? Choose OEM Fan Shroud. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Impala parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Impala Fan Shroud includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
A Chevrolet Impala Fan Shroud is an essential part that helps a lot in increasing the effectiveness together with the performance of the Impala's cooling system. The Fan Shroud wraps around the cooling fan blades for improving the airflow specifically towards the engine; the engine has to be at an optimal working temperature for it to properly perform and then to run for a long time. This component also shields the fan from dust thus promoting the protection of the cooling system from wearing out. Years passed and designs of the Chevrolet Impala models have different styles of Fan Shroud not only to address the cooling needs but in the process serves the primary purpose of enhancing the cooling factor. Taking the Chevrolet Impala Fan Shroud into consideration one can point out the fact that the automotive market has highly benefited from the advancement in the field of automotive engineering. It can be used on different generations of the Chevrolet Impala, which optimizes it between race car drivers and regular people. Thus, the Fan Shroud can be regarded not only as a purely functional part of the car: it ensures vehicle safety by avoiding overheating and subsequent damage to the engine. Being one of Chevrolet Impala's essential parts in its engineering, the Chevrolet Impala Fan Shroud reflects the brand's synonymous with reliability and performance that will help the famous full-sized sedan to maintain the power and comfort needed.
Chevrolet Impala Fan Shroud Parts and Q&A
- Q: How to service and repair the fan shroud on Chevrolet Impala?A:The Fan Shroud servicing requires disconnecting the battery ground (negative) cable before other steps. The cooling system requires partial draining before the swinging movement of engine struts can start by loosening their bolts to prevent rubber bushing shearing. First detach the engine strut brace bolts from the upper tie bar before swinging the struts as well as braces toward the rear. Secondly disconnect the front fender upper diagonal brace. To acquire access to the throttle body air inlet users should disconnect it and adjust the air cleaner assembly before detaching the radiator inlet hose from the radiator. Remove the cooling Fan Shroud by first releasing the retainers and then untightening all shroud bolts. The transmission oil cooler lines need to be separated from their retainers at the cooling Fan Shroud bottom while using pliers to detach the cooling Fan Shroud clip from the upper radiator edge. First disconnect the cooling Fan Shroud electrical connector followed by repositioning the cooling Fan Shroud to access it for removing the cooling Fan Shroud. The process for installation requires plugging in the cooling Fan Shroud electrical connector followed by attaching the cooling Fan Shroud to its place. Pull the cooling Fan Shroud clip toward the top of the radiator surface until you can see full attachment. Secure the transmission oil cooler lines to their retainers situated at the bottom of the cooling Fan Shroud before screwing and tightening the cooling Fan Shroud bolts to 10 nm (89 inch lbs.). Reinstall the cool Fan Shroud retainers after you connect the radiator inlet hose to its position on the radiator and install the air cleaner assembly properly by threading the throttle body air inlet duct first. Screw the front fender upper diagonal brace into place before rotating its struts forward to their correct position where you will tighten the engine strut brace bolts onto the upper tie bar. Fill the cooling system while performing ground connection to the battery and verify system functionality.
- Q: How to replace the fan shroud on Chevrolet Impala?A:Safety precautions begin with disconnecting the negative cable from the battery before proceeding with the Fan Shroud replacement. The j 38185 hose clamp pliers should be used to take off the air cleaner assembly and both engine mount struts on the right and left side. Stop by detaching the transmission oil cooler lines from their retention clip on the cooling Fan Shroud base after which you should take out the cooling Fan Shroud screws together with the screw that fastens the shroud to the condenser bracket. The next action involves removing the radiator upper support brackets together with Fan Shroud bolts along with disconnecting the engine cooling Fan Motor electrical connector. Start the cooling Fan Shroud removal by disconnecting its electrical harness from the Fan Shroud clips. Then detach the cooling Fan Shroud. To separate the engine cooling Fan Blade the technician must disassemble both the engine cooling fan heat shield and engine cooling Fan Blade nut. A thorough inspection of cooling fan blades should be done to replace any damaged blades because either bent or cracked blades threaten safety. Set aside the engine cooling Fan Motor bolts before removing the engine cooling Fan Motor from the Fan Shroud. The engine cooling Fan Motor installation requires remounting it on the Fan Shroud before fastening it with engine cooling Fan Motor bolts which should reach 6 nm torque (53 inch lbs.). Secure the engine cooling Fan Blade nut to 6 nm (53 inch lbs.). Fix the cooling fan heat shield by aligning the lower Fan Shroud edge to the radiator bottom clip before installing the cooling Fan Shroud with its bolts at 10 nm (89 inch lbs.). You should reconnect both the electrical connector of the engine cooling Fan Motor and the electrical harness for the cooling fan Fan Shroud and clips. The first step involves installing and tightening the Fan Shroud bolt securing it to the condenser hold down bracket to 6 nm (53 inch lbs.) thus completing the installation by securing the radiator upper support brackets and bolts to 10 nm (89 inch lbs.). The technician must reinstall all transmission oil cooler lines to their correct places including the bottom retainer clip of the cooling Fan Shroud as well as the air cleaner assembly and right and left engine mount struts. The negative Battery Cable connection must also be made before the system is ready for inspection for proper operation.
