233 Control Arms found

View related parts

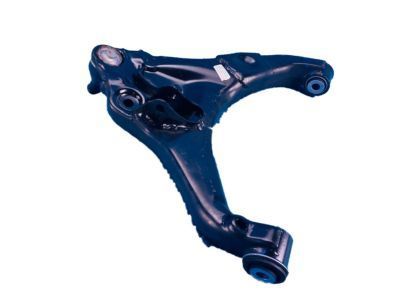

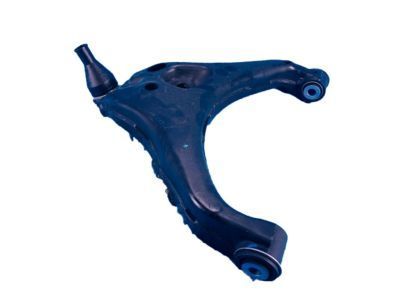

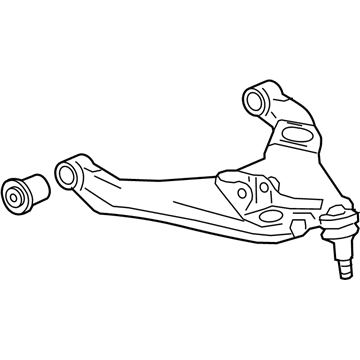

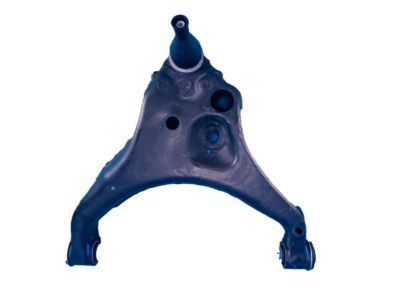

GMC Lower Control Arm, Passenger Side Part Number: 23224319
$121.14 MSRP: $206.25
You Save: $85.11 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
Fits the following GMC Models:
- Canyon | 2016-2022 | All Terrain, AT4, Denali, Elevation, SLE, SLT | 4 Cyl 2.8 L DIESEL
View related parts

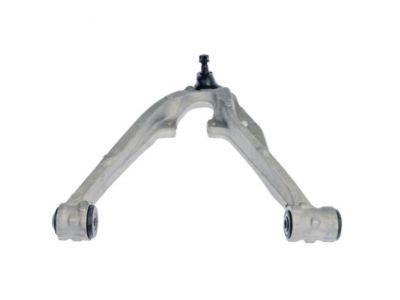

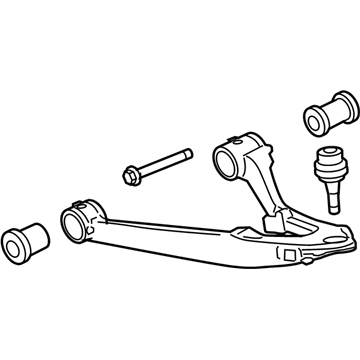

GMC Lower Control Arm, Driver Side Part Number: 25997509
$388.44 MSRP: $639.89
You Save: $251.45 (40%)
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 10355407, 25997507, 25788110
Fits the following GMC Models:
- Sierra 1500 | 2007-2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2007-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2007-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Yukon | 2007-2014 | Denali, Denali Hybrid, Hybrid, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 1500 | 2007-2009 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

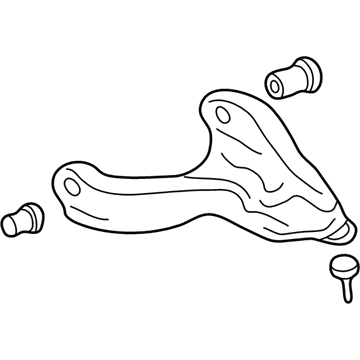

GMC Lower Control Arm Part Number: 15578815
$94.79 MSRP: $178.00
You Save: $83.21 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Lower Control; Control Arm
- Position: Lower
- Replaced by: 12472995
Fits the following GMC Models:
- S15 | 1984-1990 | Base, EL, Gypsy, High Sierra, Sierra Classic | 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L DIESEL, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- S15 Jimmy | 1984-1991 | Base, Gypsy, High Sierra, Sierra Classic, SLE, SLS, SLT, Timberline | 4 Cyl 1.9 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Sonoma | 1991 | Base, SLE | 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Syclone | 1991 | Base | 6 Cyl 4.3 L GAS
View More
View related parts

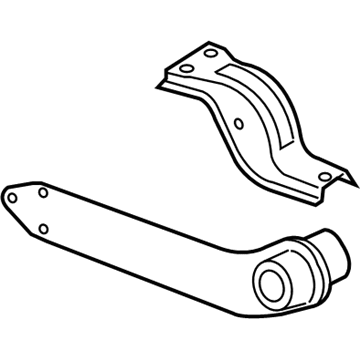

GMC Trailing Arm, Rear Driver Side Part Number: 23269737
$131.91 MSRP: $226.53
You Save: $94.62 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Trailing; Suspension Trailing Arm; Arm, Rear Axle Control Arm
- Position: Rear Driver Side
- Replaces: 25896862
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

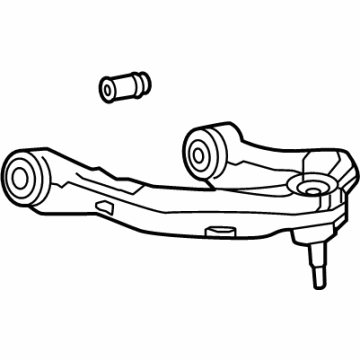

GMC Upper Control Arm, Passenger Side Part Number: 85571708
$89.01 MSRP: $146.63
You Save: $57.62 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control
- Position: Passenger Side
Fits the following GMC Models:
- Hummer EV Pickup | 2022-2023 | 3X, Edition 1 | BATTERY EV (EV/BEV)
View related parts

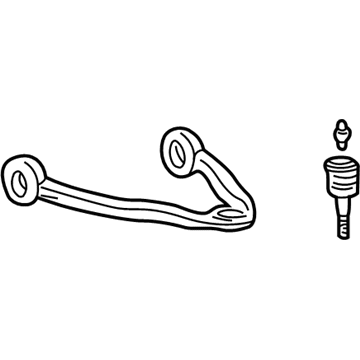

GMC Upper Control Arm, Passenger Side Part Number: 12475482
$226.07 MSRP: $384.87
You Save: $158.80 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Steering Knuckle Upper & Lower Control; Control Arm
- Position: Passenger Side
- Replaced by: 25793553
Fits the following GMC Models:
- Yukon XL 2500 | 2000 | SLE, SLT | 8 Cyl 6.0 L GAS
View related parts
GMC Upper Control Arm, Driver Side Part Number: 85571707
$96.97 MSRP: $153.96
You Save: $56.99 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control
- Position: Driver Side
Fits the following GMC Models:
- Hummer EV Pickup | 2022-2023 | 3X, Edition 1 | BATTERY EV (EV/BEV)
View related parts

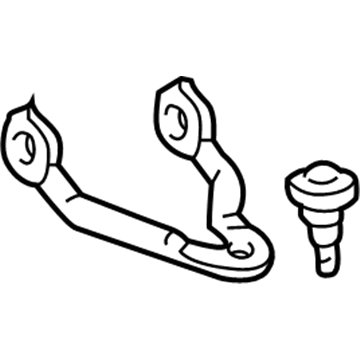

GMC Upper Control Arm, Front Driver Side Part Number: 12376163
$218.68 MSRP: $360.23
You Save: $141.55 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Front Upper Control (Left-Hand); Control Arm; Arm Kit, Steering Knuckle Upper & Lower Control
- Position: Front Upper Driver Side
Fits the following GMC Models:
- C1500 | 1995-1996, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C2500 | 1995-1999, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1995-1996, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K2500 | 1995-1999, 1988-1991 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1988-1990 | Sierra, Sierra SLE, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 7.4 L GAS
- Safari | 1990-2005 | Base, GT, SL, SLE, SLT, SLX | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View More
View related parts

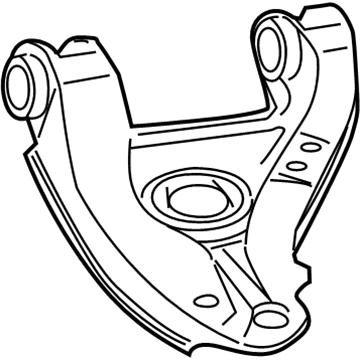

GMC Lower Control Arm, Front Driver Side Part Number: 19416906
$386.72 MSRP: $637.05
You Save: $250.33 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Front Lower Control; Control Arm; Arm Kit, Steering Knuckle Upper & Lower Control
- Position: Front Lower Driver Side
- Replaces: 15665554
Fits the following GMC Models:
- C1500 | 1988-1999 | Sierra, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K1500 | 1988-1999 | Sierra, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
- K2500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1992-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K3500 | 1988-2000 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts
GMC Trailing Arm, Rear Driver Side Part Number: 84591014
$79.28 MSRP: $136.16
You Save: $56.88 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Trailing; Arm, Rear Axle Control Arm
- Position: Rear Driver Side
Fits the following GMC Models:
- Yukon | 2021-2023 | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon XL | 2021-2023 | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts

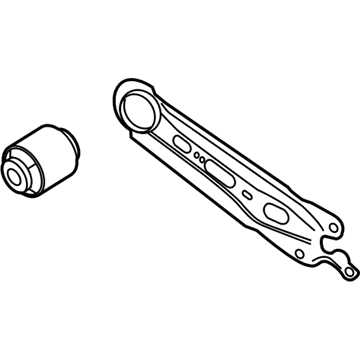

GMC Trailing Arm, Rear Passenger Side Part Number: 23463142
$63.28 MSRP: $100.46
You Save: $37.18 (38%)
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Trailing
- Position: Rear Passenger Side
Fits the following GMC Models:
- Terrain | 2018-2022 | AT4, Denali, SL, SLE, SLT | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
GMC Lower Control Arm, Driver Side Part Number: 15777766
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 12388446, 15018806, 12472994
Fits the following GMC Models:
- Jimmy | 1995-2000 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1994-1999 | SL, SLE, SLS | 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm, Passenger Side Part Number: 15293529
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15056334, 15083716
Fits the following GMC Models:
- Jimmy | 2001 | Diamond Edition, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 2001-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm, Passenger Side Part Number: 15293527
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 12472974, 15010340, 15083714
Fits the following GMC Models:
- Jimmy | 2000 | Diamond Edition, Envoy, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 2000-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm, Driver Side Part Number: 15293528
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 12472973, 15010339, 15083715
Fits the following GMC Models:
- Jimmy | 2000 | Diamond Edition, Envoy, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 2000-2004 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Lower Control Arm, Passenger Side Part Number: 15777765
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control; Control Arm
- Position: Passenger Side
- Replaces: 12361581, 12388445, 12472993, 15018805
Fits the following GMC Models:
- Jimmy | 1995-2000 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1994-1999 | SL, SLE, SLS | 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts

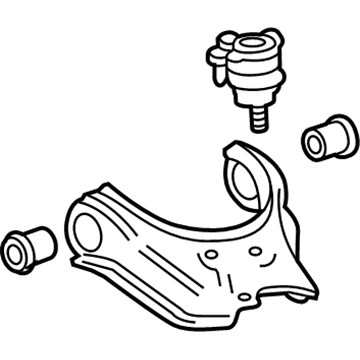

GMC Upper Control Arm, Driver Side Part Number: 15213849
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 15167939
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Upper Control Arm, Passenger Side Part Number: 15213848
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15167934
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts

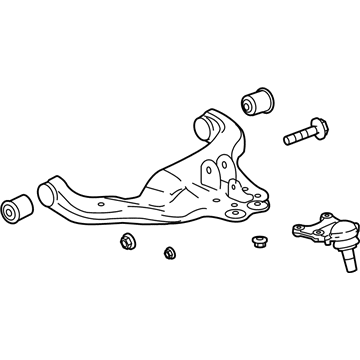

GMC Lower Control Arm, Passenger Side Part Number: 15104116
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Lower Control Arm, Driver Side Part Number: 15104115
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS

| Page 1 of 12 |Next >

1-20 of 233 Results

GMC Control Arm

Choose OEM Control Arm, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Control Arm. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Control Arm maintains the position of wheels under the load, thus rides remain stable and predictable. The company was founded in 1901 through hauling roots, constructs trucks and SUVs that shun off heavy loads. GMC joins rigid frames in such a manner that they do not twist and descends in torque-rich powertrains without drama-towing. Its MultiPro tailgate folds, unfolds and turns into a single-person task to be able to load lumber or vehicles. Silent cabins dampen the road noise and such safety features as surround view display the blind spots before misfortune strikes. GMC also does stress tests on the punishing tracks, pursuing the reliability figures that retain the levels. Continuous technological advancements come with time but initial attention is on brute capability. Motorists choose the rig, aim it at employment or mountain, and hope it will come back intact. Control Arm connecting the frame and the wheel hub with bushings and a ball joint allows the suspension to swing up and down without altering tire angle despite being hammered by potholes or trail ruts and cuts weight by modern cast aluminum versions without sacrificing strength, as they combat rust and shave unsprung mass to make the car more responsive. The wear indicated in Control Arm wear is clunking or wandering, thus performance versions employ heavier joints or reinforced steel to deliver lifted suspension, sporty motoring, and mixed terrain operation without losing ride quality.

GMC Control Arm Parts and Q&A

Lower Control Arm, Driver Side
20869201
Q: How to replace the lower control arm on those equipped with an aluminum lower control arm on GMC Yukon?
A:
The repair process for aluminum lower control arms starts with vehicle suspension and subsequent wheel removal before stabilizer shaft link detachment from the Control Arm and wheel drive shaft removal when necessary. First detach the stabilizer shaft link from the lower Control Arm and disconnect the wheel drive shaft if your vehicle has this part installed. Use mechanics wire or equivalent to support the knuckle assembly with the upper Control Arm. First remove the lower shock module bolt screws from the lower Control Arm then discard the lower Ball Joint retaining nut. The j 43631 (Ball Joint Separator) combined with j 45851 (Ball Joint Separator Protector Adapters) enables technicians to detach the lower Ball Joint from the Steering Knuckle. Take the Control Arm nuts and washers away followed by the Control Arm bolts to extract the Control Arm. Position the lower Control Arm accurately and fasten it with Control Arm bolts coupled with washers for installation. Screw and tighten the lower Control Arm retaining nuts to 175 nm (129 lb ft). If the Steering Knuckle features a captured washer use 125 nm (92 lb ft) torque and 50 nm plus 130 degrees (37 lb ft) if it does not have a captured washer to fasten the lower Ball Joint into position. Fasten the lower shock absorber module mount bolts with torque setting at 50 nm (37 lb ft). Reinstall the wheel drive shaft only if required before removing support for both the Steering Knuckle and upper Control Arm. Reinstall the tire with the wheel before removing support then lowering the vehicle for front end alignment.
Lower Control Arm, Passenger Side
25997510
Q: How to replace the lower control arm (1500) on GMC Sierra 1500?
A:
Begin by elevating and supporting your vehicle before removing the tire along with wheel to replace the lower Control Arm (1500). Complete the following tasks: first, disconnect the stabilizer shaft link from the lower Control Arm and then remove the wheel drive shaft if your vehicle has it. Use mechanics wire or equivalent to support the knuckle assembly and upper Control Arm. First remove the lower Ball Joint retaining nut before using tools to disassemble the lower shock module bolts from the lower Control Arm. The j 43631 and j 45851 tools should be used to remove the lower Ball Joint connection between the Steering Knuckle. The nuts securing the lower Control Arm need removal before removing Control Arm hardware consisting of washers and Control Arm bolts. Position the lower Control Arm in the correct location and use Control Arm bolts a well as washers to secure it. Wedge the lower Control Arm retaining nuts right after installation before tightening them to 175 nm (129 lb ft). Lock down the lower Ball Joint inside the Steering Knuckle through the installation of a fresh retaining nut which you should tighten to 125 nm (92 lb ft). Follow the procedure to attach the lower shock absorber module mount bolts before applying 50 nm (37 lb ft) torque. First remove the upper Control Arm's support and Steering Knuckle support before reinstalling the wheel drive shaft when needed. Replace the stabilizer shaft link onto the lower Control Arm and add the tire along with wheel then pull off the support and lower the vehicle. Finally, align the front end.
