How to replace the lower control arm on GMC Envoy?

To replace the lower Control Arm, first raise and support vehicle. Remove the tire and the wheel and remove the outer tie rod retaining nut take off the outer tie rod from the Steering Knuckle by using the steering linkage and tie rod puller (J24319-B). Second, unbolt the stabilizer shaft link lower retaining nut, and unplug the stabilizer shaft link and washer from the lower Control Arm. Take off the lower mounting nut of shock module yoke and detach the shock module yoke from the lower Control Arm using steering linkage and tie rod puller (J24319-B). Go ahead to remove the lower Control Arm to lower Control Arm Bracket mounting nuts and bolts, recording the orientation of the bolts for refitting. Take out the lower Ball Joint retaining nut and remove the lower Ball Joint from the Steering Knuckle by using the Ball Joint remover (J43631). Pivot the lower Control Arm outward and downward to part it with the lower Control Arm Bracket while not allowing the Axle Shaft to disengage from the transmission (4WD only), then pull out the lower Control Arm that was connected to the Steering Knuckle. To install, first install the lower Control Arm in the Steering Knuckle, then pivot it outward and up to link it to the lower Control Arm Bracket. Mount the lower Control Arm to the lower Control Arm Bracket, followed by the mounting bolts and nuts and tighten the nuts to 110 nm (81 ft. Lbs.). In ensuring correct alignment of the lower Control Arm bushings, ensure that the lower Control Arm is parallel to the lower Control Arm Bracket at the time of installation and tightening. Connect the shock moduleyoke to the lower Control Arm and tighten the shock module yoke lower mounting nut. Next, install the lower Control Arm stabilizer shaft link and washer (it has to be the same as the original), install the stabilizer shaft link retaining nut, tighten since 145nm (107 ft. Lbs.). Mount the outer tie rod to the Steering Knuckle and the outer tie rod retaining nut, and tighten this latter to 45 nm (33 ft. Lbs.). Finally, replace the tire and wheel, bring down the vehicle, and check the front wheel alignment.

OEM GMC Envoy Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

19 Control Arms found

View related parts

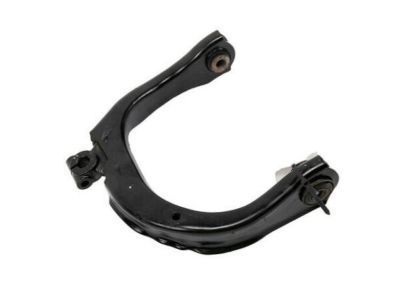

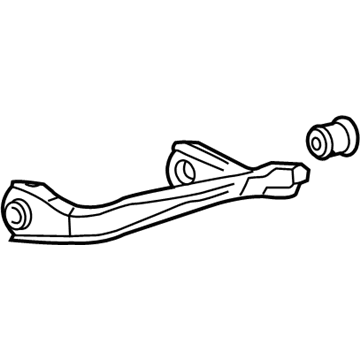

GMC Envoy Upper Control Arm, Front Passenger Side Part Number: 19330400
$99.72 MSRP: $171.26
You Save: $71.54 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Front Upper Control; Suspension Control Arm; Control Arm; Arm, Steering Knuckle Upper & Lower Control
- Position: Front Upper Passenger Side
- Replaces: 15158963, 15080914, 15858683, 15077245, 15298273, 25786775
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts

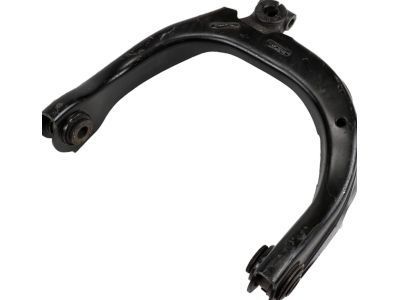

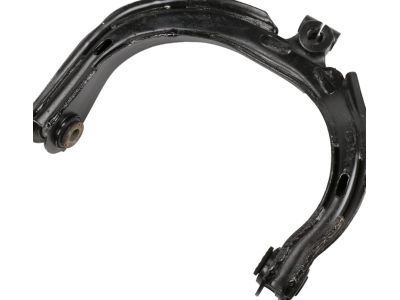

GMC Envoy Upper Control Arm, Front Driver Side Part Number: 19330399
$107.58 MSRP: $183.15
You Save: $75.57 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Front Upper Control; Suspension Control Arm; Control Arm; Arm, Steering Knuckle Upper & Lower Control
- Position: Front Upper Driver Side
- Replaces: 15077244, 15858682, 15158962, 15298272, 25786774, 15080913
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts

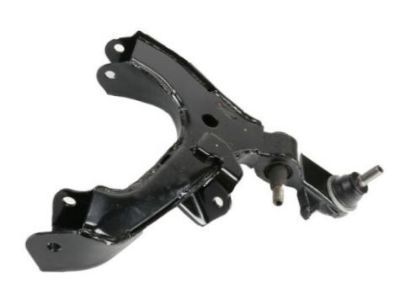

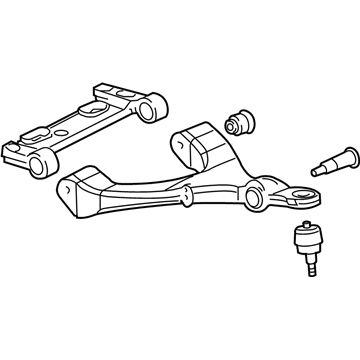

GMC Envoy Lower Control Arm, Passenger Side Part Number: 19133556
$230.28 MSRP: $392.03
You Save: $161.75 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 89060579
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Lower Control Arm, Driver Side Part Number: 19133555
$230.28 MSRP: $392.03
You Save: $161.75 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 89060578
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2007 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts

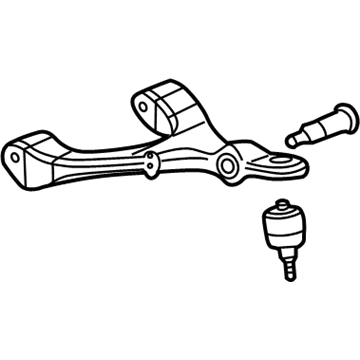

GMC Envoy Lower Control Arm Part Number: 15091492
$91.76 MSRP: $143.74
You Save: $51.98 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Arm
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy Lower Control Arm Part Number: 15091491
$91.76 MSRP: $143.74
You Save: $51.98 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Arm
- Position: Lower
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy Upper Control Arm, Rear Part Number: 15069837
Product Specifications
- Other Name: Arm, Rear Axle Upper Control; Control Arm; Arm, Rear Axle Control Arm
- Position: Rear Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Upper Control Arm, Rear Part Number: 15116112
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Lower Control Arm, Passenger Side Part Number: 15198487
$126.98 MSRP: $199.79
You Save: $72.81 (37%)
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15091390, 15167263, 15183145, 15165151, 15072944
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy Lower Control Arm, Driver Side Part Number: 15198486
$114.47 MSRP: $180.11
You Save: $65.64 (37%)
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 15167262, 15072943, 15183144, 15165150, 15091389
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts

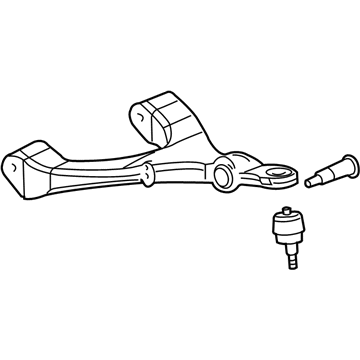

GMC Envoy Lower Control Arm, Passenger Side Part Number: 25784240
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Lower Control Arm, Driver Side Part Number: 25784239
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Lower Control Arm, Passenger Side Part Number: 19133554
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 89060577
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy Lower Control Arm, Driver Side Part Number: 19133553
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 89060576
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 GMC Envoy | SLE, SLT | 6 Cyl 4.2 L GAS
View related parts
GMC Envoy Lower Control Arm, Rear Part Number: 15098154
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Upper Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Upper Control Arm, Rear Part Number: 15098153
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm; Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Upper Control Arm, Rear Part Number: 15098152
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm; Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Lower Control Arm, Rear Part Number: 15069840
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Envoy Upper Control Arm, Rear Part Number: 15069838
Product Specifications
- Other Name: Arm, Rear Axle Upper Control; Control Arm; Arm, Rear Axle Control Arm
- Position: Rear Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 GMC Envoy | Denali, SLE, SLT | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS

GMC Envoy Control Arm

Want to cut long-term maintenance and repair costs? Choose OEM Control Arm. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Envoy parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Envoy Control Arm includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Control Arm of GMC Envoy vehicles relates the frame of the car to the wheels and supports other suspension parts such as shocks and springs. These arms swivel in accordance with the roads' surface and enable the wheels to rotate in a vertical plane. Originally, they were of stamped steel, but recent versions come with cast iron or aluminum arms. Control arms are of high-quality material and generally, should last long but they may need replacement in cases where it has worn out or has developed some rusting. The performance control arms are preferred for managing and aligning high-speed cars or modified vehicles. Also, there are wide range of bushings, mounts, and hardware designed to improve suspension performance and kinematics.

GMC Envoy Control Arm Parts and Q&A

Upper Control Arm, Front Passenger Side
19330400
Q: How to replace the lower control arm on GMC Envoy?
A:
To replace the lower Control Arm, first raise and support vehicle. Remove the tire and the wheel and remove the outer tie rod retaining nut take off the outer tie rod from the Steering Knuckle by using the steering linkage and tie rod puller (J24319-B). Second, unbolt the stabilizer shaft link lower retaining nut, and unplug the stabilizer shaft link and washer from the lower Control Arm. Take off the lower mounting nut of shock module yoke and detach the shock module yoke from the lower Control Arm using steering linkage and tie rod puller (J24319-B). Go ahead to remove the lower Control Arm to lower Control Arm Bracket mounting nuts and bolts, recording the orientation of the bolts for refitting. Take out the lower Ball Joint retaining nut and remove the lower Ball Joint from the Steering Knuckle by using the Ball Joint remover (J43631). Pivot the lower Control Arm outward and downward to part it with the lower Control Arm Bracket while not allowing the Axle Shaft to disengage from the transmission (4WD only), then pull out the lower Control Arm that was connected to the Steering Knuckle. To install, first install the lower Control Arm in the Steering Knuckle, then pivot it outward and up to link it to the lower Control Arm Bracket. Mount the lower Control Arm to the lower Control Arm Bracket, followed by the mounting bolts and nuts and tighten the nuts to 110 nm (81 ft. Lbs.). In ensuring correct alignment of the lower Control Arm Bushings, ensure that the lower Control Arm is parallel to the lower Control Arm Bracket at the time of installation and tightening. Connect the shock moduleyoke to the lower Control Arm and tighten the shock module yoke lower mounting nut. Next, install the lower Control Arm stabilizer shaft link and washer (it has to be the same as the original), install the stabilizer shaft link retaining nut, tighten since 145nm (107 ft. Lbs.). Mount the outer tie rod to the Steering Knuckle and the outer tie rod retaining nut, and tighten this latter to 45 nm (33 ft. Lbs.). Finally, replace the tire and wheel, bring down the vehicle, and check the front wheel alignment.
