How to remove the rear control arms on Chevrolet Caprice?

To remove the sedan upper control arm, first raise and support the rear wheels and axle, then unscrew and remove the control arm rear pivot bushing bolt from the axle housing for 1969 and 1970 models. Disconnect the upper control arm bracket from the crossmember by removing three bolts, then take out the control arm and unbolt it from its bracket. For all other models, extract the pivot bolt from the welded type frame bracket and withdraw the control arm. If new bushings are to be installed, it is advisable to have a dealer perform this task due to the need for a press and special tools. For the sedan lower control arm, remove the coil spring first, ensuring that the rear axle is not lowered excessively to avoid straining the hydraulic brake lines if both lower suspension arms are being removed. Disconnect the control arm at both the front and rear, then remove it from the vehicle. Replacement of worn bushings is also best left to a dealer for the same reasons. When dealing with wagon upper and lower control arms, if all four rear suspension control arms are being removed simultaneously, withdraw the two coil springs first. Raise the rear of the vehicle and support it under the frame side rails, then use a jack to lift the axle until all tension is relieved in the control arm being removed. Extract the control arm pivot bolts and remove the control arms, with the replacement of worn bushings again recommended to be handled by a dealer. Installation for all models follows the reverse order of removal, but do not tighten the pivot bolts to the specified torque until the vehicle's weight is lowered onto the suspension and wheels.

How to properly remove and install the upper control arm on Chevrolet El Camino?

Raise the front end of the vehicle and lower the control arm onto a jack for support, then remove the wheel. Separate the upper control arm ball stud and remove the two nuts securing the control arm shaft to the frame bracket, ensuring to tape together the shims for proper reinstallation. In some cases, it may be necessary to remove the upper control arm attaching bolts for clearance; gently tap the bolt downwards with a brass drift, pry it upwards with a suitable box wrench, and then use a pry bar and block of wood to remove the bolts from the frame. After removing the upper control arm, inspect the control arm pivot bushings; if they are worn, consider having them replaced by a GM dealer, or use a long bolt and tubular spacers for removal and installation if doing it yourself. When installing, loosen the end shaft retainer bolts or nuts, position the new control arm attaching bolts loosely in the frame, and install the control arm cross-shaft on the attaching bolts. Use a normal free-running nut to tighten the serrated bolts onto their seats, then remove the free-running nuts and fit the regular locknuts once the splined bolts are seated. Install the shims in their original fitted positions and torque-tighten the nuts, starting with the thinner shim pack nut for better clamping force. Install the ball stud through the knuckle, torque-tighten the nut, align the cotter pin holes, and fit a new cotter pin. Finally, fit the wheel, lower the vehicle to the floor, and torque-tighten the shaft retainer bolts or nuts.

OEM Chevrolet Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

575 Control Arms found

View related parts
Chevrolet Lower Control Arm Part Number: 95328052
$64.68 MSRP: $157.83
You Save: $93.15 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Front Lower Control (W/Bushing); Suspension Control Arm and Ball Joint Assembly.; Arm, Steering Knuckle Lower Control
- Position: Driver Side
Fits the following Chevrolet Models:
- Trax | 2015-2022 | LS, LT, LTZ, Premier | 4 Cyl 1.4 L GAS
View related parts
Chevrolet Control Arm, Rear Driver Side Part Number: 22927292
$86.16 MSRP: $210.26
You Save: $124.10 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Control; Suspension Trailing Arm Bushing; Suspension Trailing Arm; Trailing Arm
- Position: Driver Side
- Replaces: 13219145
Fits the following Chevrolet Models:
- Impala | 2014-2020 | Eco, LS, LT, LTZ, Premier | 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Malibu | 2013-2015 | Eco, LS, LT, LTZ | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L GAS
- Malibu Limited | 2016 | LS, LT, LTZ | 4 Cyl 2.5 L GAS
View More
View related parts
Chevrolet Lower Control Arm, Rear Passenger Side Part Number: 20763133
$138.03 MSRP: $336.80
You Save: $198.77 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Passenger Side
Fits the following Chevrolet Models:
- Captiva Sport | 2012-2015 | LS, LT, LTZ | 4 Cyl 2.4 L FLEX, 6 Cyl 3.0 L FLEX
View related parts
Chevrolet Upper Control Arm, Rear Part Number: 20917465
$51.58 MSRP: $100.13
You Save: $48.55 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm; Link, Rear Axle Control Arm; Control Arm
- Position: Rear Upper
Fits the following Chevrolet Models:
- Avalanche | 2011-2013 | Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ | 8 Cyl 5.3 L FLEX
- Suburban | 2015-2020 | LS, LT, LTZ, Premier | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Suburban 1500 | 2011-2014 | LS, LT, LTZ | 8 Cyl 5.3 L FLEX
- Suburban 2500 | 2011-2013 | LS, LT | 8 Cyl 6.0 L FLEX
- Tahoe | 2011-2020 | Hybrid, LS, LT, LTZ, PPV, Premier, SSV | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts
Chevrolet Upper Control Arm, Rear Driver Side Part Number: 20900531
$113.93 MSRP: $198.56
You Save: $84.63 (43%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm; Rear Upper Control Arm; Control Arm
- Position: Driver Side
Fits the following Chevrolet Models:
- Impala | 2014-2020 | Eco, LS, LT, LTZ, Premier | 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Malibu | 2013-2015 | Eco, LS, LT, LTZ | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L GAS
- Malibu Limited | 2016 | LS, LT, LTZ | 4 Cyl 2.5 L GAS
View More
View related parts
Chevrolet Lower Control Arm, Passenger Side Part Number: 84248223
$165.61 MSRP: $288.71
You Save: $123.10 (43%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 22854828, 23135156, 23448043
Fits the following Chevrolet Models:
- Impala | 2014-2020 | Eco, LS, LT, LTZ, Premier | 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Lower Control Arm, Driver Side Part Number: 84248222
$186.46 MSRP: $311.74
You Save: $125.28 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 22854827, 23135155, 23448042
Fits the following Chevrolet Models:
- Impala | 2014-2020 | Eco, LS, LT, LTZ, Premier | 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Lower Control Arm, Rear Part Number: 22868629
$54.87 MSRP: $94.22
You Save: $39.35 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Trailing Arm; Suspension Control Arm; Control Arm
- Position: Rear Lower
Fits the following Chevrolet Models:
- Avalanche | 2007-2013 | Black Diamond LS, Black Diamond LT, Black Diamond LTZ, LS, LT, LTZ | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Avalanche 1500 | 2002-2006 | Base, LS, LT, North Face, On Road Edition, WBH, Z66, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Avalanche 2500 | 2002-2006 | Base, LS, LT | 8 Cyl 8.1 L GAS
- Silverado 1500 | 2000-2006 | Base, Hybrid, LS, LT, SS, WT, Z71 Off-Road | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Silverado 1500 HD | 2005-2006, 2001-2003 | Base, LS, LT | 8 Cyl 6.0 L GAS
- Silverado 2500 | 2000-2004 | Base, LS, LT, WT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Silverado 2500 HD | 2001-2006 | Base, LS, LT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Silverado 3500 | 2001-2006 | Base, LS, LT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Suburban | 2015-2020 | LS, LT, LTZ, Premier | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Suburban 1500 | 2000-2014 | Base, LS, LT, LTZ, Z71 | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View More
View related parts
Chevrolet Lower Control Arm, Rear Part Number: 20942237
$57.39 MSRP: $97.71
You Save: $40.32 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm; Control Arm
- Position: Rear Lower
- Replaces: 22743327, 92231068, 92243845
Fits the following Chevrolet Models:
- Camaro | 2010-2015 | LS, LT, SS, Z/28, ZL1 | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Lower Control Arm, Rear Passenger Side Part Number: 84382227
$58.16 MSRP: $99.88
You Save: $41.72 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Passenger Side
- Replaces: 23282357
Fits the following Chevrolet Models:
- Camaro | 2016-2024 | LS, LT, LT1, SS, ZL1 | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Lower Control Arm, Rear Driver Side Part Number: 84382226
$58.16 MSRP: $99.88
You Save: $41.72 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Driver Side
- Replaces: 23282356
Fits the following Chevrolet Models:
- Camaro | 2016-2024 | LS, LT, LT1, SS, ZL1 | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts

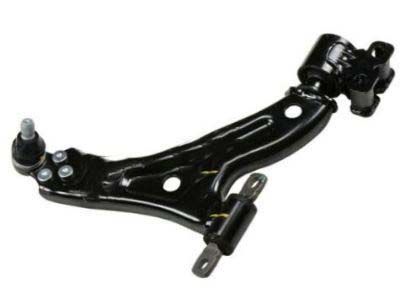

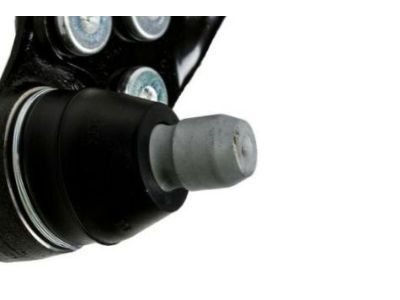

Chevrolet Lower Control Arm Part Number: 95368368
$61.24 MSRP: $105.18
You Save: $43.94 (42%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
Fits the following Chevrolet Models:
- Spark | 2016-2022 | ACTIV, LS, LT | 4 Cyl 1.4 L GAS
View related parts
Chevrolet Lower Control Arm, Rear Part Number: 13219164
$109.03 MSRP: $190.27
You Save: $81.24 (43%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Suspension Control Arm; Control Arm
- Position: Rear Lower
Fits the following Chevrolet Models:
- Impala | 2014-2020 | Eco, LS, LT, LTZ, Premier | 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L BI-FUEL, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- Malibu | 2013-2015 | Eco, LS, LT, LTZ | 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 4 Cyl 2.5 L GAS
- Malibu Limited | 2016 | LS, LT, LTZ | 4 Cyl 2.5 L GAS
View More
View related parts
Chevrolet Trailing Arm, Rear Part Number: 15820927
$63.38 MSRP: $107.89
You Save: $44.51 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Rear Suspension Trailing; Suspension Trailing Arm; Lateral Link; Lateral Arm; Arm, Rear Axle Control Arm
- Position: Rear
- Replaces: 10244461
Fits the following Chevrolet Models:
- Impala | 2000-2013 | 50th Anniversary Edition, Base, LS, LS Sport, LT, LTZ, Police, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
- Impala Limited | 2014-2016 | LS, LT, LTZ, Police | 6 Cyl 3.6 L FLEX
- Lumina | 1990-2001 | Base, Euro, LS, LTZ, Z34 | 4 Cyl 2.2 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.1 L FLEX, 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
- Monte Carlo | 1995-2007 | Indianapolis 500 Pace Car, LS, LS Competition, LS Sport, LT, LTZ, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L GAS, 8 Cyl 5.3 L GAS
View More
View related parts
Chevrolet Lower Control Arm, Rear Part Number: 84059879
$64.19 MSRP: $109.29
You Save: $45.10 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Rear Lower
- Replaced by: 42951157
Fits the following Chevrolet Models:
- Equinox | 2018-2022 | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts

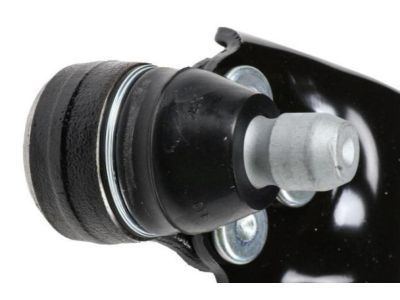

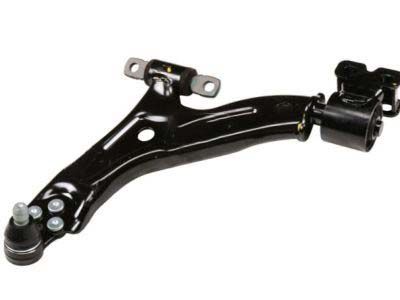

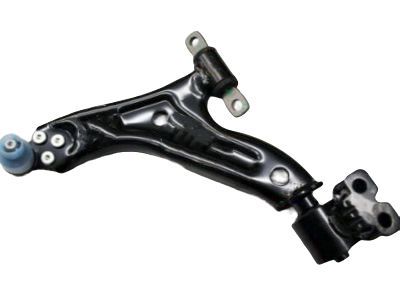

Chevrolet Lower Control Arm Part Number: 95368367
$65.23 MSRP: $111.06
You Save: $45.83 (42%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
Fits the following Chevrolet Models:
- Spark | 2016-2022 | ACTIV, LS, LT | 4 Cyl 1.4 L GAS
View related parts
Chevrolet Lower Control Arm, Driver Side Part Number: 22947666
$73.38 MSRP: $126.03
You Save: $52.65 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.; Arm, Steering Knuckle Lower Control
- Position: Driver Side
- Replaces: 10328902, 10301562, 10301563, 10300977, 10348615, 10344930, 10427741, 15293663, 15293669, 20977509, 25853333, 25853337, 10243840, 10327402
Fits the following Chevrolet Models:
- Impala | 2000-2013 | Base, LS, LS Sport, Police, SS | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
- Impala Limited | 2014-2016 | Police | 6 Cyl 3.6 L FLEX
- Venture | 1997-2005 | Base, LS, LT, Plus, Value, Warner Bros. | 6 Cyl 3.4 L GAS
View More
View related parts
Chevrolet Rear Lower Control Arm, Passenger Side Part Number: 23317366
$79.35 MSRP: $135.07
You Save: $55.72 (42%)
ADD TO CART
Product Specifications
- Other Name: Link Assembly-Front Lower Control Rear; Control Arm; Link; Link, Steering Knuckle Lower Control
- Position: Passenger Side
Fits the following Chevrolet Models:
- Camaro | 2016-2024 | LS, LT, LT1, SS, ZL1 | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Rear Lower Control Arm, Driver Side Part Number: 23317365
$79.35 MSRP: $135.07
You Save: $55.72 (42%)
ADD TO CART
Product Specifications
- Other Name: Link Assembly-Front Lower Control Rear; Control Arm; Link; Link, Steering Knuckle Lower Control
- Position: Driver Side
Fits the following Chevrolet Models:
- Camaro | 2016-2024 | LS, LT, LT1, SS, ZL1 | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Lower Control Arm Part Number: 95281652
$82.58 MSRP: $141.83
You Save: $59.25 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly-Front Lower Control (W/Bushing); Suspension Control Arm and Ball Joint Assembly.; Arm, Steering Knuckle Lower Control
- Position: Passenger Side
- Replaces: 95918881, 95190870
Fits the following Chevrolet Models:
- Sonic | 2012-2020 | LS, LT, LTZ, Premier, RS | 4 Cyl 1.4 L GAS, 4 Cyl 1.8 L FLEX, 4 Cyl 1.8 L GAS

| Page 1 of 29 |Next >

1-20 of 575 Results

Chevrolet Control Arm

Choose OEM Control Arm, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Chevrolet's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Chevrolet Control Arm. You can shop at highly competitive prices and protect your budget. All our genuine Chevrolet parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Chevrolet Control Arm ensures that wheels are kept in check and stable giving the car a smooth predictable handling in any road. The Chevrolet has over 100 years to prove that reliable power can coexist with affordable prices to ordinary consumers. The badge is mounted on trucks, sedans, and SUVs that take the place of long commutes, families, and are easy to start. Chevy owners appreciate the fact that they do not have to often search to find high-quality fuel and still experience acceleration during highway mergers. Chevy also extends modern driver aids into lower-end models such that lane keeping and adaptive cruise no longer feel like a luxury. The cabins do not have technological flairs, but simple screens that allow drivers to switch playlists without navigating through menus. Extensive warranty of corrosion and availability of parts everywhere keeps the owners on the road, and not in the driveway. The Chevy culture embraces the road trip and the tailgates as opposed to bragging at the showroom, so branding is not being arrogant. The Control Arm connects the frame to the wheel hub either by bushings at one end and a ball joint at the other, and swings with the road as the wheel can be moved up and down without steering slop, and the cast-aluminum or iron design of the Control Arm minimizes weight and remains tough, sharpening alignment, maintaining tire tread, and keeping the suspension smooth on damaged pavement. Change of a new Control Arm when squeaky bushings or loose ball joints, the vehicle will turn where you want, brake in a straight line and roll over potholes without shuddering the steering wheel.

Chevrolet Control Arm Parts and Q&A

Control Arm, Driver Side
10232819
Q:
How to remove the rear control arms on Chevrolet Caprice?
A:
To remove the sedan upper control arm, first raise and support the rear wheels and axle, then unscrew and remove the control arm rear pivot bushing bolt from the axle housing for 1969 and 1970 models. Disconnect the upper control arm bracket from the crossmember by removing three bolts, then take out the control arm and unbolt it from its bracket. For all other models, extract the pivot bolt from the welded type frame bracket and withdraw the control arm. If new bushings are to be installed, it is advisable to have a dealer perform this task due to the need for a press and special tools. For the sedan lower control arm, remove the coil spring first, ensuring that the rear axle is not lowered excessively to avoid straining the hydraulic brake lines if both lower suspension arms are being removed. Disconnect the control arm at both the front and rear, then remove it from the vehicle. Replacement of worn bushings is also best left to a dealer for the same reasons. When dealing with wagon upper and lower control arms, if all four rear suspension control arms are being removed simultaneously, withdraw the two coil springs first. Raise the rear of the vehicle and support it under the frame side rails, then use a jack to lift the axle until all tension is relieved in the control arm being removed. Extract the control arm pivot bolts and remove the control arms, with the replacement of worn bushings again recommended to be handled by a dealer. Installation for all models follows the reverse order of removal, but do not tighten the pivot bolts to the specified torque until the vehicle's weight is lowered onto the suspension and wheels.
Control Arm, Front Upper Driver Side
19416902
Q:
How to properly remove and install the upper control arm on Chevrolet El Camino?
A:
Raise the front end of the vehicle and lower the control arm onto a jack for support, then remove the wheel. Separate the upper control arm ball stud and remove the two nuts securing the control arm shaft to the frame bracket, ensuring to tape together the shims for proper reinstallation. In some cases, it may be necessary to remove the upper control arm attaching bolts for clearance; gently tap the bolt downwards with a brass drift, pry it upwards with a suitable box wrench, and then use a pry bar and block of wood to remove the bolts from the frame. After removing the upper control arm, inspect the control arm pivot bushings; if they are worn, consider having them replaced by a GM dealer, or use a long bolt and tubular spacers for removal and installation if doing it yourself. When installing, loosen the end shaft retainer bolts or nuts, position the new control arm attaching bolts loosely in the frame, and install the control arm cross-shaft on the attaching bolts. Use a normal free-running nut to tighten the serrated bolts onto their seats, then remove the free-running nuts and fit the regular locknuts once the splined bolts are seated. Install the shims in their original fitted positions and torque-tighten the nuts, starting with the thinner shim pack nut for better clamping force. Install the ball stud through the knuckle, torque-tighten the nut, align the cotter pin holes, and fit a new cotter pin. Finally, fit the wheel, lower the vehicle to the floor, and torque-tighten the shaft retainer bolts or nuts.
