How to replace the lower control arm on Chevrolet SSR?

The first task involves raising the vehicle and it requires wheel removal for lower Control Arm replacement. Using the steering linkage and tie rod puller (J 24319-B) disconnect the outer tie rod from the Steering Knuckle by removing the outer tie rod retaining nut. Start by disconnecting the stabilizer shaft link and washer from the lower Control Arm by removing its lower retaining nut. Apply the steering linkage and tie rod puller (J 24319-B) to remove the shock module yoke lower mounting nut then separate the shock module yoke from the lower Control Arm. First remove lower Control Arm to lower Control Arm Bracket mounting nuts while noting bolt installation sequence and lastly install the lower Control Arm to lower Control Arm Bracket mounting bolts. Use the Ball Joint remover (J 43631) to remove the retaining nut on the lower Ball Joint then use the tool to disconnect the lower Ball Joint from the Steering Knuckle. Pivot the lower Control Arm outward and downward until it separates from the lower Control Arm Bracket. Then remove the lower Control Arm from the Steering Knuckle. To install this component begin by seating the lower Control Arm onto the Steering Knuckle before pivoting it outward and upward to join with the lower Control Arm Bracket. When installing the lower Control Arm to the lower Control Arm Bracket mounting bolts position the lower Control Arm parallel to the bracket for accurate bushing alignment. Finalize installation by first torquing the lower Control Arm Bracket mounting nuts to 130 nm (96 ft. Lbs.) then linking the shock module yoke to the lower Control Arm followed by the shock module yoke lower mounting nut. Next install the stabilizer shaft link and its washer to the lower Control Arm before installing the stabilizer shaft link retaining nut which must be fastened with a torque of 155 nm (114 ft. Lbs.). Place the outer tie rod onto the Steering Knuckle after tightening the 45 nm (33 ft. Lbs.) outer tie rod retaining nut. Finally, reinstall the tire and wheel before dropping the vehicle to examine the front wheel alignment.

OEM Chevrolet SSR Control Arm

Suspension Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Control Arms found

View related parts
Chevrolet SSR Lower Control Arm, Passenger Side Part Number: 19133556
$230.28 MSRP: $392.03
You Save: $161.75 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 89060579
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS
View related parts
Chevrolet SSR Lower Control Arm, Driver Side Part Number: 19133555
$230.28 MSRP: $392.03
You Save: $161.75 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 89060578
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS
View related parts

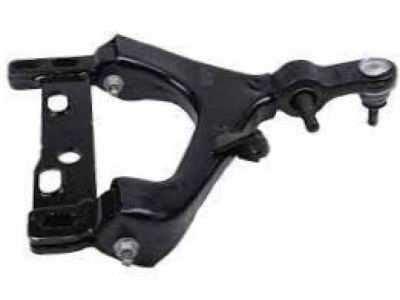

Chevrolet SSR Lower Control Arm, Driver Side Part Number: 15219429
$168.03 MSRP: $311.77
You Save: $143.74 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet SSR Upper Control Arm, Front Passenger Side Part Number: 19330400
$99.72 MSRP: $171.26
You Save: $71.54 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Front Upper Control; Suspension Control Arm; Control Arm; Arm, Steering Knuckle Upper & Lower Control
- Position: Front Upper Passenger Side
- Replaces: 15158963, 15080914, 15858683, 15077245, 15298273, 25786775
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet SSR Upper Control Arm, Front Driver Side Part Number: 19330399
$107.58 MSRP: $183.15
You Save: $75.57 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Assembly, Front Upper Control; Suspension Control Arm; Control Arm; Arm, Steering Knuckle Upper & Lower Control
- Position: Front Upper Driver Side
- Replaces: 15077244, 15858682, 15158962, 15298272, 25786774, 15080913
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

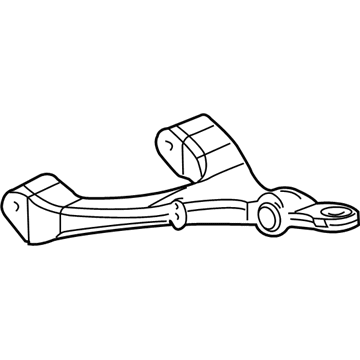

Chevrolet SSR Control Arm Part Number: 89040321
$116.92 MSRP: $183.96
You Save: $67.04 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Front Lower Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2004 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS
View related parts
Chevrolet SSR Lower Control Arm, Passenger Side Part Number: 15198487
$126.98 MSRP: $199.79
You Save: $72.81 (37%)
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Passenger Side
- Replaces: 15091390, 15167263, 15183145, 15165151, 15072944
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS
View related parts
Chevrolet SSR Lower Control Arm, Driver Side Part Number: 15198486
$114.47 MSRP: $180.11
You Save: $65.64 (37%)
Product Specifications
- Other Name: Arm, Steering Knuckle Control Arm and Ball Joint Assembly; Suspension Control Arm Assembly.
- Position: Driver Side
- Replaces: 15167262, 15072943, 15183144, 15165150, 15091389
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS
View related parts
Chevrolet SSR Control Arm, Passenger Side Part Number: 15219430
Product Specifications
- Other Name: Arm, Steering Knuckle Upper & Lower Control; Suspension Control Arm and Ball Joint Assembly; Control Arm Assembly; Lower Control Arm
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet SSR Upper Control Arm, Rear Part Number: 15116112
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet SSR Lower Control Arm, Rear Part Number: 15098154
Product Specifications
- Other Name: Arm, Rear Axle Control Arm; Upper Control Arm
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Chevrolet SSR | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS

Chevrolet SSR Control Arm

Want to cut long-term maintenance and repair costs? Choose OEM Control Arm. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet SSR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet SSR Control Arm includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Chevrolet SSR Control Arm is one of the most important parts that can boost up the performance as well as the durability of the Chevrolet SSR, which is the retro-styled pickup-truck convertible with the hardtop built since 2003 up to 2006. Primarily connected between the frame of the vehicle and the wheels, the Control Arm is responsible for the suspension's desirable movement by enabling the wheels to move in a manner correctable by the suspension. This aspect has to be promptly respond due to the importance of wheel alignment refer to the safety and the handling of the Chevrolet SSR. The Control Arms used in the various applications incorporated into the different SSR models can be of stamped steel or more complex designs such as cast iron or aluminum ones. Stamped steel Control Arms are also used because of their strength but they can rust, whereas newer materials give better strength and less weight which are efficient for the vehicle. Control Arms are also offered with Performance-oriented characteristics to cope up with the stress of extremity use, which makes them stable and efficient. Specs about the automotive industry illustrate that Chevrolet SSR Control Arm has met the market needs successfully to present an automotive component with a new design and strength not only in terms of the automotive experience, but the safety of automobiles as well. Given the fact that this particular Chevrolet SSR Control Arm can easily fit into all the different models of the SSR, it is crucial for the suspension of the Chevrolet SSR, which makes it a vital factor for any fan of the Chevrolet SSR that needs reliable and efficient control arm for the car.

Chevrolet SSR Control Arm Parts and Q&A

Lower Control Arm, Driver Side
15219429
Q: How to replace the lower control arm on Chevrolet SSR?
A:
The first task involves raising the vehicle and it requires wheel removal for lower Control Arm replacement. Using the steering linkage and tie rod puller (J 24319-B) disconnect the outer tie rod from the Steering Knuckle by removing the outer tie rod retaining nut. Start by disconnecting the stabilizer shaft link and washer from the lower Control Arm by removing its lower retaining nut. Apply the steering linkage and tie rod puller (J 24319-B) to remove the shock module yoke lower mounting nut then separate the shock module yoke from the lower Control Arm. First remove lower Control Arm to lower Control Arm Bracket mounting nuts while noting bolt installation sequence and lastly install the lower Control Arm to lower Control Arm Bracket mounting bolts. Use the Ball Joint remover (J 43631) to remove the retaining nut on the lower Ball Joint then use the tool to disconnect the lower Ball Joint from the Steering Knuckle. Pivot the lower Control Arm outward and downward until it separates from the lower Control Arm Bracket. Then remove the lower Control Arm from the Steering Knuckle. To install this component begin by seating the lower Control Arm onto the Steering Knuckle before pivoting it outward and upward to join with the lower Control Arm Bracket. When installing the lower Control Arm to the lower Control Arm Bracket mounting bolts position the lower Control Arm parallel to the bracket for accurate bushing alignment. Finalize installation by first torquing the lower Control Arm Bracket mounting nuts to 130 nm (96 ft. Lbs.) then linking the shock module yoke to the lower Control Arm followed by the shock module yoke lower mounting nut. Next install the stabilizer shaft link and its washer to the lower Control Arm before installing the stabilizer shaft link retaining nut which must be fastened with a torque of 155 nm (114 ft. Lbs.). Place the outer tie rod onto the Steering Knuckle after tightening the 45 nm (33 ft. Lbs.) outer tie rod retaining nut. Finally, reinstall the tire and wheel before dropping the vehicle to examine the front wheel alignment.
