Question 1

How should you inspect and diagnose the distributor cap and rotor for potential issues on Chevrolet K3500?

Accepted Answer

Look for Distributor Cap defects including cracks and holes or carbon track formation between terminals. Acceptable symptoms include normal discoloration and white buildup at terminals along with yellowed rotor caps and dark deposits at the rotor segment. Only replace parts if driveability issues exist. Professional intervention for a new cap and rotor installation should occur only when driveability problems emerge. To test for carbon tracks move an ohmmeter lead to a cap terminal while using the other lead to probe all secondary terminals and the center carbon ball; move the first lead between each terminal in sequence until all secondary terminals receive inspection; change the cap if non-infinite readings appear during testing. The process calls for cap replacement when non-infinite readings materialize during the testing procedure. Inspect the terminals of the cap for extreme corrosion while cleaning away the built-up material and plan for a new cap when corrosion threatens the component's structural integrity. If the rotor segment shows substantial wear it should be replaced because of its significant looseness. Detect shaft bushing looseness by placing the shaft into the housing to check for movement. The housing assembly requires replacement whenever the shaft shows any type of wobbling motion. Check the housing for any signs of damage or cracks as the last step of inspection. To diagnose ignition systems on vehicles running 5.0/5.7l engines utilize enhanced software found in computers and control systems- 5.0, 5.7l while the diagnosis software for 7.4l engines runs on computers and control systems - 7.4l.

Question 2

How to overhaul the distributor on Chevrolet S10?

Accepted Answer

To replace the Distributor, start with bringing into alignment on the white paint mark found on the bottom stem of the Distributor in the pre-drilled indent hole of the bottom of the gear. Make sure the rotor segment is properly placed on a v6 engine. If not, replace the Distributor. Remove two screws from the rotor; take out rotor and write locating holes it was removed from. The rotor screw holes as well as the rotor locator pin holes. Perform an alignment of the square cut hole in the vane wheel to the camshaft position (CMP) sensor and then take out the two screws that are holding the cmp sensor together and throw them. Remove the cmp (Call Metering Plug) sensor, identifying the dimple under the roll pin hole at one end of the gear, as shown below, when rechecking the gear end orientation while reassembly. Support the Distributor drive gear in a v block or vise and drive out the roll pin using a suitable punch to remove the driven gear from the Distributor shaft, along with the round washer, tang washer, shim washer, and old oil seal. For assembly, make sure to align the square-cut hole of the vane wheel for cmp sensor and push the sensor into the housing. Mount two new cmp sensors; one in the top of the case and the other over the entry port. Tighten the screws to 2.2 n.m (19 lb in). Find the proper rotor mounting position at the rotor screw holes and rotor locator pin holes and install the Distributor rotor using the index marks and fasten it using two hold-down screws torque of 1.9 n.m (17 lb in). Set the shim washer at the bottom of the Distributor shaft followed by tang washer and round washer. Mount the driven gear in line with the index marks while the rotor segment is positioned as indicated for a v6 or v8 engine while covering the white paint mark on the bottom stem of the Distributor with the pre-drilled indent hole found at the bottom of the gear. If the driven gear is installed in a wrong manner, the dimple will be around 180 degree to the rotor segment. Support the Distributor drive gear on a v-block or equivalent and install roll pin with an appropriate punch and hammer to seat the board gear. Last, but not least, fit the new oil seal beneath the mounting flange of the Distributor base, and fix the Distributor.

OEM Chevrolet Distributor

20 Distributors found

Chevrolet Distributor Part Number: 1103521

Chevrolet Distributor Assembly Part Number: 19179576

Chevrolet Distributor Assembly Part Number: 19212299

Chevrolet Distributor Assembly Part Number: 19212300

Chevrolet Distributor Assembly Part Number: 12598210

Chevrolet Distributor Assembly Part Number: 96054065

Chevrolet Distributor Part Number: 1103838

Chevrolet Distributor Part Number: 1103620

Chevrolet Distributor Assembly Part Number: 1103569

Chevrolet Distributor Part Number: 1103546

Chevrolet Distributor Part Number: 1103520

Chevrolet Distributor Part Number: 1103482

Chevrolet Distributor Part Number: 1103480

Chevrolet Distributor Assembly Part Number: 96055620

Chevrolet Ignition Assembly Part Number: 94845172

Chevrolet Distributor Assembly Part Number: 94672691

Chevrolet Distributor Assembly Part Number: 91172597

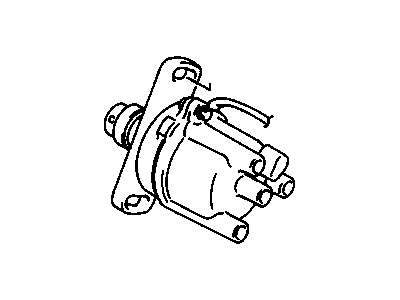

Chevrolet Distributor Assembly Part Number: 91172595

Chevrolet Ignition Module Part Number: 1103841

Chevrolet Distributor Part Number: 1103570

Chevrolet Distributor
