How to replace the Wiper Switch on Cadillac XLR?

Before replacing the windshield washer switch you must turn off the sir system. You must remove the steering column bracket with trim parts before pulling the wire harness from its clips and separating the wire connection. Pull out the windshield wiper and washer switch assembly starting from its locking tabs. Take off the 2 pan head tapping screws from the side mounted bracket next. Then remove the bracket itself. To detach a slide-on mounting bracket from the steering column shaft assembly you should first remove the turn signal cancel cam and steering shaft upper bearing spring. Fix the side mounted switch mounting bracket to the steering column tilt head with the 2 pan head tapping screws and tighten them to 7 n.m (62 lb in). Push the switch mounting bracket onto the steering column shaft parts and add the turn signal and multifunction switch components. Reposition the turn signal cancel cam and steering shaft top bearing spring inside the housing. Then insert the switch assembly onto the switch mounting bracket when appropriate locking tabs lock. Secure the wire harness assembly cables into the wire restraint clips while connecting and placing wire harness straps. After installation place back the steering column trim pieces including the bracket. Also activate the sir system.

OEM Cadillac XLR Wiper Switch

Windshield Wiper Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Wiper Switches found

View related parts
Cadillac XLR Combination Switch Part Number: 1999392
$76.20 MSRP: $113.40
You Save: $37.20 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Turn/Signal & Headlamp & Headlamp Dimmer & Fog Lamp; Switch, Headlamp/Fog Lamp/Turn Signal; Switch, Turn Signal Lamp
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Turn Signal Switch Part Number: 20808029
$76.80 MSRP: $119.93
You Save: $43.13 (36%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Turn Signal Lamp; Multi Purpose Switch; Combination Switch; Switch, Headlamp/Fog Lamp/Turn Signal; Switch, Headlamp Dimmer
- Replaces: 01999391, 1999391
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

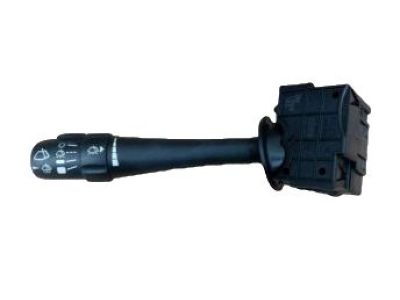

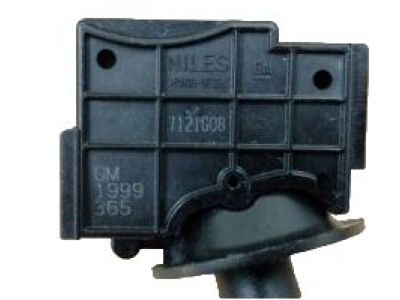

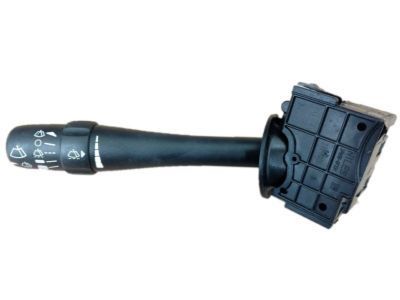

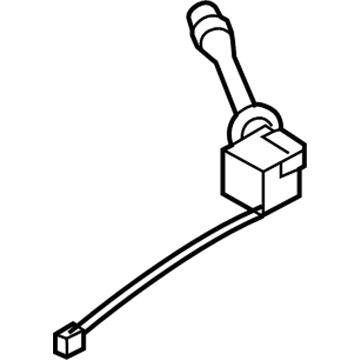

Cadillac XLR Wiper Switch Part Number: 1999365
Product Specifications
- Other Name: Switch, Windshield Washer; Windshield Washer Switch; Front Wiper Switch; Switch, Windshield Wiper Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Level Indicator Part Number: 19120357
Product Specifications
- Other Name: Switch Kit, Windshield Washer; Washer Fluid Level Sensor; Fluid Level Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac XLR Wiper Switch

Want to cut long-term maintenance and repair costs? Choose OEM Wiper Switch. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac XLR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac XLR Wiper Switch includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Cadillac XLR Wiper Switch serves as an essential component which demonstrates outstanding reliability and performance within the luxury roadster division of Cadillac vehicles. The Wiper Switch functions as a control mechanism to manage window wipers for clear vision during all weather conditions. The adjustable wiper speed operative together with on-off wiper control increases safety and visibility through its essential presence in Cadillac XLR models. The XLR Wiper Switch supports different XLR models that came out between 2003 and 2009 to allow drivers maximum visibility by controlling wiper operation until they keep eyes on the road. The Wiper Switch provides efficient performance for the Cadillac XLR under different driving circumstances because this design element operates reliably in various weather conditions. The Wiper Switch rises above other market competitors because it cooperates perfectly with the car's Magnetic Ride Control and advanced navigation system feature set. Through this integrated system Cadillac demonstrates its dedication to creating safe and high-performance vehicles. The car Wiper Switch exceeds mere functionality by displaying the brand's commitment to innovation thus providing both safe and exciting journeys in a the automaker model vehicle.

Cadillac XLR Wiper Switch Parts and Q&A

Combination Switch
1999392
Q: How to replace the Wiper Switch on Cadillac XLR?
A:
Before replacing the windshield washer switch you must turn off the sir system. You must remove the steering column bracket with trim parts before pulling the wire harness from its clips and separating the wire connection. Pull out the windshield wiper and washer switch assembly starting from its locking tabs. Take off the 2 pan head tapping screws from the side mounted bracket next. Then remove the bracket itself. To detach a slide-on mounting bracket from the steering column shaft assembly you should first remove the turn signal cancel cam and steering shaft upper bearing spring. Fix the side mounted switch mounting bracket to the steering column tilt head with the 2 pan head tapping screws and tighten them to 7 n.m (62 lb in). Push the switch mounting bracket onto the steering column shaft parts and add the turn signal and multifunction switch components. Reposition the turn signal cancel cam and steering shaft top bearing spring inside the housing. Then insert the switch assembly onto the switch mounting bracket when appropriate locking tabs lock. Secure the wire harness assembly cables into the wire restraint clips while connecting and placing wire harness straps. After installation place back the steering column trim pieces including the bracket. Also activate the sir system.
