How to Replace the Shift Linkage Boot on GMC Sierra 1500?

Begin replacement of the transmission control lever boot by taking out the transmission control lever. You should lift and push the lower edge of the control lever boot to reveal its retaining screws before removing all 4 screws. Pull out the 4 plastic retainers from the floor while you remove both the control lever boot retaining bezel and boot along with their retaining components as one unit. Move on to detach the 4 plastic retainers which enables separation between the control lever boot retaining bezel and boot. Then extract the control lever insulator from the floor. Start by placing the control lever insulator onto the floor as the first step for the installation process. You need to place the control lever boot retaining bezel onto the boot after which you should add the 4 plastic retainers. Fastener caution procedures aside, install the control lever boot retaining bezel along with its boot and secure the 4 plastic retainers to the floor. Install the 4 retaining screws to the control lever boot by pushing its lower edge first and tightening them to 1.6 Nm (14 lb in). Later, install the transmission control lever.

How to replace the control lever and Shift Linkage Boot on GMC Canyon?

To replace the control lever and shift boot, first one must remove the shift lever assembly (D06 or W/O D06). For vehicles without d06 take out the console. Then, remove the screws out of the control lever boot and tip the boot in order to detach it from the control lever. Shift the transmission into neutral then loosen the control lever housing assembly bolts and pull the housing assembly and the gasket out. Mask off the control lever housing opening to prevent debris from entering the transmission, and dismantle control lever housing if necessary. For installation, reassemble the control lever housing in case it was disassembled, remove the masking and clean up or dry the sealing surface. Set the control lever gasket onto the transmission while ensuring that the control lever housing assembly falls into line through the opening of the control lever assembly while doing so aligning the bushing with the internal shift control lever. Mount the control lever housing assembly bolts and torque the bolts with a torque of 20 n.m (15 lb ft). Prop the boot into place over the control lever, making sure the carpet is not caught between the boot and the floor panel, then tilt the boot to properly fit against the floor. Mount the control lever boot screws and tighten them to 2.5 n.m (22 lb in). Finally, reinstall the console if necessary and the shift lever assembly (D06 or W/O D06).

OEM GMC Shift Linkage Boot

Shift Linkage Dust Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Shift Linkage Boots found

View related parts

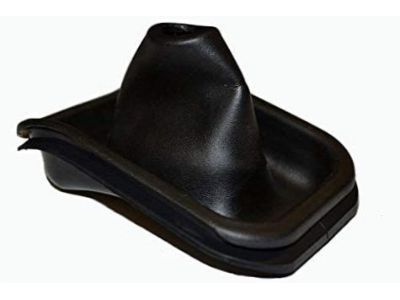

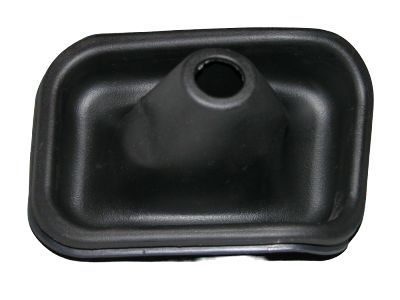

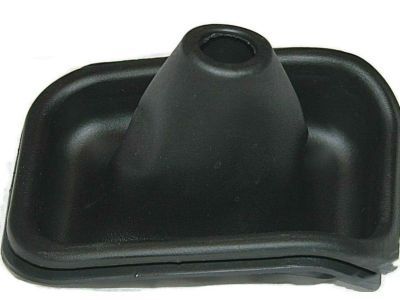

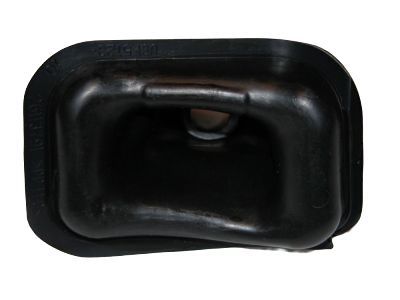

GMC Shift Lever Seal Part Number: 15775835
$13.28 MSRP: $19.77
You Save: $6.49 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot, Transmission Control Lever; Gearshift Lever Seal; Seal
Fits the following GMC Models:
- Savana 1500 | 2009-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 2009-2019 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2009-2019 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 1500 | 2007-2019 | AT4, Base, Denali, Elevation, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2007-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2007-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Yukon | 2007-2020 | Denali, Denali Hybrid, Hybrid, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 1500 | 2007-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 2500 | 2007-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View More
View related parts

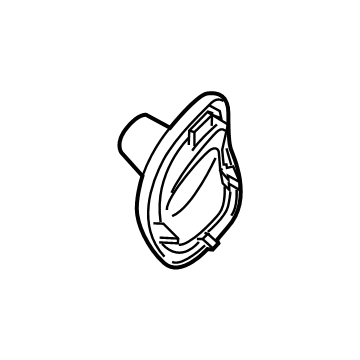

GMC Shift Boot Part Number: 84460775
$50.36 MSRP: $78.88
You Save: $28.52 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot-Automatic Transmission Control Lever; Boot, Transmission Control Lever
Fits the following GMC Models:
- Sierra 1500 | 2019-2023 | AT4, AT4X, Base, Denali, Denali Ultimate, Elevation, Pro, SLE, SLT | 4 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2020-2024 | AT4, AT4X, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
- Sierra 3500 HD | 2020-2024 | AT4, Base, Denali, Denali Ultimate, Pro, SLE, SLT | 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L FLEX, 8 Cyl 6.6 L GAS
View More
View related parts

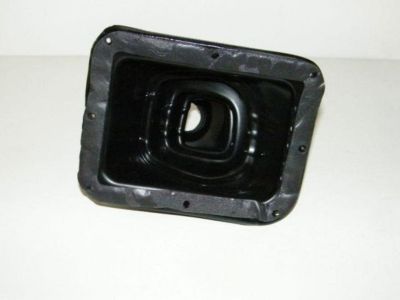

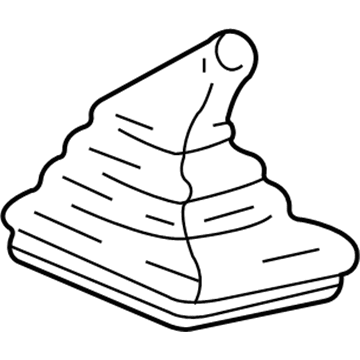

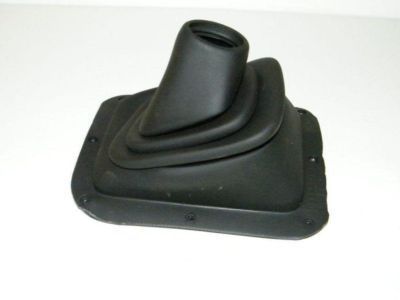

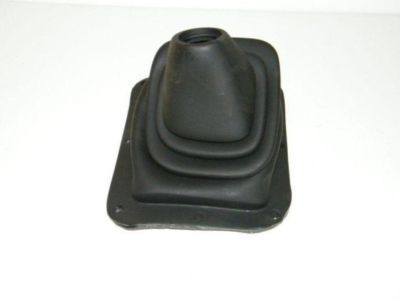

GMC Shift Boot Part Number: 15652795
Product Specifications
- Other Name: Boot, Manual Transmission Control Lever; Boot, Transmission Control Lever
Fits the following GMC Models:
- Jimmy | 1995-1997 | Base, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1994-1997 | SL, SLE, SLS | 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts

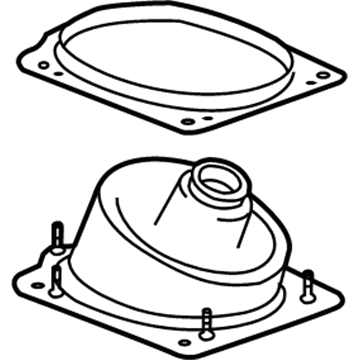

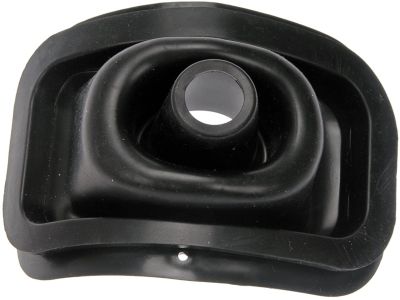

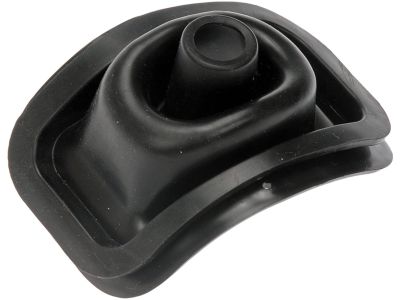

GMC Inner Boot Part Number: 15840127
Product Specifications
- Other Name: Boot, Manual Transmission Control Lever; Boot, Transmission Control Lever
- Replaces: 15120986
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts
GMC Shift Boot Part Number: 15970149
Product Specifications
- Other Name: Boot, Transmission Control Lever
Fits the following GMC Models:
- Sonoma | 1996-1997 | SL, SLE, SLS | 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Shift Boot Part Number: 15683326
Product Specifications
- Other Name: Boot, Manual Transmission Control Lever; Boot, Transmission Control Lever
Fits the following GMC Models:
- Sonoma | 1994-1997 | SL, SLE, SLS | 4 Cyl 2.2 L GAS, 6 Cyl 4.3 L GAS
View related parts

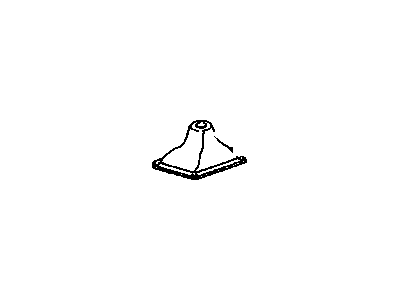

GMC Boot Part Number: 10175792
Product Specifications
- Other Name: Boot, Transmission Control Lever
Fits the following GMC Models:
- Sonoma | 1991-1992 | Base, GT, SLE | 4 Cyl 2.5 L GAS, 6 Cyl 2.8 L GAS, 6 Cyl 4.3 L GAS
- Syclone | 1991 | Base | 6 Cyl 4.3 L GAS
- Typhoon | 1992-1993 | Base | 6 Cyl 4.3 L GAS
View More

GMC Shift Linkage Boot

Choose OEM Shift Linkage Boot, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Shift Linkage Boot. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Shift Linkage Boot closes the tunnel of the gear linkage and helps to keep grime out and make the shifts sharp. GMC manufactures rugged trucks and SUVs on heavy-duty frames and joins high-output engines with suspensions that absorb worn-out highways yet it carries serious loads without straining. Drivers like hitch guidance cameras that are intuitive, surround-view alerts, and cabins that lock out the road roar. The company attaches MultiPro tailgates that are folded and stepped up such that the company makes loading cargo a human thing rather than heroic. High-density door seals, noise-cancelling headphones, and sealing of the panel joints with tightness silences wind swirl and engine droning on bad pavement. Even the standard trailering applications compute the payload and tongue weight on the dash within seconds. GMC continues to enhance electronics and materials but remains faithful to the straight-ahead objective of enduring ability that wins trust mile after mile. Similarly, there is the Shift Linkage Boot, the protective versatile wrapping of the shifter rod, which captures dust, water, and road grit before they begin to eat away the pivot joints and bushings. It silences cabin noise that trickles through the tunnel and prevents engine heat from scalding your ankle on the long haul. The Shift Linkage Boot material is made of rubber or vinyl and does not bend and tear as you are banging through the gears, which gives this cover a lifespan of years as opposed to one that cracks and spills bits of material into the linkage. Change it when the cracks appear and the gear changes remain tense, accurate and devoid of drama.

GMC Shift Linkage Boot Parts and Q&A

Shift Lever Seal
15775835
Q: How to Replace the Shift Linkage Boot on GMC Sierra 1500?
A:
Begin replacement of the transmission control lever boot by taking out the transmission control lever. You should lift and push the lower edge of the control lever boot to reveal its retaining screws before removing all 4 screws. Pull out the 4 plastic retainers from the floor while you remove both the control lever boot retaining bezel and boot along with their retaining components as one unit. Move on to detach the 4 plastic retainers which enables separation between the control lever boot retaining bezel and boot. Then extract the control lever insulator from the floor. Start by placing the control lever insulator onto the floor as the first step for the installation process. You need to place the control lever boot retaining bezel onto the boot after which you should add the 4 plastic retainers. Fastener caution procedures aside, install the control lever boot retaining bezel along with its boot and secure the 4 plastic retainers to the floor. Install the 4 retaining screws to the control lever boot by pushing its lower edge first and tightening them to 1.6 Nm (14 lb in). Later, install the transmission control lever.
Inner Boot
15840127
Q: How to replace the control lever and Shift Linkage Boot on GMC Canyon?
A:
To replace the control lever and shift boot, first one must remove the shift lever assembly (D06 or W/O D06). For vehicles without d06 take out the console. Then, remove the screws out of the control lever boot and tip the boot in order to detach it from the control lever. Shift the transmission into neutral then loosen the control lever housing assembly bolts and pull the housing assembly and the gasket out. Mask off the control lever housing opening to prevent debris from entering the transmission, and dismantle control lever housing if necessary. For installation, reassemble the control lever housing in case it was disassembled, remove the masking and clean up or dry the sealing surface. Set the control lever gasket onto the transmission while ensuring that the control lever housing assembly falls into line through the opening of the control lever assembly while doing so aligning the bushing with the internal shift control lever. Mount the control lever housing assembly bolts and torque the bolts with a torque of 20 n.m (15 lb ft). Prop the boot into place over the control lever, making sure the carpet is not caught between the boot and the floor panel, then tilt the boot to properly fit against the floor. Mount the control lever boot screws and tighten them to 2.5 n.m (22 lb in). Finally, reinstall the console if necessary and the shift lever assembly (D06 or W/O D06).
