How to replace the fuel level sensor in the 1500 Series on GMC Yukon?

The replacing process for the 1500 Series fuel level sensor starts with eliminating the fuel tank module. A small pick-like instrument should be used to unlock the retainer before you remove the electrical connector of the fuel level sensor from its module housing. Push the locking tangs of the level sensor directly into the module bucket space before lifting the fuel level sensor out of place. Install the new fuel level sensor by putting it into position before sliding it down for final engagement of the level sensor tangs at the bucket. Tap the retainer so it engages with the module cover while connecting the fuel level sensor electrical connector. Reinstall the fuel tank module after the completion of all installation procedures.

How to replace the fuel level sensor on GMC Sierra 1500?

The initial step for Fuel Level Sensor replacement begins with removing the fuel tank module. Detach the wiring pigtail electrical connector from the module cover before removing the pigtail through the module clip opening. Thoroughly push retainer clips on the Fuel Level Sensor to release them from the module reservoir before sliding up the sensor to remove it from the slot. Set the new Fuel Level Sensor into the slot of the reservoir before lowering it into position while ensuring the retainers connect properly to the module reservoir. The wiring pigtail for the Fuel Level Sensor should be positioned under the module clip behind the fuel pump wires and then connect its electrical connector to the module cover before reinstalling the fuel tank module.

OEM GMC Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

189 Fuel Level Sensors found

View related parts

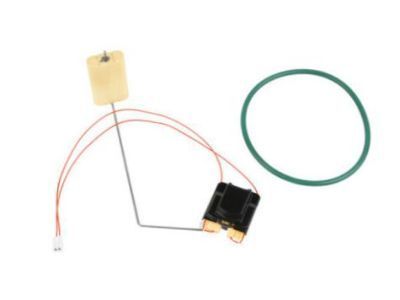

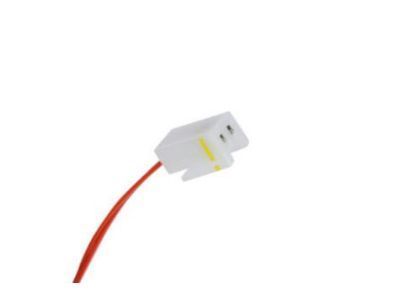

GMC Fuel Gauge Sending Unit Part Number: 19300976
$76.61 MSRP: $218.44
You Save: $141.83 (65%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor
- Replaces: 19168426, 15941998
Fits the following GMC Models:
- Sierra 1500 | 2007-2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2007-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2007-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View More
View related parts
GMC Fuel Gauge Sending Unit Part Number: 25351753
$113.31 MSRP: $315.16
You Save: $201.85 (65%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit
Fits the following GMC Models:
- Sierra 2500 HD | 2007 | SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2007 | SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
View related parts
GMC Fuel Gauge Sending Unit Part Number: 88966967
$174.94 MSRP: $496.20
You Save: $321.26 (65%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit
- Replaces: 25364561
Fits the following GMC Models:
- Sierra 3500 | 2005 | Base, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
View related parts

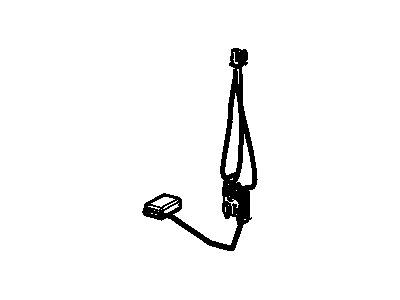

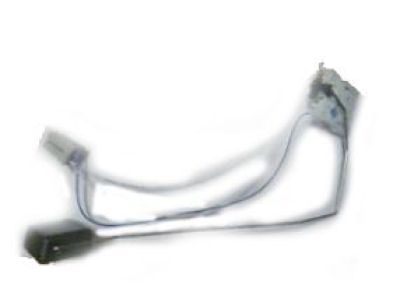

GMC Fuel Gauge Sending Unit Part Number: 13504929
$60.28 MSRP: $126.98
You Save: $66.70 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Sensor Kit, Fuel Tank Meter/Pump
Fits the following GMC Models:
- Sierra 3500 HD | 2011-2016 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
View related parts
GMC Fuel Gauge Sending Unit Part Number: 13504719
$62.54 MSRP: $131.74
You Save: $69.20 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sensor Kit, Fuel Tank Meter/Pump
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2016 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2011-2016 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
View related parts

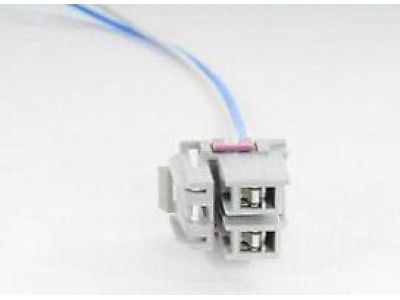

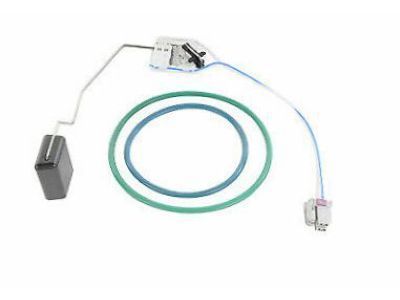

GMC Fuel Gauge Sending Unit, Passenger Side Part Number: 13506694
$63.64 MSRP: $134.04
You Save: $70.40 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sensor Kit, Fuel Tank Meter/Pump
- Position: Passenger Side
- Replaces: 13504701, 20818940
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SLE, SLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
GMC Fuel Gauge Sending Unit Part Number: 13581919
$69.43 MSRP: $146.25
You Save: $76.82 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sensor Kit, Fuel Tank Meter/Pump
- Replaces: 13577633, 13505230
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Fuel Gauge Sending Unit Part Number: 19329219
$83.68 MSRP: $176.26
You Save: $92.58 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor
- Replaces: 19258178
Fits the following GMC Models:
- Savana 1500 | 2010-2014 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX
- Savana 2500 | 2010-2017 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2010-2017 | Base, LS, LT | 4 Cyl 2.8 L DIESEL, 8 Cyl 4.8 L FLEX, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts
GMC Fuel Gauge Sending Unit Part Number: 13504923
$84.90 MSRP: $178.82
You Save: $93.92 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sensor Kit, Fuel Tank Meter/Pump
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2016 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2011-2016 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
View related parts
GMC Pressure Sensor Part Number: 19257106
$110.14 MSRP: $231.98
You Save: $121.84 (53%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Gauge Sending Unit; Level Sensor
- Replaces: 19168708, 19206479
Fits the following GMC Models:
- Yukon XL 1500 | 2008-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 2500 | 2008-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Fuel Gauge Sending Unit Part Number: 13582488
$123.50 MSRP: $260.13
You Save: $136.63 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sensor Kit, Fuel Tank Meter/Pump
Fits the following GMC Models:
- Sierra 1500 | 2014-2018 | Base, Denali, SLE, SLT | 6 Cyl 4.3 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
View related parts
GMC Fuel Gauge Sending Unit Part Number: 88965379
$178.32 MSRP: $375.60
You Save: $197.28 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor
- Replaces: 25349028
Fits the following GMC Models:
- Sierra 1500 | 2005-2006 | Denali, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 Classic | 2007 | Hybrid | 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV)
- Sierra 1500 HD | 2006 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2006 | SL, SLE, SLT, WT
- Sierra 3500 | 2006 | SL, SLE, SLT, WT
- Sierra 3500 Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
- Yukon XL 1500 | 2004-2006 | Denali, SL, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View More
View related parts
GMC Fuel Gauge Sending Unit Part Number: 19148811
$191.04 MSRP: $402.41
You Save: $211.37 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sending Unit
- Replaces: 25350792
Fits the following GMC Models:
- Sierra 2500 HD | 2005-2009 | Base, SL, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
- Sierra 3500 | 2005-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
- Sierra 3500 Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2007-2009 | SLE, SLT, WT | 8 Cyl 6.6 L DIESEL
View More
View related parts

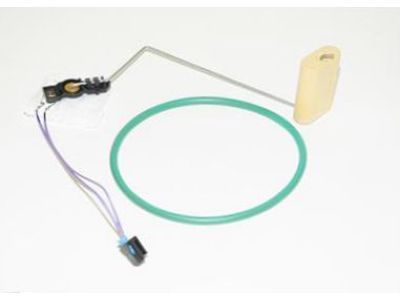

GMC Level Sensor Part Number: 19122011
$84.74 MSRP: $174.14
You Save: $89.40 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor
Fits the following GMC Models:
- Canyon | 2006-2008 | SL, SLE, SLT, WT | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts
GMC Fuel Gauge Sending Unit Part Number: 19207814
$85.82 MSRP: $176.36
You Save: $90.54 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor
Fits the following GMC Models:
- Canyon | 2009-2012 | SLE, SLT, WT | 4 Cyl 2.9 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
View related parts

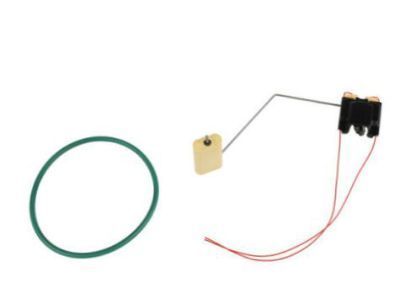

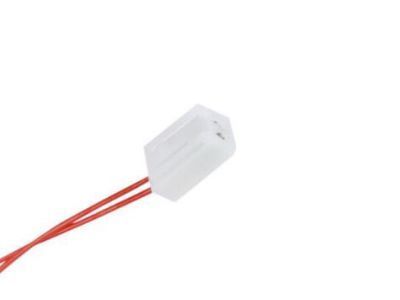

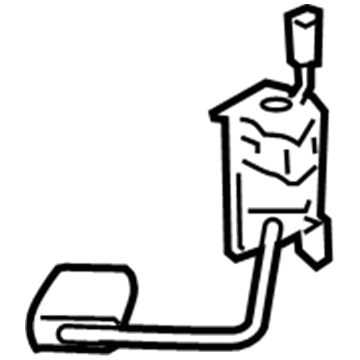

GMC Fuel Gauge Sending Unit Part Number: 19300977
$96.26 MSRP: $197.82
You Save: $101.56 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor
- Replaces: 19181001
Fits the following GMC Models:
- Yukon | 2008-2013 | Denali, Denali Hybrid, Hybrid, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

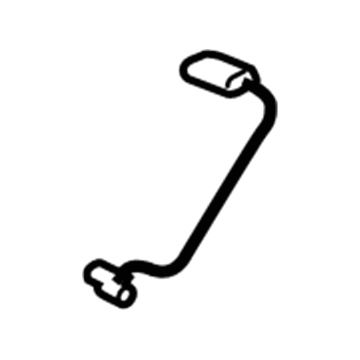

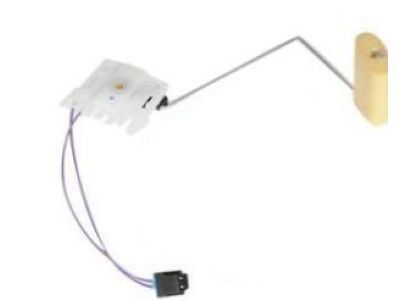

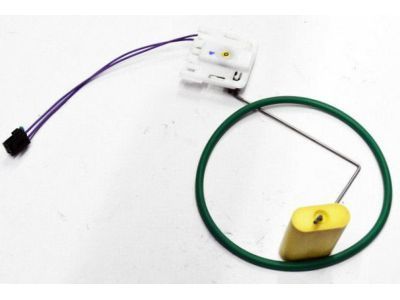

GMC Fuel Gauge Sending Unit Part Number: 19133513
$191.43 MSRP: $393.38
You Save: $201.95 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor
- Replaces: 25362735, 88965425
Fits the following GMC Models:
- Savana 1500 | 2005-2009 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 2005-2009 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2005-2009 | Base, LS, LT, SLE | 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

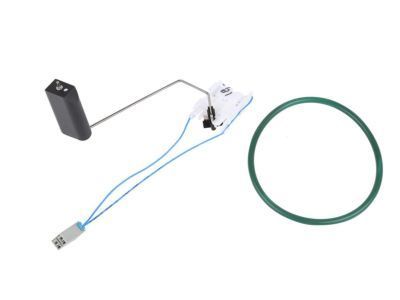

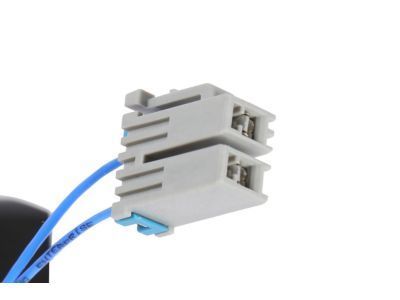

GMC Fuel Gauge Sending Unit Part Number: 84255784
$28.74 MSRP: $53.98
You Save: $25.24 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sensor Kit, Fuel Tank Meter/Pump
- Replaced by: 86587577
Fits the following GMC Models:
- Terrain | 2018-2024 | AT4, Denali, SL, SLE, SLT | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
GMC Fuel Gauge Sending Unit Part Number: 19329221
$92.38 MSRP: $194.58
You Save: $102.20 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Tank Meter/Pump; Fuel Level Sensor; Fuel Sending Unit; Level Sensor
- Replaces: 19206551, 19302146
Fits the following GMC Models:
- Savana 2500 | 2008-2016 | Base | 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2008-2016 | Base, LS, LT | 8 Cyl 6.6 L DIESEL
View related parts
GMC Fuel Gauge Sending Unit Part Number: 84042272
$109.87 MSRP: $198.86
You Save: $88.99 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit-Fuel Level; Fuel Level Sensor; Fuel Sending Unit; Level Sensor; Sensor Kit, Fuel Tank Meter/Pump
- Replaces: 19178490
Fits the following GMC Models:
- Yukon XL 1500 | 2008-2009 | SLE, SLT | 8 Cyl 6.0 L GAS
- Yukon XL 2500 | 2008-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS

| Page 1 of 10 |Next >

1-20 of 189 Results

GMC Fuel Level Sensor

Choose OEM Fuel Level Sensor, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Fuel Level Sensor. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Fuel Level Sensor informs the vehicle owner of the amount of gas that is remaining in the tank. GMC makes trucks and SUVs that shake off bad roads, drag giant trailers, and pull them, yet leave the cabin insulated. The firm started way back in 1901, continued to expand in the care of General Motors, and now challenges capability by welding robust frames, tuning fat powertrains, and overlaying new driver alerts such as the surround vision. MultiPro tailgate flips, folds, and stretches such that owners do not have to hitch-hike to get gear over steel walls. The brand makes sure that all chassis are tested during long hours and perfects the suspension bits to ensure that the ride remains smooth despite full beds packing. Trustworthy constructions and consistent technology innovations are a plus to drivers who require a durable rig. The tank has a Fuel Level Sensor, and this is in the form of a float attached to a thin rod swinging with the gas. That motion makes resistance in a small circuit, converts position into an electric signal, and shoots the reading directly to the dashboard gauge. The driver can monitor the needle falling on the screen and know exactly when it is time to stop at a fuel station rather than make assumptions between fuel fill-ups. When the reading is distorted by grime or wear, the Fuel Level Sensor might become adhered or give erratic figures and signals that a swift replacement maintains precision. GMC owners such as the basic design like it enables them to travel in urban traffic and in rural deliveries without additional unnecessary designs.

GMC Fuel Level Sensor Parts and Q&A

Fuel Gauge Sending Unit
19300977
Q: How to replace the fuel level sensor in the 1500 Series on GMC Yukon?
A:
The replacing process for the 1500 Series fuel level sensor starts with eliminating the fuel tank module. A small pick-like instrument should be used to unlock the retainer before you remove the electrical connector of the fuel level sensor from its module housing. Push the locking tangs of the level sensor directly into the module bucket space before lifting the fuel level sensor out of place. Install the new fuel level sensor by putting it into position before sliding it down for final engagement of the level sensor tangs at the bucket. Tap the retainer so it engages with the module cover while connecting the fuel level sensor electrical connector. Reinstall the fuel tank module after the completion of all installation procedures.
Fuel Gauge Sending Unit
19300976
Q: How to replace the fuel level sensor on GMC Sierra 1500?
A:
The initial step for Fuel Level Sensor replacement begins with removing the fuel tank module. Detach the wiring pigtail electrical connector from the module cover before removing the pigtail through the module clip opening. Thoroughly push retainer clips on the Fuel Level Sensor to release them from the module reservoir before sliding up the sensor to remove it from the slot. Set the new Fuel Level Sensor into the slot of the reservoir before lowering it into position while ensuring the retainers connect properly to the module reservoir. The wiring pigtail for the Fuel Level Sensor should be positioned under the module clip behind the fuel pump wires and then connect its electrical connector to the module cover before reinstalling the fuel tank module.
