How to Replace the Sunshade Sunroof Cable Assembly (Front) on Cadillac SRX?

To replace the sunroof sunshade cable assembly (front), first, open the sunshade fully remove the front sunroof window, then it goes through to the center window panel. Next, remove the front sunshade motor/actuator and the sunshade stop set-screw at the front of the track assembly. Remove the screws on the sunshade link to unhook it from the sunshade cable barrel and do away with the sunshade link in the sunshade channel carefully as it is always under tremendous hand. Push the cable assembly through the top side of the barrel using a flat-bladed tool while the barrel end is still inside the front track assembly of the sunroof window. Then, pull the cable longitudinally to get it out of the sunroof window front track assembly. For installation, attach the bullet end of the sunshade cable to the front part of the track assembly at the part where U-channel is using the cable until the barrel end is 25mm (1 in) away from the close part of the U-channel. Using a flat-bladed tool, push the cable through the channel until the barrel of the cable is about half straight path behind the rear end of the sunroof's track, viz, 32mm (1.25 in). Mount the sunshade stop set-screw flush with the front edge of the U-channel for the appropriate adjustment so that the sunshade operates as intended. Fold the sunshade one-half turn into the channel, then install the sunshade link into the channel and tighten with the sunshade screws to 2 N.m (18 lb in). Finally, install the front sunshade motor/actuator, center window panel, and front window panel and do the front sunshade initialization procedure.

OEM Cadillac Sunroof Cable

Sunroof Window Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Sunroof Cables found

View related parts
Cadillac Cable Part Number: 25747585
$10.29 MSRP: $59.92
You Save: $49.63 (83%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Roof Panel
Fits the following Cadillac Models:
- SRX | 2004-2008 | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts

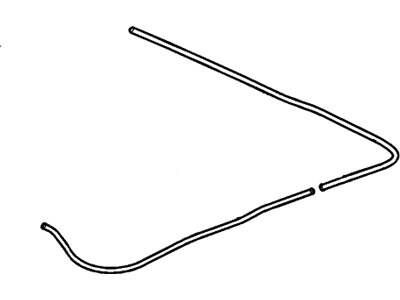

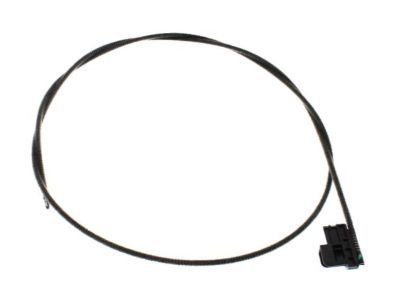

Cadillac Cable, Driver Side Part Number: 20945787
Product Specifications
- Other Name: Cable, Roof Panel
- Position: Driver Side
Fits the following Cadillac Models:
- SRX | 2010-2016 | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac Cable & Guide Part Number: 90414508
Product Specifications
- Other Name: Cable, Sun Roof; Cable
- Position: Rear
Fits the following Cadillac Models:
- Catera | 1997-2001 | Base, Sport | 6 Cyl 3.0 L GAS
View related parts

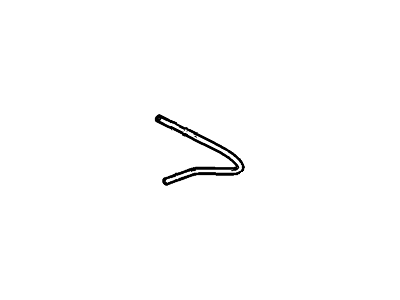

Cadillac Cable, Passenger Side Part Number: 20945786
Product Specifications
- Other Name: Cable, Roof Panel
- Position: Passenger Side
Fits the following Cadillac Models:
- SRX | 2010-2016 | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac Cable Part Number: 19121202
Product Specifications
- Other Name: Cable Kit, Sun Roof; Cable, Sun Roof
- Position: Front Top
- Replaces: 88956590
Fits the following Cadillac Models:
- XLR | 2004-2009 | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac Cable, Driver Side Part Number: 16602931
Product Specifications
- Other Name: Cable, Roof Panel
- Position: Driver Side
Fits the following Cadillac Models:
- DeVille | 1985-1988 | Base, Cabriolet, d'Elegance, Touring | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS
- Eldorado | 1986-1987 | Base, Biarritz | 8 Cyl 4.1 L GAS
- Fleetwood | 1985-1988 | 60 Special, 75, 75 Formal, Base, Brougham, Brougham d'Elegance, d'Elegance | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
- Seville | 1986-1987 | Base, Elegante | 8 Cyl 4.1 L GAS
View More
View related parts
Cadillac Cable, Passenger Side Part Number: 16602930
Product Specifications
- Other Name: Cable, Roof Panel
- Position: Passenger Side
Fits the following Cadillac Models:
- DeVille | 1985-1988 | Base, Cabriolet, d'Elegance, Touring | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS
- Eldorado | 1986-1987 | Base, Biarritz | 8 Cyl 4.1 L GAS
- Fleetwood | 1985-1988 | 60 Special, 75, 75 Formal, Base, Brougham, Brougham d'Elegance, d'Elegance | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL
- Seville | 1986-1987 | Base, Elegante | 8 Cyl 4.1 L GAS
View More
View related parts
Cadillac Cable Part Number: 25747587
$122.93 MSRP: $183.75
You Save: $60.82 (34%)
Product Specifications
- Other Name: Cable, Roof Panel
Fits the following Cadillac Models:
- SRX | 2004-2009 | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS

Cadillac Sunroof Cable

Choose OEM Sunroof Cable, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Sunroof Cable. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Sunroof Cable slides the panel of the roof making it easy to have some light and some air in an instant. The name Sunroof Cable on the inside of each Cadillac is a promise of effortless travel, combining the 100-year-old tradition of the bold Cadillac with a new trend of comfort, computer-polished shine and turning heads on the road without stuffing them with corporate spout. With the smart glass roof of the hand-built Celestiq, the upscale displays that anticipate commutes better than a cup of coffee and the ability to playlists like parents do traffic jams with no loss of that indefinable street presence, Cadillac continues to reinterpret luxury by combining raw lines with user-friendly technology and the result is as satisfying as ever. Decades later Cadillac cleared a path where luxurious seats are met with quick acceleration and it proves that being refined and getting your adrenaline pumping can be one and the same and it supports that claim with new electric platforms, integrated touch screens and in-car silence that makes the highway a conversational piece. The Sunroof Cable makes motor rotation translate into straight-line pull using a reinforced track and wire structure to align gears and guide rails so that the glass sides slide open or slide into place when commanded, reducing the amount of friction, slicing jam and keeping the wind muted even after the weekend joyride has been complete. The Sunroof Cable is constructed to support repeated cycles, preventing the stretching of the cable, corrosion and balancing its tension to allow fresh air in and keep the cabin dry during thunderstorms which provides drivers with an easy but tough connection between fingertip and sky-view freedom.

Cadillac Sunroof Cable Parts and Q&A

Cable
25747587
Q: How to Replace the Sunshade Sunroof Cable Assembly (Front) on Cadillac SRX?
A:
To replace the sunroof sunshade cable assembly (front), first, open the sunshade fully remove the front sunroof window, then it goes through to the center window panel. Next, remove the front sunshade motor/actuator and the sunshade stop set-screw at the front of the track assembly. Remove the screws on the sunshade link to unhook it from the sunshade cable barrel and do away with the sunshade link in the sunshade channel carefully as it is always under tremendous hand. Push the cable assembly through the top side of the barrel using a flat-bladed tool while the barrel end is still inside the front track assembly of the sunroof window. Then, pull the cable longitudinally to get it out of the sunroof window front track assembly. For installation, attach the bullet end of the sunshade cable to the front part of the track assembly at the part where U-channel is using the cable until the barrel end is 25mm (1 in) away from the close part of the U-channel. Using a flat-bladed tool, push the cable through the channel until the barrel of the cable is about half straight path behind the rear end of the sunroof's track, viz, 32mm (1.25 in). Mount the sunshade stop set-screw flush with the front edge of the U-channel for the appropriate adjustment so that the sunshade operates as intended. Fold the sunshade one-half turn into the channel, then install the sunshade link into the channel and tighten with the sunshade screws to 2 N.m (18 lb in). Finally, install the front sunshade motor/actuator, center window panel, and front window panel and do the front sunshade initialization procedure.
