How to replace the Power Steering Pump (LP1, LY7) on Cadillac CTS?

Start the Power Steering Pump (LP1, LY7) replacement process by placing a drain pan under the bottom of the vehicle. Start by removing the power steering pulley followed by disconnection of the power steering outlet hose from the pump and power steering pressure line. Initially detach the Power Steering Pump bracket from engine bolts and afterward eliminate the Power Steering Pump and bracket assembly. Next proceed with removing Power Steering Pump to bracket bolts before removing the pump from the bracket. Install the Power Steering Pump to bracket by securing it first then tightening the Power Steering Pump to bracket bolts at 22 nm (17 ft. Lbs.). The installation process requires mounting the Power Steering Pump and bracket assembly first and securing this setup through Power Steering Pump bracket to engine bolts that need to be tightened to 50 nm (37 ft. Lbs.). After cleaning the material from the line and sealing it with a new component replace and fasten the power steering pressure line to pump while tightening it to 40 nm (30 ft. Lbs.). After attaching the power steering reservoir outlet hose to the pump continue by reinstalling the power steering pulley and taking away the drain pan that was under the vehicle. Power steering system bleeding must be performed as the last step.

How to replace the power steering pump on Cadillac Escalade?

Initially detach the power steering pulley when replacing the Power Steering Pump while setting a drain pan underneath the pump. First disconnect the hose guide bracket from the front pump surface before disconnecting electrical connections when steering has variable effort and then remove both hoses from the pump. The pump removal process begins with taking out the lower intermediate shaft from the steering gear followed by unbolted the rear bracket from the engine block. Finally, the pump leaves the vehicle once all front bolts are removed. The process requires removing a bracket which is located at the back of the pump. Begin pump installation by mounting the bracket to the rear pump surface then tighten rear bracket retaining nuts to 50 nm (37 ft. Lbs.). First install the pump before adding the hose guide bracket bolt and securing the bolt which retain the rear bracket to the engine. Fasten the front pump bolts at 50 nm (37 ft. Lbs.). Vehicles with variable effort steering require you to reconnect the electrical connector followed by hose attachment to the pump while securing the nut to 28 nm (20 ft. Lbs.). The installation process ends when you place the intermediate shaft followed by the power steering pulley then perform power steering system filling and bleeding.

OEM Cadillac Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

50 Power Steering Pumps found

View related parts

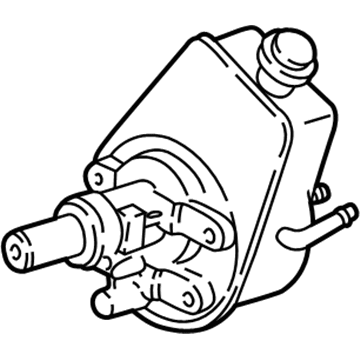

Cadillac Power Steering Pump Part Number: 26069033
$468.51 MSRP: $917.30
You Save: $448.79 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump, Power Steering
- Replaced by: 19420681
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts

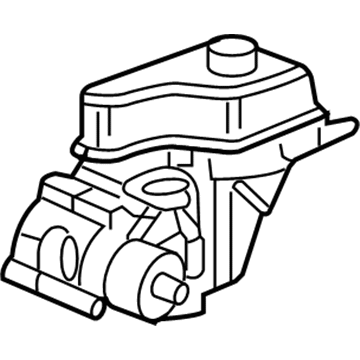

Cadillac Power Steering Pump Part Number: 19369079
$225.06 MSRP: $357.32
You Save: $132.26 (38%)
ADD TO CART
Product Specifications
- Other Name: Pump Kit, Power Steering
- Replaced by: 19433015
Fits the following Cadillac Models:
- DTS | 2006-2011 | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts

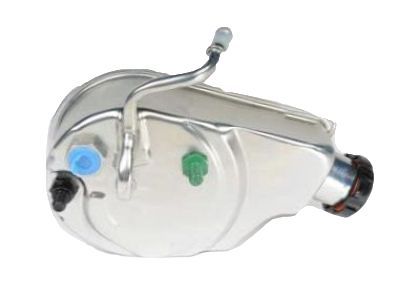

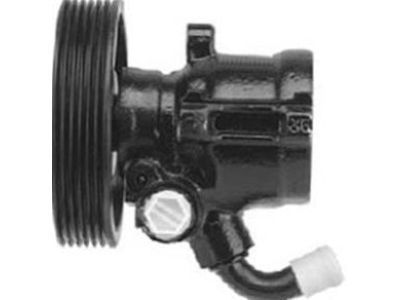

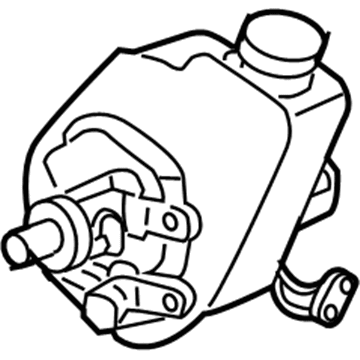

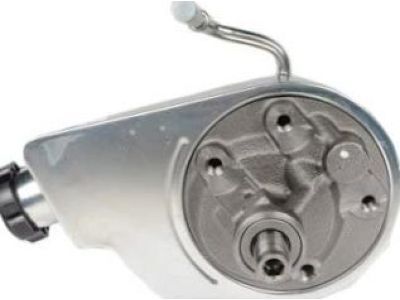

Cadillac Power Steering Pump Part Number: 15077397
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Replaces: 15754216, 15077366, 26068923
Fits the following Cadillac Models:
- Escalade | 2002-2003 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade EXT | 2002-2003 | Base | 8 Cyl 6.0 L GAS
View related parts

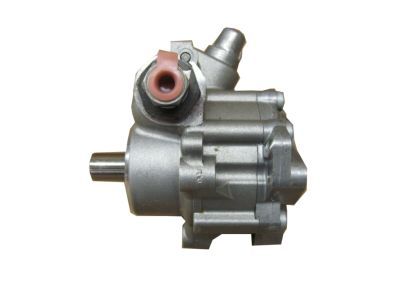

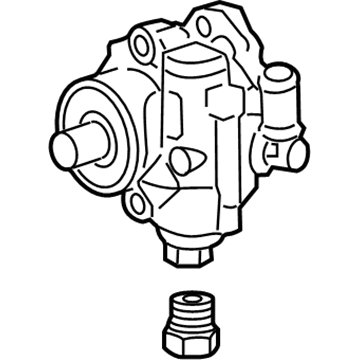

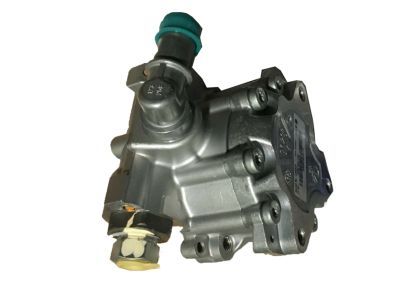

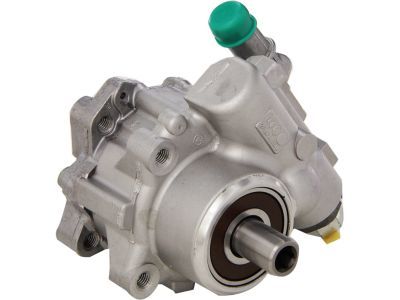

Cadillac Power Steering Pump Part Number: 20806165
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Replaces: 25936422
Fits the following Cadillac Models:
- CTS | 2009-2015 | V, Vsport, Vsport Premium | 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts

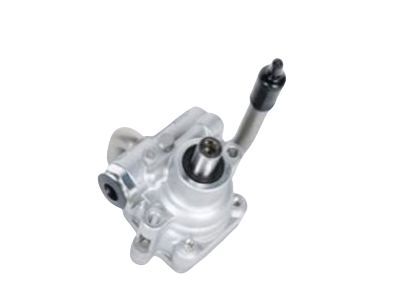

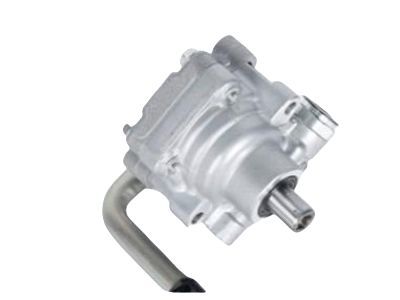

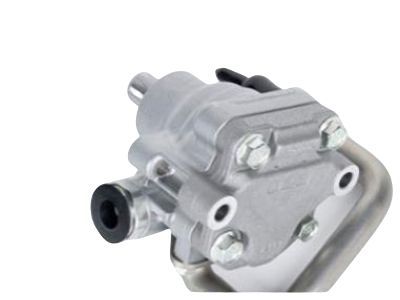

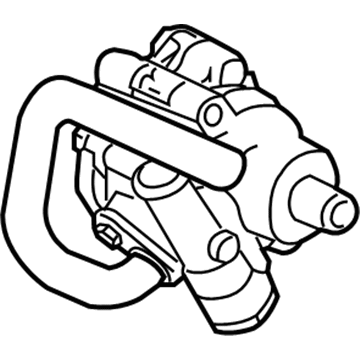

Cadillac Power Steering Pump Part Number: 25897658
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Replaces: 10375360, 15824425, 26084648
Fits the following Cadillac Models:
- XLR | 2004-2009 | Base, Platinum | 8 Cyl 4.6 L GAS
View related parts

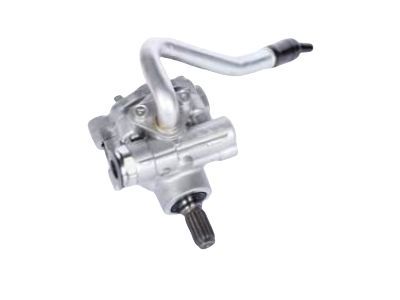

Cadillac Power Steering Pump Part Number: 25897659
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Replaces: 15143858
Fits the following Cadillac Models:
- XLR | 2006-2009 | V | 8 Cyl 4.4 L GAS
View related parts

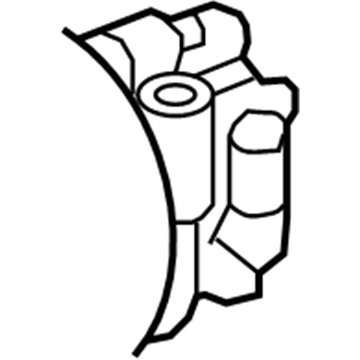

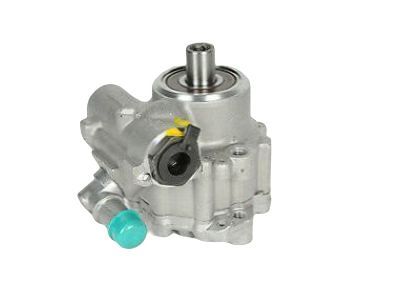

Cadillac Power Steering Pump Part Number: 15224339
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
Fits the following Cadillac Models:
- CTS | 2008-2014 | Base, Luxury, Performance, Premium | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

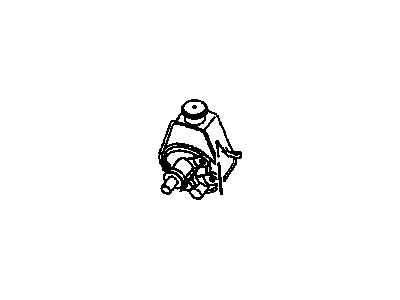

Cadillac Power Steering Pump Part Number: 26014111
Product Specifications
- Other Name: Pump; Pump, Power Steering
Fits the following Cadillac Models:
- Brougham | 1990 | Base, d'Elegance | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
View related parts

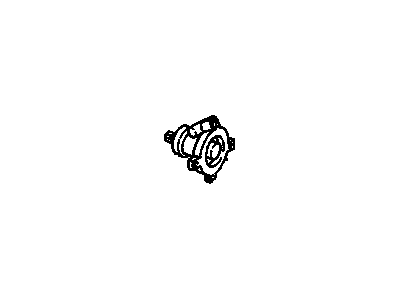

Cadillac Power Steering Pump Part Number: 26023794
Product Specifications
- Other Name: Pump; Power Steering Rebuild Kit; Seal Kit; Power Steering Pump Assy; Pump, Power Steering
Fits the following Cadillac Models:
- 60 Special | 1993 | Base | 8 Cyl 4.9 L GAS
- Brougham | 1991 | Base, d'Elegance | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- DeVille | 1991-1993 | Base, Spring Edition, Touring | 8 Cyl 4.9 L GAS
- Fleetwood | 1991-1993 | 60 Special, Base, Brougham, d'Elegance | 8 Cyl 4.9 L GAS, 8 Cyl 5.7 L GAS
View More
View related parts
Cadillac Power Steering Pump Part Number: 88959420
Product Specifications
- Other Name: Pump Assembly, Power Steering (Remanufacture)
- Replaces: 26070580, 26035631, 26070561, 26035640, 26070579, 26079688, 26035632, 26044523, 26055798, 26055949
Fits the following Cadillac Models:
- DeVille | 1994-1995 | Base | 8 Cyl 4.9 L GAS
- Eldorado | 1992-1993 | Base, Touring | 8 Cyl 4.9 L GAS
- Seville | 1992-1993 | Base, STS | 8 Cyl 4.9 L GAS
View More
View related parts

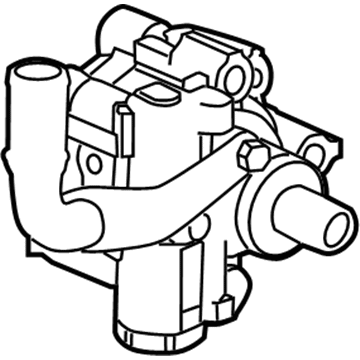

Cadillac Power Steering Pump Part Number: 13574902
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Replaces: 13501428, 13505836
Fits the following Cadillac Models:
- SRX | 2010-2011 | Performance, Premium | 6 Cyl 2.8 L GAS
View related parts
Cadillac Power Steering Pump Part Number: 15054905
Product Specifications
- Other Name: Pump, Power Steering
- Replaced by: 26084409
Fits the following Cadillac Models:
- Escalade | 2002 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade EXT | 2002 | Base | 8 Cyl 6.0 L GAS
View related parts
Cadillac Power Steering Pump Part Number: 15078157
Product Specifications
- Other Name: Steering Gear; Gear Assembly
- Position: Rear
- Replaced by: 26084409
Fits the following Cadillac Models:
- Escalade | 2002 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade EXT | 2002 | Base | 8 Cyl 6.0 L GAS
View related parts
Cadillac Power Steering Pump Part Number: 90573227
Product Specifications
- Other Name: Pump, Power Steering (W/Pulley); Module
- Replaced by: 24445102
Fits the following Cadillac Models:
- Catera | 1997-2001 | Base, Sport | 6 Cyl 3.0 L GAS
View related parts
Cadillac Power Steering Pump Part Number: 25770107
Product Specifications
- Other Name: Pump, Power Steering
Fits the following Cadillac Models:
- CTS | 2004-2007 | Base | 6 Cyl 2.8 L GAS, 6 Cyl 3.6 L GAS
View related parts

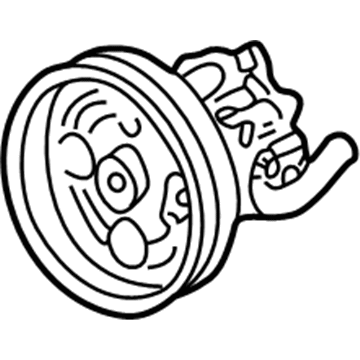

Cadillac Power Steering Pump Part Number: 25756609
Product Specifications
- Other Name: Pump, Power Steering
- Replaces: 25683329
Fits the following Cadillac Models:
- CTS | 2003-2004 | Base, Luxury, Luxury Sport | 6 Cyl 3.2 L GAS
View related parts
Cadillac Power Steering Pump Part Number: 26022753
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
Fits the following Cadillac Models:
- DeVille | 1990 | Base | 8 Cyl 4.5 L GAS
- Fleetwood | 1990 | 60 Special, Base, d'Elegance | 8 Cyl 4.5 L GAS
View related parts

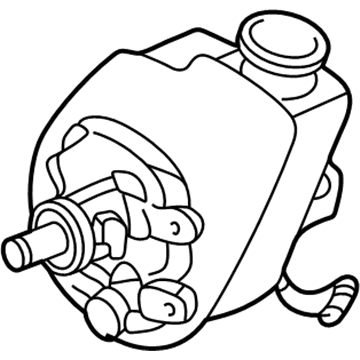

Cadillac Power Steering Pump Part Number: 19420680
Product Specifications
- Other Name: Pump Assembly, Power Steering; Pump, Power Steering
- Replaces: 15134706, 15267676, 15909832, 88963605
Fits the following Cadillac Models:
- Escalade | 2004-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2004-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Power Steering Pump Part Number: 26031756
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
Fits the following Cadillac Models:
- Brougham | 1991-1992 | Base, d'Elegance | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
View related parts

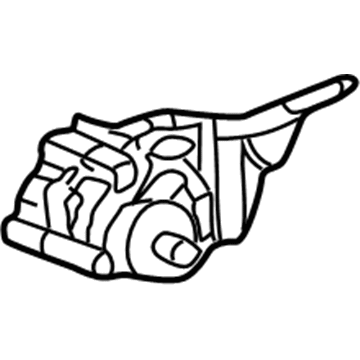

Cadillac Power Steering Pump Part Number: 19369074
Product Specifications
- Other Name: Pump Kit, Power Steering
- Replaces: 26073311, 88955485, 26068722
Fits the following Cadillac Models:
- DeVille | 2000-2005 | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
- Eldorado | 2000 | ESC, ETC | 8 Cyl 4.6 L GAS
- Seville | 1998-2004 | SLS, STS | 8 Cyl 4.6 L GAS
View More

| Page 1 of 3 |Next >

1-20 of 50 Results

Cadillac Power Steering Pump

Choose OEM Power Steering Pump, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Power Steering Pump. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Power Steering Pump Parts and Q&A

Power Steering Pump

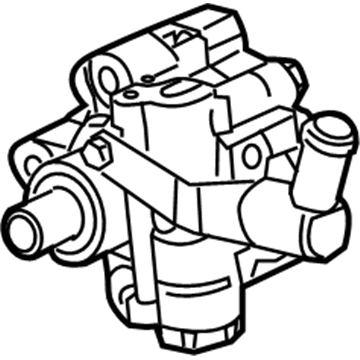

21997867
Q: How to replace the Power Steering Pump (LP1, LY7) on Cadillac CTS?
A:
Start the Power Steering Pump (LP1, LY7) replacement process by placing a drain pan under the bottom of the vehicle. Start by removing the power steering pulley followed by disconnection of the power steering outlet hose from the pump and power steering pressure line. Initially detach the Power Steering Pump bracket from engine bolts and afterward eliminate the Power Steering Pump and bracket assembly. Next proceed with removing Power Steering Pump to bracket bolts before removing the pump from the bracket. Install the Power Steering Pump to bracket by securing it first then tightening the Power Steering Pump to bracket bolts at 22 nm (17 ft. Lbs.). The installation process requires mounting the Power Steering Pump and bracket assembly first and securing this setup through Power Steering Pump bracket to engine bolts that need to be tightened to 50 nm (37 ft. Lbs.). After cleaning the material from the line and sealing it with a new component replace and fasten the power steering pressure line to pump while tightening it to 40 nm (30 ft. Lbs.). After attaching the power steering reservoir outlet hose to the pump continue by reinstalling the power steering pulley and taking away the drain pan that was under the vehicle. Power steering system bleeding must be performed as the last step.
Power Steering Pump
19420679
Q: How to replace the power steering pump on Cadillac Escalade?
A:
Initially detach the power steering pulley when replacing the Power Steering Pump while setting a drain pan underneath the pump. First disconnect the hose guide bracket from the front pump surface before disconnecting electrical connections when steering has variable effort and then remove both hoses from the pump. The pump removal process begins with taking out the lower intermediate shaft from the steering gear followed by unbolted the rear bracket from the engine block. Finally, the pump leaves the vehicle once all front bolts are removed. The process requires removing a bracket which is located at the back of the pump. Begin pump installation by mounting the bracket to the rear pump surface then tighten rear bracket retaining nuts to 50 nm (37 ft. Lbs.). First install the pump before adding the hose guide bracket bolt and securing the bolt which retain the rear bracket to the engine. Fasten the front pump bolts at 50 nm (37 ft. Lbs.). Vehicles with variable effort steering require you to reconnect the electrical connector followed by hose attachment to the pump while securing the nut to 28 nm (20 ft. Lbs.). The installation process ends when you place the intermediate shaft followed by the power steering pulley then perform power steering system filling and bleeding.
