How to center the Steering Angle Sensor before removal and installation on Cadillac CTS?

Sensor identification begins by choosing from the illustrations and removal follows immediately. The sensor connector's front component faces in a rightward direction. You need not center the existing sensor before taking it off during reuse. Separate the connector to free the sensor from its adapter and bearing assembly. An alignment mark should first be placed on the flush rotor flange cuff before sensor removal to minimize assembly misalignment later. Before installation position the sensor to match the steering shaft alignment then connect it to the bearing assembly and adapter. A foam ring combined with a pin hole for centering can be found on the sensor front along with a flush rotor flange cuff. Sensor reuse requires alignment of rotor flange cuff marks before mount-up which should stay aligned until the sensor reaches full installation depth. The pin on new sensors should stay in place unless the sensor reaches its full seating position. A double D flanged flat surface and alignment tab will be positioned on the sensor's back side. Each sensor installation must follow the same sequence including specific annotation of sensor features such as pin holes and alignment marks to maintain uniform alignment throughout.

How to replace the rear wheel Steering Angle Sensor on Cadillac Escalade?

To remove the Steering Angle Sensor, raise your vehicle with due respect for your transport vehicle lifting guidelines and the rear wheel steering lifting/jacking notice. Remove the steering gear protection shield by removing the retaining bolts and disconnect the electrical connector. Delicately lift the Steering Angle Sensor cover from the steering gear without cracking the sensor. Then, unbolt the Steering Angle Sensor's retaining bolts. Do not forget to change the steering gear actuator if the boots are damaged, also inspect the inner tie rod boot for damaged or worn parts. Remove the Steering Angle Sensor from the steering gear making sure it does not turn accordingly. For installation, mount the new Steering Angle Sensor onto the steering gear with the o-ring in place. Take off the pin that keeps the location of the new sensor while immediately installing on the steering gear while carefully keeping the pin in the same location. Secure the Steering Angle Sensor with the retaining bolts with loctite 242 blue and tighten to 4 n.m (35 lb in). Replace the Steering Angle Sensor cover and reconnect the electrical connector. Finally, install and tighten the steering gear protection shield and its retaining bolts to 180 n.m (132 lb ft), lower the vehicle and undertake a four wheel alignment.

OEM Cadillac Steering Angle Sensor

Steering Column Angle Position Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

25 Steering Angle Sensors found

View related parts

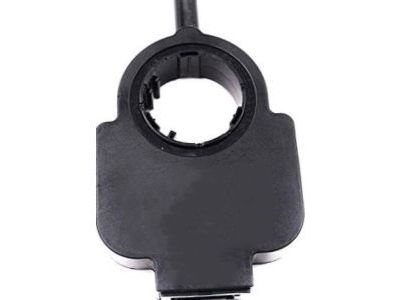

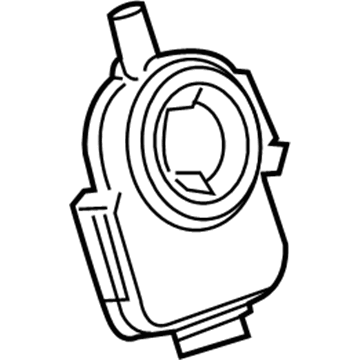

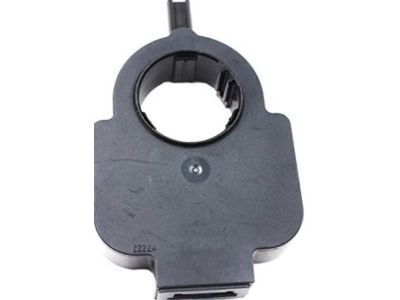

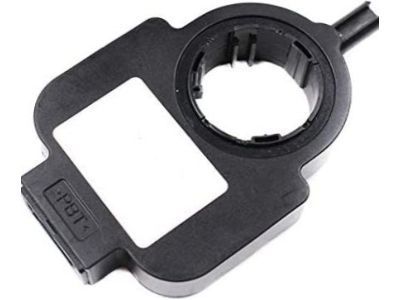

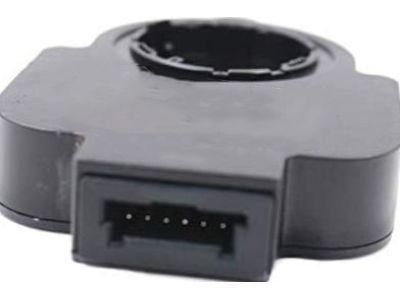

Cadillac Position Sensor Part Number: 13579486
$36.30 MSRP: $68.16
You Save: $31.86 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor
- Replaced by: 13587663
Fits the following Cadillac Models:
- XTS | 2013 | Base, Livery, Luxury, Platinum, Premium | 6 Cyl 3.6 L GAS
View related parts

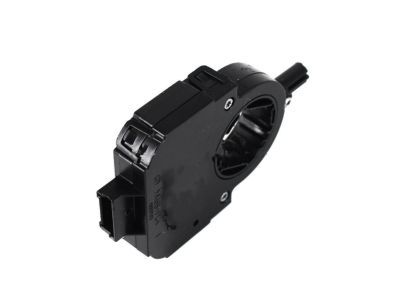

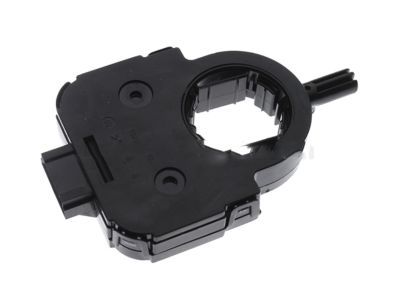

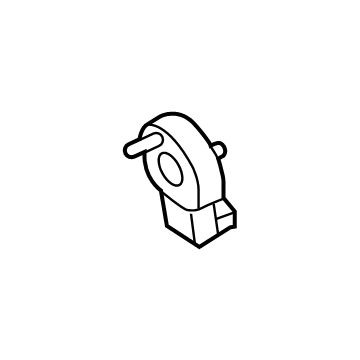

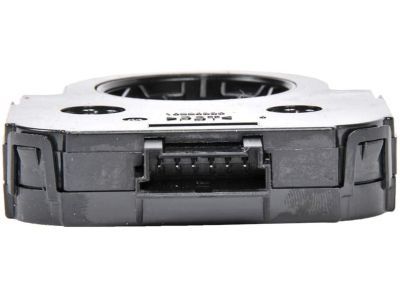

Cadillac Position Sensor Part Number: 13590209
$73.36 MSRP: $142.38
You Save: $69.02 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor; Sensor
Fits the following Cadillac Models:
- Escalade | 2015-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2015-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Position Sensor Part Number: 84107026
$54.17 MSRP: $106.07
You Save: $51.90 (49%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor
- Replaces: 20795490
Fits the following Cadillac Models:
- CTS | 2012-2015 | Base, Luxury, Performance, Premium, V, Vsport, Vsport Premium | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts

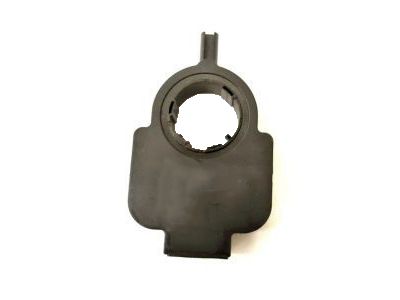

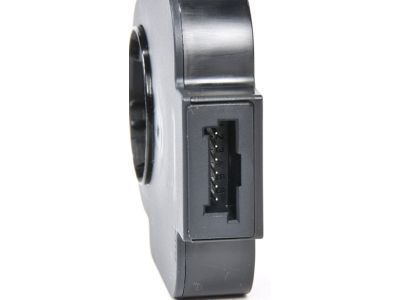

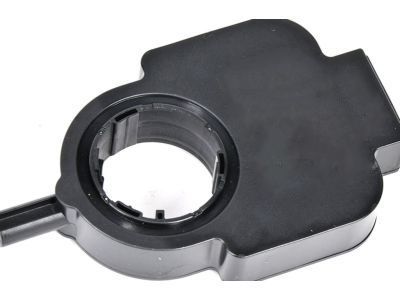

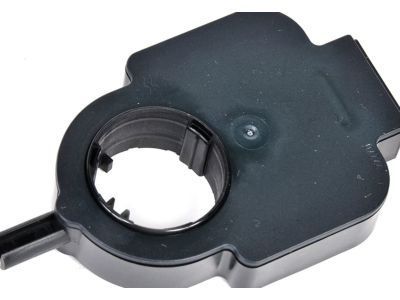

Cadillac Position Sensor Part Number: 13589398
$83.97 MSRP: $162.99
You Save: $79.02 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor; Steering Sensor Assembly
Fits the following Cadillac Models:
- XTS | 2014-2019 | Base, Livery, Luxury, Platinum, Premium, Premium Luxury, Vsport Platinum, Vsport Premium, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
View related parts
Cadillac Position Sensor Part Number: 26104070
$129.89 MSRP: $254.28
You Save: $124.39 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor
- Replaces: 26100011
Fits the following Cadillac Models:
- Escalade | 2003-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2003-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts

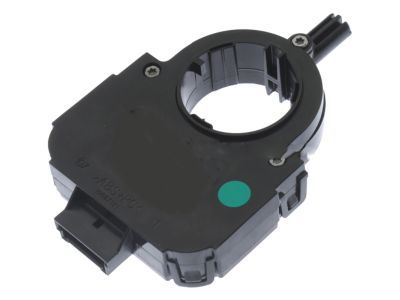

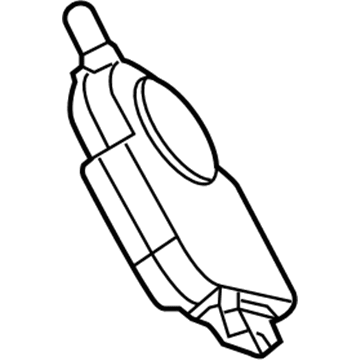

Cadillac Position Sensor Part Number: 13589991
$41.83 MSRP: $116.38
You Save: $74.55 (65%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor; Steering Sensor Assembly
- Replaces: 13579709, 13589257, 13584209, 13513905
Fits the following Cadillac Models:
- ATS | 2013-2019 | Base, Luxury, Performance, Premium, Premium Luxury, Premium Performance, V | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- CTS | 2014-2019 | Base, Luxury, Performance, Premium, Premium Luxury, V, Vsport, Vsport Premium, Vsport Premium Luxury | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
- ELR | 2014-2016 | Base | 4 Cyl 1.4 L PLUG-IN HYBRID EV-GAS (PHEV)
- SRX | 2013-2016 | Base, Luxury, Performance, Premium | 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
- XTS | 2013-2019 | Base, Livery, Luxury, Platinum, Premium, Premium Luxury, Vsport Platinum, Vsport Premium, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
View More
View related parts

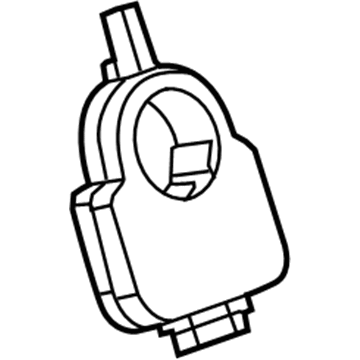

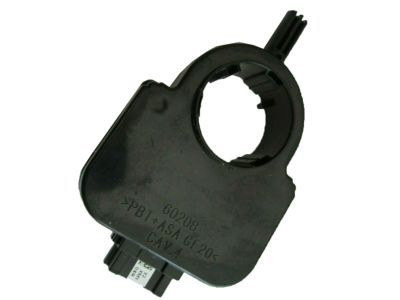

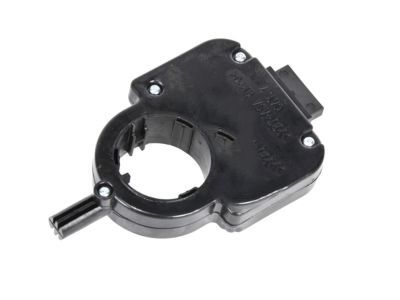

Cadillac Angle Sensor Part Number: 25849366
$49.84 MSRP: $96.72
You Save: $46.88 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Steering Sensor Assembly
Fits the following Cadillac Models:
- SRX | 2010-2012 | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX
View related parts

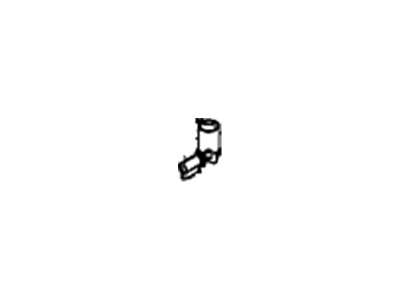

Cadillac Position Sensor Part Number: 26069719
$40.98 MSRP: $82.30
You Save: $41.32 (51%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Sensor
Fits the following Cadillac Models:
- DeVille | 2000-2003
View related parts
Cadillac Position Sensor Part Number: 25853012
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor
Fits the following Cadillac Models:
- CTS | 2008-2010 | Base, Luxury, Performance, Premium, V | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS
View related parts

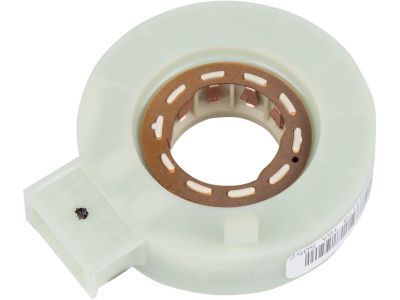

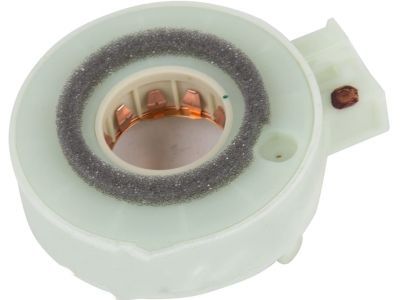

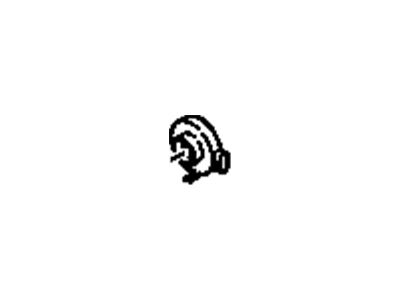

Cadillac Position Sensor Part Number: 26084178
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor
Fits the following Cadillac Models:
- Escalade | 2002 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade EXT | 2002 | Base | 8 Cyl 6.0 L GAS
View related parts

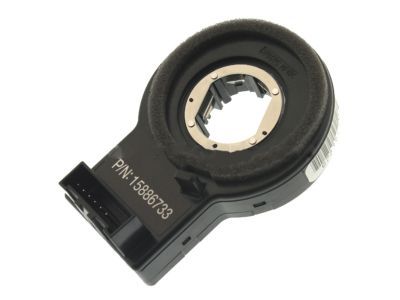

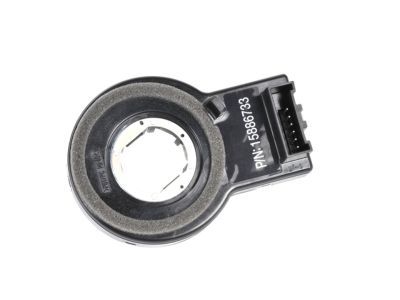

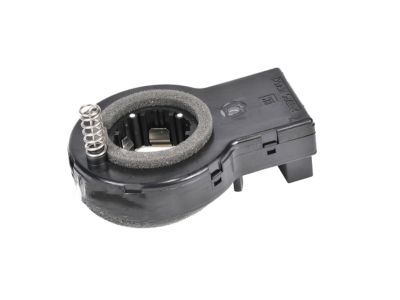

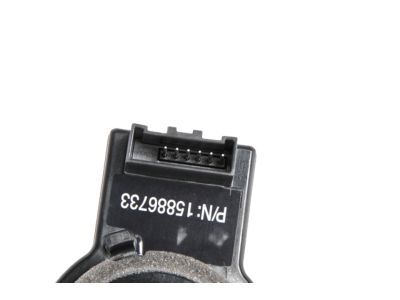

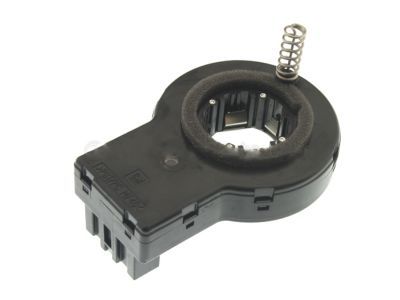

Cadillac Position Sensor Part Number: 15886733
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor
- Replaces: 15112675, 25833069
Fits the following Cadillac Models:
- Escalade | 2007-2013 | Base, Hybrid, Hybrid Platinum, Platinum | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2007-2010 | Base, Platinum | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade EXT | 2007-2010 | Base | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

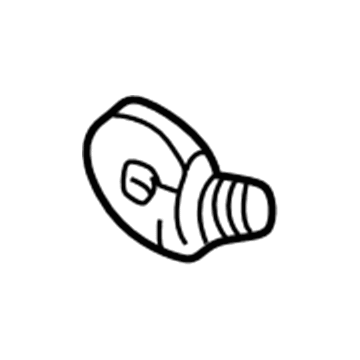

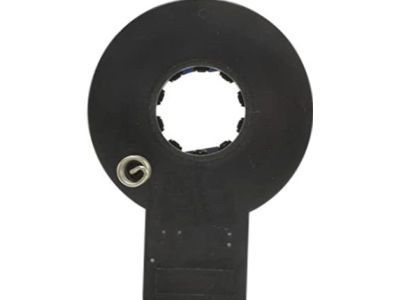

Cadillac Position Sensor Part Number: 26058287
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor
Fits the following Cadillac Models:
- DeVille | 1998-1999 | Base, Concours, d'Elegance | 8 Cyl 4.6 L GAS
- Seville | 1998-1999 | SLS, STS | 8 Cyl 4.6 L GAS
View related parts

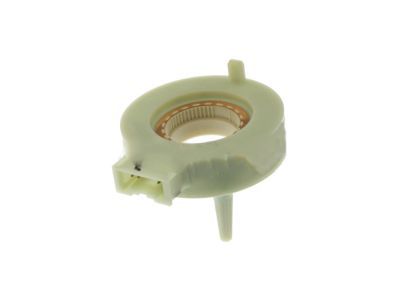

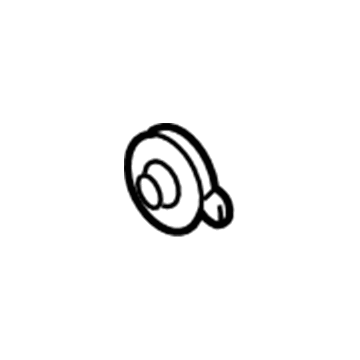

Cadillac Position Sensor Part Number: 15231656
$118.46 MSRP: $186.40
You Save: $67.94 (37%)
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor; Sensor
- Replaces: 26069756, 88965535
Fits the following Cadillac Models:
- DTS | 2006-2011 | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
- DeVille | 2000-2004 | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
- STS | 2005-2011 | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
- XLR | 2004-2008 | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View More
View related parts

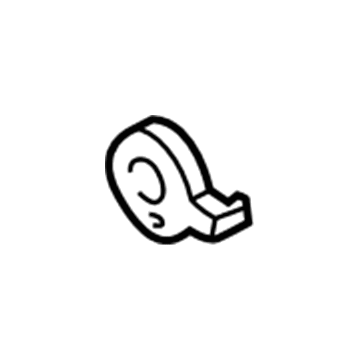

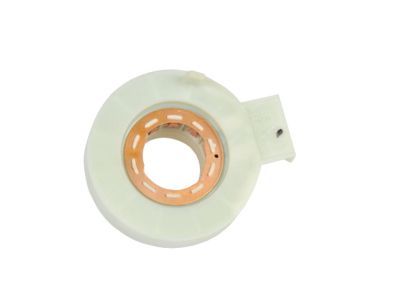

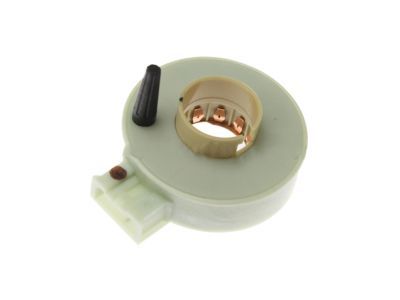

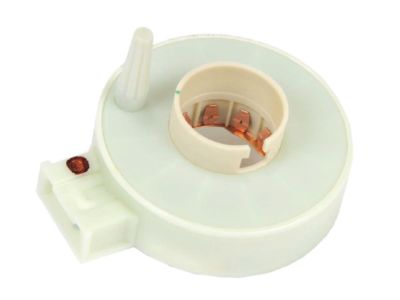

Cadillac Position Sensor Part Number: 88965543
$123.83 MSRP: $194.85
You Save: $71.02 (37%)
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor; Sensor, Steering Gear Hydraulic Valve
- Replaces: 26059047
Fits the following Cadillac Models:
- Seville | 2000-2004 | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Speed Sensor Part Number: 26064468
$72.07 MSRP: $128.70
You Save: $56.63 (44%)
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor; Position Sensor; Sensor
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts

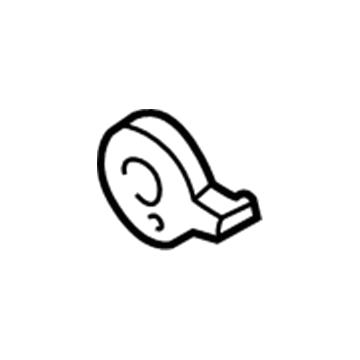

Cadillac Position Sensor Part Number: 26055808
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Sensor
Fits the following Cadillac Models:
- DeVille | 1997 | Base, Concours, d'Elegance | 8 Cyl 4.6 L GAS
- Seville | 1997 | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Speed Sensor Part Number: 26060653
Product Specifications
- Other Name: Sensor, Steering Column
Fits the following Cadillac Models:
- Fleetwood | 1993-1996 | Base, Brougham | 8 Cyl 5.7 L GAS
View related parts

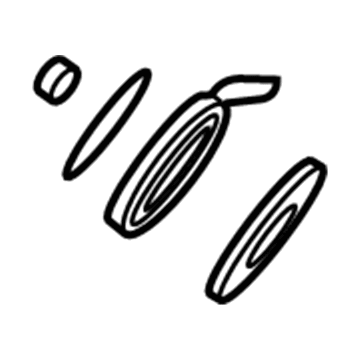

Cadillac Position Sensor Part Number: 26091590
Product Specifications
- Other Name: Sensor Kit, Steering; Steering Wheel Speed Sensor; Sensor
- Position: Rear
Fits the following Cadillac Models:
- Escalade | 2002 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade EXT | 2002 | Base | 8 Cyl 6.0 L GAS
View related parts

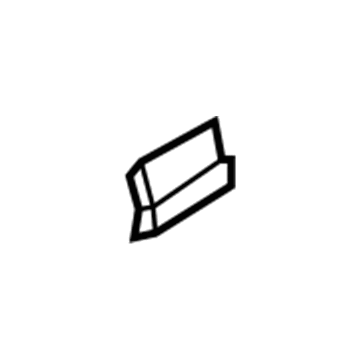

Cadillac Position Sensor Part Number: 89060602
Product Specifications
- Other Name: Sensor, Steering Column; Steering Wheel Speed Sensor; Steering Angle Sensor; Sensor
Fits the following Cadillac Models:
- STS | 2005-2011 | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts

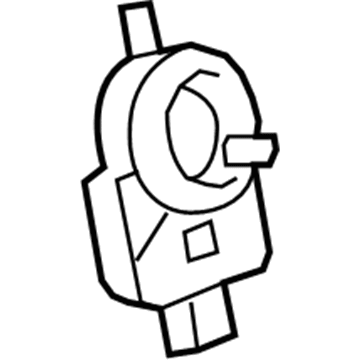

Cadillac Position Sensor Part Number: 20821449
Product Specifications
- Other Name: Sensor, Steering Gear Hydraulic Valve; Steering Wheel Speed Sensor; Steering Angle Sensor; Angle Sensor
Fits the following Cadillac Models:
- CTS | 2011 | Base, Luxury, Performance, Premium, V | 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 6.2 L GAS

| Page 1 of 2 |Next >

1-20 of 25 Results

Cadillac Steering Angle Sensor

Choose OEM Steering Angle Sensor, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Steering Angle Sensor. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Steering Angle Sensor transmits accurate wheel angle information to stability systems to control their cars with more precise and safer handling. Cadillac combines a century-old tradition with current attitude, the balance of courageous design, comfortable interiors, and sharpness on the roads that is consciously individual. There is a combination of a high-resolution dash, user-friendly infotainment, and responsive aids to drivers that makes long trips light. Manual touches, soothing electric design and a demand of the balanced chassis tuning take the range to the next level of luxury. Cadillac is continuing to develop, designing nimble compacts into the future with the next one, the Celestiq, that will be hand-built without losing the confidence it holds. When the needle ascends, owners are aware of the genuine comfort at city speeds and continuous serenity, rather than marketing nonsense. All Cadillacs seek to experience a feeling of being alive and still relaxed. The Steering Angle Sensor is applied to measure the actual rotational movement of the steering wheel speedily in milliseconds and forwards that uncoded data to the stability control, yaw logic and adaptive steering racks. This is because the Steering Angle Sensor allows the car to vary the amount of brake force applied through corners at a rate so fast that it is applied before slip can develop. It matches with yaw and wheel-speed inputs; therefore, the Cadillac Steering Angle Sensor is able to instruct electronic brains to complain an aggressive swerve or narrow turn-in feel. Durable internals withstand vibration and changes in temperature and keep readings constant in potholes, snow or summer heat.

Cadillac Steering Angle Sensor Parts and Q&A

Position Sensor
15231652
Q: How to center the Steering Angle Sensor before removal and installation on Cadillac CTS?
A:
Sensor identification begins by choosing from the illustrations and removal follows immediately. The sensor connector's front component faces in a rightward direction. You need not center the existing sensor before taking it off during reuse. Separate the connector to free the sensor from its adapter and bearing assembly. An alignment mark should first be placed on the flush rotor flange cuff before sensor removal to minimize assembly misalignment later. Before installation position the sensor to match the steering shaft alignment then connect it to the bearing assembly and adapter. A foam ring combined with a pin hole for centering can be found on the sensor front along with a flush rotor flange cuff. Sensor reuse requires alignment of rotor flange cuff marks before mount-up which should stay aligned until the sensor reaches full installation depth. The pin on new sensors should stay in place unless the sensor reaches its full seating position. A double D flanged flat surface and alignment tab will be positioned on the sensor's back side. Each sensor installation must follow the same sequence including specific annotation of sensor features such as pin holes and alignment marks to maintain uniform alignment throughout.
Position Sensor
26104070
Q: How to replace the rear wheel Steering Angle Sensor on Cadillac Escalade?
A:
To remove the Steering Angle Sensor, raise your vehicle with due respect for your transport vehicle lifting guidelines and the rear wheel steering lifting/jacking notice. Remove the steering gear protection shield by removing the retaining bolts and disconnect the electrical connector. Delicately lift the Steering Angle Sensor cover from the steering gear without cracking the sensor. Then, unbolt the Steering Angle Sensor's retaining bolts. Do not forget to change the steering gear actuator if the boots are damaged, also inspect the inner tie rod boot for damaged or worn parts. Remove the Steering Angle Sensor from the steering gear making sure it does not turn accordingly. For installation, mount the new Steering Angle Sensor onto the steering gear with the o-ring in place. Take off the pin that keeps the location of the new sensor while immediately installing on the steering gear while carefully keeping the pin in the same location. Secure the Steering Angle Sensor with the retaining bolts with loctite 242 blue and tighten to 4 n.m (35 lb in). Replace the Steering Angle Sensor cover and reconnect the electrical connector. Finally, install and tighten the steering gear protection shield and its retaining bolts to 180 n.m (132 lb ft), lower the vehicle and undertake a four wheel alignment.
