What Tools Are Required to Service and Repair the CV Joint Boot for the Wheel Drive Shaft Inner Joint and Seal Replacement on GMC Yukon?

Specifically for the service and repair, the constant velocity joint boot, that is, wheel drive shaft inner joint and seal replacement, the following tools are needed: j 35910 seal clamp tool j 36652-1 drive axle clamp swage tool and j 36652-98 drive axle clamp swage tool. Lay the halfshaft in its normal position, and start cutting into the swage ring with the hand grinder then remove the tripot housing, being sure to wipe and degrease it properly, before drying it using a clean piece of cloth. De-install the little boot retaining clamp with side cutters, and remove the spacer ring, tripot spider assembly, and tripot boot from the halfshaft bar. Clean halfshaft bar using wire brush and check all components for wear/damage, replace duff parts using appropriate service kit. For assembly, install the new small seal clamp to the joint seal, and compress the clamp onto the halfshaft bar and then fix it using j 35910 seal clamp tool and tighten to 136 nm (100 ft. Lbs.). Mount the tripot joint with the convolute retainer in the right position, tripot spider assembly and spacer ring while, packing the tripot seal and housing with provided grease. Pinch swage ring a little then slide it over the seal; align the tripot seal with tripot swage ring to the housing. For the 1500 models the base of the j 36652-98 is to be fixed in a vise, and for the 2500, 3500, and hummer h2 models to be set with the j 36652-1 standard factory specifications. Drive the inboard end of the halfshaft assembly into the corresponding tool base, install the top half, align the swage ring and clamp and fasten the bolts by hands. Alternative tightening of each bolt until the two halves of the tool comes in contact and then loosening the bolts to remove the halfshaft assembly. Lastly, check inboard stroke position using given measurements for each model and pull out the convolute retainer tool of the boot.

OEM GMC Yukon CV Joint

CV Joint Axle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 CV Joints found

View related parts
GMC Yukon C.V. Joint, Front Part Number: 26037364
$272.97 MSRP: $494.06
You Save: $221.09 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; CV Joint; Outer CV Joint; Joint Kit, Front Axle U Joint
- Position: Front
- Replaces: 26020728
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1997 GMC Yukon | Base, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
GMC Yukon Inner CV Joint Part Number: 26037152
$120.01 MSRP: $225.39
You Save: $105.38 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: CV Joints; CV Joint; Spider Assembly
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1997 GMC Yukon | Base, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts

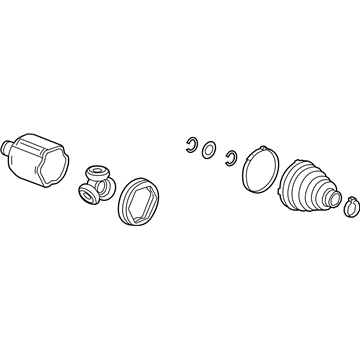

GMC Yukon Inner CV Joint, Front Part Number: 87842371
$141.65 MSRP: $233.33
You Save: $91.68 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; Inner Joint; Joint Kit, Front Axle U Joint
- Position: Front
- Replaces: 84808767, 84808766, 84392109, 84392108
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Yukon | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Outer CV Joint Part Number: 87842369
$94.90 MSRP: $156.34
You Save: $61.44 (40%)
ADD TO CART
Product Specifications
- Other Name: Joint Kit-Front Wheel Drive Shaft CV; Joint Kit, Front Axle U Joint
- Replaces: 84392098
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Yukon | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Inner CV Joint, Front Part Number: 84814583
$76.12 MSRP: $125.40
You Save: $49.28 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint, Front Axle U Joint; CV Joint; Spider Assembly; Inner Joint; Tripot Housing; Housing
- Position: Front
- Replaces: 26056763, 22928968, 15295245, 26062616
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2020 GMC Yukon | Denali, Denali Hybrid, Hybrid, SL, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon C.V. Joint, Front Part Number: 22928970
$135.51 MSRP: $215.15
You Save: $79.64 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint, Front Axle U Joint; CV Joint Kit; CV Joint; Outer CV Joint; Outer Joint; Joint Kit, Front Axle U Joint
- Position: Front
- Replaces: 26057639, 26069245
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2020 GMC Yukon | Denali, Denali Hybrid, Hybrid, SL, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon C.V. Joint, Outer Part Number: 26037371
$325.46 MSRP: $589.06
You Save: $263.60 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer CV Joint; Outer Joint; Joint Kit, Front Axle U Joint; CV Joint
- Position: Outer
- Replaces: 26037366
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-2000 GMC Yukon | Base, Denali, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
GMC Yukon C.V. Joint, Front Part Number: 26062620
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Shaft CV; CV Joint; Outer CV Joint; Joint Kit, Front Axle U Joint
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 GMC Yukon | Denali, SLE, SLT | 8 Cyl 5.7 L GAS
View related parts
GMC Yukon Inner CV Joint, Front Part Number: 26062617
Product Specifications
- Other Name: Spider Kit, Front Wheel Drive Axle; CV Joint; Spider Assembly
- Position: Front
- Replaced by: 15295246
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2005 GMC Yukon | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon C.V. Joint, Front Part Number: 26058362
Product Specifications
- Other Name: Joint, Front Axle U Joint; CV Joint; Inner CV Joint; Outer CV Joint
- Position: Front
- Replaces: 26069243
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2005 GMC Yukon | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon Inner CV Joint, Front Part Number: 15295246
Product Specifications
- Other Name: Joint, Front Axle U Joint; CV Joint; Outer CV Joint; Inner Joint; Tripot Housing; Housing
- Position: Front
- Replaces: 26056765, 26062617
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2005 GMC Yukon | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon C.V. Joint, Front Part Number: 26037361
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; CV Joint; Joint Kit, Front Axle U Joint
- Position: Front
- Replaces: 26025715
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1995 GMC Yukon | Base, GT, SLE, SLT, Sport | 8 Cyl 5.7 L GAS

GMC Yukon CV Joint

Want to cut long-term maintenance and repair costs? Choose OEM CV Joint. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Yukon parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Yukon CV Joint includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Yukon CV Joint is among the critical parts in the unit, one that significantly affects the performance and durability of the car's parts. Having been specially developed to enable the effortless distribution of torque from the transmission to the drive wheels the CV Joint enables for smooth and effectual varied operation of Yukon's several models. Therefore, based on the type of the CV Joints, Rzeppa joints on the outboard side and tripod joints on the inboard side show that GMC Yukon is better engineered. The rubber boots that contain the CV Joints should be checked and cleaned often to reduce the risk of contamination and ensure that there shall be sufficient lubrication throughout the joints thus improving the performance as well as the safety of the vehicle. The manufacture of the full-size GMC Yukon SUV began in 1991, and due to it reliability the car has gained high demand from North America and the Middle East region. Looking through five generations of the cars, it is possible to observe GMC's constant work on the improvement of power, fuel efficiency, and stability and updated models are equipped with the latest technologies which increase performance. The role of the GMC Yukon CV Joint is substantial, as it pertains to the vehicle's functionality as well as to the safe driving experience. Due to the strong construction and universality of the GMC Yukon CV Joint for various types of Yukon, it successfully occupies its niche in the automotive world as a reflection of the brand's philosophy of reliability and constant development.

GMC Yukon CV Joint Parts and Q&A

C.V. Joint, Front
22928970
Q: What Tools Are Required to Service and Repair the CV Joint Boot for the Wheel Drive Shaft Inner Joint and Seal Replacement on GMC Yukon?
A:
Specifically for the service and repair, the constant velocity joint boot, that is, wheel drive shaft inner joint and seal replacement, the following tools are needed: j 35910 seal clamp tool j 36652-1 drive axle clamp swage tool and j 36652-98 drive axle clamp swage tool. Lay the halfshaft in its normal position, and start cutting into the swage ring with the hand grinder then remove the tripot housing, being sure to wipe and degrease it properly, before drying it using a clean piece of cloth. De-install the little boot retaining clamp with side cutters, and remove the spacer ring, tripot spider assembly, and tripot boot from the halfshaft bar. Clean halfshaft bar using wire brush and check all components for wear/damage, replace duff parts using appropriate service kit. For assembly, install the new small seal clamp to the joint seal, and compress the clamp onto the halfshaft bar and then fix it using j 35910 seal clamp tool and tighten to 136 nm (100 ft. Lbs.). Mount the tripot joint with the convolute retainer in the right position, tripot spider assembly and spacer ring while, packing the tripot seal and housing with provided grease. Pinch swage ring a little then slide it over the seal; align the tripot seal with tripot swage ring to the housing. For the 1500 models the base of the j 36652-98 is to be fixed in a vise, and for the 2500, 3500, and hummer h2 models to be set with the j 36652-1 standard factory specifications. Drive the inboard end of the halfshaft assembly into the corresponding tool base, install the top half, align the swage ring and clamp and fasten the bolts by hands. Alternative tightening of each bolt until the two halves of the tool comes in contact and then loosening the bolts to remove the halfshaft assembly. Lastly, check inboard stroke position using given measurements for each model and pull out the convolute retainer tool of the boot.
