OEM GMC Wiper Motor
Windshield Wiper Motor- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
54 Wiper Motors found
GMC Wiper Motor Part Number: 22071769
$98.10 MSRP: $184.22You Save: $86.12 (47%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Motor Assembly-W
- Replaced by: 12463090
GMC Wiper Motor Part Number: 84974750
$58.46 MSRP: $104.40You Save: $45.94 (44%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Motor, Windshield Wiper Motor
- Replaced by: 85719302
GMC Wiper Motor Part Number: 23372086
$73.79 MSRP: $131.76You Save: $57.97 (44%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Front Motor; Motor, Windshield Wiper Motor
GMC Motor & Linkage Part Number: 87838322
$97.83 MSRP: $174.70You Save: $76.87 (44%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Module Assembly-Windshield Wiper System; Module, Windshield Wiper Motor
- Replaced by: 85816993
Product Specifications- Other Name: Motor, Windshield Wiper Motor; Wiper Motor
- Replaces: 22029595
GMC Wiper Transmission Part Number: 22894896
Product Specifications- Other Name: Module Assembly-Windshield Wiper System; Wiper Pulse Module; Wiper Linkage; Module; Module, Windshield Wiper Motor
- Replaces: 15116093, 15264402, 15237237, 15896130, 25809218, 10379535
GMC Wiper Motor Part Number: 19179659
Product Specifications- Other Name: Motor Assembly, Windshield Wiper (Remanufacture); Wiper Arm; Washer Pump; Motor; Motor, Windshield Wiper Motor
- Replaces: 22072790, 88961294

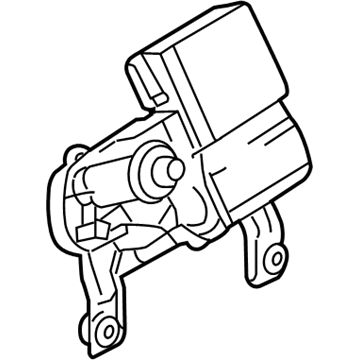

GMC Wiper Motor, Rear Part Number: 25805561
Product Specifications- Other Name: Motor, Rear Window Wiper; Rear Motor; Motor, Rear Window Wiper/Washer
- Position: Rear
- Replaces: 15198956, 12487694, 15094706, 15229806
GMC Wiper Motor Part Number: 23328193
Product Specifications- Other Name: Module; Wiper Linkage; Motor & Linkage; Front Motor; Module, Windshield Wiper Motor
- Replaces: 15846942, 25923882
GMC Wiper Motor, Rear Part Number: 12365396
Product Specifications- Other Name: Motor, Rear Window Wiper; Motor; Motor, Rear Window Wiper/Washer
- Position: Rear
- Replaces: 22154964
GMC Wiper Motor, Rear Part Number: 25923437
Product Specifications- Other Name: Motor, Rear Window Wiper; Rear Motor; Motor, Rear Window Wiper/Washer
- Position: Rear
- Replaces: 15282187, 25799536
GMC Wiper Motor Part Number: 88961173
Product Specifications- Other Name: Motor Assembly, Windshield Wiper; Front Motor; Motor; Motor, Windshield Wiper Motor
- Replaces: 22062913, 22049816
GMC Wiper Motor, Rear Part Number: 15173034
Product Specifications- Other Name: Motor, Rear Window Wiper; Rear Motor; Motor, Rear Window Wiper/Washer
- Position: Rear
- Replaces: 12487646, 88958216
GMC Front Transmission Part Number: 84755858
$92.51 MSRP: $165.20You Save: $72.69 (44%)Product Specifications- Other Name: Module Assembly-Windshield Wiper System; Wiper Linkage; Wiper Motor; Motor & Linkage
- Replaced by: 85569667
Product Specifications- Other Name: Wiper Motor; Motor, Windshield Wiper Motor
GMC Front Motor Part Number: 19151963
Product Specifications- Other Name: Motor Assembly, Windshield Wiper; Wiper Motor; Motor
- Replaces: 12368695, 22121967
GMC Wiper Motor, Rear Part Number: 25795301
Product Specifications- Other Name: Motor, Rear Window Wiper; Rear Motor; Motor, Rear Window Wiper/Washer
- Position: Rear
GMC Wiper Motor Assembly Part Number: 19150909
Product Specifications- Other Name: Motor Assembly, Windshield Wiper (Remanufacture); Wiper Motor; Motor; Motor, Windshield Wiper Motor
- Replaces: 22054201, 22049809
GMC Wiper Motor Part Number: 22049809
Product Specifications- Other Name: Windshield Wiper Motor
- Replaced by: 19150909
GMC Wiper Motor, Rear Part Number: 15149302
Product Specifications- Other Name: Motor, Rear Window Wiper; Bracket, Rear Window Wiper/Washer; Motor, Rear Window Wiper/Washer
- Position: Rear
- Replaces: 12362600, 12363314
| Page 1 of 3 |Next >
1-20 of 54 Results
GMC Wiper Motor
Choose OEM Wiper Motor, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Wiper Motor. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.
GMC Wiper Motor removes the rain quickly to provide clear vision in any storm. GMC was founded in 1901, expanded under GM and continues to pursue heavy-duty capability. Its models are pickups and SUVs with boxed steel frames that shake off hard work. Axles and trailers are lifted with ease, and a choice of modes of drive are available to allow a driver to change between city pavement and rutted access roads. Forward collision warning, surround vision and hitch guidance keep eyes in the right places and prevent ugly surprises. Cabins remain quiet due to door seals and tuned mounts which cancel vibration before it makes it to your seat. MultiPro tailgate flips, folds and turns into a step so that loading bulk lumber or a cooler is light. The rails come in a hydraulically formed form, which offers low weight bearing as it increases stability when the bed or roof rack appears to be stacked to the heavens. Respect comes after GMC since the trucks are not presented as pretty but as ready. The Wiper Motor consists of a small electric armature rotating in worm gears at adjustable speed, powering linkage and sweeps across the windshield in a few seconds sweeping away the rain, snow, mud, or even a dusty film when the weather changes to downpour. You have slow or intermittent or high sweep with a single stalk flick so that the system adapts without any bother. Purchase a Wiper Motor either with no windings touched or with new seals, or choose a rebuilt type that will save money but still achieve the factory figures. Whichever way the motor can be bolstered in just a few minutes and takes its power directly off the vehicle battery to give it good punch.
GMC Wiper Motor Parts and Q&A
- Q: How to replace the wiper motor on GMC Yukon?A:The first thing to do is to remove the wiper arms and the air inlet grille panel. Remember to take out the four bolts and the reinforcement panel, and afterwards remove the electrical connector from the wiper motor. Detach the wiper transmission assembly by driving out the bolts inside the transport securing the assembly and lift out the assembly. Take the wiper motor out of the wiper transmission assembly by first using the Wiper Transmission Separator to detach the drive link, then remove the two bolts. For installation, secure the wiper motor to the wiper transmission assembly by tightening it with the two bolts to 8 N.m (71 lb in). Place the drive link on the wiper motor crank arm with the Wiper Transmission Installer (J 39529), install the assembly with the two bolts and tighten them to 9 N.m (80 lb in). Install the reinforcement panel with the four bolts, tightening them to 9 N.m (80 lb in) and the air inlet grille panel as well as the wiper arms. After you are done, test the wipers to make sure they work well.
- Q: How to replace the wiper motor on GMC Sierra 1500?A:You need two tools to replace the wiper motor: Wiper Transmission Separator (J 39232) and Wiper Transmission Installer (J 39529). First remove all wiper connectors and the air inlet panel. After that take the four bolts out of the reinforcement panel. Remove the wiper transmission assembly by taking off its electrical connector and unscrewing its two bolts. Grab the Wiper Transmission Separator (J 39232) to disconnect the drive link from the wiper motor crank arm. Afterwards remove the wiper motor's two bolts and take out the motor from the wiper transmission. Put the wiper motor on top of the wiper transmission assembly and fasten it firmly using two bolts at 8 Nm (71 lb in). Now put the drive link onto the wiper motor crank arm through the Wiper Transmission Installer (J 39529) and fit the wiper transmission assembly to the vehicle with both bolts at 9 N.m (80 lb in). Reestablish power to the wiper motor and put back the reinforcement panel using four bolts at 9 N.m (80 lb in) resistance. Also place back the air inlet grille and wipers. Press the wipers to check if they move smoothly.
