How to replace the pilot bearing on GMC Sonoma?

The Pilot Bearing replacement process requires three essential tools that include clutch Pilot Bearing remover (J 43276) along with clutch Pilot Bearing installer (J 26516-A) and driver handle (J 8092). Begin by removing the Flywheel. Screwing the clutch Pilot Bearing remover tool body (J 43276-1) with a wrench ensures it stays stable since failure to do this can damage the tool. The installation of tool body (J 43276-1) into the clutch Pilot Bearing begins with applying wrench tightness. The forcing screw (J 43276-2) receives placement from the tool body (J 43276-1) prior to clockwise rotation until the clutch Pilot Bearing dissociates from the Crankshaft. The operator should turn the forcing screw opposite the counterclockwise direction to disengage it from the tool body. Once the tool body is free the operator must remove the body from the clutch Pilot Bearing. Remove the worn clutch Pilot Bearing from service. Place the clutch Pilot Bearing installer (J 26516-A) together with the driver handle (J 8092) to mount the new clutch Pilot Bearing in the appropriate depth before inserting the Flywheel.

What tools are required to replace the pilot bearing on GMC Sierra 1500?

Two necessary tools for substituting a Pilot Bearing include clutch Pilot Bearing remover (J 43276) and bushing installer/clutch arbor (J 38836). The first step demands that you take out the clutch assembly. The clutch Pilot Bearing remover tool body (J 43276-1) requires wrench securement to prevent tool rotation for tool safety purposes. Proceed with the operation after removing the flywheel spacer when necessary. Place j 43276-1 into the clutch Pilot Bearing then clamp it with a wrench before adding j 43276-2 into j 43276-1. After rotating the j 43276-2 in a clockwise direction until complete clutch Pilot Bearing separation from the Crankshaft you should reverse the rotation to separate it from the j 43276-1 before removing the j 43276-1 from the tool body. The maintenance procedure requires disposal of the obsolete clutch Pilot Bearing. Before starting the installation process users must remove all flywheel spacers if present. Place a new clutch Pilot Bearing on the tool by first placing a 5/8 inch washer onto the bushing installer/clutch arbor (J 38836) or equivalent. The bushing installer/clutch arbor (J 38836) should be utilized to mount a new clutch Pilot Bearing into the Crankshaft before performing inspection checks and reassembly of the clutch component.

OEM GMC Pilot Bearing

Clutch Pilot Bearing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Pilot Bearings found

View related parts
GMC Pilot Bearing Part Number: 14061685
$18.30 MSRP: $34.36
You Save: $16.06 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing, Clutch Pilot; Pilot Bearings; Bearing, Engine Crankshaft Clutch Pilot
Fits the following GMC Models:
- C1500 | 1988-1999, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C1500 Suburban | 1992-1999, 1984-1986 | Base, High Sierra, Sierra Classic, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- C2500 | 1988-2000, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1999, 1984-1986 | Base, High Sierra, Sierra Classic, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- C3500 | 1988-2000, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- Jimmy | 1984-1998 | Base, Envoy, High Sierra, Sierra Classic, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS, 8 Cyl 6.2 L DIESEL
- K1500 | 1988-1999, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra SL, Sierra SLE, Sierra SLS, Sierra SLT, Sierra SLX, Sierra Special, Sierra Sport | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K1500 Suburban | 1992-1999, 1984-1986 | Base, High Sierra, Sierra Classic, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL
- K2500 | 1988-2000, 1984-1986 | Base, High Sierra, Sierra, Sierra Classic, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1992-1999, 1984-1986 | Base, High Sierra, Sierra Classic, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View More
View related parts

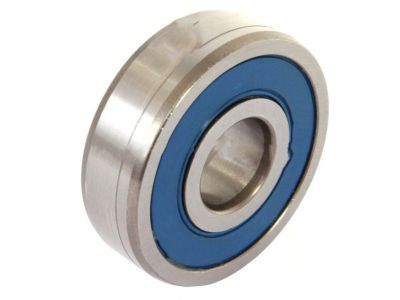

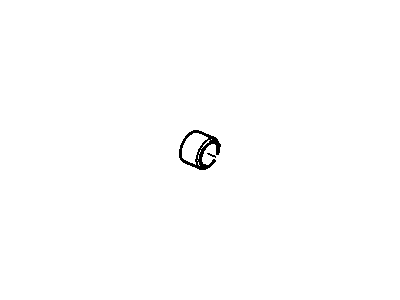

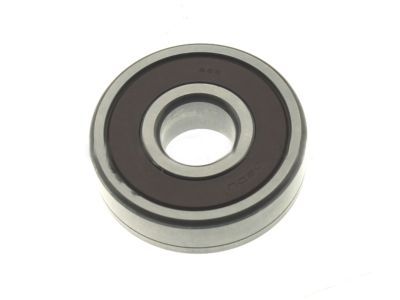

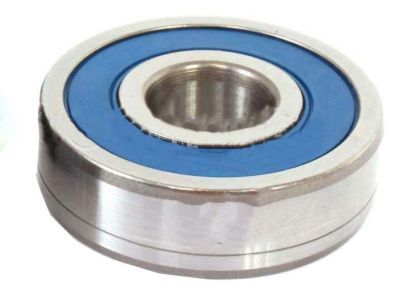

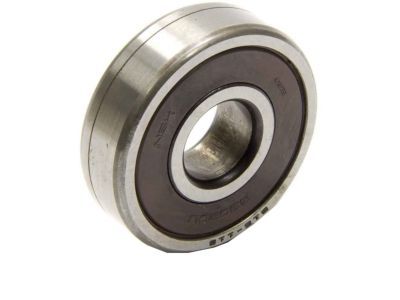

GMC Pilot Bearing Part Number: 12557583
$13.66 MSRP: $25.68
You Save: $12.02 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing-Clutch Pilot; Pilot Bearings; Bearing, Engine Crankshaft Clutch Pilot
- Replaces: 12479894
Fits the following GMC Models:
- Canyon | 2004-2012 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS, 8 Cyl 5.3 L GAS
- Jimmy | 1999-2001 | Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sierra 1500 | 1999-2006 | Base, C3, Denali, HT, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 Classic | 2007 | Denali, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 HD | 2005-2006, 2001-2003 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 1500 HD Classic | 2007 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 | 2001-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS
- Sierra 3500 | 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More
View related parts
GMC Pilot Bearing Part Number: 476574
Product Specifications
- Other Name: Bearing-Clutch Pilot .; Pilot Bearings; Bearing, Engine Crankshaft Clutch Pilot
Fits the following GMC Models:
- S15 | 1984-1990 | Base, EL, Gypsy, High Sierra, Sierra Classic | 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
- S15 Jimmy | 1984-1989 | Base, Gypsy, High Sierra, Sierra Classic, Timberline | 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
- Sonoma | 1991-2003 | Base, SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 6 Cyl 2.8 L GAS
View More
View related parts

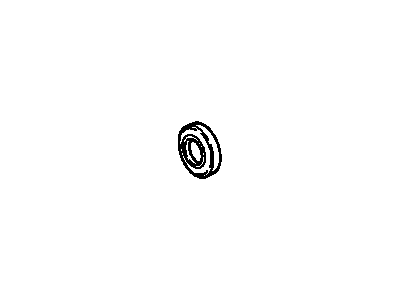

GMC Pilot Bearing Part Number: 900529
Product Specifications
- Other Name: Ball Bearing-Air Injector Pump Front Rotor; Pilot Bearings; Bearing, Power Brake Booster Shaft Retaining; Bearing, Engine Crankshaft Clutch Pilot
- Position: Front
Fits the following GMC Models:
- S15 | 1984-1985 | Base, High Sierra, Sierra Classic | 4 Cyl 1.9 L GAS, 4 Cyl 2.2 L DIESEL
- S15 Jimmy | 1984 | Base, Gypsy, Sierra Classic | 4 Cyl 1.9 L GAS
View related parts
GMC Pilot Bearing Part Number: 10040408
Product Specifications
- Other Name: Bearing, Engine Crankshaft Clutch Pilot; Pilot Bearings
Fits the following GMC Models:
- Sonoma | 1992-1993 | Base, SLE, SLS | 4 Cyl 2.5 L GAS

GMC Pilot Bearing

Choose OEM Pilot Bearing, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Pilot Bearing. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Pilot Bearing sustains the power flow in a smooth way through perfect alignment of the transmission input shaft. GMC creates trucks and SUVs that shake off the weight and have boxed steel frames, reinforced suspensions, and powerful engines that can haul boats, lumber, or daily commuters without needing any drama and still provide drivers with comfortable cabins, smartphone connectivity, and clever MultiPro tailgates that flip, fold, and step to ensure that hauling feels less like a job and more like being an ordinary routine. GMC comes to the street to test platforms on tough courses and on ice gradients, programming the stability systems to have the trailers stuck in, and surround vision and hitch guidance, which means that anyone can back up, hook up, and roll out with no worry even at night, which proves that the badge is concerned with actual grit and not flashy gimmicks. Pilot Bearing is nestled between the flywheel and crankshaft, holding the transmission input shaft, made of sintered bronze that absorbs oil through its pores, preventing grind of metals, eliminating vibration and allowing the clutch to engage without chatter even when the engine is operating at big revs and the truck is climbing into steep grades. Pilot Bearing failure is characterized by rough shifts and shrieks; thus, changing the unit replenishes clean gear changes, steady alignment, and shields the engine and gearbox against expensive wear.

GMC Pilot Bearing Parts and Q&A

Pilot Bearing
476574
Q: How to replace the pilot bearing on GMC Sonoma?
A:
The Pilot Bearing replacement process requires three essential tools that include clutch Pilot Bearing remover (J 43276) along with clutch Pilot Bearing installer (J 26516-A) and driver handle (J 8092). Begin by removing the Flywheel. Screwing the clutch Pilot Bearing remover tool body (J 43276-1) with a wrench ensures it stays stable since failure to do this can damage the tool. The installation of tool body (J 43276-1) into the clutch Pilot Bearing begins with applying wrench tightness. The forcing screw (J 43276-2) receives placement from the tool body (J 43276-1) prior to clockwise rotation until the clutch Pilot Bearing dissociates from the Crankshaft. The operator should turn the forcing screw opposite the counterclockwise direction to disengage it from the tool body. Once the tool body is free the operator must remove the body from the clutch Pilot Bearing. Remove the worn clutch Pilot Bearing from service. Place the clutch Pilot Bearing installer (J 26516-A) together with the driver handle (J 8092) to mount the new clutch Pilot Bearing in the appropriate depth before inserting the Flywheel.
Pilot Bearing
12557583
Q: What tools are required to replace the pilot bearing on GMC Sierra 1500?
A:
Two necessary tools for substituting a Pilot Bearing include clutch Pilot Bearing remover (J 43276) and bushing installer/clutch arbor (J 38836). The first step demands that you take out the clutch assembly. The clutch Pilot Bearing remover tool body (J 43276-1) requires wrench securement to prevent tool rotation for tool safety purposes. Proceed with the operation after removing the flywheel spacer when necessary. Place j 43276-1 into the clutch Pilot Bearing then clamp it with a wrench before adding j 43276-2 into j 43276-1. After rotating the j 43276-2 in a clockwise direction until complete clutch Pilot Bearing separation from the Crankshaft you should reverse the rotation to separate it from the j 43276-1 before removing the j 43276-1 from the tool body. The maintenance procedure requires disposal of the obsolete clutch Pilot Bearing. Before starting the installation process users must remove all flywheel spacers if present. Place a new clutch Pilot Bearing on the tool by first placing a 5/8 inch washer onto the bushing installer/clutch arbor (J 38836) or equivalent. The bushing installer/clutch arbor (J 38836) should be utilized to mount a new clutch Pilot Bearing into the Crankshaft before performing inspection checks and reassembly of the clutch component.
