225 Parking Brake Cables found

View related parts

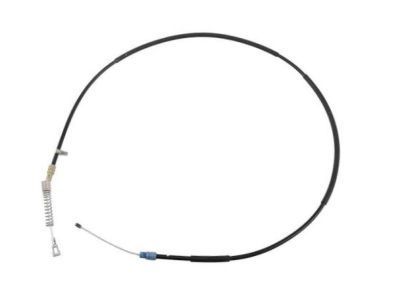

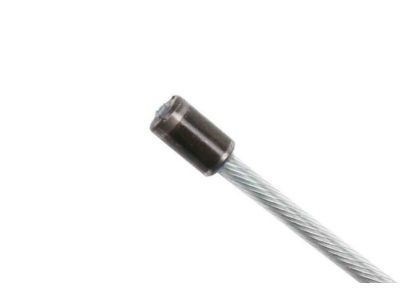

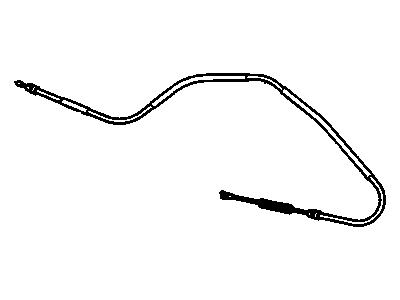

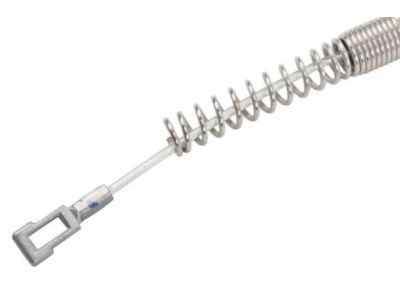

GMC Rear Cable Part Number: 20779564
$45.28 MSRP: $140.90
You Save: $95.62 (68%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 25752970, 25941144
Fits the following GMC Models:
- Savana 1500 | 2003-2014 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 2003-2024 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
- Savana 3500 | 2003-2024 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
View More
View related parts

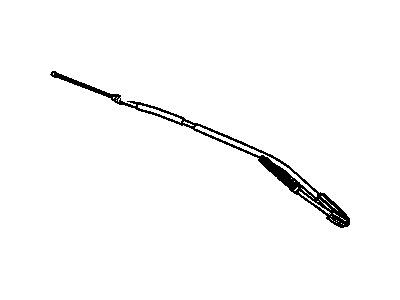

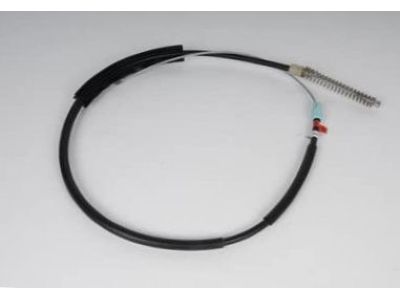

GMC Rear Cable Part Number: 20756278
$57.91 MSRP: $159.17
You Save: $101.26 (64%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
Fits the following GMC Models:
- Yukon | 2009 | Denali, Hybrid, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX
- Yukon XL 1500 | 2009 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX
- Yukon XL 2500 | 2009 | SLE, SLT | 8 Cyl 6.0 L GAS
View More
View related parts

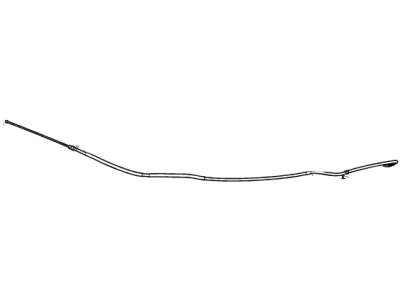

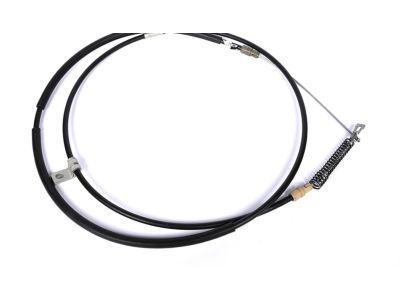

GMC Rear Cable Part Number: 22842480
$102.55 MSRP: $284.67
You Save: $182.12 (64%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
Fits the following GMC Models:
- Sierra 1500 | 2014-2018 | Base, Denali, SLE, SLT | 6 Cyl 4.3 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
- Sierra 1500 Limited | 2019 | Base, SLE | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Yukon | 2015-2019 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

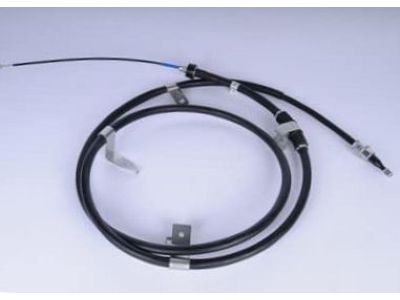

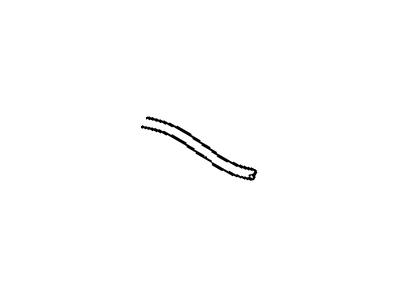

GMC Rear Cable Part Number: 25830084
$46.75 MSRP: $91.96
You Save: $45.21 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15131773, 15850507, 10376939
Fits the following GMC Models:
- Canyon | 2004-2008 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts

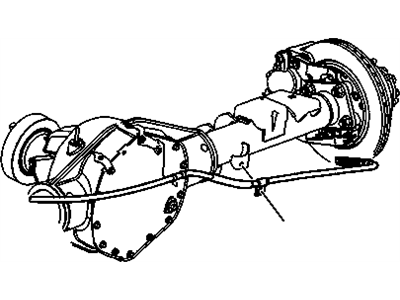

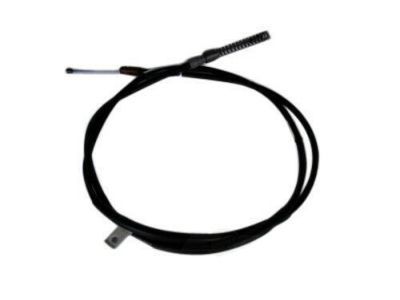

GMC Rear Cable Part Number: 10362946
$171.37 MSRP: $340.92
You Save: $169.55 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15030766
Fits the following GMC Models:
- Sierra 1500 | 2001-2005 | Base, C3, Denali, HT, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 HD | 2005, 2001-2003 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 | 2001-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 | 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View More
View related parts

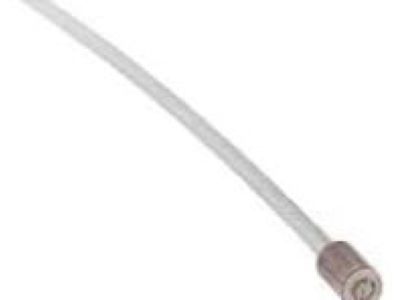

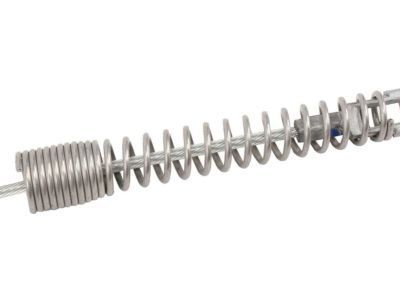

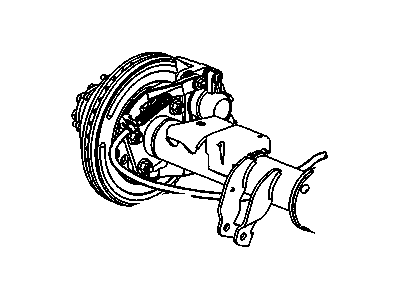

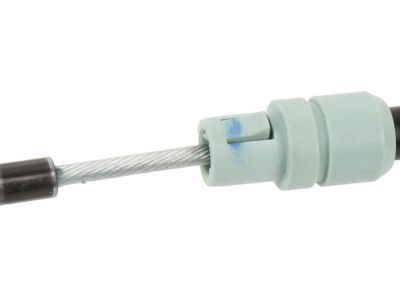

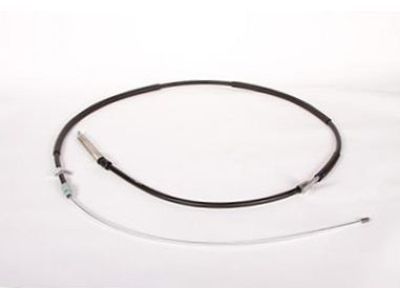

GMC Rear Cable Part Number: 15941080
$34.59 MSRP: $67.13
You Save: $32.54 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15816882
Fits the following GMC Models:
- Sierra 3500 | 2006 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 HD | 2007-2008 | SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

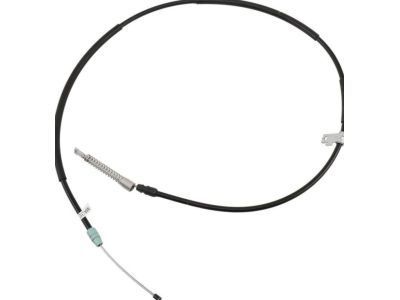

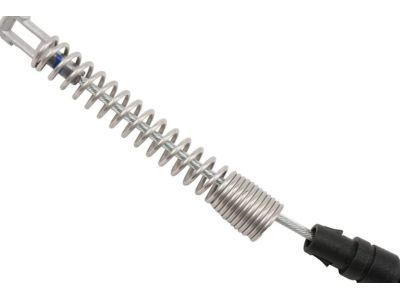

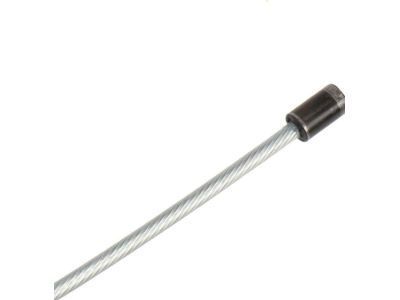

GMC Rear Cable Part Number: 15941077
$34.88 MSRP: $68.29
You Save: $33.41 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15816879
Fits the following GMC Models:
- Sierra 2500 HD | 2006-2009 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
View related parts

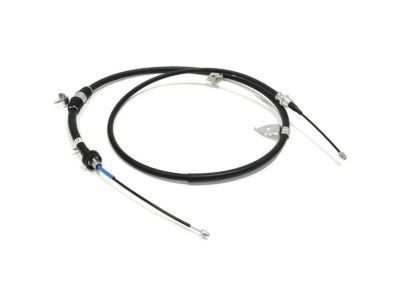

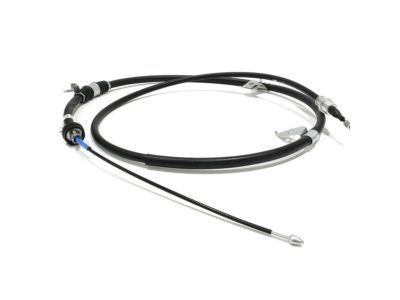

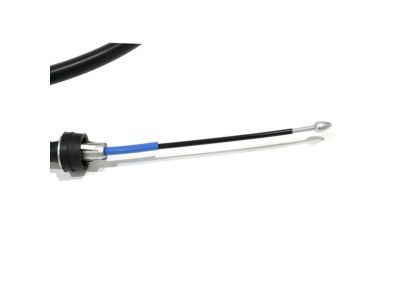

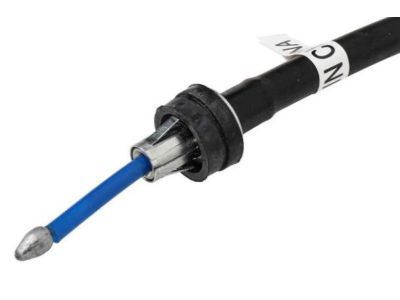

GMC Rear Cable Part Number: 25830082
$41.59 MSRP: $80.71
You Save: $39.12 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 10378872, 15850505, 15123299, 15224810
Fits the following GMC Models:
- Canyon | 2004-2008 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts

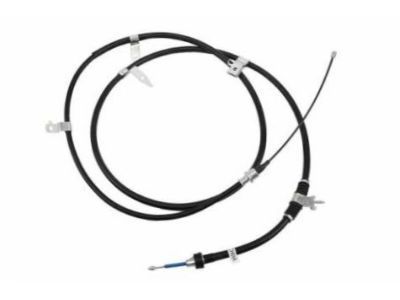

GMC Rear Cable Part Number: 25830085
$54.58 MSRP: $105.95
You Save: $51.37 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15131774, 15224811, 15850508
Fits the following GMC Models:
- Canyon | 2004-2008 | SL, SLE, SLT, WT, Z71 Fleet, Z71 SL, Z71 SLE, Z85 SL, Z85 SLE | 4 Cyl 2.8 L GAS, 4 Cyl 2.9 L GAS, 5 Cyl 3.5 L GAS, 5 Cyl 3.7 L GAS
View related parts

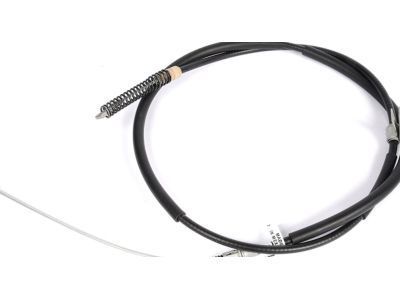

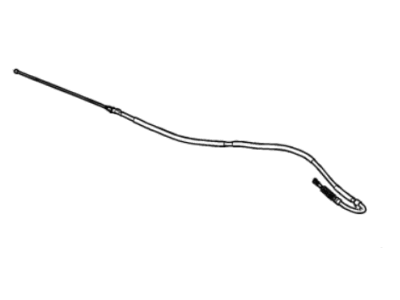

GMC Rear Cable Part Number: 23481121
$116.65 MSRP: $228.64
You Save: $111.99 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
Fits the following GMC Models:
- Sierra 1500 | 2014-2018 | Base, Denali, SLE, SLT | 6 Cyl 4.3 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
- Sierra 1500 Limited | 2019 | Base, SLE | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Yukon | 2015-2019 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

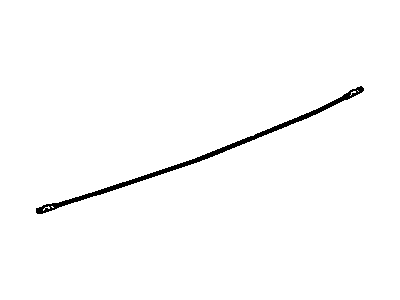

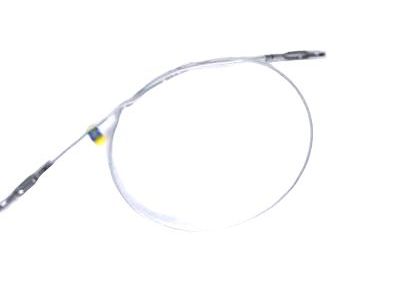

GMC Intermediate Cable Part Number: 25890193
$15.22 MSRP: $28.58
You Save: $13.36 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Parking Brake Intermediate; Brake Cable; Cable, Parking Brake
- Replaces: 15061111
Fits the following GMC Models:
- Sierra 2500 | 2001-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2008-2010, 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 | 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 HD | 2008-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

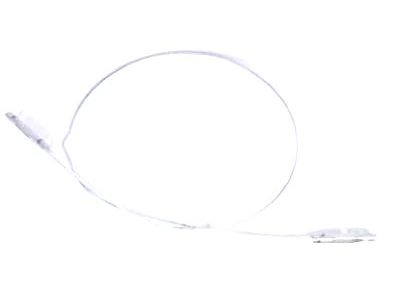

GMC Intermediate Cable Part Number: 25890192
$24.36 MSRP: $45.74
You Save: $21.38 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Parking Brake Intermediate; Brake Cable; Cable, Parking Brake
- Replaces: 15724954
Fits the following GMC Models:
- Sierra 2500 | 2001-2004 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2008-2010, 2001-2006 | Base, SL, SLE, SLT, WT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 2500 HD Classic | 2007 | SL, SLE, SLT, WT | 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 8.1 L GAS
- Sierra 3500 HD | 2008-2010 | SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts

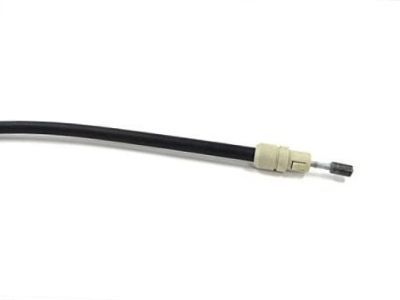

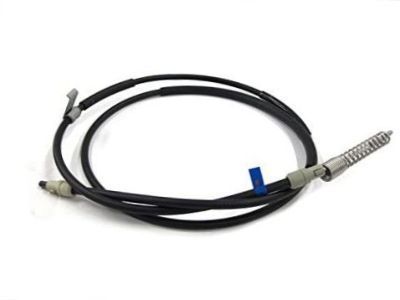

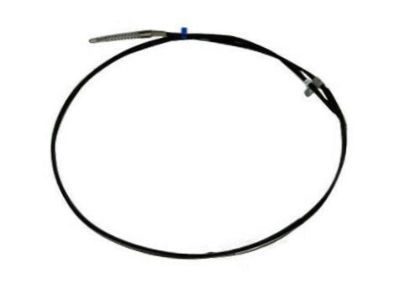

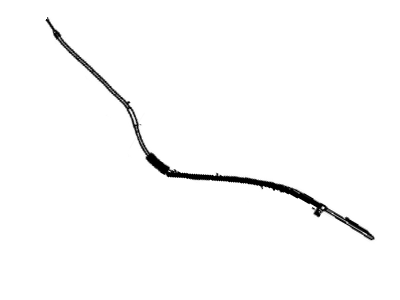

GMC Rear Cable Part Number: 20779563
$26.63 MSRP: $50.02
You Save: $23.39 (47%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 25941143, 25752972
Fits the following GMC Models:
- Savana 3500 | 2003-2024 | Base, LS, LT, SLE | 4 Cyl 2.8 L DIESEL, 6 Cyl 4.3 L FLEX, 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL, 8 Cyl 6.6 L GAS
View related parts

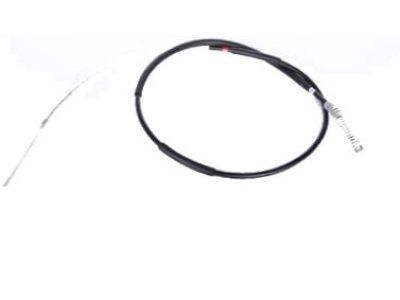

GMC Parking Brake Cable, Driver Side Part Number: 25843147
$28.30 MSRP: $53.16
You Save: $24.86 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable; Rear Cable
- Position: Driver Side
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2015-2019 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

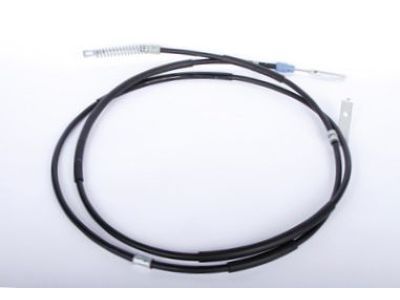

GMC Parking Brake Cable, Passenger Side Part Number: 25843148
$28.35 MSRP: $53.24
You Save: $24.89 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable; Rear Cable
- Position: Passenger Side
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2015-2019 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

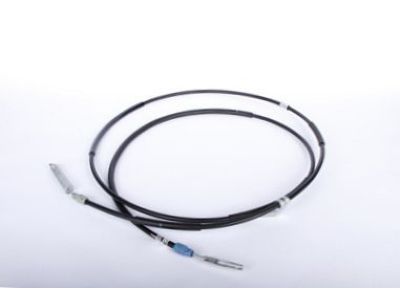

GMC Parking Brake Cable, Passenger Side Part Number: 25843149
$29.86 MSRP: $56.05
You Save: $26.19 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable; Rear Cable
- Position: Passenger Side
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2019 | Base, Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2015-2019 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View related parts

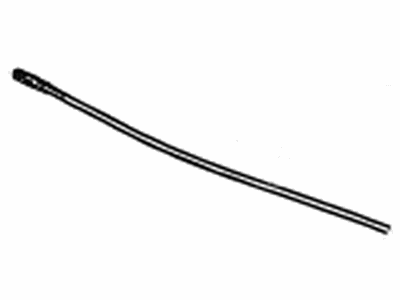

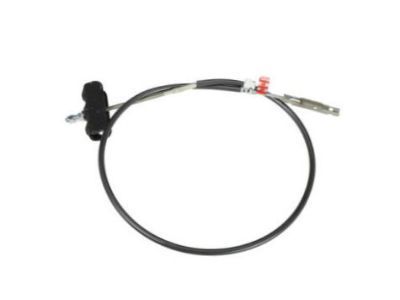

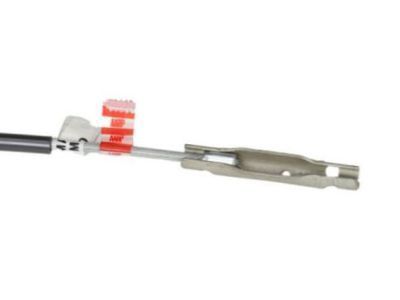

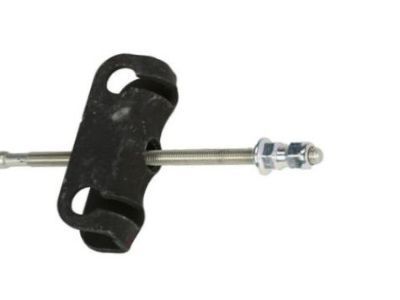

GMC Intermediate Cable Part Number: 84048122
$33.60 MSRP: $63.08
You Save: $29.48 (47%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Parking Brake Intermediate; Brake Cable; Cable, Parking Brake
- Replaces: 23454466
Fits the following GMC Models:
- Yukon | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

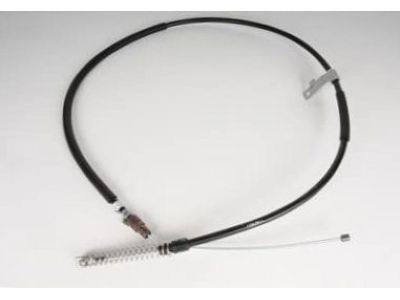

GMC Rear Cable Part Number: 15941088
$40.97 MSRP: $76.95
You Save: $35.98 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15102289
Fits the following GMC Models:
- Yukon XL 1500 | 2007-2009 | SLE, SLT | 8 Cyl 6.0 L GAS
- Yukon XL 2500 | 2000-2009 | SLE, SLT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts

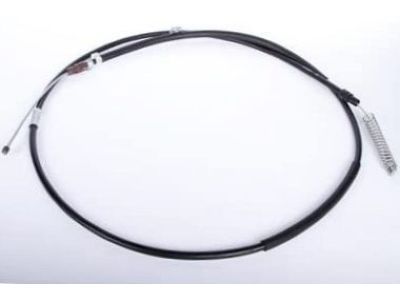

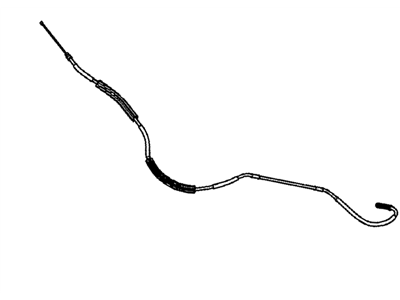

GMC Rear Cable Part Number: 15941089
$53.38 MSRP: $100.24
You Save: $46.86 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15087074
Fits the following GMC Models:
- Yukon XL 1500 | 2007-2009 | SLE, SLT | 8 Cyl 6.0 L GAS
- Yukon XL 2500 | 2000-2009 | SLE, SLT | 8 Cyl 6.0 L GAS, 8 Cyl 8.1 L GAS
View related parts

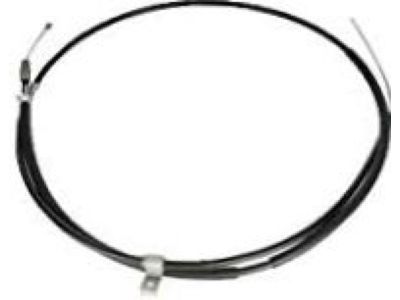

GMC Rear Cable Part Number: 25863078
Product Specifications
- Other Name: Cable, Parking Brake; Brake Cable
- Position: Rear
- Replaces: 15850728
Fits the following GMC Models:
- Sierra 1500 | 2008-2009 | Denali, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS

| Page 1 of 12 |Next >

1-20 of 225 Results

GMC Parking Brake Cable

Choose OEM Parking Brake Cable, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Parking Brake Cable. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Parking Brake Cable secures your car to the hillside and avoids undesirable rollaways. GMC expanded out of a 1901 garage to a collection of pickups and SUVs that ignore hard work. Powertrains that are grunty and strong boxed frames and durability that has been put into test allow drivers to haul, tow, and roam without second guessing. The cabins remain silent at the time of bed loading, and MultiPro tailgate settings leave cargo accessible. The surround vision and hitch guidance development is highly advanced hence not distracting. GMC continues driving capability forward through consistent technological enhancements and intense proving grounds. Hard finishes resist rust, road salt, and add life to bodies when winters strike. Each test cycle is applied to beat chassis, electronics, and drivetrains until they lack weak spots. Fatigue on the long hauls is reduced by quiet steering racks and cushioned seats. Saleable turbo diesels drag trailers without causing much noise besides consuming fuel. Parking Brake Cable connects the hand lever to the rear braking equipment such that the stopping force bites even when the engine is switched off. Each yank on the lever strains the steel strands and thousands of cycles and water, dirt, and salt can strain or corrode the line, adding length to the travel and taking away clamp pressure on steep grades. Early slack or rust are detected through regular checks before the parking handle goes mushy. Various production batches can employ heavier jackets or improved finishes however all Parking Brake Cables should be providing instant locking when you flick the lever. Replace a worn cable when the first sign of creep is noticed and your truck will be where you left it.

GMC Parking Brake Cable Parts and Q&A

Rear Cable
25863078
Q: How to replace the intermediate parking brake cable (JD9, JF3, JF7) on GMC Sierra 1500?
A:
The first step to replace the Parking Brake Intermediate Cable (JD9, JF3, JF7) is to release the park brake then disable the park brake cable automatic adjuster. Support the vehicle with approval and elevation. You must make a 3 mm (1/8 inch) diameter hole through the dimple on the front to intermediate park brake cable connector to disconnect the front park brake cable. You should begin by detaching both the left park brake cable and the right park brake cable from the equalizer bar on the intermediate park brake cable before removing it. The left park brake cable and the right park brake cable should be connected first to the equalizer bar of the intermediate park brake cable before the front park brake cable is attached to the intermediate cable connector. Enable the automatic adjuster for the park brake cable and then adjust the brake if needed.
Rear Cable
25793731
Q: How to replace the parking brake cable on the left rear side on GMC Yukon?
A:
The replacement process for the left side parking brake rear cable begins with releasing the park brake then setting the automatic adjuster of the park brake cable to the disabled position. Support the vehicle then remove the left rear park brake cable by disconnecting it from the equalizer on the intermediate park brake cable. After depressing the locking tabs of the park brake cable mounting bracket you can remove both the bolt and nut to disconnect the cable assembly from the rear axle housing bracket (2500 series). The process of removing the park brake cable starts with releasing it from the guiding points on the vehicle frame then freeing it from the actuator lever and finally backing plate using the locking tab mechanism before total removal. The correct cable route needs to be established through guides and body mounts before pressing the backing plate until the tabs lock up and attaching it to the actuator lever. Fasten the park brake cable to the rear axle bracket about the bolt which requires a 22 N.m (16 lb ft) tightening torque (2500 series). The cable must find its place in the frame guides before its installation into the mounting bracket while the tab locking mechanism activates. Starting with the left rear park brake cable installation to the intermediate park brake cable equalizer the vehicle requires lowering then enabling the automatic adjuster followed by complete park brake adjustment.
