How to replace the Idle Control Valve on GMC Yukon XL 1500?

The procedure starts by disconnecting the electrical connector and removing four attaching screws before extracting the Idle Control Valve along with its o-ring seal. Clean the o-ring sealing surface along with the pintle valve seat and air passage using gm cleaner p/n 1052626 or gm x - 66a via shop towel or parts brush method to remove heavy deposits and remove Throttle Body when cleaning is needed because the air passage is heavily contaminated. The o-ring requires examination for any damage indications including tears or fractures or misshapen appearance. A replacement o-ring should be installed if damage is detected. It is essential to use a replacement Idle Control Valve exactly identical to the original because application-specific dimensions govern both the pintle shape and diameter. A measurement of 28 mm (1.1 in) or greater between the Idle Control Valve pintle tip and mounting surface requires a gentle fingertip adjustment which will not harm the valve. Clean engine oil must be applied to the o-ring before installing it on the Idle Control Valve while mounting the valve component itself. The screws need prefitted loctite 262 application to their threads for proper installation by using a torque of 3 n.m (27 lb in). Reestablish the electrical connector after which you should perform the idle learn procedure.

How to Properly Service and Replace the Idle Control Valve on GMC Jimmy?

The replacement work for the Idle Control Valve requires a starting point of turning off the ignition while also removing the air cleaner outlet resonator. The Idle Control Valve harness connector should first disconnect followed by screw removal from the Idle Control Valve mounting points to extract the valve assembly together with its o-ring from the Throttle Body assembly. Clean the Idle Control Valve o-ring seating area along with pintle seat and air conduit through application of carburetor cleaner on a brush parts while avoiding methyl ethyl ketone and similar strong solvents. Any visibility of shiny spots on the pintle and seat does not prove shaft misalignment because vital cleaning needs to be performed on the Throttle Body when excess build-up exists in the air channel. The maintenance requires use of a new o-ring because replacing the original one would be inappropriate. New Idle Control Valve installation requires an exact replacement to the original component since application-dependent pintle dimensions and shapes need to match. Use your finger to retract the pintle then check if the distance between the mounting flange and valve pintle is greater than 28 mm (1-1/8 in). Use clean engine oil to lubricate the new Idle Control Valve o-ring while inserting it through the o-ring into the Throttle Body assembly by matching the mounting holes on the Throttle Body assembly to the flange holes. Before attaching Idle Control Valve screws with thread locking material gm p/n 1052624 or equivalent you must wash the screw threads and apply thread locking material which will be tightened to 3 n.m (27 lb in). Reset the Idle Control Valve through the ignition cycle with engine off by starting the on position for 5 seconds and then moving to the off position for 10 seconds. After this procedure stop the ignition restart the engine. Reattach both the Idle Control Valve harness connector and reinstall the air cleaner outlet resonator. Complete the procedure by starting the engine while inspecting its correct idle speed.

OEM GMC Idle Control Valve

IACV

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Idle Control Valves found

View related parts

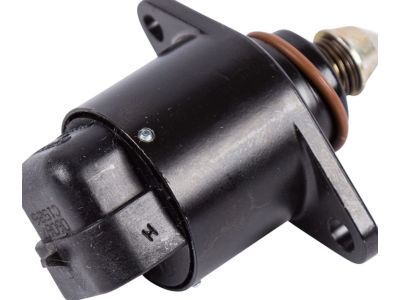

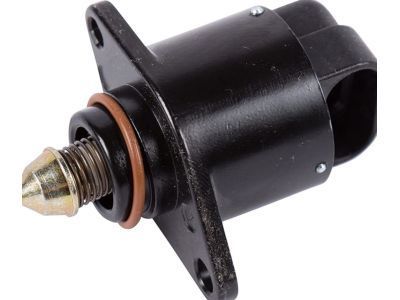

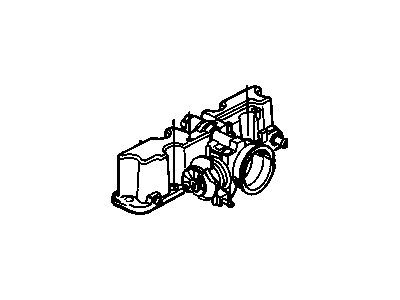

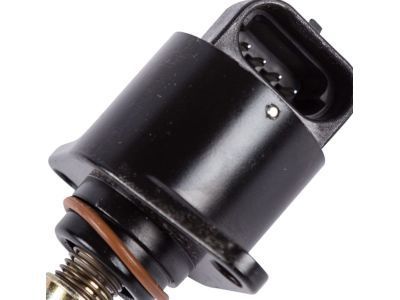

GMC Idle Speed Control Part Number: 19333271
$122.30 MSRP: $221.36
You Save: $99.06 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Idle Air Control; Fuel Injection Idle Air Control Valve; Idle Air Control Valve; Valve Kit, Throttle Body/Carburetor
- Replaces: 17112898
Fits the following GMC Models:
- Sonoma | 1994-1997 | SL, SLE, SLS | 4 Cyl 2.2 L GAS
View related parts

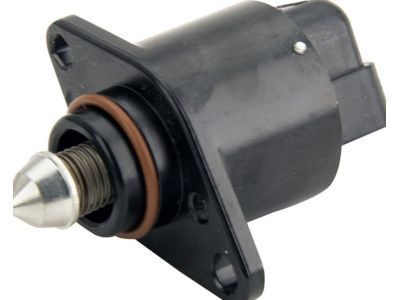

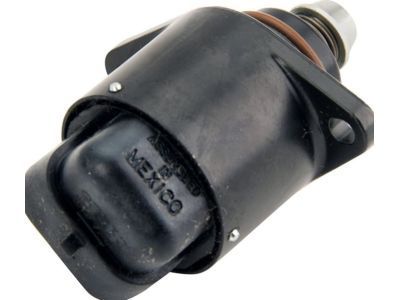

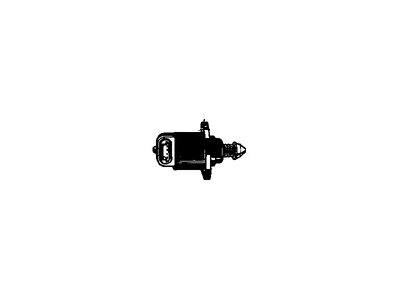

GMC Idle Air Control Valve Part Number: 19333268
$119.09 MSRP: $215.54
You Save: $96.45 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Idle Air Control; Idle Speed Control Kit; Multi Portion Fuel Injection Idle Air Valve; Throttle Body/Carburetor.
- Replaces: 17111826
Fits the following GMC Models:
- S15 | 1987-1990 | Base, EL, Gypsy, High Sierra, Sierra Classic | 4 Cyl 2.5 L GAS
- S15 Jimmy | 1987-1988 | Base, Gypsy, Sierra Classic, Timberline | 4 Cyl 2.5 L GAS
- Safari | 1992, 1985-1990 | Base, SL, SLE, SLT, SLX | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
- Sonoma | 1991 | Base, SLE | 4 Cyl 2.5 L GAS
View More
View related parts

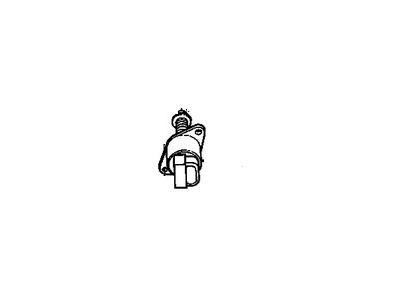

GMC Idle Speed Control Part Number: 19333272
$118.29 MSRP: $210.28
You Save: $91.99 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Idle Air Control; Fuel Injection Idle Air Control Valve; Idle Air Control Valve; Valve Kit, Throttle Body/Carburetor
- Replaces: 17111788, 17113099
Fits the following GMC Models:
- C2500 | 1991-1995 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 7.4 L GAS
- C2500 Suburban | 1992-1995 | Base, SLE, SLT | 8 Cyl 7.4 L GAS
- C3500 | 1988-1995 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 7.4 L GAS
- G3500 | 1988-1996 | Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special | 8 Cyl 7.4 L GAS
- K2500 | 1991-1995 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 7.4 L GAS
- K2500 Suburban | 1992-1995 | Base, SLE, SLT | 8 Cyl 7.4 L GAS
- K3500 | 1988-1995 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 7.4 L GAS
- R1500 | 1987 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS
- R2500 | 1987-1989 | Base, High Sierra, Sierra Classic | 6 Cyl 4.3 L GAS, 8 Cyl 7.4 L GAS
- R2500 Suburban | 1988-1991 | Base, Sierra Classic, SLE | 8 Cyl 7.4 L GAS
View More
View related parts

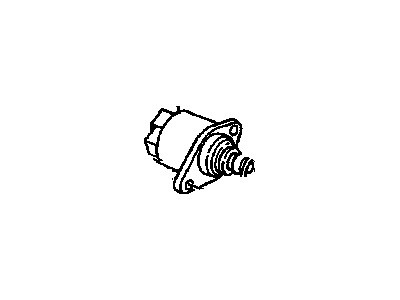

GMC Idle Speed Control Part Number: 19333270
$109.84 MSRP: $198.79
You Save: $88.95 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly, Idle Air Control; Fuel Injection Idle Air Control Valve; Idle Air Control Valve; Valve, Throttle Body/Carburetor
- Replaces: 17112648
Fits the following GMC Models:
- Safari | 1993-1995 | Base, GT, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts

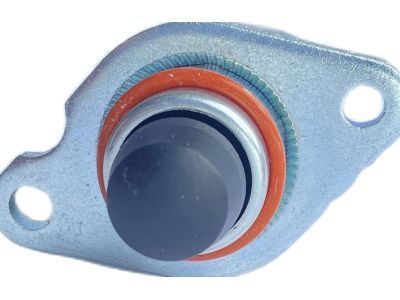

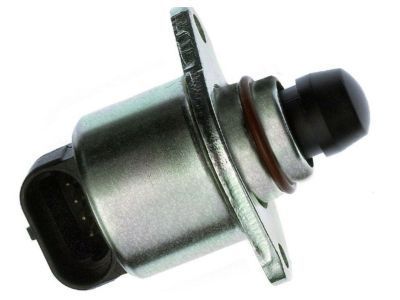

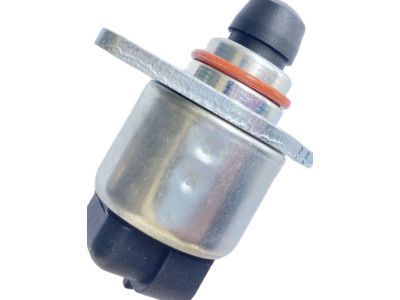

GMC Idle Speed Control Part Number: 17113598
Product Specifications
- Other Name: Valve Kit, Throttle Body/Carburetor; Idle Air Control Valve
Fits the following GMC Models:
- Sierra 1500 | 1999-2002 | Base, C3, Denali, HT, SL, SLE, SLT, WT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Sierra 1500 HD | 2001-2002 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 | 1999-2002 | Base, SL, SLE, SLT | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2001-2002 | Base, SL, SLE, SLT | 8 Cyl 6.0 L BI-FUEL, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS
- Sierra 3500 | 2001-2002 | Base, SL, SLE, SLT | 8 Cyl 6.0 L GAS
- Yukon | 2000-2002 | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Yukon XL 1500 | 2000-2002 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Yukon XL 2500 | 2000-2002 | SLE, SLT | 8 Cyl 6.0 L GAS
View More
View related parts

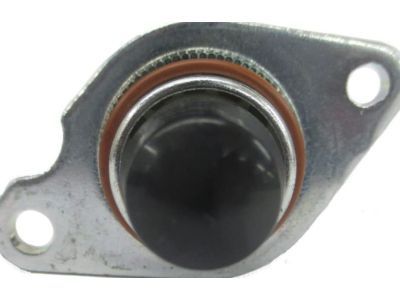

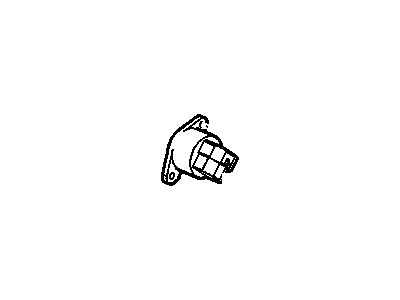

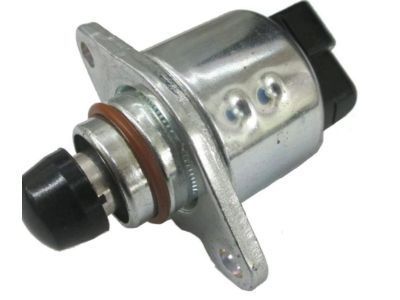

GMC Idle Speed Control Part Number: 17113209
Product Specifications
- Other Name: Valve Kit, Throttle Body/Carburetor; Idle Air Control Valve
Fits the following GMC Models:
- C1500 | 1996-1999 | Sierra GT, Sierra SL, Sierra SLE, Sierra SLT, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C1500 Suburban | 1996-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS
- C2500 | 1996-2000 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 7.4 L GAS
- C2500 Suburban | 1996-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 7.4 L GAS
- C3500 | 1996-2000 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 7.4 L GAS
- Jimmy | 1996-2001 | Base, Diamond Edition, Envoy, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- K1500 | 1996-1999 | Sierra SL, Sierra SLE, Sierra SLT, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- K1500 Suburban | 1996-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS
- K2500 | 1996-2000 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 7.4 L GAS
- K2500 Suburban | 1996-1999 | Base, SLE, SLT | 8 Cyl 5.7 L GAS, 8 Cyl 7.4 L GAS
View More
View related parts

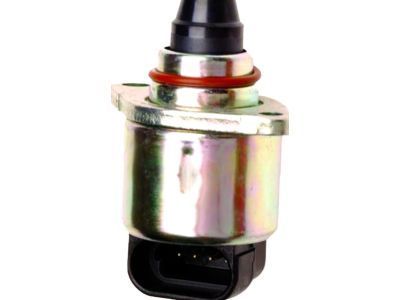

GMC Idle Air Control Valve Part Number: 12482707
Product Specifications
- Other Name: Valve Kit, Throttle Body/Carburetor; Idle Speed Control
- Replaces: 17113200, 17113297
Fits the following GMC Models:
- Sonoma | 1998-2003 | SL, SLE, SLS | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts

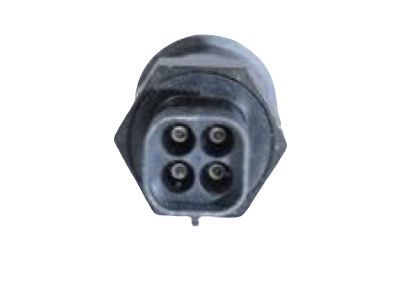

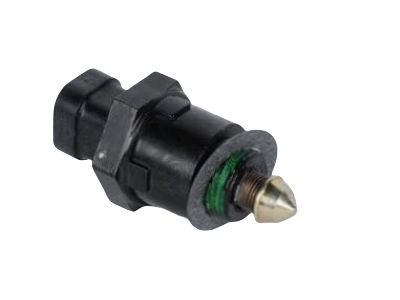

GMC Idle Speed Control Part Number: 17112193
$106.03 MSRP: $189.35
You Save: $83.32 (44%)
Product Specifications
- Other Name: Valve Kit, Multi Portion Fuel Injection Idle Air; Idle Air Control Valve
Fits the following GMC Models:
- Typhoon | 1992-1993 | Base | 6 Cyl 4.3 L GAS
View related parts

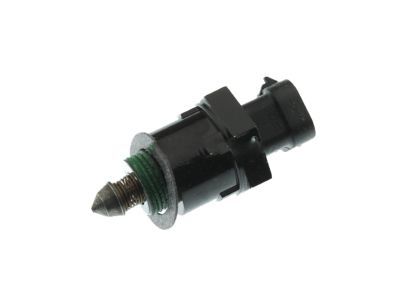

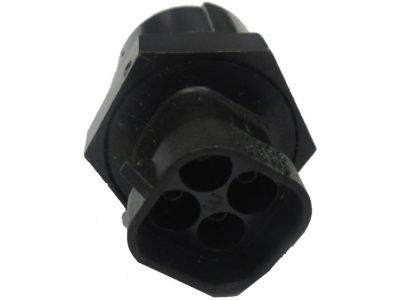

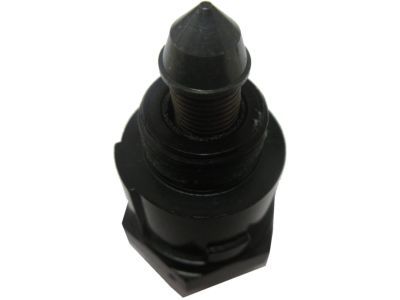

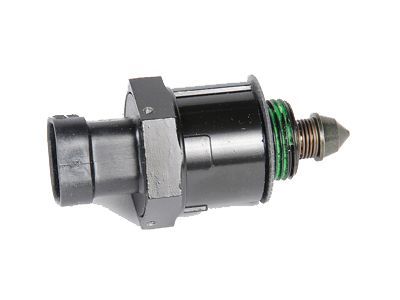

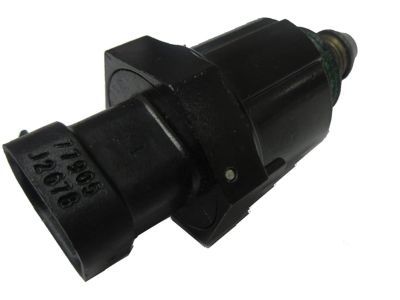

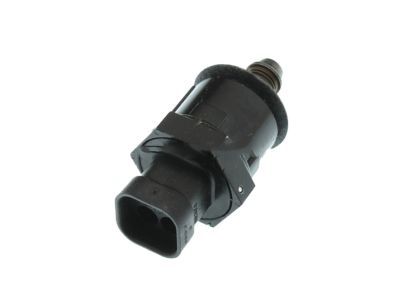

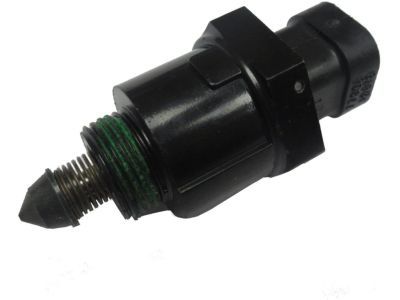

GMC Idle Air Control Valve Part Number: 25527077
Product Specifications
- Other Name: Valve Kit, Throttle Body/Carburetor; Idle Speed Control; Motor; Multi Portion Fuel Injection Air; Throttle Body/Carburetor; Body Injection Valve Kit
- Replaces: 17111460, 17111288
Fits the following GMC Models:
- C1500 | 1988-1995 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX, Sierra Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- C1500 Suburban | 1992-1995 | Base, SLE, SLT | 8 Cyl 5.7 L GAS
- C2500 | 1988-1995 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- C2500 Suburban | 1992-1995 | Base, SLE, SLT | 8 Cyl 5.7 L GAS
- C3500 | 1988-1995 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 8 Cyl 5.7 L GAS
- Caballero | 1985-1987 | Amarillo, Base, Diablo | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS
- G1500 | 1987-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G2500 | 1987-1995 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G3500 | 1987-1996 | Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS
- Jimmy | 1987-1991 | Base, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
View More
View related parts
GMC Idle Air Control Valve Part Number: 17111460
Product Specifications
- Other Name: Idle Speed Control
- Replaced by: 25527077
Fits the following GMC Models:
- Caballero | 1985-1987 | Amarillo, Base, Diablo | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS
- G1500 | 1987-1991 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G2500 | 1987-1991 | Rally, Rally STX, Vandura | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- G3500 | 1987-1991 | Magnavan, Rally, Rally Camper Special, Rally STX, Vandura, Vandura Special | 6 Cyl 4.3 L GAS, 8 Cyl 5.7 L GAS
- Jimmy | 1987-1991 | Base, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- P2500 | 1989 | Base, Value Van | 8 Cyl 5.7 L GAS
- R1500 | 1987 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- R1500 Suburban | 1987-1991 | Base, High Sierra, Sierra Classic, SLE | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- R2500 | 1987-1989 | Base, High Sierra, Sierra Classic | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- R2500 Suburban | 1987-1991 | Base, High Sierra, Sierra Classic, SLE | 8 Cyl 5.7 L GAS
View More
View related parts
GMC Idle Speed Control Part Number: 17112712
Product Specifications
- Other Name: Valve Assembly, Idle Air Control; Idle Air Control Valve; Valve, Throttle Body/Carburetor
Fits the following GMC Models:
- Jimmy | 1992 | Base, SLE, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1992 | Base, GT, SLE | 6 Cyl 4.3 L GAS
- Typhoon | 1992 | Base | 6 Cyl 4.3 L GAS
View More
View related parts
GMC Idle Air Control Valve Part Number: 17112966
$112.34 MSRP: $201.51
You Save: $89.17 (45%)
Product Specifications
- Other Name: Valve Kit, Throttle Body/Carburetor; Idle Speed Control; Valve Assembly; Valve, Throttle Body/Carburetor
Fits the following GMC Models:
- Jimmy | 1993-1995 | Base, SL, SLE, SLS, SLT | 6 Cyl 4.3 L GAS
- Sonoma | 1993-1995 | Base, SL, SLE, SLS | 6 Cyl 4.3 L GAS
- Typhoon | 1993 | Base | 6 Cyl 4.3 L GAS
View More

GMC Idle Control Valve

Choose OEM Idle Control Valve, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Idle Control Valve. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

GMC Idle Control Valve regulates engine idleness under all conditions and eliminates stalls. GMC trucks and SUVs are launched with robust ladder frames, high towing capability and cabins that dampen road noise without dampening driver response. Well-paired powertrains and rigid steel shake off heavy loads as adaptive suspensions maintain levels on busted pavement. The digital tools like the surround vision, hitch guidance, and lane notices are placed next to the analog toughness, and they provide the drivers with tools that are useful when the task becomes unpleasant. All chassis are subjected to factory stress tests to guarantee quality throughout every mile hence the weekend warrior as well as the contractor can trust the badge. Vibration is damped by quiet hydraulic mounts, but the steering remains communicative, and thus, long highway halls result in reduced fatigue. Cargo beds have tie down points and MultiPro tailgate folds, flips and steps up to accommodate oddly shaped loads with ease. An electric air-metering gate on the throttle body is the Idle Control Valve, and it reacts immediately to throttle body release and loads such as A/C or headlights, changing the airflow so it does not alternatively idle or shoot up and down during rush hour commutes. It is mounted directly in front of most gasoline engines and it is hard-wired to factory wiring and, as GMC tradition dictates, it can be changed with simple hand-tools in minutes. The clean Idle Control Valve also prevents stalling on steep grades, prevents bumps to the power steering pressure that chokes the engine, and allows the ECU to have a smooth emission during cold starts.

GMC Idle Control Valve Parts and Q&A

Idle Speed Control
17113598
Q: How to replace the Idle Control Valve on GMC Yukon XL 1500?
A:
The procedure starts by disconnecting the electrical connector and removing four attaching screws before extracting the Idle Control Valve along with its o-ring seal. Clean the o-ring sealing surface along with the pintle valve seat and air passage using gm cleaner p/n 1052626 or gm x - 66a via shop towel or parts brush method to remove heavy deposits and remove Throttle Body when cleaning is needed because the air passage is heavily contaminated. The o-ring requires examination for any damage indications including tears or fractures or misshapen appearance. A replacement o-ring should be installed if damage is detected. It is essential to use a replacement Idle Control Valve exactly identical to the original because application-specific dimensions govern both the pintle shape and diameter. A measurement of 28 mm (1.1 in) or greater between the Idle Control Valve pintle tip and mounting surface requires a gentle fingertip adjustment which will not harm the valve. Clean engine oil must be applied to the o-ring before installing it on the Idle Control Valve while mounting the valve component itself. The screws need prefitted loctite 262 application to their threads for proper installation by using a torque of 3 n.m (27 lb in). Reestablish the electrical connector after which you should perform the idle learn procedure.
Idle Speed Control
17113209
Q: How to Properly Service and Replace the Idle Control Valve on GMC Jimmy?
A:
The replacement work for the Idle Control Valve requires a starting point of turning off the ignition while also removing the air cleaner outlet resonator. The Idle Control Valve harness connector should first disconnect followed by screw removal from the Idle Control Valve mounting points to extract the valve assembly together with its o-ring from the Throttle Body assembly. Clean the Idle Control Valve o-ring seating area along with pintle seat and air conduit through application of carburetor cleaner on a brush parts while avoiding methyl ethyl ketone and similar strong solvents. Any visibility of shiny spots on the pintle and seat does not prove shaft misalignment because vital cleaning needs to be performed on the Throttle Body when excess build-up exists in the air channel. The maintenance requires use of a new o-ring because replacing the original one would be inappropriate. New Idle Control Valve installation requires an exact replacement to the original component since application-dependent pintle dimensions and shapes need to match. Use your finger to retract the pintle then check if the distance between the mounting flange and valve pintle is greater than 28 mm (1-1/8 in). Use clean engine oil to lubricate the new Idle Control Valve o-ring while inserting it through the o-ring into the Throttle Body assembly by matching the mounting holes on the Throttle Body assembly to the flange holes. Before attaching Idle Control Valve screws with thread locking material gm p/n 1052624 or equivalent you must wash the screw threads and apply thread locking material which will be tightened to 3 n.m (27 lb in). Reset the Idle Control Valve through the ignition cycle with engine off by starting the on position for 5 seconds and then moving to the off position for 10 seconds. After this procedure stop the ignition restart the engine. Reattach both the Idle Control Valve harness connector and reinstall the air cleaner outlet resonator. Complete the procedure by starting the engine while inspecting its correct idle speed.
