OEM GMC Differential Seal
- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
33 Differential Seals found

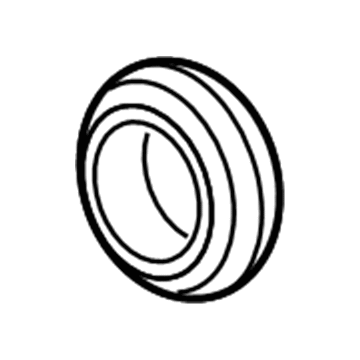

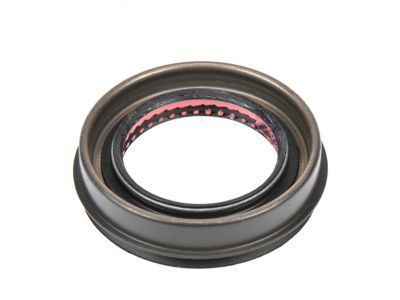

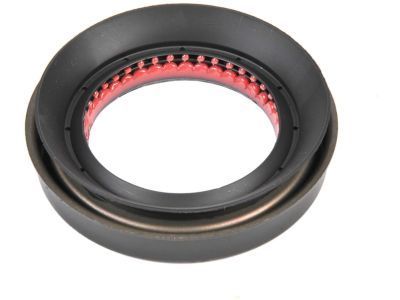

GMC Pinion Seal, Front Part Number: 23270117
$16.03 MSRP: $30.09You Save: $14.06 (47%)Ships in 1 Business DayProduct Specifications- Other Name: Seal-Front Differential Drive Pinion Gear; Rear Seal; Seal, Differential Drive Pinion Shaft Bearing
- Position: Front

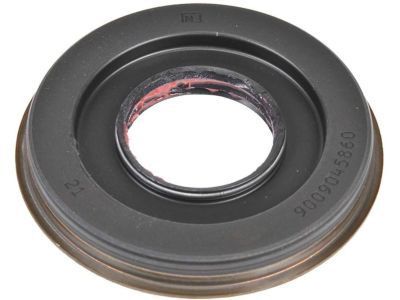

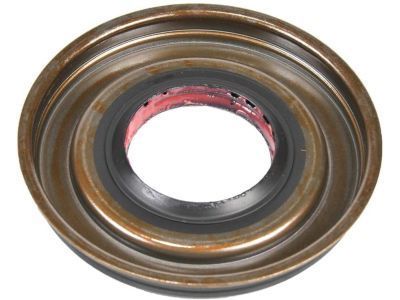

GMC Pinion Seal Part Number: 15864791
$13.34 MSRP: $24.14You Save: $10.80 (45%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Front Seal
- Replaced by: 87845955

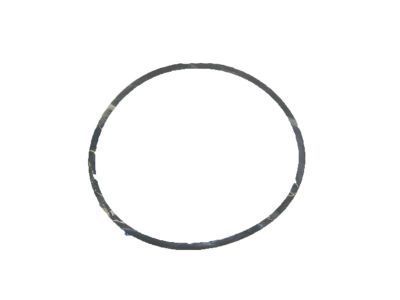

GMC Housing Assembly Front Seal Part Number: 15839521
$12.00 MSRP: $21.41You Save: $9.41 (44%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Seal, Differential Pinion Bearing Cage; Housing Assembly Gasket

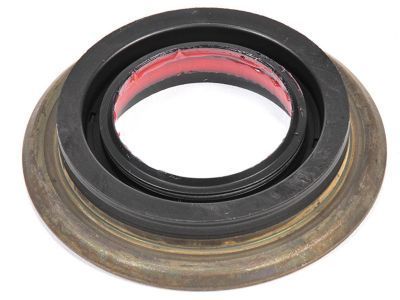

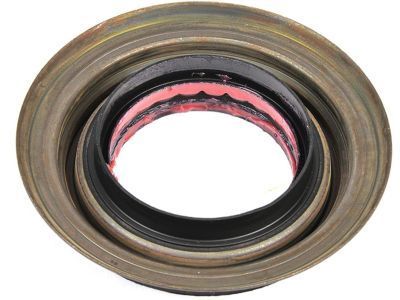

GMC Pinion Seal Part Number: 12471523
$13.27 MSRP: $24.93You Save: $11.66 (47%)Ships in 1 Business DayProduct Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal

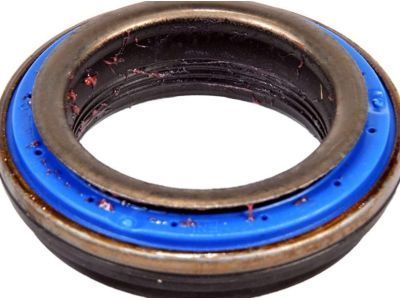

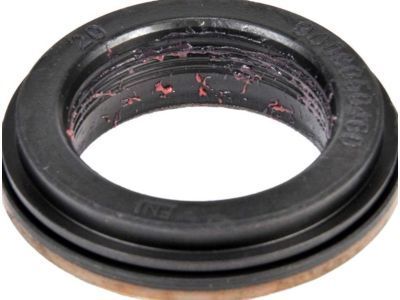

GMC Axle Seal Part Number: 23276834
$31.47 MSRP: $59.11You Save: $27.64 (47%)Ships in 1 Business DayProduct Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Wheel Seal; Axle Seals; Seal; Seal, Rear Axle Shaft Bearing Or Hub
GMC Axle Seal, Passenger Side Part Number: 84905753
$18.41 MSRP: $29.24You Save: $10.83 (38%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Seal Kit - Differential Clutch; Axle Seals; Seal Kit, Differential Clutch
- Position: Passenger Side
GMC Pinion Seal Part Number: 84053572
$37.40 MSRP: $64.22You Save: $26.82 (42%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Replaced by: 87861099

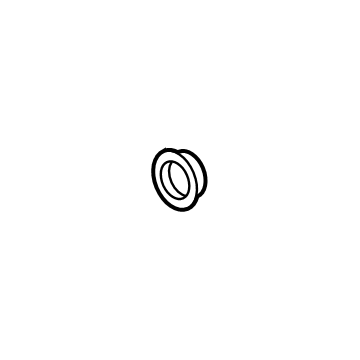

GMC Pinion Seal Part Number: 84881448
$106.26 MSRP: $168.70You Save: $62.44 (38%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
GMC Axle Seal, Driver Side Part Number: 84905752
$17.96 MSRP: $29.59You Save: $11.63 (40%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Seal Kit - Differential Clutch; Seal Kit, Differential Clutch
- Position: Driver Side

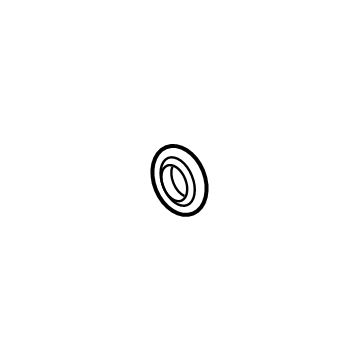

GMC Pinion Seal Part Number: 84757357
$39.13 MSRP: $64.46You Save: $25.33 (40%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Front Seal
GMC Pinion Seal Part Number: 23206449
$11.10 MSRP: $19.82You Save: $8.72 (44%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Seal, Differential Pinion Bearing Cage; Differential Seal
GMC Pinion Seal, Rear Part Number: 23276831
$13.34 MSRP: $24.14You Save: $10.80 (45%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Seal, Rear Axle Shaft Bearing Or Hub; Differential Seal; Wheel Seal; Axle Seal; Axle Seals; Front Seal; Seal; Seal, Differential Drive Pinion Shaft Bearing
- Position: Rear
- Replaced by: 87845955

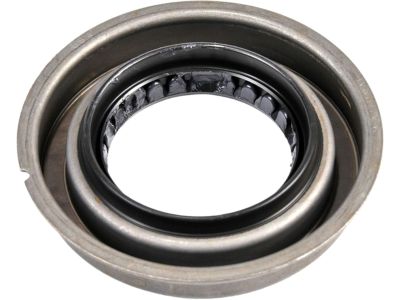

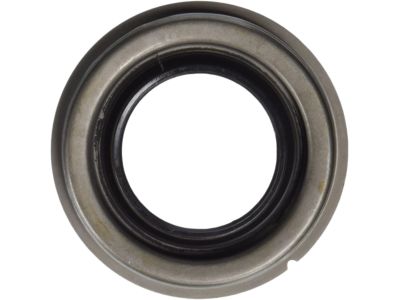

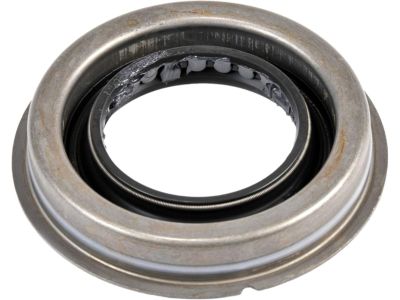

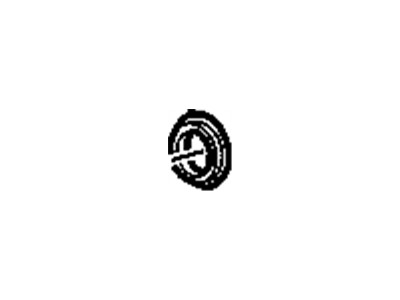

GMC Pinion Seal Part Number: 88982399
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal

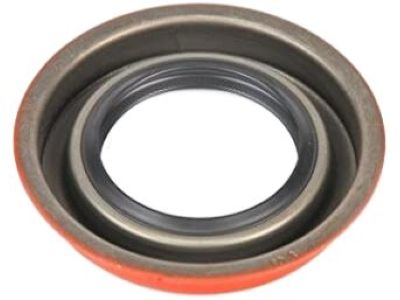

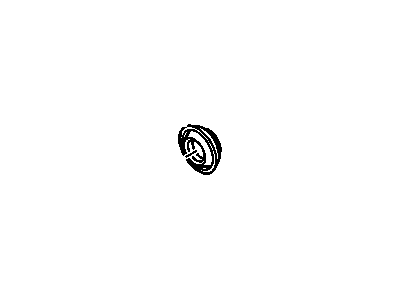

GMC Pinion Seal Part Number: 26004811
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Seal, Differential Drive Pinion

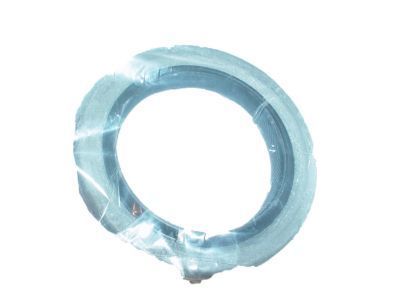

GMC Pinion Seal Part Number: 26033578
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
GMC Pinion Seal Part Number: 26094851
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal

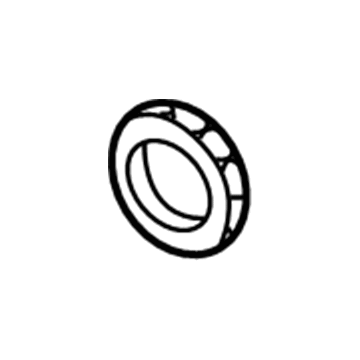

GMC Pinion Seal Part Number: 14039587
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Yoke Seal; Seal; Seal, Rear Axle
- Position: Front

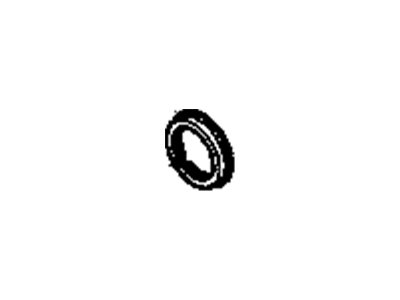

GMC Pinion Seal Part Number: 15530288
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing
- Position: Front
GMC Pinion Seal Part Number: 14012694
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Seal, Differential Drive Pinion

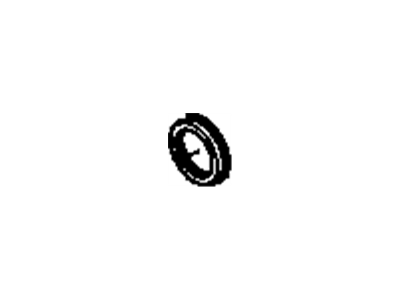

GMC Pinion Seal Part Number: 15634020
Product Specifications- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
| Page 1 of 2 |Next >
1-20 of 33 Results
GMC Differential Seal
Choose OEM Differential Seal, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with GMC's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM GMC Differential Seal. You can shop at highly competitive prices and protect your budget. All our genuine GMC parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.
GMC Differential Seal seals gear oil and keeps away grime in a rough-and-tough manner. GMC manufactures trucks and SUVs, which carry lumber, pull boats, and still manage to drive comfortably during the daily work week. The brand expanded into a workshop in 1901 to a series that can be characterized as stout in their frames, high torque powertrains, and hush road noise in their cabins. Cruisers like smart trailering features, slumbering suspension, and a folding or flipping tailgate make drivers feel good about their vehicles. Strict proving-ground tests help eliminate weak spots to make the owners confident with the badge when the job is long or the road is rough. GMC continues to hone its technology as it protects the fundamental commitment of muscle and day-to-day civility. Salt is shaken off by long rust-resistant frames and kept alive through harsh winters by thick paint. A tight rubber seal is between the rotating pinion yoke and the housing and is known as Differential Seal, and its purpose is to keep out dust and water. Its artificial material remains flexible with large variations in temperature conditions of the environment, so the ring gear continues to be immersed in clean oil instead of throwing the gear on the highway. Drivers will be able to replace the Differential Seal without straining knuckles, time, and money to pull out the entire axle. Frequent 3,000-mile drip spot checks early and maintain a balance in the torque between the rear wheels. The seal extends the life of differentials and maintains a smooth balance in acceleration as the payloads ascend by trapping lubricant and preventing contamination.
GMC Differential Seal Parts and Q&A
- Q: How to replace the Differential Seal in the drive pinion housing on GMC Yukon?A:The replacement of drive pinion housing and seal requires Pinion Seal Installer (J 44414), Bearing Puller (J 22912-B), Pinion Cone and Side Bearing Installer (J 24433), Pinion Bearing Installer (J 37624), Driver Handle (J 8092), Rear Pinion Bearing Race Installer (J 8608) and Flange/Pulley Holding Tool (J 8614-01) as essential tools. First raise the vehicle until you drain the axle lubricant. Begin by marking the exact position of all driveline components that relate to the propeller shaft and axles for proper reassembly. Secure the bearing caps by taping them to avoid the loss of rollers before disengaging the propeller shaft from the axle. Before moving on, you should write down the torque needed to rotate the pinion and ring gear along with making an alignment mark between the pinion and pinion yoke. First remove the pinion gear bearing retainer bolts before taking off the retainer along with the pinion and finally the selective shim. The pinion requires a second measurement of necessary torque to keep rotating. Start by placing the Flange/Pulley Holding Tool (J 8614-01) on the assembly before removing the pinion nut while securely gripping it. First remove the washer before you use the Flange/Pulley Holding Tool (J 8614-01) alongside its tools (J 8614-2 and J 8614-3) to remove the pinion yoke. Use the Bearing Puller (J 22912-B) and a hydraulic press to uninstall the pinion oil seal as well as both outer and inner pinion bearings. Follow this order to install both inner pinion bearing cup using Pinion Bearing Installer (J 37624) and driver handle (J 8092) followed by outer pinion bearing cup using Rear Pinion Bearing Race Installer (J 8608) with driver handle (J 8092). Apply the Pinion Cone and Side Bearing Installer (J 24433) to install the inner pinion bearing that will be followed by a new collapsible spacer and pinion bearing lubrication procedures. Installation of the pinion starts with inserting it into the bearing retainer followed by outer pinion bearing mounting and finally mounting a new pinion oil seal using the Pinion Seal Installer (J 44414). Secure the Pinion Yoke splines with sealant before installing it correctly without using any hammering method. Push the new pinion nut through the washer while using the Flange/Pulley Holding Tool (J 8614-01) to reach the pinion end play just to the point of stoppage. The technician should measure pinion torque during rotation while adjusting torques until they meet required specifications. Use the selective shim while applying sealant to the pinion gear bearing retainer seal surface before tightening the bolts to 88 N.m (65 lb ft). The next step is to check the torque of both the pinion and the ring gear before reassembling the propeller shaft, axle shafts and adding lubricant to the axle before lowering the vehicle.
- Q: How to replace the Differential Seal in the drive pinion housing on GMC Sierra 1500?A:The proper method for drive pinion housing or seal replacement involves making ram observations for all driveline components based on their propeller shaft and axle positions initially. Reassembly requires following all specifications and torque values to return components to their original positions. Start the procedure through vehicle lifting then draining the axle fluid. Mark the rear propeller shaft to its position on the rear axle pinion yoke and then remove the axle shafts. Unwinding the bearing caps enables the propeller shaft removal from the axle with tape applied to halt bearing rollers from escaping. Use an inch-pound torque wrench to measure the required torque needed for pinion and ring gear rotation and document the combined preload values affecting pinion bearings together with the pilot bearing and oil seal and differential case bearings. An alignment mark should be established between pinion yoke and pinion gear before retainer bolts and then the retainer and pinion can be removed. The torque measurement should occur after selective shim removal while assessing the pinion rotation capacity. Set up the j 8614-01 flange/pulley holding tool and loosen the pinion nut while using holding services. Place the j 8614-2 and j 8614-3 into the j 8614-01. Use the j 8614-3 to turn clockwise which will remove the pinion yoke. A suitable tool should be used to remove the pinion oil seal from the housing without damaging it before proceeding with the outer Pinion Bearing and pinion and collapsible spacer. The bearing puller (J 22912-B) and hydraulic press will extract the inner Pinion Bearing before using a hammer and brass drift to remove both outer and inner Pinion Bearing cups. Install the inner Pinion Bearing cup into the pinion gear bearing retainer through the combination of Pinion Bearing installer (J 37624) with driver handle (J 8092). Then use rear Pinion Bearing race installer (J 8608) and driver handle (J 8092) to deliver the outer Pinion Bearing cup. The installer (J 24433) should be used to install the inner Pinion Bearing until the cone seats on the pinion before adding a new collapsible spacer followed by lubricating the pinion bearings with the required axle lubricant. First install the pinion inside the bearing retainer and place the outer bearing afterward before installing a fresh oil seal using the pinion seal installer (J 44414). Apply gm p/n 12346004 (Canadian P/N 10953480) sealant to the splines of the pinion yoke before installing it while the assembly keeps the same position as marked before removal. Tighten the new pinion nut with assistance from the flange/pulley holding tool (J 8614-01) until the pinion end play reaches its limit and measure the rotating torque. Record a rotating torque measure of the pinion at 0.40-0.57 n.m (3-5 lb in) above the previously recorded value. The pinion needs multiple rotations before checking the torque again because this process secures bearing installation properly. Future torque readings might require adjustments. You must determine the specific shim thickness for the pinion gear bearing retainer before applying gm p/n 1052942 (Canadian P/N 10953466) sealant to its sealing surface. Then place the shim with its tab oriented to the unmachined surface. Employ sealant on the shim surface before installing the pinion gear bearing retainer and torquing its bolts to 88 n.m (65 lb ft). Check the torque between the pinion and ring gear after installation while confirming their reading stays between 0.57 and 1.13 n.m over the initial measurement result (5-10 lb in). Check preload until it reaches proper specifications. Reinstall the propeller shaft to the pinion yoke and keep the reference marks aligned before securing the propeller shaft yoke retaining clamps and bolts to 25 n.m (18 lb ft). Proceed with installing the axle shafts while filling the assembly with proper lubrication followed by a vehicle descent.
