How to replace the Differential Seal in the drive pinion housing on GMC Yukon?

The replacement of drive pinion housing and seal requires Pinion Seal Installer (J 44414), Bearing Puller (J 22912-B), Pinion Cone and Side Bearing Installer (J 24433), Pinion Bearing Installer (J 37624), Driver Handle (J 8092), Rear Pinion Bearing Race Installer (J 8608) and Flange/Pulley Holding Tool (J 8614-01) as essential tools. First raise the vehicle until you drain the axle lubricant. Begin by marking the exact position of all driveline components that relate to the propeller shaft and axles for proper reassembly. Secure the bearing caps by taping them to avoid the loss of rollers before disengaging the propeller shaft from the axle. Before moving on, you should write down the torque needed to rotate the pinion and ring gear along with making an alignment mark between the pinion and pinion yoke. First remove the pinion gear bearing retainer bolts before taking off the retainer along with the pinion and finally the selective shim. The pinion requires a second measurement of necessary torque to keep rotating. Start by placing the Flange/Pulley Holding Tool (J 8614-01) on the assembly before removing the pinion nut while securely gripping it. First remove the washer before you use the Flange/Pulley Holding Tool (J 8614-01) alongside its tools (J 8614-2 and J 8614-3) to remove the pinion yoke. Use the Bearing Puller (J 22912-B) and a hydraulic press to uninstall the pinion oil seal as well as both outer and inner pinion bearings. Follow this order to install both inner pinion bearing cup using Pinion Bearing Installer (J 37624) and driver handle (J 8092) followed by outer pinion bearing cup using Rear Pinion Bearing Race Installer (J 8608) with driver handle (J 8092). Apply the Pinion Cone and Side Bearing Installer (J 24433) to install the inner pinion bearing that will be followed by a new collapsible spacer and pinion bearing lubrication procedures. Installation of the pinion starts with inserting it into the bearing retainer followed by outer pinion bearing mounting and finally mounting a new pinion oil seal using the Pinion Seal Installer (J 44414). Secure the Pinion Yoke splines with sealant before installing it correctly without using any hammering method. Push the new pinion nut through the washer while using the Flange/Pulley Holding Tool (J 8614-01) to reach the pinion end play just to the point of stoppage. The technician should measure pinion torque during rotation while adjusting torques until they meet required specifications. Use the selective shim while applying sealant to the pinion gear bearing retainer seal surface before tightening the bolts to 88 N.m (65 lb ft). The next step is to check the torque of both the pinion and the ring gear before reassembling the propeller shaft, axle shafts and adding lubricant to the axle before lowering the vehicle.

OEM GMC Yukon Differential Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Differential Seals found

View related parts
GMC Yukon Pinion Seal, Front Part Number: 23270117
$16.03 MSRP: $30.09
You Save: $14.06 (47%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal-Front Differential Drive Pinion Gear; Rear Seal; Seal, Differential Drive Pinion Shaft Bearing
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2020 GMC Yukon | Denali, Denali Hybrid, Hybrid, SL, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Pinion Seal Part Number: 26064029
$26.73 MSRP: $44.04
You Save: $17.31 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Axle Seal; Axle Seals; Front Seal
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2013 GMC Yukon | Denali, Denali Hybrid, Hybrid, SL, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Pinion Seal Part Number: 26064028
$28.72 MSRP: $47.33
You Save: $18.61 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2008 GMC Yukon | Denali, Hybrid, SL, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Pinion Seal Part Number: 26064030
$27.57 MSRP: $51.77
You Save: $24.20 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2006 GMC Yukon | Denali, SL, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
GMC Yukon Pinion Seal Part Number: 84881448
$106.26 MSRP: $168.70
You Save: $62.44 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Yukon | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Pinion Seal Part Number: 84811694
$30.18 MSRP: $49.73
You Save: $19.55 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Axle Seal; Front Seal; Inner Seal
- Replaces: 84446294
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Yukon | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts

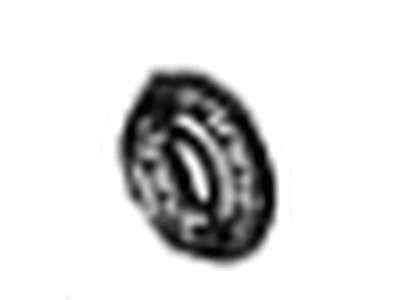

GMC Yukon Pinion Seal Part Number: 22943111
$64.36 MSRP: $109.57
You Save: $45.21 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Replaced by: 84924145
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2020 GMC Yukon | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Pinion Seal, Front Part Number: 23243853
$20.77 MSRP: $37.59
You Save: $16.82 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal-Front Differential Drive Pinion Gear; Seal, Differential Drive Pinion Shaft Bearing
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Yukon | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Pinion Seal, Front Part Number: 84428304
$27.10 MSRP: $50.91
You Save: $23.81 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal-Front Differential Drive Pinion Gear; Seal, Differential Drive Pinion Shaft Bearing
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 GMC Yukon | AT4, Denali, Denali Ultimate, SLE, SLT | 6 Cyl 3.0 L DIESEL, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
View related parts
GMC Yukon Pinion Seal Part Number: 26004811
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Seal, Differential Drive Pinion
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-2000 GMC Yukon | Base, Denali, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
GMC Yukon Pinion Seal Part Number: 26033578
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-2000 GMC Yukon | Base, Denali, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
GMC Yukon Pinion Seal Part Number: 15634020
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-2000 GMC Yukon | Base, Denali, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
GMC Yukon Pinion Seal Part Number: 26094851
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2005 GMC Yukon | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

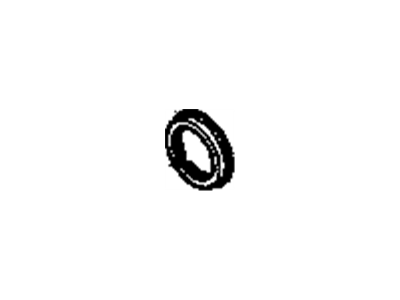

GMC Yukon Pinion Seal Part Number: 15530288
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-2000 GMC Yukon | Base, Denali, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL
View related parts
GMC Yukon Pinion Seal Part Number: 14012694
Product Specifications
- Other Name: Seal, Differential Drive Pinion Shaft Bearing; Differential Seal; Seal, Differential Drive Pinion
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-2000 GMC Yukon | Base, Denali, GT, SL, SLE, SLT, Sport | 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL

GMC Yukon Differential Seal

Want to cut long-term maintenance and repair costs? Choose OEM Differential Seal. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Yukon parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Yukon Differential Seal includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

GMC Yukon Differential Seal Parts and Q&A

Pinion Seal
26064028
Q: How to replace the Differential Seal in the drive pinion housing on GMC Yukon?
A:
The replacement of drive pinion housing and seal requires Pinion Seal Installer (J 44414), Bearing Puller (J 22912-B), Pinion Cone and Side Bearing Installer (J 24433), Pinion Bearing Installer (J 37624), Driver Handle (J 8092), Rear Pinion Bearing Race Installer (J 8608) and Flange/Pulley Holding Tool (J 8614-01) as essential tools. First raise the vehicle until you drain the axle lubricant. Begin by marking the exact position of all driveline components that relate to the propeller shaft and axles for proper reassembly. Secure the bearing caps by taping them to avoid the loss of rollers before disengaging the propeller shaft from the axle. Before moving on, you should write down the torque needed to rotate the pinion and ring gear along with making an alignment mark between the pinion and pinion yoke. First remove the pinion gear bearing retainer bolts before taking off the retainer along with the pinion and finally the selective shim. The pinion requires a second measurement of necessary torque to keep rotating. Start by placing the Flange/Pulley Holding Tool (J 8614-01) on the assembly before removing the pinion nut while securely gripping it. First remove the washer before you use the Flange/Pulley Holding Tool (J 8614-01) alongside its tools (J 8614-2 and J 8614-3) to remove the pinion yoke. Use the Bearing Puller (J 22912-B) and a hydraulic press to uninstall the pinion oil seal as well as both outer and inner pinion bearings. Follow this order to install both inner pinion bearing cup using Pinion Bearing Installer (J 37624) and driver handle (J 8092) followed by outer pinion bearing cup using Rear Pinion Bearing Race Installer (J 8608) with driver handle (J 8092). Apply the Pinion Cone and Side Bearing Installer (J 24433) to install the inner pinion bearing that will be followed by a new collapsible spacer and pinion bearing lubrication procedures. Installation of the pinion starts with inserting it into the bearing retainer followed by outer pinion bearing mounting and finally mounting a new pinion oil seal using the Pinion Seal Installer (J 44414). Secure the Pinion Yoke splines with sealant before installing it correctly without using any hammering method. Push the new pinion nut through the washer while using the Flange/Pulley Holding Tool (J 8614-01) to reach the pinion end play just to the point of stoppage. The technician should measure pinion torque during rotation while adjusting torques until they meet required specifications. Use the selective shim while applying sealant to the pinion gear bearing retainer seal surface before tightening the bolts to 88 N.m (65 lb ft). The next step is to check the torque of both the pinion and the ring gear before reassembling the propeller shaft, axle shafts and adding lubricant to the axle before lowering the vehicle.
