How to replace the LH Motor and Transmission Mount on Chevrolet HHR?

In order to replace the left transmission mount, one must first disconnect the negative Battery Cable and pull off the underhood electrical center cover. Remove the engine control module (ECM) harness connector (3, 4) and positive battery cables from the underhood electrical center. Removing the surge tank inlet hose from the surge tank and then removing the under hood electrical center tray bracket nuts (1, 2) and bolt as well as disconnect in a wiring harness retainer from the tray bracket. Heft the electrical center and turn it back so you clear the area. Support the transmission with a floor jack, interposing a piece of wood between the jack and the transmission, remove the transmission mount to transmission bolts and the transmission mount to mid-rail bolts. Slowly drop down the transmission so that it removes the transmission mount from the vehicle. For the parts for the installation, begin with installation of transmission mount to the mid-rail, manually starting transmission mount to mid-rail bolts while tightening to a 34 nm (25 ft. Lbs.). Start raising the transmission until it touches the transmission mount, then loose start the transmission mount to transmission bolts as following sequence. Rear bolt; middle bolt; front bolt; tighten to 45 nm (33 ft. Lbs.), when repositioning comes to under hood electrical center, connect wiring harness to tray bracket and install the nuts (1,2) and bolt tightening nuts to 10 nm (89 inch lbs.) and bolt to 25 nm (18 ft. Lbs.). Connect the surge tank inlet hose to the surge tank put the positive Battery Cable to the underhood electrify center tighten the positive cable nut to 15 nm(11 ft. Lbs.) then connect the engine control module harness connectors (3, 4) and the negative Battery Cable. Finally, place underhood electrical center cover.

How to balance the engine mount, motor and transmission mount on Chevrolet HHR?

The vehicle needs to be raised before applying support to begin balance operations on engine and transmission mounts. Through bolt loosening of the front transaxle mount and rear transaxle mount enables sufficient vehicle lowering. By placing two floor jacks together with wood blocks you should raise them beneath the powertrain assembly. Place both floor jacks correctly to achieve a 1/8 inch spacing between mount and bracket after they loosen transaxle mount bolts and engine mount bolts to bracket. Proceed with tightening the transaxle mount bolts to 45 nm (33 lb ft) and then perform the engine mount bolts to 50 nm (37 lb ft). Use the floor jacks to shake the powertrain from front to rear to enable proper settling before removing them from under the Oil Pan. The vehicle should be raised once more and the rear transaxle mount through bolt should be tightened to 100 nm (74 lb ft) then the front transaxle mount through bolt should follow with the same torque before finally lowering the vehicle.

OEM Chevrolet HHR Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Motor And Transmission Mounts found

View related parts
Chevrolet HHR Transmission Mount Part Number: 25973863
$91.30 MSRP: $155.44
You Save: $64.14 (42%)
ADD TO CART
Product Specifications
- Other Name: Mount, Transmission Mounting; Engine Mount Bracket; Transfer Case Mount; Motor Mount; Front Trans Mount; Mount
- Position: Front
- Replaces: 22693268
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Transmission Mount Part Number: 25973870
$66.47 MSRP: $113.16
You Save: $46.69 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount, Transmission Mounting; Engine Mount Bracket; Transfer Case Mount; Motor Mount; Rear Trans Mount; Mount
- Position: Rear
- Replaces: 15940092, 22731274
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Front Mount Part Number: 25974059
Product Specifications
- Other Name: Mount; Engine Mount Bracket; Motor Mount; Mount, Engine Mounting
- Replaces: 15835311, 15939383, 15256691, 25827846
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Front Mount, Yellow Part Number: 25974058
Product Specifications
- Other Name: Mount Assembly-Engine *Yellow; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mounting
- Replaces: 15939382, 25827845, 15256690, 15835310
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Transmission Mount, Yellow, Rear Part Number: 25973869
Product Specifications
- Other Name: Mount Assembly-Transmission Rear *Yellow; Engine Mount Bracket; Transfer Case Mount; Rear Trans Mount; Mount, Transmission Mounting
- Position: Rear
- Replaces: 15940090
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Transmission Mount, White, Front Part Number: 20814994
Product Specifications
- Other Name: Mount Assembly-Transmission Front *White; Engine Mount Bracket; Transfer Case Mount; Front Trans Mount; Rear Trans Mount; Mount, Transmission Mounting
- Position: Front
- Replaces: 22731177, 25948444, 15945574
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Chevrolet HHR | SS, SS Panel | 4 Cyl 2.0 L GAS
View related parts
Chevrolet HHR Transmission Mount, Yellow Part Number: 15835312
Product Specifications
- Other Name: Mount Assembly-Transmission *Yellow; Engine Mount Torque Strut; Transfer Case Mount; Motor Mount; Upper Trans Mount; Mount, Transmission Mounting
- Replaces: 15298137, 15877272, 22727937
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Transmission Mount Part Number: 25973862
$63.69 MSRP: $99.78
You Save: $36.09 (37%)
Product Specifications
- Other Name: Mount, Transmission Mounting; Transfer Case Mount; Front Trans Mount
- Position: Front
- Replaces: 22693266
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Mounting Bracket Part Number: 15854396
$81.92 MSRP: $128.33
You Save: $46.41 (37%)
Product Specifications
- Other Name: Adapter, Engine Mounting; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Mount Bracket; Front Mount Bracket; Adapter; Bracket, Engine Mounting
- Replaces: 22689529
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet HHR Front Mount Part Number: 25974060
Product Specifications
- Other Name: Mount, Engine Mount Dampening; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mounting
- Replaces: 25877466
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet HHR | SS, SS Panel | 4 Cyl 2.0 L GAS
View related parts

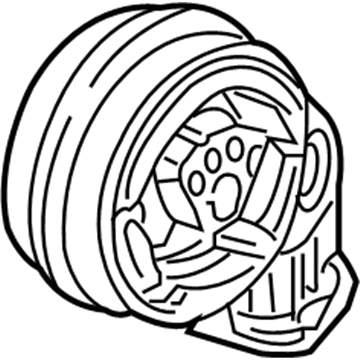

Chevrolet HHR Rear Trans Mount, Blue Part Number: 25892537
Product Specifications
- Other Name: Mount Assembly-Transmission Rear *Blue; Transfer Case Mount; Transmission Mount; Mount, Transmission Mounting
- Position: Rear
- Replaced by: 25998385
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet HHR | SS, SS Panel | 4 Cyl 2.0 L GAS
View related parts
Chevrolet HHR Transmission Mount Part Number: 25829028
Product Specifications
- Other Name: Mount, Transmission Mounting; Engine Mount Torque Strut; Transfer Case Mount; Motor Mount; Upper Trans Mount
- Replaces: 10359761
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Chevrolet HHR | SS, SS Panel | 4 Cyl 2.0 L GAS
View related parts
Chevrolet HHR Transmission Mount, Black; Blue Part Number: 15835313
Product Specifications
- Other Name: Mount, Transmission Mounting; Engine Mount Torque Strut; Engine Mount Bracket; Transfer Case Mount; Motor Mount; Upper Trans Mount; Mount
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS

Chevrolet HHR Motor And Transmission Mount

Want to cut long-term maintenance and repair costs? Choose OEM Motor And Transmission Mount. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet HHR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet HHR Motor And Transmission Mount includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet HHR Motor And Transmission Mount is an important component that improves dependability and power of Chevrolet HHR line, consisting of different models created in 2005-2011. This Motor And Transmission Mounts is another crucial model since they mainly have the responsibility of securely mounting the transmission and at the same time absorb all the vibrations coming from the engine to make sure that the rides are smooth and stable. The Chevrolet HHR can engage different engine types which consist of the 2.0 L, 2.2 L, and 2.4 L Ecotec engines and all of them get a powerful backing from the Motor And Transmission Mount. That is because it is applicable across different HHR models, and it plays the role of ensuring that the vehicle remains efficient and safe and to reduce more movement that is likely to cause drivetrain problems. The Motor And Transmission Mount do its job of handling the stress that a typical driver puts on a vehicle and this in a way adds to the life expectancy of the Chevrolet HHR. From the described features of this Motor And Transmission Mount, excellent vibration isolation, and highly accurate design make this automotive solution stand out in the market while maintaining Chevrolet HHR vehicles as strong contenders in the automotive industry for those customers who seek both performance and comfort. It is essential in the structure of the vehicle as Chevrolet HHR Motor And Transmission Mount has earned the reputation of being reliable and thus contributes to the solidity of the image of the Chevrolet HHR as crossover that does not lack in anything.

Chevrolet HHR Motor And Transmission Mount Parts and Q&A

Mounting Bracket
15854396
Q: How to replace the LH Motor and Transmission Mount on Chevrolet HHR?
A:
In order to replace the left transmission mount, one must first disconnect the negative Battery Cable and pull off the underhood electrical center cover. Remove the engine control module (ECM) harness connector (3, 4) and positive battery cables from the underhood electrical center. Removing the surge tank inlet hose from the surge tank and then removing the under hood electrical center tray bracket nuts (1, 2) and bolt as well as disconnect in a wiring harness retainer from the tray bracket. Heft the electrical center and turn it back so you clear the area. Support the transmission with a floor jack, interposing a piece of wood between the jack and the transmission, remove the transmission mount to transmission bolts and the transmission mount to mid-rail bolts. Slowly drop down the transmission so that it removes the transmission mount from the vehicle. For the parts for the installation, begin with installation of transmission mount to the mid-rail, manually starting transmission mount to mid-rail bolts while tightening to a 34 nm (25 ft. Lbs.). Start raising the transmission until it touches the transmission mount, then loose start the transmission mount to transmission bolts as following sequence. Rear bolt; middle bolt; front bolt; tighten to 45 nm (33 ft. Lbs.), when repositioning comes to under hood electrical center, connect wiring harness to tray bracket and install the nuts (1,2) and bolt tightening nuts to 10 nm (89 inch lbs.) and bolt to 25 nm (18 ft. Lbs.). Connect the surge tank inlet hose to the surge tank put the positive Battery Cable to the underhood electrify center tighten the positive cable nut to 15 nm(11 ft. Lbs.) then connect the engine control module harness connectors (3, 4) and the negative Battery Cable. Finally, place underhood electrical center cover.
Transmission Mount
25973863
Q: How to balance the engine mount, motor and transmission mount on Chevrolet HHR?
A:
The vehicle needs to be raised before applying support to begin balance operations on engine and transmission mounts. Through bolt loosening of the front transaxle mount and rear transaxle mount enables sufficient vehicle lowering. By placing two floor jacks together with wood blocks you should raise them beneath the powertrain assembly. Place both floor jacks correctly to achieve a 1/8 inch spacing between mount and bracket after they loosen transaxle mount bolts and engine mount bolts to bracket. Proceed with tightening the transaxle mount bolts to 45 nm (33 lb ft) and then perform the engine mount bolts to 50 nm (37 lb ft). Use the floor jacks to shake the powertrain from front to rear to enable proper settling before removing them from under the Oil Pan. The vehicle should be raised once more and the rear transaxle mount through bolt should be tightened to 100 nm (74 lb ft) then the front transaxle mount through bolt should follow with the same torque before finally lowering the vehicle.
