What Tools Are Required to Service and Repair Front Coil Springs and Shock Absorber on Chevrolet Equinox?

The necessary equipment for servicing and repairing suspension struts includes the service process requires two tools: strut rod nut socket (J 42991) and strut spring compressor (J 45400). Strut rod nut socket (J 42991) and strut spring compressor (J 45400). Position the strut assembly inside strut spring compressor (J 45400) while setting lower legs upon the spring's lowest coil position and upper legs at the highest coil position. Confirm correct placement of strut compress legs hooks at spring coils alongside strut assembly parallel alignment. Use the strut spring compressor to create enough compression which unloads the upper strut mount while maintaining front strut stud stability throughout the process. The strut rod nut socket (J 42991) or equivalent hand tools should be used to detach the strut shaft nut. Stand the spring in place inside the compressor before you drop the strut downward. Keep contact points on the upper mount assembly to metal sections to protect the plastic components before checking for replacement needs. Check the strut dust shield and hollow Bumper for damage before deciding if they need replacement and examine the spring for any signs of damage. Start by fully extending the strut then attach the hollow Bumper and dust boot while positioning the spring's tag toward the bottom and aligning the spring seat's anti-rotation tab at a 180-degree angle from the knuckle bracket. Tease the upper spring seat against the strut shaft while its flat faces the knuckle mounting bracket then add the top mount by aligning both flats. Use strut rod nut socket (J 42991) to connect and tighten the shaft nut to 75 nm torque (55 ft. Lbs.) when inspecting the flat surfaces of the upper spring seat to match the top mount orientation. End the operation on the strut spring compressor (J 45400) to take away the strut assembly from its clamp.

How to Replace the Rear Suspension Coil Springs on Chevrolet Equinox?

Start the coil spring replacement by first lifting the vehicle through proper support methods. Disassemble the wheel and tire from the rear while you detach the stabilizer shaft link. The installation requires a jackstand positioned below the lower Control Arm while you slowly lift it to squeeze the coil spring. Start by unlatching the lower shock bolt and nut before you begin loosening the lower Control Arm to support frame nut and bolt and end with removing the lower Control Arm to knuckle nut and bolt. Lower the Control Arm methodically to remove coil spring tension before extracting both coil spring and insulators. Check both upper and lower insulators of the coil spring for damage; if damaged replace them otherwise transfer existing components. Only perform component swaps if existing parts show damage while retaining all other components. Insert the spring that includes rubber insulators into the vehicle after placing it in position then raise the jackstand to squeeze the spring. The need for caution applies to fasteners because careless tightening can harm the vehicle structure. Attach the knuckle-end of the lower Control Arm then secure the nut and bolt before tightening to 160 nm (118 lb ft). Fasten the lower Control Arm support nut and bolt at 110 nm (81 lb ft) and install the shock to these components where tightening will be at 110 nm (81 lb ft). First lower the vehicle then reinstall the rear tire and wheel assembly before you install the stabilizer shaft link followed by removal of the jackstand.

OEM Chevrolet Equinox Coil Springs

Strut Spring

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

23 Coil Springs found

View related parts
Chevrolet Equinox Coil Spring, Front Part Number: 23335522
$46.47 MSRP: $84.10
You Save: $37.63 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Front Chassis; Coil Springs
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Coil Spring, Front Part Number: 15251298
$22.25 MSRP: $77.74
You Save: $55.49 (72%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Front Chassis; Coil Springs; Spring
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 23463154
$48.26 MSRP: $87.35
You Save: $39.09 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 84165208
$51.80 MSRP: $93.75
You Save: $41.95 (45%)
ADD TO CART
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2020 Chevrolet Equinox | LT, Premier | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 20941297
$144.24 MSRP: $270.85
You Save: $126.61 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Rear Spring; Coil Spring Set; Coil Springs; Spring
- Position: Rear
- Replaces: 20839862, 20839864
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 23476247
$46.97 MSRP: $88.20
You Save: $41.23 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2020 Chevrolet Equinox | LT, Premier | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 84165207
$45.37 MSRP: $85.19
You Save: $39.82 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2019 Chevrolet Equinox | LT, Premier | 4 Cyl 1.6 L DIESEL
View related parts
Chevrolet Equinox Coil Spring, Front Part Number: 20827083
$112.04 MSRP: $210.41
You Save: $98.37 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Front Chassis; Coil Spring Set; Coil Springs; Spring
- Position: Front
- Replaces: 20827103
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 23295634
$41.59 MSRP: $75.28
You Save: $33.69 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2019 Chevrolet Equinox | LT, Premier | 4 Cyl 1.6 L DIESEL
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 23476248
$51.33 MSRP: $96.41
You Save: $45.08 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS
View related parts
Chevrolet Equinox Coil Spring, Front Part Number: 84166787
$43.48 MSRP: $84.38
You Save: $40.90 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Spring, Front Chassis; Coil Springs
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts

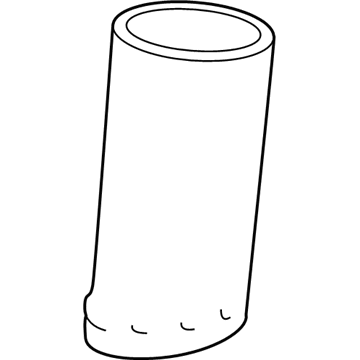

Chevrolet Equinox Coil Spring, Rear Part Number: 15232879
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 15232880
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 20884743
Product Specifications
- Other Name: Spring, Rear Spring; Coil Springs; Spring
- Position: Rear
- Replaces: 25971724, 15940291, 15940293
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Coil Spring, Front Part Number: 15219004
$34.38 MSRP: $53.86
You Save: $19.48 (37%)
Product Specifications
- Other Name: Spring, Front Chassis; Coil Spring Set; Coil Springs; Spring
- Position: Front
- Replaces: 15207619, 15207618
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 20839863
$41.72 MSRP: $74.51
You Save: $32.79 (45%)
Product Specifications
- Other Name: Spring, Rear Spring; Coil Spring Set; Coil Springs; Spring
- Position: Rear
- Replaces: 20839865, 25839863
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | LT, LTZ, Premier | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

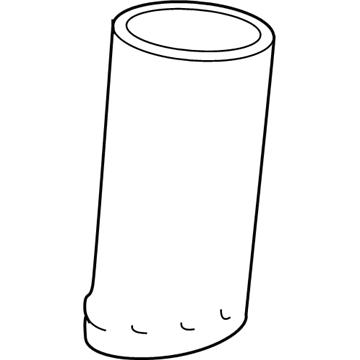

Chevrolet Equinox Coil Spring, Rear Part Number: 15775612
Product Specifications
- Other Name: Spring, Rear Spring; Coil Spring Set; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 15940295
Product Specifications
- Other Name: Spring, Rear Spring; Coil Spring Set; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Coil Spring, Front Part Number: 25832101
Product Specifications
- Other Name: Spring, Front Chassis; Coil Spring Set; Coil Springs; Spring
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
View related parts
Chevrolet Equinox Coil Spring, Rear Part Number: 15940294
Product Specifications
- Other Name: Spring, Rear Spring; Coil Spring Set; Coil Springs; Spring
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS

| Page 1 of 2 |Next >

1-20 of 23 Results

Chevrolet Equinox Coil Springs

Want to cut long-term maintenance and repair costs? Choose OEM Coil Springs. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox Coil Springs includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Coil Springs that are used in Chevrolet Equinox automobiles are components of suspension system, their purpose being to take the automobile's weight and absorb impacts of the irregularities of the roads. They assist in regulating the right height of the car and the correct position of the wheels so as to avoid effects such as slight sinking of the car, terribly bouncing down or the unnormal wearing out of the tires. Coil springs can be renewed, and there is replacement stock for modern cars as well as period correct reproductions for older automobiles. There has been the use of linear rate, progressive and dual rate coil springs to some of the Chevrolet Equinox models. Linear rate springs keep their rate steady and progressive springs remain a variable, and the actual process gives a more comforting ride that tends to adapt according to the driving scenario. Dual rate springs are of higher and more distinct stiffness providing a better performance. Further, self-leveling shock absorbers make the coil spring graduation ride height alterable to adapt to alterations in wheel/tire size. In conclusion, it is possible to state that the use of coil springs is vital for the vehicle to be balanced as well as providing a good and comfortable ride.

Chevrolet Equinox Coil Springs Parts and Q&A

Coil Spring, Front
15219004
Q: What Tools Are Required to Service and Repair Front Coil Springs and Shock Absorber on Chevrolet Equinox?
A:
The necessary equipment for servicing and repairing suspension struts includes the service process requires two tools: strut rod nut socket (J 42991) and strut spring compressor (J 45400). Strut rod nut socket (J 42991) and strut spring compressor (J 45400). Position the strut assembly inside strut spring compressor (J 45400) while setting lower legs upon the spring's lowest coil position and upper legs at the highest coil position. Confirm correct placement of strut compress legs hooks at spring coils alongside strut assembly parallel alignment. Use the strut spring compressor to create enough compression which unloads the upper strut mount while maintaining front strut stud stability throughout the process. The strut rod nut socket (J 42991) or equivalent hand tools should be used to detach the strut shaft nut. Stand the spring in place inside the compressor before you drop the strut downward. Keep contact points on the upper mount assembly to metal sections to protect the plastic components before checking for replacement needs. Check the strut dust shield and hollow Bumper for damage before deciding if they need replacement and examine the spring for any signs of damage. Start by fully extending the strut then attach the hollow Bumper and dust boot while positioning the spring's tag toward the bottom and aligning the spring seat's anti-rotation tab at a 180-degree angle from the knuckle bracket. Tease the upper spring seat against the strut shaft while its flat faces the knuckle mounting bracket then add the top mount by aligning both flats. Use strut rod nut socket (J 42991) to connect and tighten the shaft nut to 75 nm torque (55 ft. Lbs.) when inspecting the flat surfaces of the upper spring seat to match the top mount orientation. End the operation on the strut spring compressor (J 45400) to take away the strut assembly from its clamp.
Coil Spring, Rear
15940294
Q: How to Replace the Rear Suspension Coil Springs on Chevrolet Equinox?
A:
Start the coil spring replacement by first lifting the vehicle through proper support methods. Disassemble the wheel and tire from the rear while you detach the stabilizer shaft link. The installation requires a jackstand positioned below the lower Control Arm while you slowly lift it to squeeze the coil spring. Start by unlatching the lower shock bolt and nut before you begin loosening the lower Control Arm to support frame nut and bolt and end with removing the lower Control Arm to knuckle nut and bolt. Lower the Control Arm methodically to remove coil spring tension before extracting both coil spring and insulators. Check both upper and lower insulators of the coil spring for damage; if damaged replace them otherwise transfer existing components. Only perform component swaps if existing parts show damage while retaining all other components. Insert the spring that includes rubber insulators into the vehicle after placing it in position then raise the jackstand to squeeze the spring. The need for caution applies to fasteners because careless tightening can harm the vehicle structure. Attach the knuckle-end of the lower Control Arm then secure the nut and bolt before tightening to 160 nm (118 lb ft). Fasten the lower Control Arm support nut and bolt at 110 nm (81 lb ft) and install the shock to these components where tightening will be at 110 nm (81 lb ft). First lower the vehicle then reinstall the rear tire and wheel assembly before you install the stabilizer shaft link followed by removal of the jackstand.
