Question 1

How to Service and Repair the Brake Pedal on a Chevrolet Equinox?

Accepted Answer

Open the connection to the accelerator pedal component before removing the Brake Pedal retaining fastener with its washer. Remove the Brake Booster pushrod from the Brake Pedal and detach the Brake Pedal position sensor wiring plug. Separate both the Brake Booster mounting nuts and the Brake Pedal bracket-to-steering column bracket bolt. Shift the Brake Booster to the front and let the studs pass through dash openings. Keep the steering column bracket to cowl bolt tight. On removing Brake Pedal axis bushings from panel insulation retain the pedal assembly in moving direction toward vehicle middle. Install the accelerator pedal onto its brake connection bracket. Fit the Brake Pedal assembly inside the car while matching its Brake Pedal bracket pilot bushings to the foam cushion panel and setting the booster studs through the dash panel. Run the Brake Pedal bracket-to-steering column bracket bolt and set its torque at 25 n.m or 18 lb ft. Place the Brake Booster mounting nuts temporarily but apply lithium grease to the pushrod pin of the Brake Pedal before attaching the Brake Booster pushrod to the pedal. Plug in the washer and keep it in place while adding the Brake Pedal retaining clip. Hold the vacuum Brake Booster with 25 n.m (18 lb ft) torque at its mounting nuts. Secure the steering column bracket onto cowl nut and torque it with 25 n.m of force. Join the Brake Pedal position sensor electric wire and link the accelerator pedal assembly electric wire at their respective ports.

Question 2

How to replace the automatic adjustment park brake pedal assembly and the front park brake cable on Chevrolet Malibu?

Accepted Answer

The first step to replace the automatic park Brake Pedal assembly and front park brake cable involves taking away the left sound insulator panel with the left front sill plate. You should remove the 3 assembly nuts of the park Brake Pedal assembly before pulling back the carpet to access the front park brake cable. First disconnect the electrical connector attached to the park brake warning lamp switch before removing the front cable retaining screw and the 2 front park brake cable plastic retainers fixed to the body frame. The operator should first detach the floor console then disassemble both right and left rear park brake cables from the crush bracket. You must take out the park Brake Pedal assembly from the vehicle after removing the 2 nuts holding the front brake cable mounting bracket. Place the park Brake Pedal assembly into the original position of the vehicle and attach the 2 mounting bracket nuts to the front brake cable assembly while tightening them to 10 nm (89 inch lbs.). Connect the left rear park brake cable together with the right rear park brake cable to the crush bracket before replacing the floor console along with the 2 front cable plastic retainers onto the body. After securing the front cable retainer screw at 2 nm (18 inch lbs.) you should connect the electrical connector to the park brake warning lamp switch. Carpets must be set before tightening the 3 park Brake Pedal assembly nuts (1, 2, 3) in sequence to 25 nm (18 ft. Lbs.). After removing the cable tension set pin through a down motion complete the tension set by running the park Brake Pedal full four times then reinstall the left front sill plate and the left sound insulator panel.

OEM Chevrolet Brake Pedal

9 Brake Pedals found

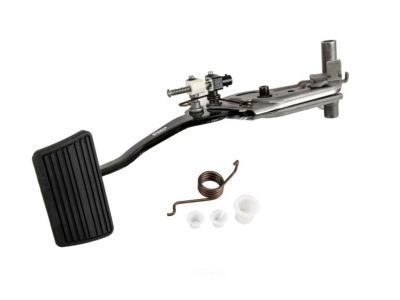

Chevrolet Pedal Travel Sensor Part Number: 84378256

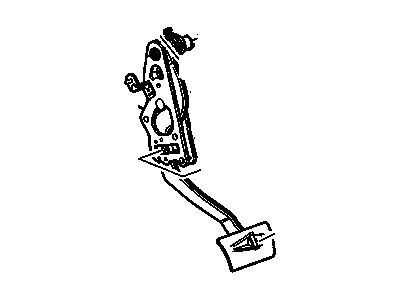

Chevrolet Pedal Travel Sensor Part Number: 22786029

Chevrolet Stoplamp Switch Part Number: 25847531

Chevrolet Parking Brake Control Part Number: 42706372

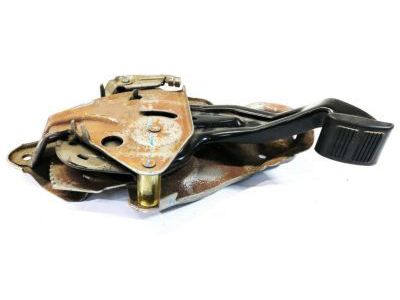

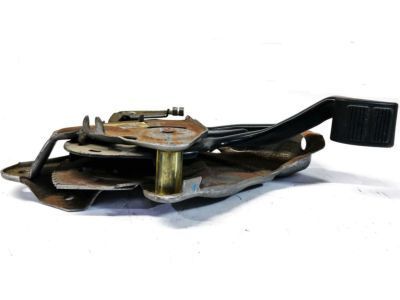

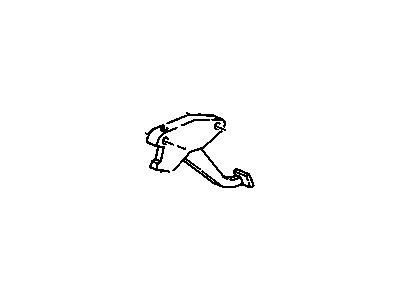

Chevrolet Parking Brake Control Part Number: 15155147

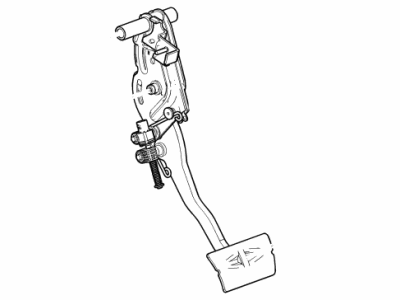

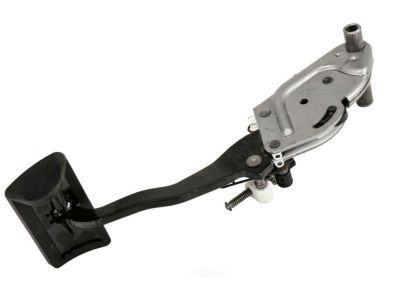

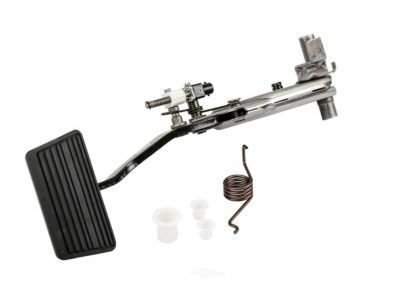

Chevrolet Pedal Assembly Part Number: 84374588

Chevrolet Pedal Travel Sensor Part Number: 25902025

Chevrolet Strut, Driver Side Part Number: 15861900

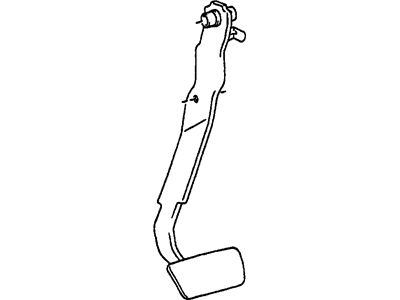

Chevrolet Parking Brake Control Part Number: 14038626
