OEM Chevrolet HHR Brake Pedal

Brake Pedal Pad
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

1 Brake Pedal found

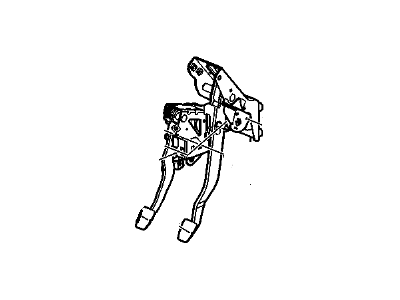

  • Chevy HHR Brake Pedal - 25902025
    Chevy HHR Brake Pedal Diagram - 25902025
    View related parts

    Chevrolet HHR Pedal Travel Sensor Part Number: 25902025

    Product Specifications
    • Other Name: Pedal Assembly-Brake & Clutch (W/Bracket); Accelerator Pedal Position Sensor; Pedal, Brake
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 2009-2011 Chevrolet HHR | LS, LS Panel, LT, LT Panel, SS, SS Panel | 4 Cyl 2.0 L GAS, 4 Cyl 2.2 L FLEX, 4 Cyl 2.4 L FLEX

Chevrolet HHR Brake Pedal

Want to cut long-term maintenance and repair costs? Choose OEM Brake Pedal. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet HHR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet HHR Brake Pedal includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet HHR Brake Pedal Parts and Q&A

  • Chevrolet HHR Brake Pedal - 25902025 Pedal Travel Sensor Pedal Travel Sensor
    25902025
    Q: How to Service and Repair the Brake Pedal Assembly for an Automatic Transaxle on Chevrolet HHR?
    A:
    Place the Steering Column lower and set it to the side before moving on to Brake Pedal assembly replacement for automatic transaxles. Undo the connections of the Brake Pedal position sensor and break-free the power brake booster pushrod at the Brake Pedal assembly. First separate the Brake Pedal pushrod washer and vacuum brake booster nuts. Take off the rh upper Brake Pedal bracket bolt and the two bolts from the lh upper pedal bracket before removing the instrument panel tie bar. Lower the Brake Pedal unit off the vehicle. Set the Brake Pedal assembly on top of the power brake booster studs and insert the instrument panel tie bar. Set the two left-hand upper Brake Pedal bolts and the right-hand bolt along with the vacuum brake booster nuts loosely. Coat the Brake Pedal pushrod pin with high temperature grease gm p/n 12345996, attach the pushrod to the pedal pivot pin and put on the brake washer. Use 22 nm torque when securing the vacuum brake booster nuts and apply 25 nm torque to both upper Brake Pedal bracket bolts. Fasten the Brake Pedal pushrod turret with a torque of 10 nm while connecting the pedal position sensor electrical connections. Remove the Steering Column and install the Brake Pedal position sensor before putting back the steering assembly.

Related Chevrolet HHR Parts

Browse Chevrolet HHR Brake Pedal by Years

+
2011 2010 2009
