How to service and repair the Shift Interlock Solenoid on Cadillac DTS?

The service and repair process for Shift Interlock Solenoid starts by removing knee bolster bracket and steering column trim covers. Use a screwdriver to separate the automatic transmission shift lock control from the steering column support assembly after disconnecting its connector then remove it from the steering column. Begin the installation by putting the column in the neutral position then insert the automatic transmission shift lock control. To adjust the control pull the tab accessible on the block side while moving the column into neutral position then use the adjuster block to push the internal adjuster spring until the block reaches the far end of the solenoid. To proceed with installation begin by setting the column to park then stabilize it with a tab push to the rear side. Examine the automatic transmission shift lock control and rejoin its connector before putting back the steering column trim covers and knee bolster bracket.

How to service and repair the Shift Interlock Solenoid on Cadillac Escalade?

As a first step in servicing the Shift Interlock Solenoid one must disable the SIR system. First remove the knee bolster while positioning the shift lever assembly to its neutral clevis position. A small screwdriver helps to detach the automatic transmission shift lock control actuator from both the steering column jacket as well as the cable shift cam after disconnecting the electrical connector. Fitting the shift lock control actuator requires first attaching it firmly between the steering column jacket and cable shift cam followed by electrical connector reconnection. To adjust the shift lock control actuator with the shift lever clevis in neutral position users should do the following: pull out the tab on the adjuster block side and press the adjuster block to compress the internal adjuster spring then detach the adjuster teeth and finally slide the adjuster block away from the actuator as much as possible before locking it with the tab. The shift lock control actuator must operate correctly as it maintains the shift clevis in park position but releases the park lock when the brake pedal activates. The device needs to receive electric power. You should readjust the shift lock control actuator when needed before placing back the knee bolster and activating the SIR system.

OEM Cadillac Shift Interlock Solenoid

Shift Lock Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Shift Interlock Solenoids found

View related parts
Cadillac Lock Actuator Part Number: 26097679
$95.19 MSRP: $141.64
You Save: $46.45 (33%)
ADD TO CART
Product Specifications
- Other Name: Actuator, Automatic Transmission Shift Lock Control; Automatic Transmission Selector Handle; Gear Shift Assembly; Interlock Solenoid; Actuator Assembly; Actuator; Actuator, Transmission Shift Brake Interlock
- Replaces: 26064467, 26047242, 26060737
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Lock Actuator Part Number: 26094827
$48.61 MSRP: $72.34
You Save: $23.73 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Actuator, Automatic Transmission Shift Lock Control; Shift Actuator; Interlock Solenoid; Actuator; Actuator, Transmission Shift Brake Interlock
- Replaces: 26054723, 26064466
Fits the following Cadillac Models:
- Escalade | 2002-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2002-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Shift Actuator Part Number: 15775841
$62.09 MSRP: $105.72
You Save: $43.63 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid Assembly-Automatic Transmission Shift Lock Control; Shift Interlock Solenoid; Interlock Solenoid; Solenoid; Solenoid, Transmission Shift Brake Interlock
Fits the following Cadillac Models:
- Escalade | 2007-2019 | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2007-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade EXT | 2007-2013 | Base, Luxury, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

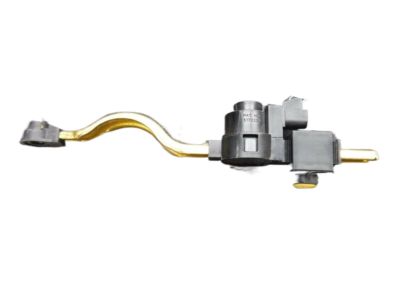

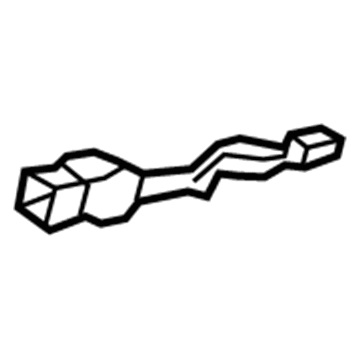

Cadillac Shift Actuator Part Number: 26098856
Product Specifications
- Other Name: Actuator, Transmission Shift Brake Interlock; Actuator
- Replaces: 26075939
Fits the following Cadillac Models:
- DTS | 2006-2011 | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
- DeVille | 2000-2005 | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
View related parts
Cadillac Interlock Solenoid Part Number: 26042494
Product Specifications
- Other Name: Solenoid, Transmission Shift Brake Interlock; Shift Interlock Solenoid; Solenoid
Fits the following Cadillac Models:
- DeVille | 1994-1999 | Base, Concours, d'Elegance | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
- Eldorado | 1992-1996 | Base, ETC, Sport, Touring | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
- Fleetwood | 1993-1996 | Base, Brougham | 8 Cyl 5.7 L GAS
- Seville | 1992-1996 | Base, SLS, STS | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View More
View related parts
Cadillac Solenoid Part Number: 12538777
Product Specifications
- Other Name: Solenoid, Transmission Shift Brake Interlock; Shift Interlock Solenoid
Fits the following Cadillac Models:
- Eldorado | 1992-1995 | Base, ETC, Sport, Touring | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS

Cadillac Shift Interlock Solenoid

Choose OEM Shift Interlock Solenoid, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Shift Interlock Solenoid. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Shift Interlock Solenoid has the car in a safe park until the brake is pressed. Since 1902, Cadillac has been associated with daring design and effortless power, and drivers who prefer to be comfortable as well as drive with speed. Cabins remain amazingly silent, have sweeping curved touch screens, and place you on plush cushions that relax long journeys but cling securely in the corners. Super Cruise, sharp electronic dashboards, over air navigation, and active lighting testify to the fact that the marque does not rest on laurels. Cadillac ventures into electric luxury with artisan flagships hand made and fast over air updates. In sedans and SUVs, the badge is applied to signal the status and a ride that is focused on quick steering and confidence in cruising. Shift Interlock Solenoid connects the signal of the brake pedal with the shifter to prevent the possibility of unintended gear shifts. A lock pin can only be released by an electromagnet on the release of sensors that signal the presence of pedal pressure and a state of transmission that permits motion. The reliability of Shift Interlock Solenoid covers all model years through electronic commands that provide the same level of protection to a vehicle regardless of its age. Since the installation of Shift Interlock Solenoid is done in all Cadillac vehicles, the owners receive the benefit of having the stability of steady safety logic as it prevents roll away and the line of the drivetrains.

Cadillac Shift Interlock Solenoid Parts and Q&A

Shift Actuator
26098856
Q: How to service and repair the Shift Interlock Solenoid on Cadillac DTS?
A:
The service and repair process for Shift Interlock Solenoid starts by removing knee bolster bracket and steering column trim covers. Use a screwdriver to separate the automatic transmission shift lock control from the steering column support assembly after disconnecting its connector then remove it from the steering column. Begin the installation by putting the column in the neutral position then insert the automatic transmission shift lock control. To adjust the control pull the tab accessible on the block side while moving the column into neutral position then use the adjuster block to push the internal adjuster spring until the block reaches the far end of the solenoid. To proceed with installation begin by setting the column to park then stabilize it with a tab push to the rear side. Examine the automatic transmission shift lock control and rejoin its connector before putting back the steering column trim covers and knee bolster bracket.
Shift Actuator
15775841
Q: How to service and repair the Shift Interlock Solenoid on Cadillac Escalade?
A:
As a first step in servicing the Shift Interlock Solenoid one must disable the SIR system. First remove the knee bolster while positioning the shift lever assembly to its neutral clevis position. A small screwdriver helps to detach the automatic transmission shift lock control actuator from both the steering column jacket as well as the cable shift cam after disconnecting the electrical connector. Fitting the shift lock control actuator requires first attaching it firmly between the steering column jacket and cable shift cam followed by electrical connector reconnection. To adjust the shift lock control actuator with the shift lever clevis in neutral position users should do the following: pull out the tab on the adjuster block side and press the adjuster block to compress the internal adjuster spring then detach the adjuster teeth and finally slide the adjuster block away from the actuator as much as possible before locking it with the tab. The shift lock control actuator must operate correctly as it maintains the shift clevis in park position but releases the park lock when the brake pedal activates. The device needs to receive electric power. You should readjust the shift lock control actuator when needed before placing back the knee bolster and activating the SIR system.
