OEM Cadillac CTS Brake Master Cylinder
- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
10 Brake Master Cylinders found
Cadillac CTS Master Cylinder Part Number: 22797527
$102.27 MSRP: $200.24You Save: $97.97 (49%)Ships in 1-2 Business Days
Cadillac CTS Master Cylinder Part Number: 22909761
$95.47 MSRP: $185.29You Save: $89.82 (49%)

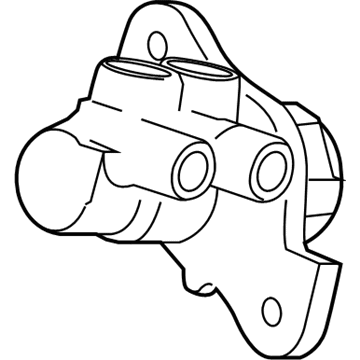

Cadillac CTS Master Cylinder Part Number: 84614708
$95.47 MSRP: $185.29You Save: $89.82 (49%)Ships in 1-2 Business Days
Cadillac CTS Master Cylinder Part Number: 84614707
$91.89 MSRP: $179.90You Save: $88.01 (49%)

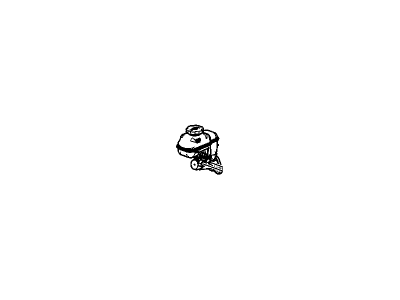

Cadillac CTS Master Cylinder Part Number: 22797526
$90.62 MSRP: $164.02You Save: $73.40 (45%)Ships in 1-2 Business Days
Cadillac CTS Master Cylinder Part Number: 19209197
Cadillac CTS Master Cylinder Part Number: 18022002
Cadillac CTS Master Cylinder Part Number: 10367562
Cadillac CTS Master Cylinder Part Number: 10367561

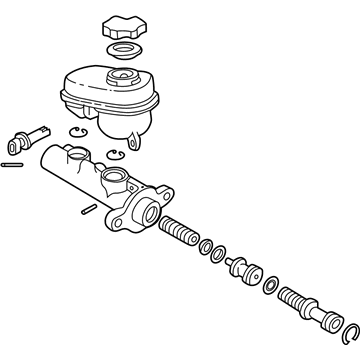

Cadillac CTS Master Cylinder Part Number: 19209229
Cadillac CTS Brake Master Cylinder
Want to cut long-term maintenance and repair costs? Choose OEM Brake Master Cylinder. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac CTS parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac CTS Brake Master Cylinder includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.
The Brake Master Cylinder; this car model Cadillac CTS has the brake master cylinder as one of the critical parts of the braking system since it acts as a translator of the foot pressure to hydraulic pressure. This hydraulic pressure is then transferred to the slave cylinders, as the master cylinder pushes the brake pedals, this results to the creation of the much-needed friction to bring the vehicle to a stop. More commonly, the Cadillac CTS has a dual circuit master cylinder on the braking mechanism; thus, if one of the circuits has a problem, the other can still supply sufficient braking. Brake Master Cylinder may employ Cadillac CTS cast iron or aluminum housings, and the fluid reservoir may be internal or external. The integral reservoirs have only one cap and the external ones may have one or two threaded caps. It has kept the design simple and reliable with an emphasis on safety, bearing in mind that problems such as fluid leakage of internal failure could inevitably impair the braking system.
Cadillac CTS Brake Master Cylinder Parts and Q&A
- Q: How to overhaul the brake master cylinder on Cadillac CTS?A:Before you start repairing the Brake Master Cylinder take it out from the vehicle and hold its mounting flange securely in the bench vise so you can work safely on the rear side of the primary Piston. You must clean the area around the cap before you take off the cap and diaphragm from the reservoir to check for damage or defects on these components. Replace broken parts right away. Effectively separate the master cylinder reservoir before compressing the primary Piston with a round tool and removing the Piston retainer followed by the primary assembly. Point the inlet ports and back exit on the cylinder after you put filtered and non-lubricated low pressure air into the front entrance port to take out all parts including the return spring and secondary seal . Remove all parts from the primary Piston assembly including Piston retainer and seals. Clean the inside and outside surfaces of the master cylinder with denatured alcohol while being careful not to use abrasives and check for damage like cracks, scoring, pitting, or corrosion which require replacing the master cylinder. Intake non-lubricated filtered air into each part before applying delco supreme ii brake fluid product number 12377967 (992667 Alternative) to the master cylinder bore secondary Piston return spring and all overhauled elements. Rephrase: join the sealed primary parts to the new secondary seal, secondary Piston and retainer. Add the return spring and secondary Piston assembly piece along with the sealed primary Piston equipment into the cylinder. Place a smooth tool into the primary Piston and push it down while fitting the new Piston retainer. Finally reassemble the master cylinder reservoir and its components before putting it back onto the vehicle.
- Q: How to replace the brake master cylinder in a right-hand drive on Cadillac CTS?A:Perform the replacement on a right-hand drive vehicle only when the engine is off and depleted Brake Booster vacuum through repeated brake pedal use. First break the power brake level indicator connector and then open the master cylinder primary brake pipe at each end. Install caps at both ends and follow up by plugging the master cylinder outlet to seal the system. Move on to disconnect the secondary brake pipe master cylinder fitting while proceeding in a similar way. Check the Brake Booster seal condition and replace it if needed. Then pull out the master cylinder through the power vacuum Brake Booster while removing its nuts. Position the master cylinder towards the power vacuum Brake Booster seal on the master cylinder body so it fits perfectly without getting bent. Before installing the master cylinder onto the booster you should make sure to bleed it on a workbench. Fasten the master cylinder nuts with a torque of 25 nm and adjust to 18 lb ft. Attach the secondary brake pipe fitting to the master cylinder and tighten to 36 nm (27 lb ft), then add the primary brake pipe connection and torque it to the same specification. Reconnect the brake level indicator switch wires first then move to the hydraulic brake system bleeding process.
