How to replace the Air Suspension Compressor on Cadillac Escalade?

Begin by elevating and stabilizing the vehicle before starting the air compressor replacement process. Use a scan tool to exhaust system air for 60 seconds with the engine off while cleaning around components to prevent exterior contamination before disconnecting the Air Hose at the air compressor location. Note that small air pockets will stay inside the tubes. Disconnect the air tube from the air dryer while also disconnecting the electrical connection before removing the air inlet with its hose from the fuel filler neck bracket. You must first loosen the mounting fasteners then move the air compressor backward so it clears the slots of the vehicle frame before you take it out from the vehicle. Position the air compressor inside the vehicle by pulling it toward the front to enter the frame slots and insert the mounting nuts before tightening the bolts to 15 nm (11 lb ft). Reattach the fuel filler neck bracket air inlet hose and the air dryer air tube and the electrical system connection. Turn the ignition on with engine off while following compressor installation by using a scan tool to operate the air compressor for 30 seconds or until the rear of the vehicle begins to rise. Use the scan tool to turn off the ignition and then on again with the engine running to let the air suspension system reach its target rear suspension configuration.

How to replace the Air Suspension Compressor on Cadillac SRX?

First raise and support the vehicle before starting the air compressor replacement process. First disconnect the exhaust system from the rear exhaust hangers before using a torque wrench to remove the automatic level control (ALC) compressor bracket mounting bolts so you can carefully drop the alc compressor assembly. You should disconnect the air tube from the alc compressor clamp by twisting it then separate the alc electrical harness connector. Take out the alc compressor with bracket from the vehicle by first removing its side mounting nut. Start by detaching the electrical harness connector from the alc bracket while you unfasten the alc compressor top bracket mounting screw. Then, disconnect the bleed hose from its clip before removing the screws that secure the alc bracket to the alc compressor. Install the alc bracket onto the alc compressor afterward put the alc bracket screws into the alc compressor and tighten them to 9 nm (80 inch lbs.). Position the bleed hose onto the clip before you add the electrical connector to the alc compressor bracket and attach the air tube to the alc compressor body. First secure the alc electrical harness connector and install the alc bracket side nut before tightening all alc bracket mounting bolts to 9 nm torque tighten. Lower the vehicle and reinstall the exhaust system back to the rear exhaust hangers.

OEM Cadillac Air Suspension Compressor

Suspension Levelling Compressor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Air Suspension Compressors found

View related parts

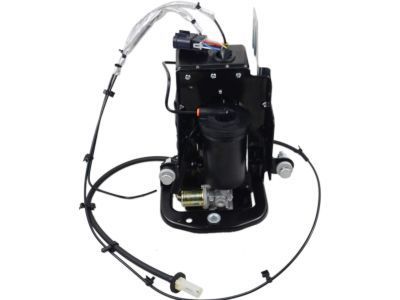

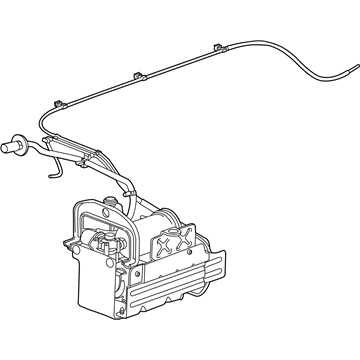

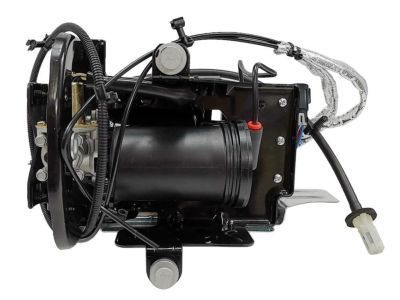

Cadillac Compressor, Rear Part Number: 84355910
$334.46 MSRP: $654.85
You Save: $320.39 (49%)
ADD TO CART
Product Specifications
- Other Name: Compressor Assembly-Rear Air Spring; Air Suspension Compressor; Compressor, Air Suspension Compressor
- Position: Rear
- Replaces: 23129283, 22983463, 84219810, 23353754, 22936012, 84160004, 23446561, 23468864
Fits the following Cadillac Models:
- XTS | 2013-2019 | Base, Livery, Luxury, Platinum, Premium, Premium Luxury, Vsport Platinum, Vsport Premium, Vsport Premium Luxury | 6 Cyl 3.6 L GAS
View related parts
Cadillac Compressor Part Number: 23316154
$273.30 MSRP: $535.07
You Save: $261.77 (49%)
ADD TO CART
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Air Suspension Compressor
- Replaces: 23282712, 23232591, 22797525
Fits the following Cadillac Models:
- Escalade | 2015-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2015-2020 | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Compressor Assembly Part Number: 22137259
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor; Air Suspension Compressor
Fits the following Cadillac Models:
- Fleetwood | 1995-1996 | Base, Brougham | 8 Cyl 5.7 L GAS
View related parts

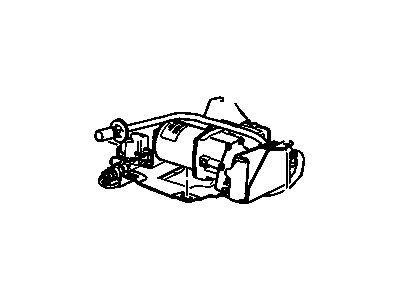

Cadillac Compressor, Rear Part Number: 20827740
Product Specifications
- Other Name: Compressor Assembly-Rear Air Spring; Air Suspension Compressor; Compressor, Air Suspension Compressor
- Position: Rear
- Replaces: 15886734, 25994396
Fits the following Cadillac Models:
- DTS | 2006-2011 | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac Compressor Part Number: 19299545
$501.44 MSRP: $903.51
You Save: $402.07 (45%)
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Air Suspension Compressor
- Replaces: 15254590, 15056494, 10395825, 15101577, 15070878
Fits the following Cadillac Models:
- Escalade | 2002-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2002-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Compressor Part Number: 22941806
$531.26 MSRP: $957.21
You Save: $425.95 (45%)
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Air Suspension Compressor
- Replaces: 15296756, 20837299, 20930288, 15949881, 25913289
Fits the following Cadillac Models:
- Escalade | 2007-2014 | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade ESV | 2007-2014 | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Escalade EXT | 2007-2013 | Base, Luxury, Premium | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts
Cadillac Relay Part Number: 22137470
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Multi Purpose Relay; Compressor
Fits the following Cadillac Models:
- Fleetwood | 1993 | Base, Brougham | 8 Cyl 5.7 L GAS
View related parts

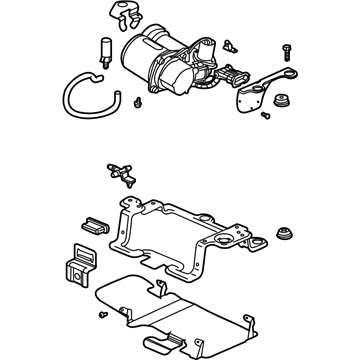

Cadillac Compressor Assembly Part Number: 88957190
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor; Air Suspension Compressor
Fits the following Cadillac Models:
- CTS | 2009 | V | 8 Cyl 6.2 L GAS
- SRX | 2004-2009 | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
- STS | 2005-2011 | Base, Platinum, V | 6 Cyl 3.6 L GAS, 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View More
View related parts

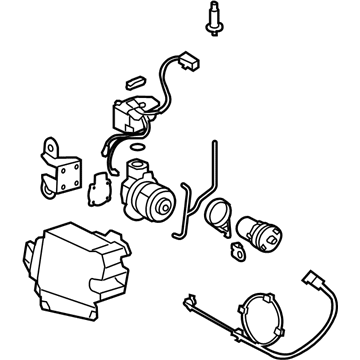

Cadillac Compressor Assembly Part Number: 25806015
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor; Air Suspension Compressor
- Replaces: 15811960
Fits the following Cadillac Models:
- DTS | 2006-2011 | Base, Livery, Luxury, Platinum, Premium | 8 Cyl 4.6 L GAS
View related parts
Cadillac Compressor Assembly Part Number: 22137472
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Multi Purpose Relay; Relay; Compressor; Air Suspension Compressor
Fits the following Cadillac Models:
- Fleetwood | 1993 | Base, Brougham | 8 Cyl 5.7 L GAS
View related parts
Cadillac Compressor Assembly Part Number: 22137446
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor; Air Suspension Compressor
- Replaces: 22134640
Fits the following Cadillac Models:
- Fleetwood | 1994 | Base, Brougham | 8 Cyl 5.7 L GAS
View related parts
Cadillac Air Compressor Part Number: 22062531
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor Assembly; Compressor; Air Suspension Compressor
Fits the following Cadillac Models:
- 60 Special | 1993 | Base | 8 Cyl 4.9 L GAS
- DeVille | 1986-1993 | Base, d'Elegance, Spring Edition, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
- Fleetwood | 1986-1993 | 60 Special, 75, 75 Formal, Base, Brougham, Brougham d'Elegance, d'Elegance | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
View More
View related parts
Cadillac Air Compressor Part Number: 22049808
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor; Air Suspension Compressor
Fits the following Cadillac Models:
- Eldorado | 1986-1993 | Base, Biarritz, Sport, Spring Edition, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
- Seville | 1986-1992 | Base, Elegante, STS | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 4.9 L GAS
View related parts
Cadillac Compressor Part Number: 22049806
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Air Suspension Compressor
Fits the following Cadillac Models:
- DeVille | 1985 | Base, Cabriolet, d'Elegance | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS
- Eldorado | 1984-1985 | Base, Biarritz | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Fleetwood | 1985 | 75, 75 Formal, Base, Brougham, Brougham d'Elegance, d'Elegance | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Seville | 1985 | Base, Elegante | 8 Cyl 4.1 L GAS
View More
View related parts

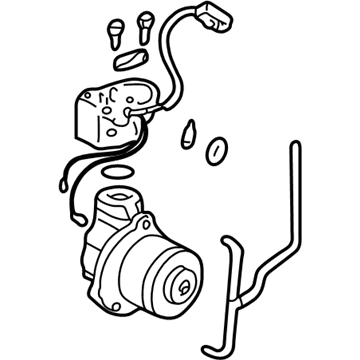

Cadillac Compressor Assembly Part Number: 12494809
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor; Air Suspension Compressor
Fits the following Cadillac Models:
- DeVille | 2000-2005 | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
- Seville | 1998-2004 | SLS, STS | 8 Cyl 4.6 L GAS
View related parts
Cadillac Air Compressor Part Number: 12487573
Product Specifications
- Other Name: Compressor, Air Suspension Compressor; Compressor Assembly; Compressor; Air Suspension Compressor
- Replaces: 22120632
Fits the following Cadillac Models:
- DeVille | 1994-1999 | Base, Concours, d'Elegance | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
- Eldorado | 1993-2002 | Base, ESC, ETC, Sport, Touring | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
- Seville | 1993-1997 | Base, SLS, STS | 8 Cyl 4.6 L GAS, 8 Cyl 4.9 L GAS
View More

Cadillac Air Suspension Compressor

Choose OEM Air Suspension Compressor, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Air Suspension Compressor. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Air Suspension Compressor switches the ride height rapidly to a much more comfortable operation during changing loads and road conditions. Cadillac is a heritage with a history that traces back to 1902 and a combination of heritage and radical design that can only be an assurance on any road. Drivers appreciate Cadillac balancing opulent interiors with a powerful powertrain, enabling them to make their daily commute more of a leisurely driving experience. The innovation remains unchanged as Cadillac introduces smart glass covers, dynamic screens, and electric undercarriages that help the company remain future-proof. Comfort has been placed at the frontline of the marque, with the seats being layered with supportive cushions and the infotainment controls matched to fingertips to avoid distractions during travel. The company is constantly enhancing battery technology, driver assistance, and connectivity each quarter to ensure that the owners are ahead of the traffic standards of tomorrow. Even that of styling such as the vertical lighting strips and sharp lines on bodies are talking the same language of modern luxury and dominating position. Air Suspension Compressor external air is then tried to pressurize the air in the suspension bags, lifting and lowering the chassis within a few seconds. Air Suspension Compressor has load and terrain sensors that maintain the ride level to ensure that steering remains sharp and tires evenly worn. Another feature of Air Suspension Compressor that cuts cabin noise is the replacement of firm metal springs with air pockets that cushion the bump before reaching the passengers. The sealed motor is waterproof, efficient, and provides steady pressure, which increases the life of the components besides increasing the stability of braking in case of sudden stops.

Cadillac Air Suspension Compressor Parts and Q&A

Compressor
22941806
Q: How to replace the Air Suspension Compressor on Cadillac Escalade?
A:
Begin by elevating and stabilizing the vehicle before starting the air compressor replacement process. Use a scan tool to exhaust system air for 60 seconds with the engine off while cleaning around components to prevent exterior contamination before disconnecting the Air Hose at the air compressor location. Note that small air pockets will stay inside the tubes. Disconnect the air tube from the air dryer while also disconnecting the electrical connection before removing the air inlet with its hose from the fuel filler neck bracket. You must first loosen the mounting fasteners then move the air compressor backward so it clears the slots of the vehicle frame before you take it out from the vehicle. Position the air compressor inside the vehicle by pulling it toward the front to enter the frame slots and insert the mounting nuts before tightening the bolts to 15 nm (11 lb ft). Reattach the fuel filler neck bracket air inlet hose and the air dryer air tube and the electrical system connection. Turn the ignition on with engine off while following compressor installation by using a scan tool to operate the air compressor for 30 seconds or until the rear of the vehicle begins to rise. Use the scan tool to turn off the ignition and then on again with the engine running to let the air suspension system reach its target rear suspension configuration.
Compressor Assembly
88957190
Q: How to replace the Air Suspension Compressor on Cadillac SRX?
A:
First raise and support the vehicle before starting the air compressor replacement process. First disconnect the exhaust system from the rear exhaust hangers before using a torque wrench to remove the automatic level control (ALC) compressor bracket mounting bolts so you can carefully drop the alc compressor assembly. You should disconnect the air tube from the alc compressor clamp by twisting it then separate the alc electrical harness connector. Take out the alc compressor with bracket from the vehicle by first removing its side mounting nut. Start by detaching the electrical harness connector from the alc bracket while you unfasten the alc compressor top bracket mounting screw. Then, disconnect the bleed hose from its clip before removing the screws that secure the alc bracket to the alc compressor. Install the alc bracket onto the alc compressor afterward put the alc bracket screws into the alc compressor and tighten them to 9 nm (80 inch lbs.). Position the bleed hose onto the clip before you add the electrical connector to the alc compressor bracket and attach the air tube to the alc compressor body. First secure the alc electrical harness connector and install the alc bracket side nut before tightening all alc bracket mounting bolts to 9 nm torque tighten. Lower the vehicle and reinstall the exhaust system back to the rear exhaust hangers.
