How to replace the Wiper Pulse Module on Buick Rendezvous?

To replace the Wiper Pulse Module, start by removing the wiper arms, air inlet grille panel, underhood electrical center and Cruise Control Module. Unplug the Wiper Motor cover place then remove the encoder wiper systems drive module nuts and take out the encoder wiper systems drive module from the back compartment of the engine. For installation place the system wiper drive module to the cowl and follow fastener notice in service precautions while installing wiper system drive module bolts and tighten them to 9 n.m (80 lb.in.). Then, connect the Wiper Motor cover electrical connector, re-installate the Cruise Control Module and bracket as well as the underhood electrical center, air inlet grille panel, and the wiper arms.

How to replace the front Wiper Pulse Module on Buick Terraza?

To replace the Wiper Pulse Module first, we have to start by opening and supporting the hood, then take the driver side Wiper Arm and the passenger side Wiper Arm. Next, remove the air inlet grille panel and install the washer container into the engine room. Pull the electrical connector off from the Wiper Motor and take off the 4 bolts from the Wiper Pulse Module. Do it carefully, pull the passenger side module first out from the opening of the front plenum, and then from the driver side fender flange opening, and extract it from the vehicle. For installation, place the Wiper Pulse Module into the lower plenum in the driver side fender flange opening and then rotate the module into the opening at the passenger side plenum, making sure the rear center mount is secured into the sheet metal flange at the rear of the module. Mount the Wiper Pulse Module bolts then tighten them in a sequence at 10 n.m (89 lb in). Connect the electrical connector to the motor, then replace the air inlet grille panel, then install the driver side Wiper Arm and passenger side Wiper Arm. Lock the washer container and close the hood, then check the wiper system for correct function.

OEM Buick Wiper Pulse Module

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Wiper Pulse Modules found

View related parts

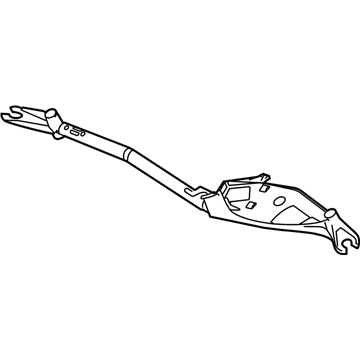

Buick Wiper Linkage Part Number: 19120755
$125.01 MSRP: $206.91
You Save: $81.90 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Module, Windshield Wiper Motor; Frame
- Replaces: 88986191
Fits the following Buick Models:
- LaCrosse | 2005 | CX, CXL, CXS | 6 Cyl 3.6 L GAS, 6 Cyl 3.8 L GAS
View related parts

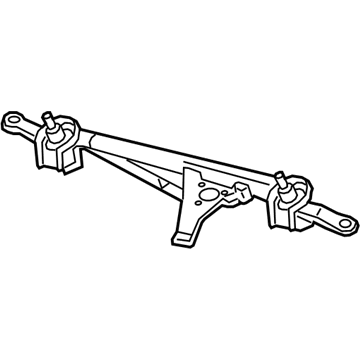

Buick Wiper Linkage Part Number: 39122785
$83.23 MSRP: $130.34
You Save: $47.11 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly-Windshield Wiper System; Front Transmission; Module, Windshield Wiper Motor
Fits the following Buick Models:
- Regal Sportback | 2018-2020 | Avenir, Base, Essence, GS, Preferred, Preferred II | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
- Regal TourX | 2018-2020 | Base, Essence, Preferred | 4 Cyl 2.0 L GAS
View related parts

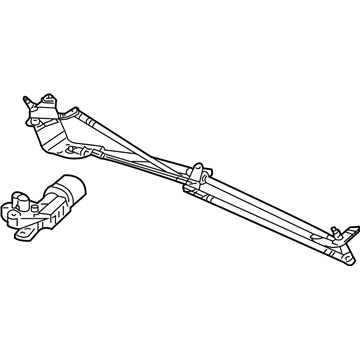

Buick Front Transmission Part Number: 15192145
$238.87 MSRP: $375.85
You Save: $136.98 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly-Windshield Wiper System; Wiper Linkage; Transmission; Module, Windshield Wiper Motor
Fits the following Buick Models:
- Terraza | 2005-2007 | CX, CXL | 6 Cyl 3.5 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts

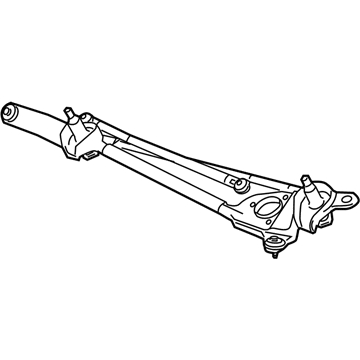

Buick Wiper Linkage Part Number: 13277077
$205.35 MSRP: $323.12
You Save: $117.77 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module, Windshield Wiper Motor; Front Transmission
Fits the following Buick Models:
- Regal | 2011-2017 | Base, CXL, GS, Premium, Sport Touring | 4 Cyl 2.0 L FLEX, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV)
View related parts
Buick Wiper Transmission Part Number: 26688562
$186.36 MSRP: $334.28
You Save: $147.92 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Module Assembly-Windshield Wiper System; Wiper Linkage; Wiper Motor; Motor & Linkage; Module, Windshield Wiper Motor
Fits the following Buick Models:
- LaCrosse | 2017-2019 | Avenir, Base, Essence, Preferred, Premium, Sport Touring | 4 Cyl 2.5 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.6 L GAS
View related parts
Buick Wiper Transmission Part Number: 10310227
Product Specifications
- Other Name: Module, Windshield Wiper Motor; Linkage Assembly
- Replaces: 10303632, 10413107
Fits the following Buick Models:
- Rendezvous | 2002-2007 | CX, CX Plus, CXL, CXL Plus, Ultra | 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L GAS
View related parts
Buick Control Module Part Number: 10478504
Product Specifications
- Other Name: Module, Windshield Defroster; Wiper Pulse Module; Module
Fits the following Buick Models:
- LeSabre | 1992 | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick Motor & Linkage Part Number: 19355989
Product Specifications
- Other Name: Module; Wiper Motor; Front Motor; Module, Windshield Wiper Motor
- Replaces: 12487687, 12487688, 15094705, 15812054, 15214344, 88958236
Fits the following Buick Models:
- Rainier | 2004-2007 | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts

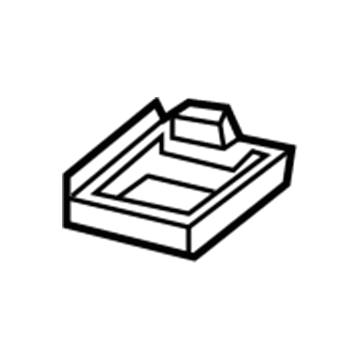

Buick Control Module Part Number: 12494841
Product Specifications
- Other Name: Module Assembly, Windshield Wiper Pulse Control; Wiper Pulse Module; Module, Windshield Wiper Control
Fits the following Buick Models:
- Rendezvous | 2002-2007 | CX, CX Plus, CXL, CXL Plus, Ultra | 6 Cyl 3.4 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L GAS
View related parts

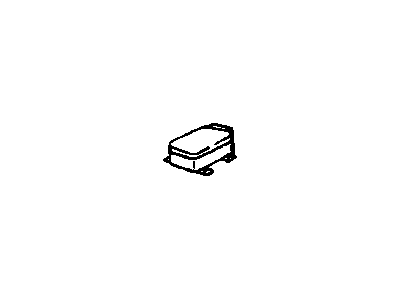

Buick Module Part Number: 10478532
Product Specifications
- Other Name: Module, Windshield Defroster; Wiper Pulse Module
Fits the following Buick Models:
- LeSabre | 1992 | Custom, Limited | 6 Cyl 3.8 L GAS
View related parts
Buick Motor & Linkage Part Number: 19354908
$192.90 MSRP: $346.00
You Save: $153.10 (45%)
Product Specifications
- Other Name: Module; Front Motor; Cover; Module, Windshield Wiper Motor
- Replaces: 15878429, 88958237, 15094704, 12487689, 15812497, 15214343, 12487690
Fits the following Buick Models:
- Rainier | 2004-2007 | CXL, CXL Plus | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS

Buick Wiper Pulse Module

Choose OEM Wiper Pulse Module, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Buick's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Buick Wiper Pulse Module. You can shop at highly competitive prices and protect your budget. All our genuine Buick parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Buick Wiper Pulse Module maintains the work of sweeping of blades at intelligent times, protecting the view in variable weather. Buick has made a name based on silent cabins, comfortable ride, and an ability to incorporate new technology into the existing body without frightening the old drivers. Since the first 1903 runabouts, the badge has demonstrated a tendency to go in a straight line and remain tame and well-mannered, with more refined transmission of torque, easy-to-use dashboards, and footprints that fit in a city car yet can feel adult on interstate journeys; such a balance permits teens to borrow grandpa's sedan without scowls and commuters to roll over potholes without shake. Buick is now inclined toward plain digital screens and commuter composure instead of sham gimmicks. The Wiper Pulse Module is installed between the stalk switch and the motor to measure the voltage in timed bursts to have the blades slide in deliberate sweeps, switch to mist mode on a tap, and maintain pace with drizzle or downpour without squeaks or frozen pauses, using minimal current and not being affected by temperature variations between desert heat and lake-effect ice, and is a plug-and-drive upgrade to any similar circuit over the decades of production. Replacement Wiper Pulse Module eliminates the glare in a short period of time.

Buick Wiper Pulse Module Parts and Q&A

Wiper Transmission
10310227
Q: How to replace the Wiper Pulse Module on Buick Rendezvous?
A:
To replace the Wiper Pulse Module, start by removing the wiper arms, air inlet grille panel, underhood electrical center and Cruise Control Module. Unplug the Wiper Motor cover place then remove the encoder wiper systems drive module nuts and take out the encoder wiper systems drive module from the back compartment of the engine. For installation place the system wiper drive module to the cowl and follow fastener notice in service precautions while installing wiper system drive module bolts and tighten them to 9 n.m (80 lb.in.). Then, connect the Wiper Motor cover electrical connector, re-installate the Cruise Control Module and bracket as well as the underhood electrical center, air inlet grille panel, and the wiper arms.
Front Transmission
15192145
Q: How to replace the front Wiper Pulse Module on Buick Terraza?
A:
To replace the Wiper Pulse Module first, we have to start by opening and supporting the hood, then take the driver side Wiper Arm and the passenger side Wiper Arm. Next, remove the air inlet grille panel and install the washer container into the engine room. Pull the electrical connector off from the Wiper Motor and take off the 4 bolts from the Wiper Pulse Module. Do it carefully, pull the passenger side module first out from the opening of the front plenum, and then from the driver side fender flange opening, and extract it from the vehicle. For installation, place the Wiper Pulse Module into the lower plenum in the driver side fender flange opening and then rotate the module into the opening at the passenger side plenum, making sure the rear center mount is secured into the sheet metal flange at the rear of the module. Mount the Wiper Pulse Module bolts then tighten them in a sequence at 10 n.m (89 lb in). Connect the electrical connector to the motor, then replace the air inlet grille panel, then install the driver side Wiper Arm and passenger side Wiper Arm. Lock the washer container and close the hood, then check the wiper system for correct function.
