Question 1

How to assemble the transfer case on GMC Savana 3500?

Accepted Answer

In the process of putting the Transfer Case together first install the Transfer Case mounting studs and tighten them further to 31 nm (23 ft. Lbs.). Mount the assembly fixture (J 45759) to the front Transfer Case with the aid of the adapter studs, making possible all the assembly procedures while mounted to the fixture. Mount the secure assembly fixture (J 45759) to the holding fixture (J 3289-20) by using the pivot pin. If the vent was removed, treat the threads with gm p/n 12346004 (Cdn. P/N 10953480) pipe sealant and install the vent, with the vent being screwed to 6 nm (53 in.lbs). All bearings and bearing journals need to be lubricated with Transfer Case fluid on tour of installation. Mount the input shaft bearing in the front case half using the hammer and brass drift onto the outer bearing race only making sure that it is square to the bore. Repeat the same process on front bearing of front output shaft. If necessary, mount the cup plug at the front output shaft with the appropriate driver, at a distance of 1 mm (0.039 inch) from the shaft's end. Go ahead and install the front output shaft assembly, input shaft, and align the drive chain, along with the sprockets, with the blue-link on the chain directed upwards. Install the front sun gear ensuring that the planetary Differential gears in it are in time otherwise it causes binding. Before installing the planetary Differential assembly align the marks on the pinion gears with reference area of the planetary housing without allowing the rotations of the pinion gears during installation. Lubricate the sun gear thrust washer with transjel lubricant (J 36850) prior to installing with rear sun gear facing the shoulder end up. Install the rear output shaft temporarily to the planetary Differential and rear sun gear then rotate to see whether it aligns. Take off rear output shaft without disturbing rear sun gear, then install front output shaft rear bearing into rear case half again using hammer and brass drift only on the outer bearing race. Mount the rear output shaft bearing using the hydraulic press and the split plate bearing puller (J 22912-01) with retaining ring groove oriented to the input end. Install a new retaining ring for the rear output shaft bearing and a new speed reluctor wheel via hydraulic press. The help of universal driver handle - non-threaded (j 42176) and mainshaft support bushing and bearing installer (J 45757) should be used to install the input shaft rear support bushing in the rear output shaft and then put the rear output shaft in back case half. Make sure that both sealing surfaces on the front and rear case halves are clean and free of contaminants, and insert the locating pins if required. Make sure that you apply a 3.175 mm (1/8 inch) bead of rtv sealant gm p/n 12345739 (Canadian P/N 10953541) to the mating surfaces of both front case half before you lower the rear case half of it into place aligning the teeths with the planetary carrier accordingly. Make sure the nylon coating on the case bolts is not damaged to have to replace, and hand start the self-tapping case bolts to tighten them to 21 nm (15 ft. Lbs.). Replace the Vehicle Speed Sensor with a new o-ring seal, tighten the pair to 17 nm (13 ft. Lbs.). With the rear output shaft seal installer (J 45756), install the rear output shaft seal, and apply pipe sealant gm p/n 12346004 (Canadian P/N 10953480) to both threads of the drain and fill plugs before installing and fastening to 25 nm (18 ft. Lbs.). Finally, install the front output shaft seal with the help of the front output shaft seal installer (J 43484) and universal driver (J 8092), and take the Transfer Case out of the assembly fixture (J 45759).

Question 2

How to replace the transfer case assembly on GMC Jimmy?

Accepted Answer

The first step for Transfer Case assembly replacement requires vehicle elevation followed by Transfer Case shield removal. Users should remove the left-side Transfer Case brace before draining the Transfer Case fluid when equipment is available. After you disconnect both the front and rear propeller shafts you should proceed to remove the Transfer Case vacuum switch vacuum line and the motor/encoder electric connector with its wiring harness. Position a proper jack stand to support the transmission after which you must take out the transmission mount retaining bolts and transmission support assembly. You should remove the transmission mount in addition to the transmission mount for automatic transmissions. A technician must help remove the Transfer Case straight back from the adapter by lowering its front section while raising the rear until the torsion bar bracket clears. Afterward the technician can take off the Transfer Case adapter retaining nuts. Replace the damaged gasket with a new one that should not receive any type of sealant. Install the Transfer Case assembly after setting the new gasket tab in an upward direction. Tighten the Transfer Case retaining nuts to 55 nm then install the transmission mount and torque its bolts to 47 nm. Reinstall the transmission support assembly followed by transmission mount retaining nuts while torquing them to 46 nm (35 ft. Lbs.). Reconnect both the motor/encoder electrical connector and the wiring harness and install the vacuum line that leads to the Transfer Case vacuum switch. You must reinstall the left side Transfer Case brace while tightening its engine bolt to 60 nm (44 ft. Lbs.) along with good tension on the Transfer Case bolt at 47 nm (35 ft. Lbs.). Reinstallation of front and rear propeller shafts is followed by fluid addition to the Transfer Case then the placement of the housing shield before the car is lowered.

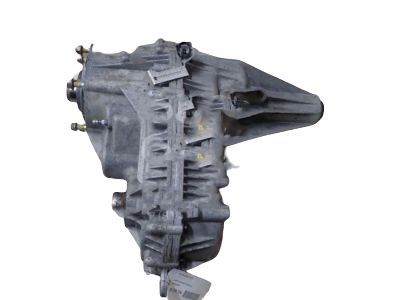

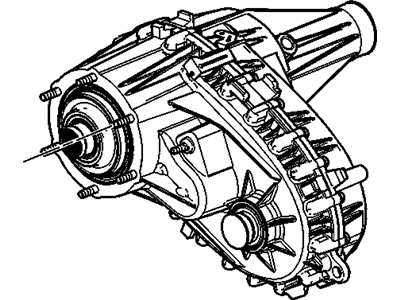

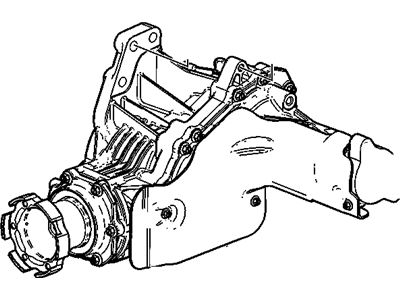

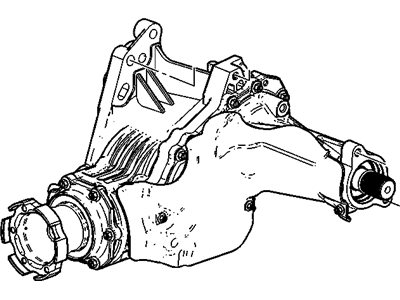

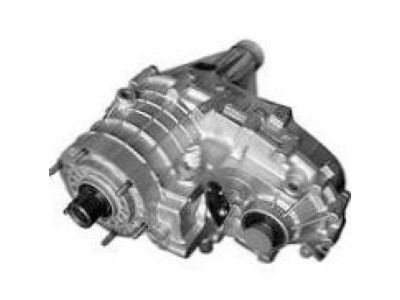

OEM GMC Transfer Case

95 Transfer Cases found

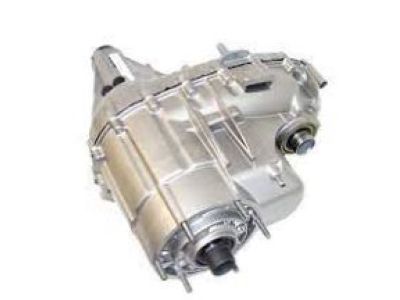

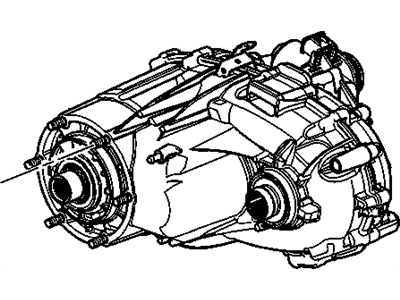

GMC Transfer Case Part Number: 19125650

GMC Transfer Case Part Number: 84978148

GMC Differential Case Part Number: 84640877

GMC Transfer Case Part Number: 84636465

GMC Transfer Case Part Number: 15045746

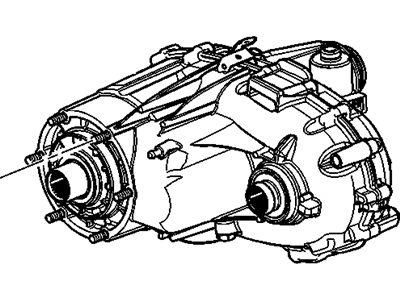

GMC Transfer Case Part Number: 19125971

GMC Transfer Case Part Number: 86798720

GMC Transfer Case Part Number: 86798721

GMC Transfer Case Part Number: 84221088

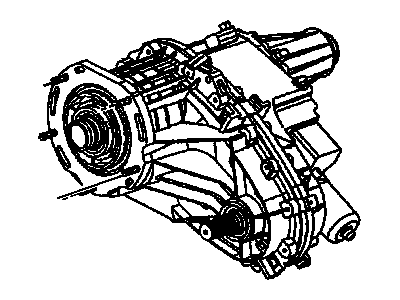

GMC Transfer Case Part Number: 24228408

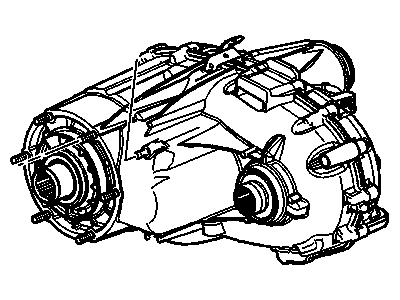

GMC Transfer Case Part Number: 24232827

GMC Transfer Case Part Number: 84717826

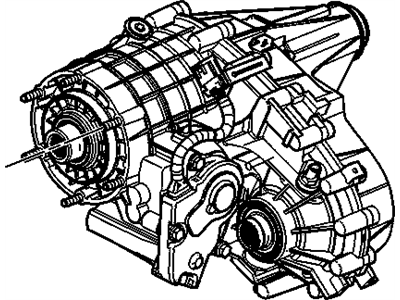

GMC Transfer Case Part Number: 24228420

GMC Transfer Case Part Number: 24236607

GMC Transfer Case Part Number: 84993040

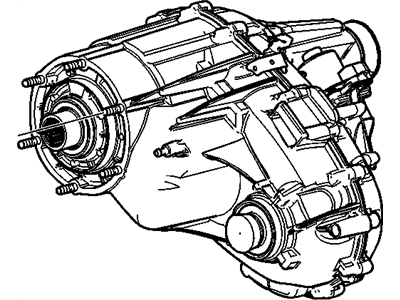

GMC Transfer Case Part Number: 23188338

GMC Transfer Case Part Number: 84370679

GMC Transfer Case Part Number: 19125659

GMC Transfer Case Part Number: 23188339

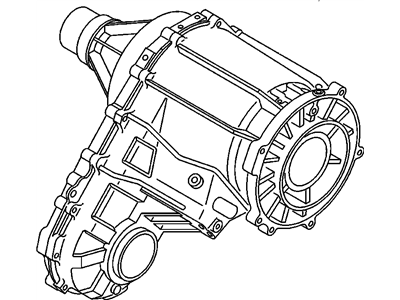

GMC Transfer Case Part Number: 24251671
