466 Battery Cables found

View related parts
GMC Positive Cable Part Number: 23119639
$44.47 MSRP: $98.64
You Save: $54.17 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Positive (129Mm); Battery Cables; Cable, Battery(Positive)
Fits the following GMC Models:
- Sierra 1500 | 2014-2016 | Base, Denali, SLE, SLT | 6 Cyl 4.3 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2015-2016 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2015-2016 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Yukon | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View More
View related parts

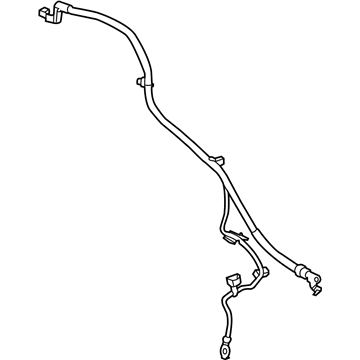

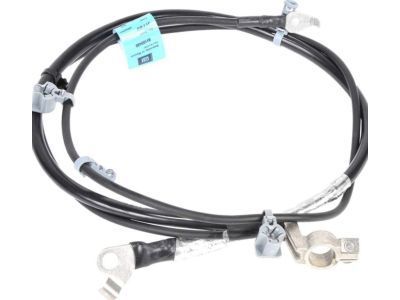

GMC Negative Cable Part Number: 84109460
$45.15 MSRP: $100.16
You Save: $55.01 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 23164977, 23247668
Fits the following GMC Models:
- Sierra 2500 HD | 2015-2016 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2015-2016 | Base, Denali, SLE, SLT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Negative Cable Part Number: 22846480
$46.77 MSRP: $102.11
You Save: $55.34 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Auxiliary Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 15131778, 15942731, 25876897
Fits the following GMC Models:
- Sierra 2500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2011-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View related parts
GMC Negative Cable Part Number: 22846469
$48.00 MSRP: $104.80
You Save: $56.80 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 15826906, 20905414, 25878311
Fits the following GMC Models:
- Sierra 1500 | 2009 | SLE, SLT | 8 Cyl 6.0 L GAS
- Sierra 2500 HD | 2007-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2007-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Yukon XL 1500 | 2007-2009 | SLE, SLT | 8 Cyl 6.0 L GAS
- Yukon XL 2500 | 2007-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
View More
View related parts
GMC Positive Cable Part Number: 22850357
$50.07 MSRP: $109.32
You Save: $59.25 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 25971828
Fits the following GMC Models:
- Sierra 1500 | 2010-2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.2 L FLEX
- Sierra 2500 HD | 2010-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2010-2014 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS
- Yukon | 2011-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 6.2 L FLEX
- Yukon XL 1500 | 2010-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 6.2 L FLEX
- Yukon XL 2500 | 2010-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX
View More
View related parts
GMC Negative Cable Part Number: 84354710
$50.21 MSRP: $111.40
You Save: $61.19 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Auxiliary Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 22945777, 84109462, 23241960, 23483904
Fits the following GMC Models:
- Yukon | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
GMC Positive Cable Part Number: 20921448
$50.98 MSRP: $113.11
You Save: $62.13 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 20830141
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts

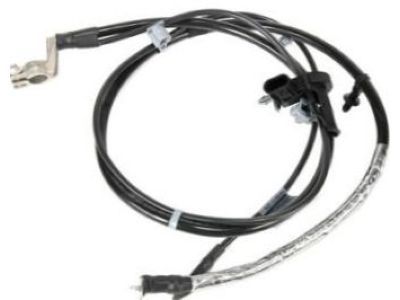

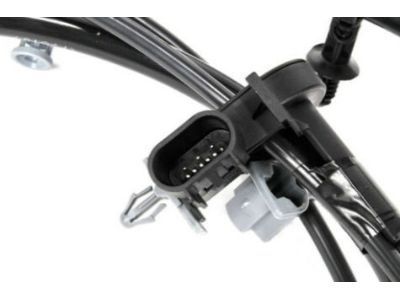

GMC Negative Cable Part Number: 84634113
$56.96 MSRP: $126.38
You Save: $69.42 (55%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 84109455, 23138970, 23235509, 23179343, 84319729
Fits the following GMC Models:
- Sierra 1500 | 2014-2018 | Base, Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 5.3 L MILD HYBRID EV-GAS (MHEV), 8 Cyl 6.2 L GAS
- Sierra 1500 Limited | 2019 | Base, SLE | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
View related parts
GMC Negative Cable Part Number: 20955244
$64.02 MSRP: $142.04
You Save: $78.02 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
Fits the following GMC Models:
- Terrain | 2011-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
GMC Positive Cable Part Number: 25814777
$65.45 MSRP: $142.91
You Save: $77.46 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 15861605
Fits the following GMC Models:
- Sierra 1500 | 2007-2009 | Denali, Hybrid, SL, SLE, SLT, WT | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2007-2009 | SLE, SLT, WT | 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2007-2009 | SLE, SLT, WT | 8 Cyl 6.0 L GAS
- Yukon | 2007-2010 | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 1500 | 2007-2009 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL 2500 | 2007-2009 | SLE, SLT | 8 Cyl 6.0 L GAS
View More
View related parts

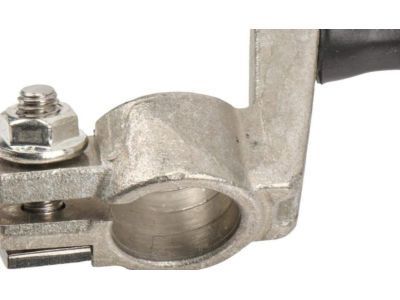

GMC Negative Cable Part Number: 84634114
$66.61 MSRP: $147.78
You Save: $81.17 (55%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 23235508, 23138969, 84109456, 23164976
Fits the following GMC Models:
- Sierra 1500 | 2014-2018 | Base, SLE | 6 Cyl 4.3 L FLEX
View related parts
GMC Battery Cable Part Number: 22790285
$68.95 MSRP: $153.00
You Save: $84.05 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Starter Solenoid; Battery Cables; Starter Cable; Positive Cable; Cable, Battery(Positive)
- Replaces: 20790045
Fits the following GMC Models:
- Sierra 1500 | 2010-2013 | Denali, Hybrid, SL, SLE, SLT, WT, XFE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 5.3 L FLEX, 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.2 L FLEX
- Sierra 2500 HD | 2010-2013 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2010-2013 | Denali, SLE, SLT, WT | 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Yukon | 2010-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 6.2 L FLEX
- Yukon XL 1500 | 2010-2014 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 6.2 L FLEX
- Yukon XL 2500 | 2010-2013 | SLE, SLT | 8 Cyl 6.0 L FLEX
View More
View related parts
GMC Negative Cable Part Number: 23345596
$75.16 MSRP: $166.74
You Save: $91.58 (55%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 20955243
Fits the following GMC Models:
- Terrain | 2011-2017 | Denali, SLE, SLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

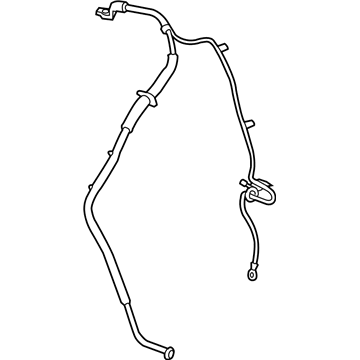

GMC Negative Cable Part Number: 84109465
$76.72 MSRP: $170.22
You Save: $93.50 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 23445424, 23235513
Fits the following GMC Models:
- Sierra 2500 HD | 2015-2016 | Base, Denali, SLE, SLT | 8 Cyl 6.6 L DIESEL
- Sierra 3500 HD | 2015-2016 | Base, Denali, SLE, SLT | 8 Cyl 6.6 L DIESEL
View related parts
GMC Negative Cable Part Number: 23345557
$77.22 MSRP: $171.34
You Save: $94.12 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
Fits the following GMC Models:
- Terrain | 2016-2017 | Denali, SL, SLE, SLT | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS
View related parts
GMC Battery Cable Part Number: 25875320
$80.55 MSRP: $178.70
You Save: $98.15 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Starter Solenoid; Battery Cables; Starter Cable; Positive Cable; Cable, Battery(Positive)
- Replaces: 25805559, 25835388
Fits the following GMC Models:
- Sierra 1500 | 2007-2008 | Denali, SL, SLE, SLT, WT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
- Sierra 2500 HD | 2007-2008 | SLE, SLT, WT | 8 Cyl 6.0 L GAS
- Sierra 3500 HD | 2007-2008 | SLE, SLT, WT | 8 Cyl 6.0 L GAS
- Yukon | 2007-2008 | Denali, SLE, SLT | 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L GAS
- Yukon XL 1500 | 2007-2008 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS
- Yukon XL 2500 | 2007-2008 | SLE, SLT | 8 Cyl 6.0 L GAS
View More
View related parts
GMC Positive Cable Part Number: 23345595
$82.63 MSRP: $183.32
You Save: $100.69 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Positive; Battery Cables; Cable, Battery(Positive)
- Replaces: 20861459, 22789213, 20894117, 22874371
Fits the following GMC Models:
- Terrain | 2010-2017 | Denali, SLE, SLT | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

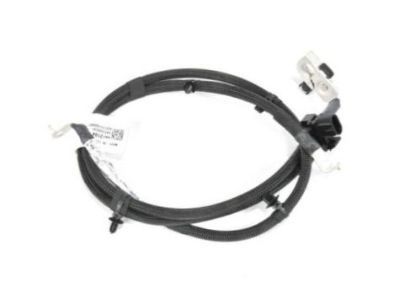

GMC Negative Cable Part Number: 84221366
$84.74 MSRP: $188.00
You Save: $103.26 (55%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Ground(Negative)
- Replaces: 23106364, 84072194
Fits the following GMC Models:
- Acadia | 2017-2019 | Denali, SLE, SLT | 6 Cyl 3.6 L GAS
View related parts

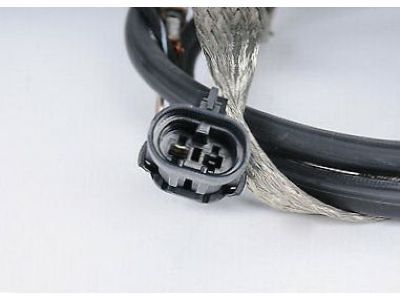

GMC Negative Cable Part Number: 22848163
$87.46 MSRP: $190.94
You Save: $103.48 (55%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
Fits the following GMC Models:
- Savana 1500 | 2003-2008 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
- Savana 2500 | 2003-2016 | Base, LS, LT, SLE | 6 Cyl 4.3 L GAS, 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
- Savana 3500 | 2003-2016 | Base, LS, LT, SLE | 8 Cyl 4.8 L FLEX, 8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L FLEX, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
View More
View related parts
GMC Negative Cable Part Number: 84634109
$89.10 MSRP: $197.68
You Save: $108.58 (55%)
ADD TO CART
Product Specifications
- Other Name: Cable Assembly-Battery Negative; Battery Cables; Ground Strap; Cable, Battery Negative And Engine Ground
- Replaces: 23286906, 23438331, 23421539, 84109461, 23235511
Fits the following GMC Models:
- Yukon | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
- Yukon XL | 2015-2020 | Denali, SLE, SLT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS, 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS

| Page 1 of 24 |Next >

1-20 of 466 Results
