How to service and repair the Brake Disc on Chevrolet Trailblazer?

You must start Brake Disc servicing with the Wheel Hub resurfacing kit j 42450-a to clean the wheel bearing/hub. Use a micrometer to check the Brake Disc thickness before refinishing it. Change the Brake Disc when the thinnest section reaches beyond the allowable thickness. You should thoroughly remove rust from the Brake Disc flange using the rotor resurfacing kit j 41013 before proceeding. Follow the brake lathe manufacturer's guidelines to resurface the Brake Disc and work towards the finest braking surface quality to prevent stopping troubles. Your next step should be to create an undirected brake surface through sanding with 120 grit aluminum oxide on both the Brake Disc surface and any available finishing tool. Use gm p/n 12377981 or its equivalents to finish cleaning brake surfaces.

How to replace the front brake disc on Chevrolet Trailblazer?

Check the brake fluid when inspecting the brake master cylinder reservoir. Pour out excess fluid until the brake fluid level reaches the midpoint. Lift the vehicle up and take out the tire and wheel unit. Drive a large c-clamp j 42450-a over the brake caliper housing toward the outboard Brake Pad until the piston compression lets you remove the caliper. Take out the two bolts securing the brake caliper mounting bracket then extract both brake caliper and mounting bracket as one part. Get rid of the disc holding clips. Clean off rust and bits with j 42450-a Wheel Hub cleaning kit to stop added Brake Disc twist and rhythmic shaking. Before removing the disc from the Wheel Hub mark where the disc connects to a wheel stud for future alignment. Before replacing the disc clean the contact surface on the front hub using components from the Wheel Hub cleaning kit j 42450-a. After installing the disc make sure groove points match up then place the disc on Wheel Hub and attach the brake caliper assembly to its Steering Knuckle. Reassemble the brake caliper bolt by 150 nm (110 ft. Lbs.) torque setting and put back the wheel and tire components before lowering the vehicle and completing the brake fluid. Press the brake pedal carefully while keeping pressure to let new brake pads contact the resurfaced or new discs to make them work properly.

OEM Chevrolet Trailblazer Brake Disc

Disc Rotor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Brake Discs found

View related parts
Chevrolet Trailblazer Rotor Part Number: 13537160
$84.94 MSRP: $163.04
You Save: $78.10 (48%)
ADD TO CART
Product Specifications
- Other Name: Rotor-Front Brake (Coated); Disc Brake Hardware Kit; Brake Rotor
- Position: Front
- Replaced by: 13552823
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Rotor, Front Part Number: 25826103
$58.78 MSRP: $161.55
You Save: $102.77 (64%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Rotor Assembly-Front Brake; Disc Brake Hardware Kit; Brake Rotor; Rotor, Front And Rear Wheel Brake
- Position: Front
- Replaces: 18060665
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2008 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
View related parts
Chevrolet Trailblazer Rotor, Front Part Number: 19181002
$63.19 MSRP: $173.69
You Save: $110.50 (64%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor Assembly, Front Brake; Disc Brake Hardware Kit; Brake Rotor; Rotor, Front And Rear Wheel Brake
- Position: Front
- Replaces: 18060664
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2005 Chevrolet Trailblazer | LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS
View related parts
Chevrolet Trailblazer Rotor, Front Part Number: 25826102
$93.28 MSRP: $168.84
You Save: $75.56 (45%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Rotor Assembly-Front Brake; Disc Brake Hardware Kit; Brake Rotor; Rotor, Front And Rear Wheel Brake
- Position: Front
- Replaces: 21998532
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Trailblazer | Base, LS, LT | 6 Cyl 4.2 L GAS
View related parts

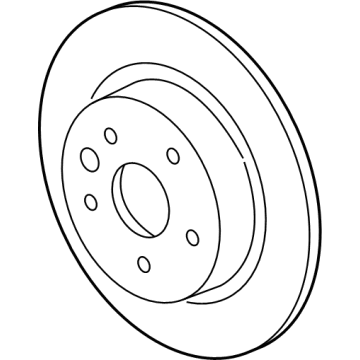

Chevrolet Trailblazer Rotor, Rear Part Number: 13507431
$51.29 MSRP: $92.85
You Save: $41.56 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rotor-Rear Brake; Disc Brake Hardware Kit; Brake Rotor; Rotor, Front And Rear Wheel Brake
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Rotor, Front Part Number: 15294772
Product Specifications
- Other Name: Rotor Assembly-Front Brake; Disc Brake Hardware Kit; Brake Rotor; Rotor, Front And Rear Wheel Brake
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2009 Chevrolet Trailblazer | SS | 8 Cyl 6.0 L GAS
View related parts
Chevrolet Trailblazer Rotor Part Number: 15134671
Product Specifications
- Other Name: Rotor, Front And Rear Wheel Brake; Brake Rotor
- Position: Rear
- Replaces: 15158975
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2009 Chevrolet Trailblazer | Base, LS, LT, LTZ, North Face, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS

Chevrolet Trailblazer Brake Disc

Want to cut long-term maintenance and repair costs? Choose OEM Brake Disc. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Trailblazer parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Trailblazer Brake Disc includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Brake Disc is an important component of disc brake system which is fitted for Chevrolet Trailblazer vehicles and is used to surface against which the brake pads are squeezed in order to slow down or stop the car. The rotor is attached to the axle or hub and share its on spinning movement with the wheel, in the case of application of the brakes the hydraulic pressure is used in the calipers to clamp the pads on each side of the rotor. Since the production of Chevrolet Trailblazer models, Brake Discs manufactured have been of different types such as solid and vented. Blade with cooling fins is better than that of solid, common in non sports cars or compact cars. Regular usage of the rotors is important since rotors can develop problems such as warping, scoring or rusting that will impair the stopping power of the vehicle. It is crucial to implement routine maintenance check on the vehicle and replacement of its Brake Disc as often as necessary especially in the Chevrolet Trailblazer.

Chevrolet Trailblazer Brake Disc Parts and Q&A

Rotor, Front
19181002
Q: How to service and repair the Brake Disc on Chevrolet Trailblazer?
A:
You must start Brake Disc servicing with the Wheel Hub resurfacing kit j 42450-a to clean the wheel bearing/hub. Use a micrometer to check the Brake Disc thickness before refinishing it. Change the Brake Disc when the thinnest section reaches beyond the allowable thickness. You should thoroughly remove rust from the Brake Disc flange using the rotor resurfacing kit j 41013 before proceeding. Follow the brake lathe manufacturer's guidelines to resurface the Brake Disc and work towards the finest braking surface quality to prevent stopping troubles. Your next step should be to create an undirected brake surface through sanding with 120 grit aluminum oxide on both the Brake Disc surface and any available finishing tool. Use gm p/n 12377981 or its equivalents to finish cleaning brake surfaces.
Rotor, Front
25826103
Q: How to replace the front brake disc on Chevrolet Trailblazer?
A:
Check the brake fluid when inspecting the brake master cylinder reservoir. Pour out excess fluid until the brake fluid level reaches the midpoint. Lift the vehicle up and take out the tire and wheel unit. Drive a large c-clamp j 42450-a over the brake caliper housing toward the outboard Brake Pad until the piston compression lets you remove the caliper. Take out the two bolts securing the brake caliper mounting bracket then extract both brake caliper and mounting bracket as one part. Get rid of the disc holding clips. Clean off rust and bits with j 42450-a Wheel Hub cleaning kit to stop added Brake Disc twist and rhythmic shaking. Before removing the disc from the Wheel Hub mark where the disc connects to a wheel stud for future alignment. Before replacing the disc clean the contact surface on the front hub using components from the Wheel Hub cleaning kit j 42450-a. After installing the disc make sure groove points match up then place the disc on Wheel Hub and attach the brake caliper assembly to its Steering Knuckle. Reassemble the brake caliper bolt by 150 nm (110 ft. Lbs.) torque setting and put back the wheel and tire components before lowering the vehicle and completing the brake fluid. Press the brake pedal carefully while keeping pressure to let new brake pads contact the resurfaced or new discs to make them work properly.
