OEM Chevrolet Impala Evaporator

Chevrolet Impala Evaporator Parts and Q&A

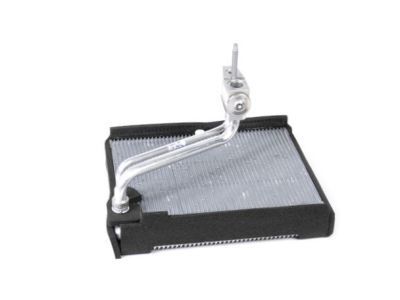

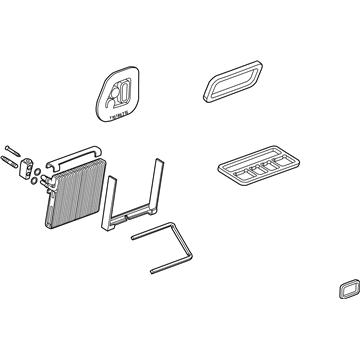

• Evaporator Core
  89019127
  Q: How to replace the evaporator core on Chevrolet Impala?

  A:

  The first step in replacing the evaporator core includes removing the HVAC module assembly while disconnecting the recirculation actuator electrical connector before extracting the recirculation actuator electrical harness from housing clips. Start by opening the recirculation housing from the HVAC module assembly through unfastening the screws and attaching it to the HVAC. Then remove the mode actuator connector from its electric path and pull out the mode actuator itself. The procedure begins with disconnecting the air temperature actuator electrical connector before extracting the bolts securing the TXV to the evaporator core so the technician can remove the TXV together with old seal washers. Remove the upper case section from the HVAC module assembly lower case before breaking the heat stakes using a small chisel. Take out the evaporator core from the HVAC module assembly case through separation. To install the new evaporator add lubricating oil then place side, upper and lower seals on the evaporator core before fitting it into the HVAC module assembly lower case. Drill the dimples located beside the heat stakes through an inner 5.5 mm (7/32 in) drill bit on the upper case before joining upper and lower cases and finally tightening the screws at 1.5 N.m (13 lb in). Use new screws at the positions where the heat stakes were extracted and tighten them to 1.5 N.m (13 lb in). First connect the electrical connector of the air temperature actuator after which install and tighten to 15 N.m (13 lb in) the mode actuator using screws. The recirculation housing needs to be attached to the HVAC module assembly while screws should be tightened to 1.5 N.m (13 lb in). After that, connect the recirculation actuator harness to housing clips before plugging in the recirculation actuator electrical connector. The operation ends with installing new sealing washers for the evaporator core then attaching the TXV and securing it by fastening bolts to 7 N.m (62 lb in). Afterward, reinstall the HVAC module assembly.

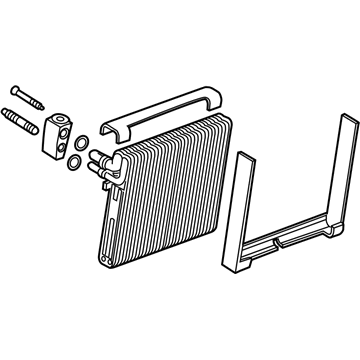

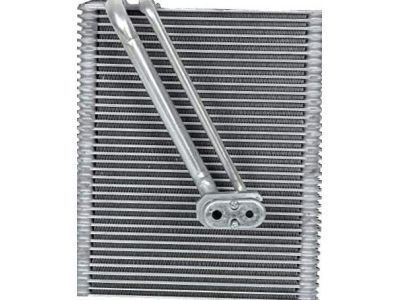

• Evaporator Core
  52494507
  Q: How to service and repair the evaporator core on Chevrolet Impala?

  A:

  Service and maintenance of the evaporator core begins with HVAC module assembly removal followed by all outer seals from the HVAC module assembly. The recirculation housing should be separated from the HVAC module assembly before unfastening the retaining clip that secures the defroster actuator. Finally, the actuator can be removed. First detach the HVAC module assembly case through removal of its upper screws before splitting apart the case. Extract the evaporator core with attached water core filter from inside the evaporator by first removing the HVAC module assembly seal from the lower module case. To install begin by attaching the water core filter onto the evaporator followed by adding new side seal and upper seal and two new lower seals to the evaporator core. Attach the HVAC module assembly seal to the lower module case then position the evaporator core into its place in the HVAC module assembly lower case by lining up the guide before fastening both pieces of the case. Screw and tighten the two upper screws of the HVAC module assembly to 1.5 N.m (13 lb in). After replacement of the defroster actuator and the recirculation housing the technician must reinstall the HVAC module assembly following a torque schedule of 1.5 N.m (13 lb in) for its housing screws.
