How to Replace the Front Rack and Pinion Steering Gear on Chevrolet Corvette?

A vehicle needs to be elevated and supported before drivers remove the tires and wheels. The first step is to detach the tie rod ends from steering knuckles and the intermediate shaft from the Rack And Pinion. First disconnect the power steering pressure and return hoses from the Rack And Pinion and the stabilizer shaft. Remove the power steering line hold-downs from the crossmember. Begin by taking off the brake pressure modulator valve bracket followed by the two front crossmember mounting nuts. Crank the wrench to 10 mm to loosen both rear crossmember mounting nuts. Legitimately disconnect the height sensor arm from the Control Arm and suspend the crossmember's front edge using a utility stand for support. You must compress the coil spring using the leaf spring compressor (J 33432-A) to lower the crossmember to suitable gear removal position. Disassemble the lower shock mounting bolts in addition to the left front brake caliper brake pipe bracket and right front brake pipe plastic retention bracket. First remove the Rack And Pinion mounting bolts and nuts. Afterward wrap the Rack And Pinion around the brake lines and guide it through the left wheelhouse opening of the vehicle. By replacing the crossmember-to-Rack And Pinion insulators you should install the Rack And Pinion through the left wheelhouse opening for z06 applications. Secure the Rack And Pinion mounting bolts with its corresponding nuts and torques them to 100 n.m (74 lb ft). First reinstall the lower shock mounting bolts then elevate the crossmember with a utility stand and finally remove the leaf spring compressor (J 33432-A). Use hand tools when installing and tightening all crossmember mounting nuts to a torque of 110 n.m (81 lb ft). Reattach the brake pipe bracket installed at the left front brake caliper and replace the plastic brake pipe hold-down which secures the right front brake pipe. Install the brake bpmv bracket first then tighten the power steering pressure hose and return hose fittings to 27 n.m (20 lb ft) and 27 n.m (29 lb ft) respectively before completing the installation. After repositioning to the crossmember and stabilizer shaft, install the power steering hold-downs while connecting the intermediate shaft to the Rack And Pinion. Put the height sensor arm on the Control Arm then put the tie rod ends to the steering knuckles back together. After installing the tires and wheels on the ground you should lower the car then bleed the power steering system before making front wheel toe adjustments.

How to service and repair the front rack and pinion steering gear on Chevrolet Corvette?

In order to service and repair the Rack And Pinion, start with the removal of the Rack and Pinion Boot. It is mandatory to maintain the rack throughout the process of removing the inner tie rod so that it does not get compromised. Next, detach the shock dampener as shown by the figure then slide the shock dampener back to the rack. To undo the inner tie rod assembly from the rack assembly, insert a wrench on the flats of the rack assembly and another wrench on the flats of the inner tie rod housing. Remove the cotter pins from the tie rod gaiters and then remove and replace them with new ones if required. Finally, remove old loctite (R) from the threads of the rack assembly and the inner tie rod assembly.

OEM Chevrolet Corvette Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Rack And Pinions found

View related parts

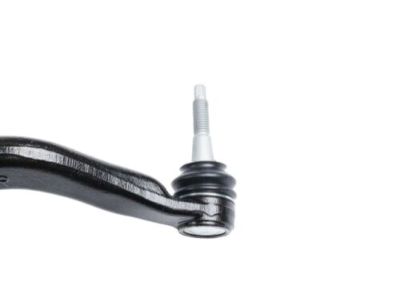

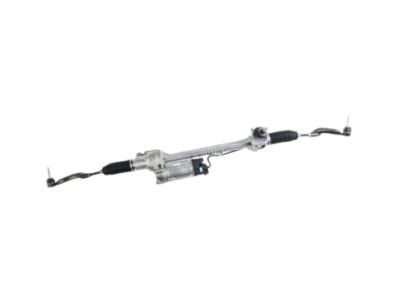

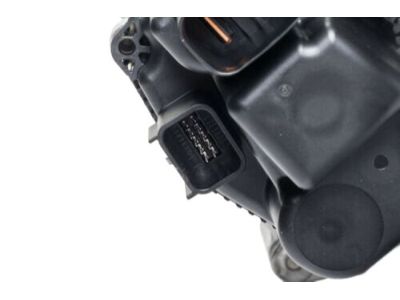

Chevrolet Corvette Steering Gear Part Number: 84952357
$1977.66 MSRP: $2648.57
You Save: $670.91 (26%)
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering; Gear Assembly; Gear, Steering
- Replaces: 23297340, 84165718, 84589958
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2016 Chevrolet Corvette | Stingray, Z06 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 84952360
$1601.83 MSRP: $2144.44
You Save: $542.61 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering
- Replaces: 84560503
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 23164960
$2032.51 MSRP: $2722.15
You Save: $689.64 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering
- Replaced by: 84952356
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014 Chevrolet Corvette | Stingray | 8 Cyl 6.2 L GAS
View related parts

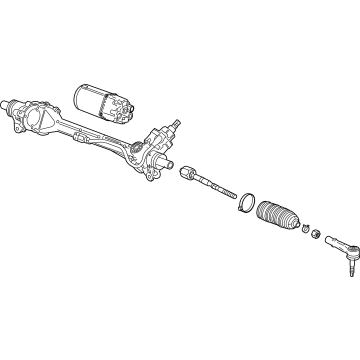

Chevrolet Corvette Gear Assembly Part Number: 85108991
$1629.31 MSRP: $2154.87
You Save: $525.56 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering; Rack
- Replaced by: 86807405
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020-2022 Chevrolet Corvette | Stingray | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 84348675
$605.66 MSRP: $778.94
You Save: $173.28 (23%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering; Gear Assembly; Gear, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Gear Assembly Part Number: 87828685
$1259.98 MSRP: $1624.86
You Save: $364.88 (23%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering; Rack; Gear, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023 Chevrolet Corvette | Stingray, Z06 | 8 Cyl 5.5 L GAS, 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Gear Assembly Part Number: 84952356
$2032.51 MSRP: $2722.15
You Save: $689.64 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering; Gear, Steering
- Replaces: 23164960, 84297142, 23201911, 84237807, 84589957
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014 Chevrolet Corvette | Stingray | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 84560502
$1167.20 MSRP: $1561.43
You Save: $394.23 (26%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly-Electrical Belt Drive Rack & Pinion Steering; Gear Assembly; Gear, Steering
- Replaces: 23390638, 84246374, 84167057, 84119793, 84226078
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06 | 8 Cyl 6.2 L GAS
View related parts

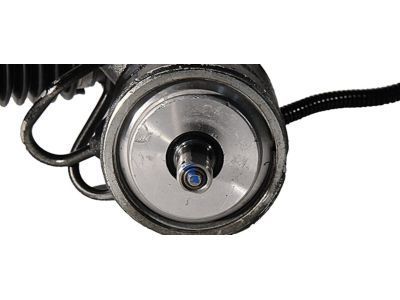

Chevrolet Corvette Steering Gear Part Number: 19330561
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Replaces: 19210005, 19207784
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Chevrolet Corvette | 427, Base, Grand Sport, Z06, Z06 Carbon, ZR1 | 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 26075933
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Replaces: 26075861
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2004 Chevrolet Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 26056983
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1998 Chevrolet Corvette | Base, Indianapolis 500 Pace Car | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 19330457
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Replaces: 19168109
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008 Chevrolet Corvette | 427 Limited Edition Z06, Base, Z06 | 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 26044839
Product Specifications
- Other Name: Gear Kit, Steering; Gear Assembly
- Replaces: 26033843
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1996 Chevrolet Corvette | 40th Anniversary Edition, Base, Collector's Edition, Grand Sport, Indianapolis 500 Pace Car, ZR-1 | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Gear Assembly Part Number: 26044838
Product Specifications
- Other Name: Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988 Chevrolet Corvette | 35th Anniversary Edition, Base | 8 Cyl 5.7 L GAS
View related parts

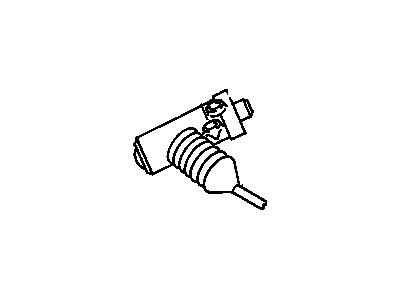

Chevrolet Corvette Gear Assembly Part Number: 26044837
Product Specifications
- Other Name: Gear Kit, Steering; Rack
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1987 Chevrolet Corvette | Base, Indianapolis 500 Pace Car | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Gear Assembly Part Number: 26044836
Product Specifications
- Other Name: Gear Kit, Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1989 Chevrolet Corvette | 35th Anniversary Edition, Base | 8 Cyl 5.7 L GAS
View related parts

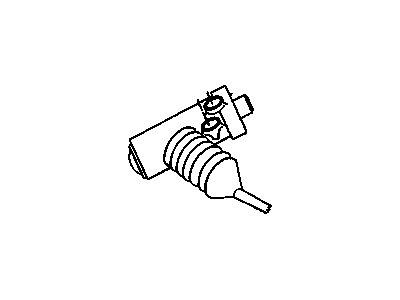

Chevrolet Corvette Gear Assembly Part Number: 26044835
Product Specifications
- Other Name: Gear Kit, Steering; Rack
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1987 Chevrolet Corvette | Base, Indianapolis 500 Pace Car | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Steering Gear Part Number: 19330447
Product Specifications
- Other Name: Gear Kit, Steering (Remanufacture); Gear Assembly; Gear Kit, Steering
- Replaces: 19133689, 88964582
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Corvette | Base, Z06 | 8 Cyl 6.0 L GAS, 8 Cyl 7.0 L GAS

Chevrolet Corvette Rack And Pinion

Want to cut long-term maintenance and repair costs? Choose OEM Rack And Pinion. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Corvette parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Corvette Rack And Pinion includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Steering Rack in Chevrolet Corvette is one of the high demand auto spare parts since it is involved in the turning of the front wheels in accordance with the rotational movement of the steering wheel. It is a rack and pinion system where a pinion gear is attached to the steering column while the rack gear is located in a metal sleeve, connected with the vehicle's tie-rods and steering knuckles. Such design provides accurate and responsive control of the steering mechanism on the track. Most models of Chevrolet Corvette over the years have utilised either power assisted rack and pinion with steering ease and responsiveness of the car being boosted. As to the type of racks, while in old times the cars had manual racks, the contemporary Corvettes make use of hydraulic or electric power aid. The decision of extending the gears as straight or helical can even influence efficiency and amount of wear with preferable straight gears due to lower operating temperature and backlash. In Genral, the Steering Rack plays an important of the travelling dynamism of the Chevrolet Corvette.

Chevrolet Corvette Rack And Pinion Parts and Q&A

Steering Gear
19330457
Q: How to Replace the Front Rack and Pinion Steering Gear on Chevrolet Corvette?
A:
A vehicle needs to be elevated and supported before drivers remove the tires and wheels. The first step is to detach the tie rod ends from Steering Knuckles and the intermediate shaft from the Rack And Pinion. First disconnect the power steering pressure and return hoses from the Rack And Pinion and the stabilizer shaft. Remove the power steering line hold-downs from the crossmember. Begin by taking off the brake pressure modulator valve bracket followed by the two front crossmember mounting nuts. Crank the wrench to 10 mm to loosen both rear crossmember mounting nuts. Legitimately disconnect the height sensor arm from the Control Arm and suspend the crossmember's front edge using a utility stand for support. You must compress the coil spring using the leaf spring compressor (J 33432-A) to lower the crossmember to suitable gear removal position. Disassemble the lower shock mounting bolts in addition to the left front brake caliper brake pipe bracket and right front brake pipe plastic retention bracket. First remove the Rack And Pinion mounting bolts and nuts. Afterward wrap the Rack And Pinion around the Brake Lines and guide it through the left wheelhouse opening of the vehicle. By replacing the crossmember-to-Rack And Pinion insulators you should install the Rack And Pinion through the left wheelhouse opening for z06 applications. Secure the Rack And Pinion mounting bolts with its corresponding nuts and torques them to 100 n.m (74 lb ft). First reinstall the lower shock mounting bolts then elevate the crossmember with a utility stand and finally remove the leaf spring compressor (J 33432-A). Use hand tools when installing and tightening all crossmember mounting nuts to a torque of 110 n.m (81 lb ft). Reattach the brake pipe bracket installed at the left front brake caliper and replace the plastic brake pipe hold-down which secures the right front brake pipe. Install the brake bpmv bracket first then tighten the power steering pressure hose and return hose fittings to 27 n.m (20 lb ft) and 27 n.m (29 lb ft) respectively before completing the installation. After repositioning to the crossmember and stabilizer shaft, install the power steering hold-downs while connecting the intermediate shaft to the Rack And Pinion. Put the height sensor arm on the Control Arm then put the tie rod ends to the steering knuckles back together. After installing the tires and wheels on the ground you should lower the car then bleed the power steering system before making front wheel toe adjustments.
Steering Gear
26075933
Q: How to service and repair the front rack and pinion steering gear on Chevrolet Corvette?
A:
In order to service and repair the Rack And Pinion, start with the removal of the Rack and Pinion Boot. It is mandatory to maintain the rack throughout the process of removing the inner tie rod so that it does not get compromised. Next, detach the shock dampener as shown by the figure then slide the shock dampener back to the rack. To undo the inner tie rod assembly from the rack assembly, insert a wrench on the flats of the rack assembly and another wrench on the flats of the inner tie rod housing. Remove the cotter pins from the tie rod gaiters and then remove and replace them with new ones if required. Finally, remove old loctite (R) from the threads of the rack assembly and the inner tie rod assembly.
