How to replace the vacuum brake booster on Chevrolet Corvette?

You must disconnect the negative cable from the battery as your first step to replace the vacuum Brake Booster. Start by lifting the washer solvent container out of the left wheelhouse by removing retaining nuts. Then disconnect the electrical components and washer hose before plugging the washer pump outlet. First disconnect the Brake Fluid Level Sensor electrical connector while carefully removing the master cylinder retaining nuts off the Brake Booster, position the master cylinder to the side without breaking brake pipe connections. The procedure requires removal of the booster check valve vacuum hose and the instrument panel lower trim panel before continuing. Begin by removing the Brake Pedal retainer, washer, brake pedal pin and Brake Booster pushrod followed by disassembly of the screw from the telescoping column motor mounting bracket to position the motor assembly on the right side of the steering column. Move the Brake Booster from side to side and pull it directly out of its mounting studs after removing the booster's studs, nuts, and washers. Check the booster seal and sealing surfaces for damage during the cowl removal process. Replace the seal if necessary. Start by installing the Brake Booster at the front of the dash followed by the booster mounting nuts and washers on the booster studs. Tolerate 27 nm of torque (19 ft. Lbs). Reinstall all Brake Pedal hardware with the Brake Booster pushrod followed by Brake Pedal pin and washer before inserting the retainer to ensure its proper seating through rotation. Space the telescoping column motor assembly to the steering column and tighten the motor mounting bracket screw to 7 nm (62 inch lbs.). Begin by installing the instrument panel lower trim panel and then attach the Brake Booster Vacuum Hose to its check valve. Secure the master cylinder installation to the booster using mounting nuts set to 29 nm (21 ft. Lbs.). Connect the electrical connector to the Brake Fluid Level Sensor before connecting the electrical connector and washer hose to the washer solvent container. Then install the container back into the wheelhouse and secure it using retaining nuts tightened to 7.5 nm (66 inch lbs.). When finished reconnect the battery negative cable and conduct programming for the transmitters.

OEM Chevrolet Corvette Brake Booster

Brake Power Booster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Brake Boosters found

View related parts

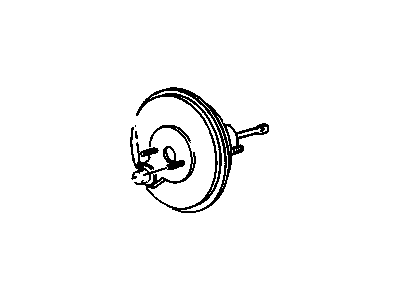

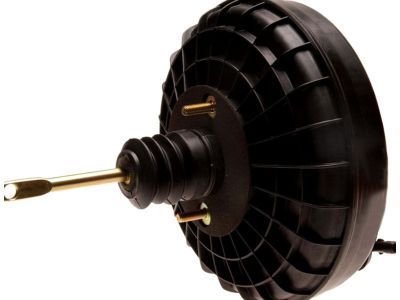

Chevrolet Corvette Brake Booster Part Number: 10097670
$437.20 MSRP: $791.31
You Save: $354.11 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1989 Chevrolet Corvette | 35th Anniversary Edition, Base, Indianapolis 500 Pace Car | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Brake Booster Part Number: 23337594
$115.07 MSRP: $208.28
You Save: $93.21 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Brake Booster Part Number: 19418516
$147.52 MSRP: $286.32
You Save: $138.80 (49%)
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Power Booster
- Replaces: 84162712, 19417217, 25845638
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Chevrolet Corvette | 427, Base, Grand Sport, Z06, Z06 Carbon | 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts
Chevrolet Corvette Brake Booster Part Number: 84614768
$123.43 MSRP: $239.54
You Save: $116.11 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Booster
- Replaces: 22897671, 23337593, 84434502
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2019 Chevrolet Corvette | Grand Sport, Stingray, Z06, ZR1 | 8 Cyl 6.2 L GAS
View related parts
Chevrolet Corvette Brake Booster Part Number: 19417222
$370.72 MSRP: $675.24
You Save: $304.52 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Power Booster
- Replaces: 20758337, 25940428, 84162710
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Chevrolet Corvette | ZR1 | 8 Cyl 6.2 L GAS
View related parts

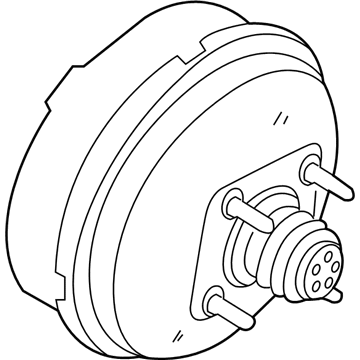

Chevrolet Corvette Brake Booster Part Number: 15237761
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster; Power Booster
- Replaces: 18046267, 18026035
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2008 Chevrolet Corvette | 427 Limited Edition Z06, 50th Anniversary Edition, 50th Anniversary Edition Pace Car, Base, Indianapolis 500 Pace Car, Z06 | 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS, 8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
View related parts

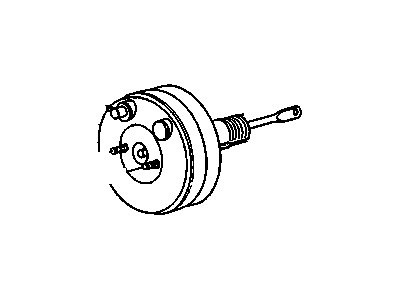

Chevrolet Corvette Brake Booster Part Number: 14046849
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984 Chevrolet Corvette | Base | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Brake Booster Part Number: 10242104
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1996 Chevrolet Corvette | Base | 8 Cyl 5.7 L GAS
View related parts
Chevrolet Corvette Brake Booster Part Number: 10165315
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1995 Chevrolet Corvette | ZR-1 | 8 Cyl 5.7 L GAS
View related parts

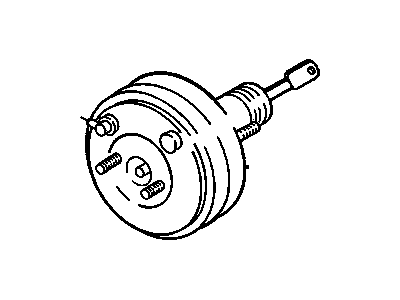

Chevrolet Corvette Brake Booster Part Number: 10097674
Product Specifications
- Other Name: Booster, Hydraulic Power Brake Booster
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Chevrolet Corvette | Base, ZR-1 | 8 Cyl 5.7 L GAS

Chevrolet Corvette Brake Booster

Want to cut long-term maintenance and repair costs? Choose OEM Brake Booster. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Corvette parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Corvette Brake Booster includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Brake Booster is installed in Chevrolet Corvette automobiles to supplement the braking systems hence reduce the amount of force required by the driver. Sitting in between the brake pedal and the master cylinder it uses vacuum or hydraulic system to increase the force exerted while braking. There are vacuum-operated boosters which utilizes the engine vacuum to produce this pressure difference, and hydraulic boosters that utilizes the hydraulic fluid from the power steering or an electric pump to produce pressure difference. Chevrolet Corvette over the years have fitted different styles of brake boosters which include single and Dual Diaphragm and varying in diameter and polished or not. Usually, boosters with a larger diameter give more help, but there is also dual diaphragm boosters, which can offer comparable assistances in the confined space of an engine box. This versatility makes it possible for Corvette owners who may be working on a restoration or just updating a Corvette for today's use to apply the braking systems that will suit each vehicle appropriately.

Chevrolet Corvette Brake Booster Parts and Q&A

Brake Booster
15237761
Q: How to replace the vacuum brake booster on Chevrolet Corvette?
A:
You must disconnect the negative cable from the battery as your first step to replace the vacuum Brake Booster. Start by lifting the washer solvent container out of the left wheelhouse by removing retaining nuts. Then disconnect the electrical components and washer hose before plugging the washer pump outlet. First disconnect the Brake Fluid Level Sensor electrical connector while carefully removing the master cylinder retaining nuts off the Brake Booster, position the master cylinder to the side without breaking brake pipe connections. The procedure requires removal of the booster check valve vacuum hose and the instrument panel lower trim panel before continuing. Begin by removing the Brake Pedal retainer, washer, brake pedal pin and Brake Booster pushrod followed by disassembly of the screw from the telescoping column motor mounting bracket to position the motor assembly on the right side of the steering column. Move the Brake Booster from side to side and pull it directly out of its mounting studs after removing the booster's studs, nuts, and washers. Check the booster seal and sealing surfaces for damage during the cowl removal process. Replace the seal if necessary. Start by installing the Brake Booster at the front of the dash followed by the booster mounting nuts and washers on the booster studs. Tolerate 27 nm of torque (19 ft. Lbs). Reinstall all Brake Pedal hardware with the Brake Booster pushrod followed by Brake Pedal pin and washer before inserting the retainer to ensure its proper seating through rotation. Space the telescoping column motor assembly to the steering column and tighten the motor mounting bracket screw to 7 nm (62 inch lbs.). Begin by installing the instrument panel lower trim panel and then attach the Brake Booster Vacuum Hose to its check valve. Secure the master cylinder installation to the booster using mounting nuts set to 29 nm (21 ft. Lbs.). Connect the electrical connector to the Brake Fluid Level Sensor before connecting the electrical connector and washer hose to the washer solvent container. Then install the container back into the wheelhouse and secure it using retaining nuts tightened to 7.5 nm (66 inch lbs.). When finished reconnect the battery negative cable and conduct programming for the transmitters.
