How to replace the intake manifold on Chevrolet Cobalt?

To replace the Intake Manifold, the Intake Manifold cover and the air cleaner oil duct must also be removed. Pull off the engine harness electrical connectors from the throttle actuator control (TAC), fuel injector harness, and manifold absolute pressure (MAP) sensor. Unbolt the engine harness clips from the Intake Manifold and oil level indicator tube, in addition to the fuel injector electric connector's clip. Reposition the vacuum brake booster hose clamp and take off the vacuum brake booster hose. Next, remove thebots to the Throttle Body then remove to Throttle Body together with seal inspecting the Throttle Body seal being damaged. Remove the evap canister purge tube from the Intake Manifold and the evap solenoid; remove the oil level indicator tube and the Fuel Rail. Remove the lower bolts and upper bolt and nuts, and remove the Intake Manifold, checking the gasket for any signs of damage. For the installation, if needed, install a new Intake Manifold Gasket, then place the Intake Manifold and fasten it with the upper bolt and nuts, then the lower bolts fastened to 10 nm (89 lb in). Replace the Fuel Rail and oil level indicator tube, then reroute the evap canister purge tube. If necessary, install a new Throttle Body seal, orientate it, and fasten it with bolts tightened to 10 nm (89 lb in). Reconnect the vacuum brake booster hose and its clamp, engine harness clips, and electrical connectors to the fuel injector harness, map sensor, and tac. Lastly, reinstall the air cleaner outlet duct and the Intake Manifold cover.

OEM Chevrolet Cobalt Intake Manifold

Engine Intake Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Intake Manifolds found

View related parts
Chevrolet Cobalt Intake Manifold, Green Line Part Number: 12597953
$94.07 MSRP: $226.78
You Save: $132.71 (59%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet Cobalt | Base, LS, LT, Sport | 4 Cyl 2.2 L GAS, 4 Cyl 2.4 L GAS
View related parts
Chevrolet Cobalt Intake Manifold Part Number: 12587878
$495.14 MSRP: $850.37
You Save: $355.23 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Chevrolet Cobalt | SS | 4 Cyl 2.4 L GAS
View related parts
Chevrolet Cobalt Intake Manifold Part Number: 12608305
$94.44 MSRP: $147.94
You Save: $53.50 (37%)
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Replaces: 12587202, 24467211
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chevrolet Cobalt | Base, LS, LT, LTZ | 4 Cyl 2.2 L GAS
View related parts

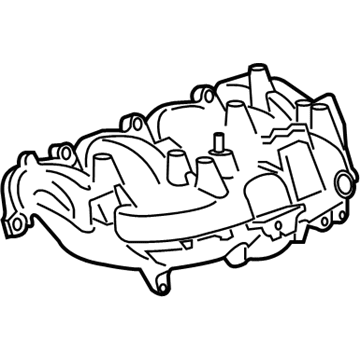

Chevrolet Cobalt Intake Manifold Part Number: 12616667
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Replaces: 12604076
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet Cobalt
View related parts

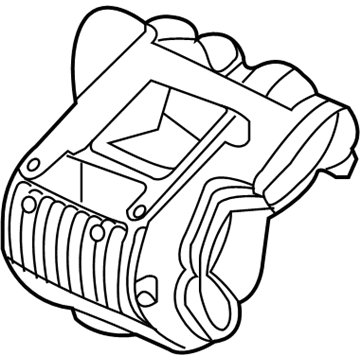

Chevrolet Cobalt Intake Manifold Part Number: 12584348
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Cobalt | SS | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Cobalt Intake Manifold Part Number: 12590301
$93.74 MSRP: $146.85
You Save: $53.11 (37%)
Product Specifications
- Other Name: Manifold, Engine Fuel Intake Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2008 Chevrolet Cobalt | LS, LT, LTZ | 4 Cyl 2.2 L GAS

Chevrolet Cobalt Intake Manifold

Want to cut long-term maintenance and repair costs? Choose OEM Intake Manifold. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Cobalt parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Cobalt Intake Manifold includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Intake Manifold in Chevrolet Cobalt vehicles is as you are aware important in channelling air or air/fuel mixture to the cylinders within the engine with the view of enhancing horsepower and performance. Usually fabricated from lightweight plastic material, the intake manifold directs air through its runners in a much more symmetrical manner, thus improving combustion. Some models have coolant passages and integrations for temperature and air flow sensors to assist in the regulation of the engine. Tremendous horsepower and torque are derived from performance manifolds which enhances the dispersion of air/fuel mixture. Variable-length intake manifolds have also been introduced for maximum flow rates of thin charge, and helps in controlling the airflow speed and pressure in relation to the engine load conditions and hence engine power and fuel economy.

Chevrolet Cobalt Intake Manifold Parts and Q&A

Intake Manifold, Green Line
12597953
Q: How to replace the intake manifold on Chevrolet Cobalt?
A:
To replace the Intake Manifold, the Intake Manifold cover and the air cleaner oil duct must also be removed. Pull off the engine harness electrical connectors from the throttle actuator control (TAC), fuel injector harness, and manifold absolute pressure (MAP) sensor. Unbolt the engine harness clips from the Intake Manifold and oil level indicator tube, in addition to the fuel injector electric connector's clip. Reposition the vacuum brake booster hose clamp and take off the vacuum brake booster hose. Next, remove thebots to the Throttle Body then remove to Throttle Body together with seal inspecting the Throttle Body seal being damaged. Remove the evap canister purge tube from the Intake Manifold and the evap solenoid; remove the oil level indicator tube and the Fuel Rail. Remove the lower bolts and upper bolt and nuts, and remove the Intake Manifold, checking the gasket for any signs of damage. For the installation, if needed, install a new Intake Manifold Gasket, then place the Intake Manifold and fasten it with the upper bolt and nuts, then the lower bolts fastened to 10 nm (89 lb in). Replace the Fuel Rail and oil level indicator tube, then reroute the evap canister purge tube. If necessary, install a new Throttle Body seal, orientate it, and fasten it with bolts tightened to 10 nm (89 lb in). Reconnect the vacuum brake booster hose and its clamp, engine harness clips, and electrical connectors to the fuel injector harness, MAP Sensor, and tac. Lastly, reinstall the air cleaner outlet duct and the Intake Manifold cover.
