Question 1

Is it advisable for the home mechanic to replace a faulty alternator unit on Chevrolet Caprice?

Accepted Answer

Because of the delicate and sensitive process of dismantling the unit and the testing of the several components that make up the alternator, it might be wiser for the home mechanic to replace the bad one with a new one or rebuilt one. If an overhaul is to be done, make sure that there are spare parts available for replacement before the overhaul is begun. First, unbolt both the alternator and the pulley, proceeded to clamp the alternation firmly using your vise, thus, applying pressure on the mounting flange. Four through bolts are to be removed, and the slip-ring, end frame and stator assembly from the drive-end and rotor assembly is to be separated with a screwdriver where it is necessary to lever out and then corresponding positions at the end frames have to be marked. Subsequently to that, unbolt the stator lead securing nuts to detach the stator from the end frame. For the 1D series, unscrew the brush holder assembly for its dismantling as well as the heat sink from the end frame by firstly removing the BAT and GRD terminals and one screw only. For the 10 SI series, but continue dismantling by unplugging the rectifier bridge, the BAT terminal screw fasten, remove the capacitor lead and get rid of rectifier from the end frame as well. The brush holder and the regulator along with insulating sleeves and washers are to be unscrewed with two screws and removed along with the capacitor from the end frame. In all models, if slip ring end-frame bearing is either dry or noisy, it must be replaced and not greased. Remove the old bearing and throw the oil seal out and then fit and press the new bearing until it meets the end frame then fit the new oil seal. Insert a 5/16 inch Allen wrench into the socket at the drive pulley end so as to halt the shaft from turning, undo the pulley nut and then remove the washer, pulley, fan as well as the spacer. Thus the rotor and spacers have to be taken out of the drive end frame, if the bearing in the mentioned frame is dry or too noisy then it also must be changed. Get at the bearing by unscrewing the retainer plate bolts, and taking off the plate/seal assembly, then driving out the bearing, and driving in the new one on the end of a tube. Make sure that the slinger is in the right position then grease as advised before fitting. The alternator is now virtually disassembled down to the individual component, so clean every component, look for signs of wear or damage, and then buy whatever parts as might be needed new. Cleaning the slip rings; if the slip rings are dirty, spin the rotor and rub 400-grit abrasive paper on the slip rings to avoid development of flat spots There are certain cases where the slip rings may be scored and this may require replacement of the complete rotor assembly. Inspection of brushes should be done to find out whether they are worn to the mid point or beyond hence they should be replaced, the springs on the other hand should only be replaced if they seem to be weak or distorted in anyway. Reassembly is the reverse of dismantling, it is important to tighten the pulley nut up to the correct torque value, position the insulating washers and sleeves to face the correct way on brush clip screws, clean the brush contact area before fitting the slip ring end frame, to hold the brushes up in their holders with a thin bar, and ensure the marks of the slip ring and drive end frame are aligned.

Question 2

Should home mechanics consider replacing a faulty alternator unit instead of attempting to disassemble and test its components on Chevrolet El Camino?

Accepted Answer

Because of how sensitive and extensive some of the activities involved in disassembling and testing the various alternator parts are, it may be prudent for the ordinary car owner to opt for a new of a rebuilt unit. In case an overhaul is selected, make sure you have replacement parts on hand before going to that option. Start off by taking out the alternator and the pulley before immobilizing the alternator and placing the mounting flange in a vice under pressure. The four through-bolts allow easy dismantling of the slip-ring and end frame together with the stator from the drive-end and rotor assembly using a screwdriver levering action while noting the positions of corresponding parts before removal for ease of reassembly. Further, unscrew the nuts fastening the stator lead and pull the stator away from the end frame, undo the screws to open the brush holder assembly, and remove the heat sink after unplugging the BAT and GAD terminals and a screw. Further strip by disconnecting the rectifier bridge, screw of securing, BAT terminal screw the lead of the capacitor, and finally, remove the rectifier bridge of the end frame. Loosen the hex screws which secures the brush holder and regulator, insulating sleeves and washers are retained, and unscrew the capacitor from the end frame. If the slip ring end-frame bearing is dry or noisy it has to be replaced: remove the old bearing and throw away the oil seal, then press in a new bearing until it just fits into the end frame and install a new oil seal. Driving the entire shaft clockwise, introduce a 5/16 inch Allen wrench into the socket at the drive pulley end to lock the shaft, undo the pulley retainer nut, do away with the washer, pulley, fan and spacer respectively. Take off the rotor and spacers of the drive end-frame and, if the bearing in the drive end-frame is non-oily or rukey, then replace it. Release the bearing by loosening the retainer plate bolts and then unbolting the plate/seal assembly, or where a plastic cartridge retainer is used, pressing out the old bearing and pressing in the new one, with the correct location of the slinger and the application of grease to be in proper position. When everything is detached from the alternator, wipe all parts using compressed air, avoiding contact between solvent and stator or rotor windings, and observe for signs of wear or damage, and order new components if existent. To clean the slip rings slide 400-grit abrasive paper against them while rotating the rotor; if the rings are flat or have worn grooves, replace the rotor assembly. The brushes should be inspected for use, any that are worn half through or more should be dispensed with while springs should only be replaced if they look weak or distorted. Reassembly just means assembling again and very carefully-It is necessary to tighten the pulley nut to the involved torque, to put the insulating washers and sleeves properly on the brush clip screws, to clean the contact surfaces of the brushes before installing the slip ring end-frame, to lift the brushes in their holders with a thin stick, and align the marks made before dismantling on the slip ring and the drive end-frame.

OEM Chevrolet Alternator

289 Alternators found

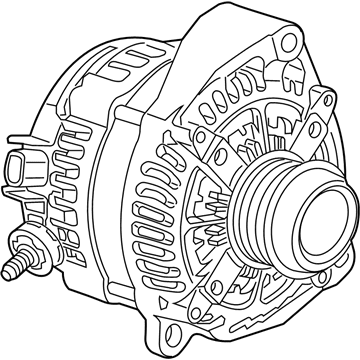

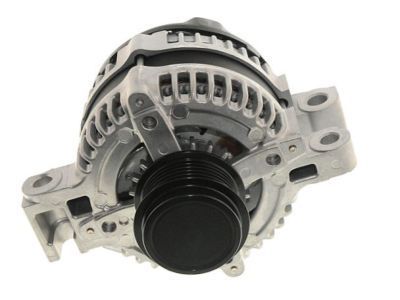

Chevrolet Alternator Part Number: 84542723

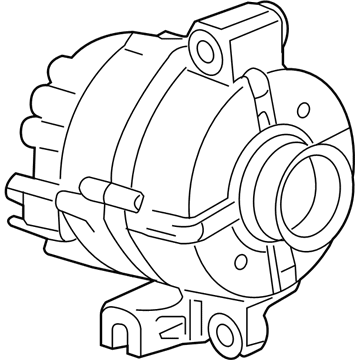

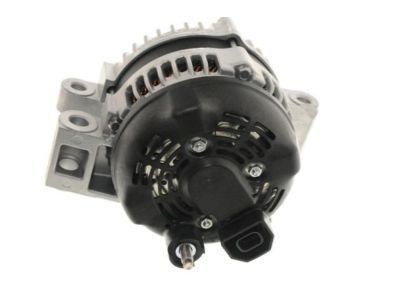

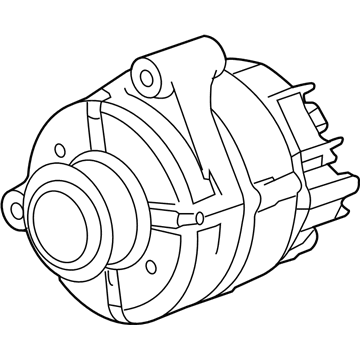

Chevrolet Alternator Part Number: 22888109

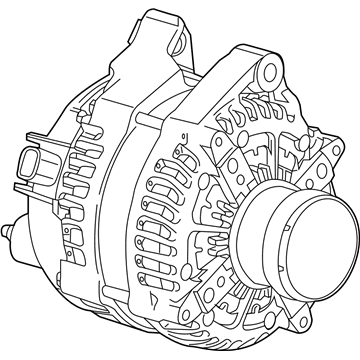

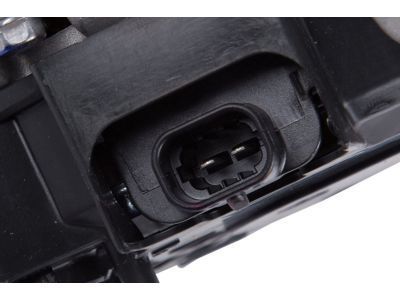

Chevrolet Alternator Part Number: 13529303

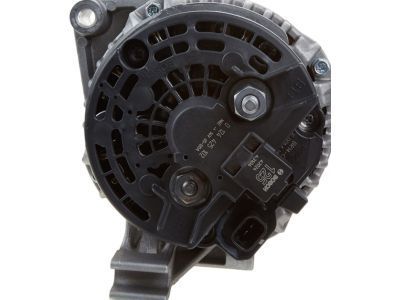

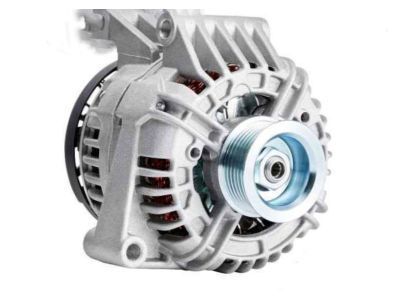

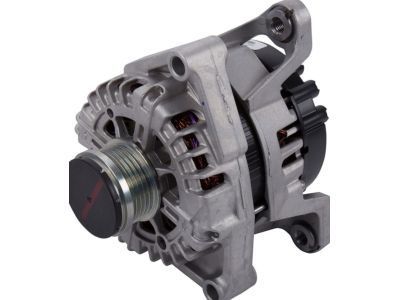

Chevrolet Alternator Part Number: 20911162

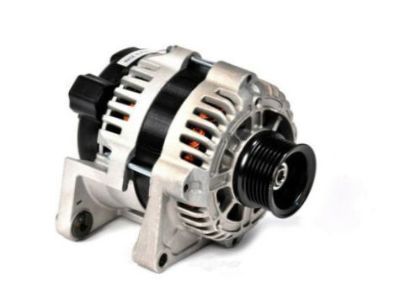

Chevrolet Alternator Part Number: 84347903

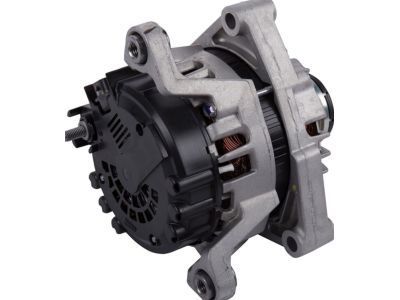

Chevrolet Alternator Part Number: 23280476

Chevrolet Alternator Part Number: 84009365

Chevrolet Alternator Part Number: 23119515

Chevrolet Alternator Part Number: 23150508

Chevrolet Alternator Part Number: 22988006

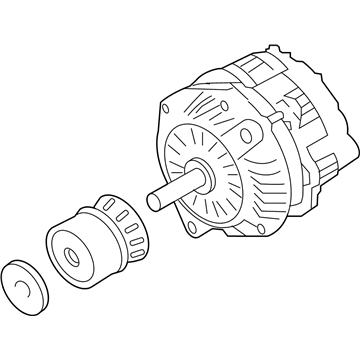

Chevrolet Alternator Part Number: 92254798

Chevrolet Alternator Part Number: 13535009

Chevrolet Alternator Part Number: 13540926

Chevrolet Alternator Part Number: 13592810

Chevrolet Alternator Part Number: 13552639

Chevrolet Alternator Part Number: 84677896

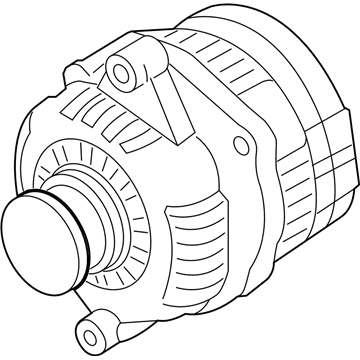

Chevrolet Alternator Part Number: 42733403

Chevrolet Alternator Assembly Part Number: 19152464

Chevrolet Alternator Assembly Part Number: 10463014

Chevrolet Alternator Part Number: 10463092

Chevrolet Alternator

Chevrolet Alternator Parts and Q&A

Related Chevrolet Parts

Browse Chevrolet Alternator by Models
