How to replace the outer rack and pinion tie rod end on Cadillac SRX?

To replace the outer rack and pinion Tie Rod ends one first raises and supports the vehicle. Remove tire and wheel and loosen the outer Tie Rod jam nut and then the outer Tie Rod retaining nut. With the steering linkage and Tie Rod puller (J 24319-B), remove the outer Tie Rod from the Steering Knuckle and record the number of turnouts when removal for that purpose. Then, bolt the outer Tie Rod to the inner Tie Rod just as many times as indicated above but do not tighten the jam nut just yet. Mount the outer Tie Rod to the Steering Knuckle and tighten the outer Tie Rod retaining nut to 70 nm (52 ft. Lbs.). Lastly, replace the tire and wheel, drop the vehicle, and align the front toe.

OEM Cadillac SRX Tie Rod

Steering Tie Rod

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Tie Rods found

View related parts
Cadillac SRX Outer Tie Rod Part Number: 88957172
$86.33 MSRP: $137.07
You Save: $50.74 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Outer Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Outer
- Position: Outer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac SRX Outer Tie Rod Part Number: 19207057
$137.16 MSRP: $233.51
You Save: $96.35 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Outer Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Outer
- Position: Outer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Cadillac SRX Outer Tie Rod Part Number: 88957176
$56.18 MSRP: $137.07
You Save: $80.89 (60%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Kit, Steering Linkage Outer Tie; Steering Tie Rod End; Outer Tie Rod End; Tie Rod End; Rod Kit, Steering Tie Rod Outer
- Position: Outer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts

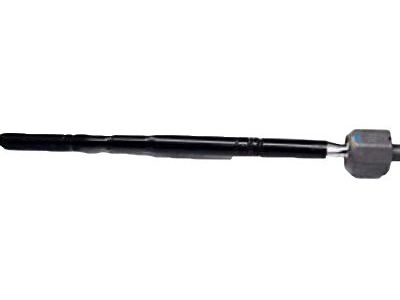

Cadillac SRX Inner Tie Rod Part Number: 25901292
$134.22 MSRP: $211.19
You Save: $76.97 (37%)
Product Specifications
- Other Name: Rod Kit, Steering Tie Rod Inner; Steering Tie Rod End; Tie Rod End
- Position: Inner
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Cadillac SRX | Base, Luxury, Performance, Premium | 6 Cyl 2.8 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS

Cadillac SRX Tie Rod

Want to cut long-term maintenance and repair costs? Choose OEM Tie Rod. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Tie Rod includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Cadillac SRX Tie Rod functions as a vital steering system component that guarantees performance reliability together with safety measures in multiple SRX model versions. The critical component links the steering gear to steering knuckles and front wheels in order to transform the steering wheel motions into wheel rotations. The Cadillac SRX Tie Rod assembly consists of inner and outer rods but its design changes based on steering gear configuration since rack & pinion systems maintain simpler connectivity than parallelogram linkages. A thorough inspection of the Cadillac SRX Tie Rod becomes essential because normal deterioration and improper attachment both introduce major safety concerns for the steering system. Throughout its production in two generations the Cadillac SRX has achieved its status as a reliable and performance-driven vehicle by utilizing high-quality Tie Rod components. The second-generation SRX represented Cadillac's successful US model which delivered 4G WiFi features together with safety alert seat technology that improved efficiency and protection. The Cadillac car excels in the automotive market because of its excellent ride and bold design which relies heavily on the Tie Rod for its overall performance maintenance. The the automaker model Tie Rod represents much more than a mere component because it functions as an important element which delivers enhanced driving experience to luxury SUV enthusiasts.

Cadillac SRX Tie Rod Parts and Q&A

Outer Tie Rod
88957172
Q: How to replace the outer rack and pinion tie rod end on Cadillac SRX?
A:
To replace the outer rack and pinion Tie Rod Ends one first raises and supports the vehicle. Remove tire and wheel and loosen the outer Tie Rod jam nut and then the outer Tie Rod retaining nut. With the steering linkage and Tie Rod puller (J 24319-B), remove the outer Tie Rod from the Steering Knuckle and record the number of turnouts when removal for that purpose. Then, bolt the outer Tie Rod to the inner Tie Rod just as many times as indicated above but do not tighten the jam nut just yet. Mount the outer Tie Rod to the Steering Knuckle and tighten the outer Tie Rod retaining nut to 70 nm (52 ft. Lbs.). Lastly, replace the tire and wheel, drop the vehicle, and align the front toe.
