OEM Cadillac SRX Shift Cable

Cadillac SRX Shift Cable Parts and Q&A

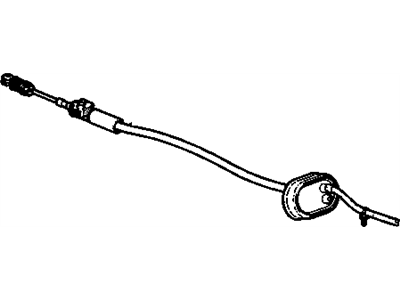

• Shift Control Cable
  23221553
  Q: How to replace the shift cable in the AF40-6 automatic transmission on Cadillac SRX?

  A:

  The process to replace the AF40-6 automatic transmission range selector lever cable requires setting the park brake followed by wheel chocking. The cable terminal of the transmission range selector lever must be disconnected from transmission manual shift lever pin before sliding the retainer to free the cable from its bracket. The front floor console extension must be removed first followed by disconnecting the transmission range selector lever cable retainers from the support bracket. The floor panel grommet with cable assembly must be removed before sliding the transmission range selector lever cable retainer forward and pulling the cable out from the transmission control base. Separate terminal of the transmission range selector lever cable from shift lever pin and take the cable out of the vehicle. Install the new transmission range selector lever cable by placing it into position with the terminal attached to the shift lever pin. To install the cable on the transmission control base you should position the retainer behind the component then move the grommet to face the paint dot up after locking the retainer in place. Proceed with installing the grommet and cable assembly within the floor panel before you establish retainers to the support bracket and you can reinstall the front floor console extension. Conclude this process by linking the transmission range selector lever cable terminal with the transmission manual shift lever pin then place the cable inside the bracket before moving the retainer forward for retention. Adjust the cable as necessary.
