How to replace the idler arm on Cadillac Escalade?

The Idler Arm replacement requires universal steering linkage puller (J 24319-B) tool as well as steering linkage installer (12 mm) (J 29193) and steering linkage installer (14 mm) (J 29194). Start by using a vehicle lift to expose the engine protection shield if it is present. Start by taking out the Idler Arm ball stud nut while keeping it for disposal and then remove the Idler Arm from the relay rod through the use of universal steering linkage puller (J 24319-B). First remove the frame bolts and nuts from both ends of the Idler Arm before pulling it out of the vehicle. Fasten the new Idler Arm on the frame then tighten the frame bolts and nuts to 99 n.m (73 lb ft). After placing the Idler Arm ball stud seal onto the ball stud the relay rod can be installed while using the steering linkage installer (12 mm) (J 29193) or steering linkage installer (14 mm) (J 29194) to torque the tapers to 54 n.m (40 lb ft). The prevailing torque nut for the Idler Arm ball stud needs to be installed with a torque of 62 n.m (46 lb ft). The wheel alignment needs to be checked after the vehicle is lowered and the engine protection shield has been reinstalled if equipped.

How to replace the idler arm on Cadillac Escalade ESV?

A successful idler arm replacement requires Universal Steering Linkage Puller (J 24319-B) alongside Steering Linkage Installer (12 mm) (J 29193) and Steering Linkage Installer (14 mm) (J 29194). Start by elevating the vehicle then disconnect any engine protection shield from the vehicle when present. Remove the idler arm ball stud nut but do not reuse it and then use the Universal Steering Linkage Puller (J 24319-B) to separate the idler arm from the relay rod. First remove frame bolts of the idler arm together with nuts before removing the arm from the vehicle. The new idler arm should be positioned on the frame before inserting all frame bolts and nuts properly with torque set to 99 Nm (73 ft. lbs.). Fasten the relay rod onto the idler arm ball stud while verifying the seal sits correctly on the stud then apply the Steering Linkage Installer (J 29193) to seat the tapers before torquing it to 54 Nm (40 ft. lbs. with a J 29194 or use the J 29193 tool instead). The new idler arm ball stud prevailing torque nut needs to be installed onto the idler arm ball stud and torqued to 62 Nm (46 ft. lbs.). You should reinstall the engine protection shield if your vehicle is equipped then lower the vehicle before inspecting the wheel alignment.

OEM Cadillac Idler Arm

Steering Idler Arm

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Idler Arms found

View related parts
Cadillac Idler Arm Part Number: 19149615
$90.68 MSRP: $154.38
You Save: $63.70 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Steering Linkage Idler; Pitman Arm
- Replaced by: 85819770
Fits the following Cadillac Models:
- Escalade | 2002-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2002-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Pitman Arm Part Number: 12471379
$90.68 MSRP: $154.38
You Save: $63.70 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Arm Kit, Pitman; Idler Arm
- Replaced by: 85819770
Fits the following Cadillac Models:
- Escalade | 2002-2006 | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
- Escalade ESV | 2003-2006 | Base | 8 Cyl 6.0 L GAS
- Escalade EXT | 2002-2006 | Base | 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Idler Arm Part Number: 26054932
Product Specifications
- Other Name: Arm Kit, Steering Linkage Idler; Steering Idler Arm; Pitman Arm; Arm Kit, Steering Idler
- Replaces: 26033093, 31022859
Fits the following Cadillac Models:
- Eldorado | 1984-1985 | Base, Biarritz | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Seville | 1985 | Base, Elegante | 8 Cyl 4.1 L GAS
View related parts

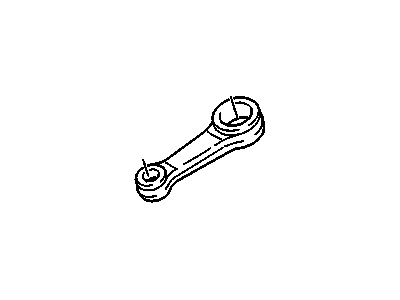

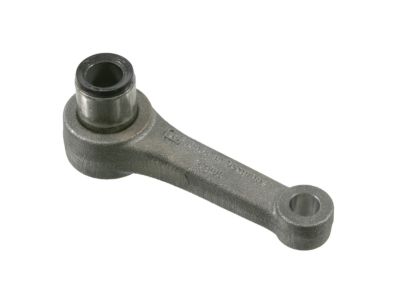

Cadillac Pitman Arm Part Number: 9195731
Product Specifications
- Other Name: Arm, Steering Linkage Idler; Steering Idler Arm; Idler Arm; Arm, Steering Idler
Fits the following Cadillac Models:
- Catera | 1997-2001 | Base, Sport | 6 Cyl 3.0 L GAS
View related parts
Cadillac Pitman Arm Part Number: 7831535
Product Specifications
- Other Name: Arm Kit, Pitman; Steering Pitman Arm; Idler Arm
Fits the following Cadillac Models:
- Eldorado | 1984-1985 | Base, Biarritz, Cabriolet, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Seville | 1984-1985 | Base, Elegante | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts

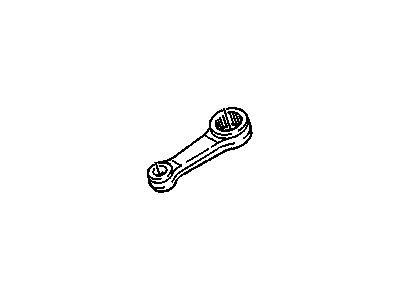

Cadillac Pitman Arm Part Number: 90278818
Product Specifications
- Other Name: Arm, Steering Pitman; Idler Arm
Fits the following Cadillac Models:
- Catera | 1997-2001 | Base, Sport | 6 Cyl 3.0 L GAS
View related parts
Cadillac Pitman Arm Part Number: 7837646
Product Specifications
- Other Name: Arm Kit, Pitman; Reservoir; Arm Kit, Steering Pitman
Fits the following Cadillac Models:
- Brougham | 1987-1992 | Base, d'Elegance | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- DeVille | 1984-1987 | Base, Cabriolet, d'Elegance, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Fleetwood | 1993-1996, 1990, 1984-1986 | 60 Special, Base, Brougham, Brougham d'Elegance, Formal | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Idler Arm Part Number: 26059030
Product Specifications
- Other Name: Arm Kit, Steering Linkage Idler; Steering Idler Arm; Pitman Arm; Idler Arm Assembly; Arm Kit, Steering Idler
- Replaces: 26028525
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Pitman Arm Part Number: 26051896
Product Specifications
- Other Name: Arm Kit, Pitman; Steering Pitman Arm; Idler Arm; Arm Kit, Steering Pitman; Arm, Steering Pitman
- Replaces: 26032996
Fits the following Cadillac Models:
- Escalade | 1999-2000 | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Idler Arm Part Number: 26041013
Product Specifications
- Other Name: Arm Kit, Steering Linkage Idler; Pitman Arm; Arm Assembly, Steering Idler; Arm Kit, Steering Idler
Fits the following Cadillac Models:
- Brougham | 1987-1992 | Base, d'Elegance | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- DeVille | 1984-1987 | Base, Cabriolet, d'Elegance, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Fleetwood | 1993-1996, 1984-1986 | Base, Brougham, Brougham d'Elegance, Formal | 8 Cyl 4.1 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
View More

Cadillac Idler Arm

Choose OEM Idler Arm, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Idler Arm. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

The Cadillac Idler Arm maintains the steering connection in position and provides drivers with sharp direction control and assurance. Cadillac blends a hundred-year tradition and a courageous design, comfortable cabins, and smartphone-like dashboards. Cadillac drives technology with the BEV3 electrification, glass roof, and curved displays, which are not distracting. Cadillac clients observe silent ride, acceleration, and shrugging road noise materials throughout the day. The nameplate was launched in 1902 and it continues to make driving something personal and not a task. All seats are supportive, surfaces are soft grain leather, and the suspensions are floating but remain sharp at corners. Touch controls are responsive and adaptive controls cut through the rain and can turn corners with you. With no work required on your part except to open your wallet, over-the-air updates keep the maps up-to-date and new driving modes open at night. The Pitman arm is connected to the frame on the passenger side by Idler Arm in order to maintain the bar level. Idler Arm rolls on a stud which is in a continuous state of oscillation; hence, bushing and bearings are more abused than most steering components, making frequent inspections and timely greasing important to maintain tight on-center feel and longer tie-rod service. Idler Arm also becomes uneasy as the joints dry; then a fresh grease with each change of oil makes things run smoothly again and the steering column retains the intended angle in every pothole.

Cadillac Idler Arm Parts and Q&A

Pitman Arm
12471379
Q: How to replace the idler arm on Cadillac Escalade?
A:
The Idler Arm replacement requires universal steering linkage puller (J 24319-B) tool as well as steering linkage installer (12 mm) (J 29193) and steering linkage installer (14 mm) (J 29194). Start by using a vehicle lift to expose the engine protection shield if it is present. Start by taking out the Idler Arm ball stud nut while keeping it for disposal and then remove the Idler Arm from the relay rod through the use of universal steering linkage puller (J 24319-B). First remove the frame bolts and nuts from both ends of the Idler Arm before pulling it out of the vehicle. Fasten the new Idler Arm on the frame then tighten the frame bolts and nuts to 99 n.m (73 lb ft). After placing the Idler Arm ball stud seal onto the ball stud the relay rod can be installed while using the steering linkage installer (12 mm) (J 29193) or steering linkage installer (14 mm) (J 29194) to torque the tapers to 54 n.m (40 lb ft). The prevailing torque nut for the Idler Arm ball stud needs to be installed with a torque of 62 n.m (46 lb ft). The wheel alignment needs to be checked after the vehicle is lowered and the engine protection shield has been reinstalled if equipped.
Idler Arm
19149615
Q: How to replace the idler arm on Cadillac Escalade ESV?
A:
A successful idler arm replacement requires Universal Steering Linkage Puller (J 24319-B) alongside Steering Linkage Installer (12 mm) (J 29193) and Steering Linkage Installer (14 mm) (J 29194). Start by elevating the vehicle then disconnect any engine protection shield from the vehicle when present. Remove the idler arm ball stud nut but do not reuse it and then use the Universal Steering Linkage Puller (J 24319-B) to separate the idler arm from the relay rod. First remove frame bolts of the idler arm together with nuts before removing the arm from the vehicle. The new idler arm should be positioned on the frame before inserting all frame bolts and nuts properly with torque set to 99 Nm (73 ft. lbs.). Fasten the relay rod onto the idler arm ball stud while verifying the seal sits correctly on the stud then apply the Steering Linkage Installer (J 29193) to seat the tapers before torquing it to 54 Nm (40 ft. lbs. with a J 29194 or use the J 29193 tool instead). The new idler arm ball stud prevailing torque nut needs to be installed onto the idler arm ball stud and torqued to 62 Nm (46 ft. lbs.). You should reinstall the engine protection shield if your vehicle is equipped then lower the vehicle before inspecting the wheel alignment.
