How to replace the Heater Core on Cadillac CTS?

The first step to replace a Heater Core involves swiftly removing the hvac module from its position. Start by removing the heater hose bracket along with its bracket screw. The Heater Core needs to be slid out of the hvac module. The new Heater Core installation process begins by placing it into the hvac module before attaching the heater hose bracket. Securely install the heater hose bracket screw at 1 nm while tightening it to 9 lb in. Finally, reinstall the hvac module.

How to replace the Heater Core on Cadillac Escalade?

The first thing to do when changing the Heater Core is to drain the coolant. Take out the storage compartment from the instrument panel, cut off the necessary wires and get rid of the center floor air duct. After that, take out the hinge pillar trim panels, blower motor cover, blower motor and Steering Column. Pull out the instrument panel and take out the coolant tank and the heater hoses that are connected to it. Grip the heater case as you remove the single screw on the cowl's interior and after that, unfasten the 4 screws and 2 nuts inside the cowl that are found on the engine side. Lift off the heater case and ask someone to help you if the piece is heavy. After that, unscrew the 7 bolts securing the heater cover to the heater body and take off the heater cover to take out the Heater Core from the bracket. Put the new Heater Core into the retainer, attaching it with the 7 screws. Before installing the heater cover, make sure to put in new seals and ensure that cover is sealed tightly. Install the heater case and feel free to ask for help if it's difficult; after it's in place use the supplied nuts and screws to fix it on the engine side and the coil side, tightening the screws to 1.9 n.m (17 lb in), the nuts to 2.8 n.m (25 lb in) and the inside cowl screw to 11 n.m (97 lb in). Reconnect the heater hoses, set the coolant recovery reservoir, pull the instrument panel backward and put back the Steering Column, blower motor, blower motor cover, hinge pillar trim panels, center floor air distribution duct and electrical connectors. Don't forget to install the storage compartment in the instrument panel, add engine coolant and check that there are no leaks in the system.

OEM Cadillac Heater Core

HVAC Heater Core

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

42 Heater Cores found

View related parts
Cadillac Heater Core Part Number: 84206592
$80.55 MSRP: $165.55
You Save: $85.00 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core Kit-Heater; Evaporator Core
- Replaced by: 84760093
Fits the following Cadillac Models:
- XT5 | 2017-2023 | Base, Livery, Luxury, Platinum, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
- XT6 | 2020-2024 | Luxury, Premium Luxury, Sport | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
View related parts
Cadillac Heater Core Part Number: 85135961
$67.16 MSRP: $121.55
You Save: $54.39 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Core Assembly-Heater; Core, Heater Core
- Replaces: 84609273
Fits the following Cadillac Models:
- CT4 | 2020-2024 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 4 Cyl 2.7 L GAS, 6 Cyl 3.6 L GAS
- CT5 | 2020-2024 | Luxury, Premium Luxury, Sport, V, V Blackwing | 4 Cyl 2.0 L GAS, 6 Cyl 3.0 L GAS, 8 Cyl 6.2 L GAS
View related parts
Cadillac Heater Core Part Number: 87846569
$106.15 MSRP: $192.12
You Save: $85.97 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core Assembly-Heater; Core, Heater Core
- Replaced by: 85054169
Fits the following Cadillac Models:
- LYRIQ | 2023-2024 | Luxury, Sport, Tech | BATTERY EV (EV/BEV)
View related parts
Cadillac Heater Core Part Number: 84156602
$184.87 MSRP: $334.60
You Save: $149.73 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core Assembly-Auxiliary Heater; Core, Heater Core
Fits the following Cadillac Models:
- XT4 | 2020-2023 | Luxury, Premium Luxury, Sport | 4 Cyl 2.0 L GAS
View related parts

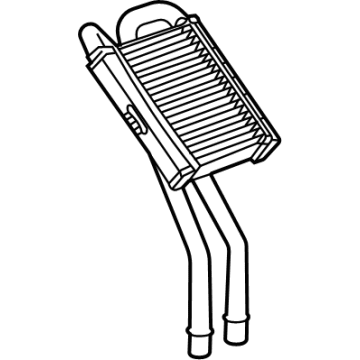

Cadillac Heater Core Part Number: 84689022
$47.63 MSRP: $89.44
You Save: $41.81 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Core Assembly-Auxiliary Heater; Core, Heater Core
Fits the following Cadillac Models:
- Escalade | 2021-2023 | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
- Escalade ESV | 2021-2023 | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts
Cadillac Heater Core Part Number: 13287939
$78.71 MSRP: $161.72
You Save: $83.01 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Core Kit-Heater; Evaporator Core; Core Kit, Heater Core
Fits the following Cadillac Models:
- XT5 | 2017-2018 | Luxury, Platinum, Premium Luxury | 6 Cyl 3.6 L GAS
View related parts
Cadillac Heater Assembly Part Number: 23118979
$747.16 MSRP: $1186.24
You Save: $439.08 (38%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Heater Assembly-Heater Coolant; Heater, Heater
Fits the following Cadillac Models:
- CT6 | 2017-2018 | Plug-In | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

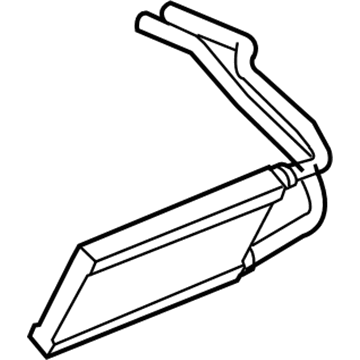

Cadillac Heater Core Part Number: 25740392
Product Specifications
- Other Name: Core, Heater; Core, Heater Core
Fits the following Cadillac Models:
- CTS | 2003-2007 | Base, Luxury, Luxury Sport, V | 6 Cyl 2.8 L GAS, 6 Cyl 3.2 L GAS, 6 Cyl 3.6 L GAS, 8 Cyl 5.7 L GAS, 8 Cyl 6.0 L GAS
- SRX | 2004-2009 | Base | 6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac Heater Core Part Number: 3035420
Product Specifications
- Other Name: Core & Fitting; HVAC Heater Core
- Replaced by: 19131979
Fits the following Cadillac Models:
- DeVille | 1984 | Base, Cabriolet, d'Elegance | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Fleetwood | 1990, 1984 | 60 Special, Brougham, Brougham d'Elegance | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Heater Core Part Number: 52470156
Product Specifications
- Other Name: Core, Heater; HVAC Heater Core; Core; Core, Heater Core
- Replaces: 52462733
Fits the following Cadillac Models:
- Cimarron | 1985-1988 | Base, d'Oro | 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Cadillac Heater Core Part Number: 52461917
Product Specifications
- Other Name: Core, Heater Core; Core
Fits the following Cadillac Models:
- Fleetwood | 1993 | Base, Brougham | 8 Cyl 5.7 L GAS
View related parts
Cadillac Heater Core Part Number: 19131979
Product Specifications
- Other Name: Core, Heater Core; HVAC Heater Core; Core
- Replaces: 03035420, 3035420, 52479871
Fits the following Cadillac Models:
- Brougham | 1987-1992 | Base, d'Elegance | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- DeVille | 1984-1987 | Base, Cabriolet, Touring, d'Elegance | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Fleetwood | 1990, 1984-1986 | 60 Special, Base, Brougham, Brougham d'Elegance, Formal | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L DIESEL, 8 Cyl 6.0 L GAS
View More
View related parts
Cadillac Heater Core Part Number: 52479869
Product Specifications
- Other Name: Core, Heater; Core; Core, Heater Core
- Replaces: 3036422, 03036422
Fits the following Cadillac Models:
- DeVille | 1984 | Base, Cabriolet, d'Elegance | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Fleetwood | 1990, 1984 | 60 Special, Brougham, Brougham d'Elegance | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Heater Core Part Number: 52467073
Product Specifications
- Other Name: Core, Heater; Core; Core, Heater Core
Fits the following Cadillac Models:
- Cimarron | 1985-1988 | Base, d'Oro | 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Cadillac Heater Core Part Number: 19132003
Product Specifications
- Other Name: Core, Heater Core; Core
- Replaces: 03040690, 52484067, 3040690
Fits the following Cadillac Models:
- Eldorado | 1984-1985 | Base, Biarritz, Cabriolet, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
- Seville | 1984-1985 | Base, Elegante | 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Heater Core Part Number: 19131991
Product Specifications
- Other Name: Core, Heater Core; Core
- Replaces: 03092683, 52479884, 3092683
Fits the following Cadillac Models:
- Brougham | 1987-1990 | Base, d'Elegance | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L GAS
- DeVille | 1986-1990 | Base, d'Elegance, Touring | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS
- Fleetwood | 1986-1990 | 60 Special, 75, 75 Formal, Base, Brougham, Brougham d'Elegance, d'Elegance | 8 Cyl 4.1 L GAS, 8 Cyl 4.5 L GAS, 8 Cyl 5.0 L GAS
View More
View related parts
Cadillac Core Part Number: 3047169
Product Specifications
- Other Name: Core, Heater; Heater Core; Core, Heater Core
Fits the following Cadillac Models:
- Cimarron | 1984 | Base, d'Oro | 4 Cyl 2.0 L GAS
View related parts
Cadillac Heater Core Part Number: 19131984
Product Specifications
- Other Name: Core, Heater Core; Core
- Replaces: 52479876
Fits the following Cadillac Models:
- Cimarron | 1984 | Base | 4 Cyl 2.0 L GAS
View related parts
Cadillac Heater Core Part Number: 19132004
Product Specifications
- Other Name: Core, Heater Core; Core
- Replaces: 03053452, 52484069, 3053452
Fits the following Cadillac Models:
- DeVille | 1985 | Base, Cabriolet, d'Elegance | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS
- Fleetwood | 1985 | 75, 75 Formal, Base, Brougham, Brougham d'Elegance, d'Elegance | 6 Cyl 4.3 L DIESEL, 8 Cyl 4.1 L GAS, 8 Cyl 5.7 L DIESEL
View related parts
Cadillac Heater Core Part Number: 52471442
Product Specifications
- Other Name: Core, Heater; Core, Heater Core
Fits the following Cadillac Models:
- DeVille | 2000-2005 | Base, DHS, DTS, Protection Series | 8 Cyl 4.6 L GAS
- Seville | 1998-2004 | SLS, STS | 8 Cyl 4.6 L GAS

| Page 1 of 3 |Next >

1-20 of 42 Results

Cadillac Heater Core

Choose OEM Heater Core, you're making the optimal decision for superior quality and perfect performance. You can feel confident because each component goes through stringent quality checks. Every part is carefully built to comply with Cadillac's factory specifications. You'll enjoy a smooth, worry-free installation that fits just right. At ChevyPartsDeal.com, you'll find it easy to get top-quality OEM Cadillac Heater Core. You can shop at highly competitive prices and protect your budget. All our genuine Cadillac parts include a dependable manufacturer's warranty. You'll also appreciate our straightforward return policy and swift delivery services for extra convenience.

Cadillac Heater Core Parts and Q&A

Heater Core
89022548
Q: How to replace the Heater Core on Cadillac CTS?
A:
The first step to replace a Heater Core involves swiftly removing the hvac module from its position. Start by removing the heater hose bracket along with its bracket screw. The Heater Core needs to be slid out of the hvac module. The new Heater Core installation process begins by placing it into the hvac module before attaching the heater hose bracket. Securely install the heater hose bracket screw at 1 nm while tightening it to 9 lb in. Finally, reinstall the hvac module.
Heater Core
89019173
Q: How to replace the Heater Core on Cadillac Escalade?
A:
The first thing to do when changing the Heater Core is to drain the coolant. Take out the storage compartment from the instrument panel, cut off the necessary wires and get rid of the center floor air duct. After that, take out the hinge pillar trim panels, blower motor cover, blower motor and Steering Column. Pull out the instrument panel and take out the coolant tank and the heater hoses that are connected to it. Grip the heater case as you remove the single screw on the cowl's interior and after that, unfasten the 4 screws and 2 nuts inside the cowl that are found on the engine side. Lift off the heater case and ask someone to help you if the piece is heavy. After that, unscrew the 7 bolts securing the heater cover to the heater body and take off the heater cover to take out the Heater Core from the bracket. Put the new Heater Core into the retainer, attaching it with the 7 screws. Before installing the heater cover, make sure to put in new seals and ensure that cover is sealed tightly. Install the heater case and feel free to ask for help if it's difficult; after it's in place use the supplied nuts and screws to fix it on the engine side and the coil side, tightening the screws to 1.9 n.m (17 lb in), the nuts to 2.8 n.m (25 lb in) and the inside cowl screw to 11 n.m (97 lb in). Reconnect the heater hoses, set the coolant recovery reservoir, pull the instrument panel backward and put back the Steering Column, blower motor, blower motor cover, hinge pillar trim panels, center floor air distribution duct and electrical connectors. Don't forget to install the storage compartment in the instrument panel, add engine coolant and check that there are no leaks in the system.
