How to replace the water pump on Cadillac Escalade?

Before beginning repair you must drain the cooling system of its fluid. Detach the air cleaner outlet duct clamps at both Throttle Body and maf sensor positions. Then take off the radiator inlet hose clip that secures the outlet duct and the air cleaner outlet duct. Detach either the sight shield or radiator vent hose from their nipples on the radiator clip. Unclip the inlet hose from its position at the Water Pump before you remove both the inlet hose and the Fan Blade with accessory Drive Belt. Before continuing position the surge tank outlet hose clamp then take off the surge tank outlet hose. Take out the heater inlet hose at this point as well and afterward extract the Water Pump bolts while disposing of the used gaskets. Before putting on the Water Pump place new gaskets and make sure gasket surfaces remain clean during installation. Start by screwing in the Water Pump bolts fourteen point two five and ten point two five newton meters then turn them to thirty newton meters. Install heater inlet and surge tank outlet hoses first with their secured clamps then connect outlet hose with its clamps and set the accessory Drive Belt and Fan Blade. Place the inlet hose back on the engine while securing its clamp. Connect the engine vent inlet hose to Radiator Hose clips and put on the engine sight shield if needed. Attach the air cleaner outlet duct over the Throttle Body by aligning the arrow panel with its attaching stud and connect the radiator inlet hose cut to the outlet duct. While tightening both clamps ensure the sensor and Throttle Body reach 7 n.m (62 lb in). Add coolant to finish the work.

OEM Cadillac Escalade Water Pump

H2O Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Water Pumps found

View related parts

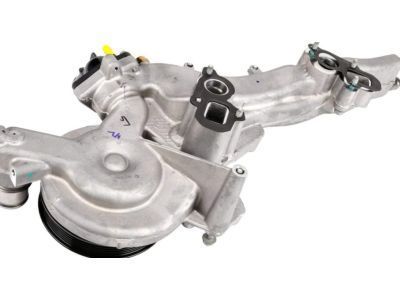

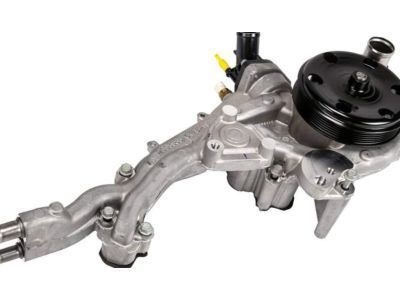

Cadillac Escalade Water Pump Part Number: 12685257
$288.51 MSRP: $559.94
You Save: $271.43 (49%)
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Water (W/Manifold); Water Pump Assembly; Pump, Engine Coolant
- Replaces: 12674640, 12671394, 12681258
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2020 Cadillac Escalade | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Water Pump Part Number: 89060527
$232.95 MSRP: $456.07
You Save: $223.12 (49%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Kit, Water; Water Pump Assembly; Pump Kit, Engine Coolant
- Replaces: 12528917, 89017748, 12532528
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2000 Cadillac Escalade | Base | 8 Cyl 5.7 L GAS
View related parts
Cadillac Escalade Water Pump Part Number: 12692045
$120.21 MSRP: $233.32
You Save: $113.11 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Kit-Water; Pump Kit, Engine Coolant
- Replaces: 12683012
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2020 Cadillac Escalade | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Water Pump Part Number: 12681417
$289.52 MSRP: $561.92
You Save: $272.40 (49%)
ADD TO CART
Product Specifications
- Other Name: Pump Kit-Water; Pump Kit, Engine Coolant
- Replaced by: 19434033
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2014 Cadillac Escalade | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.2 L FLEX
View related parts
Cadillac Escalade Water Pump Part Number: 15076931
$139.53 MSRP: $244.78
You Save: $105.25 (43%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump, Engine Coolant; Engine Auxiliary Water Pump; Pump
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac Escalade | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts

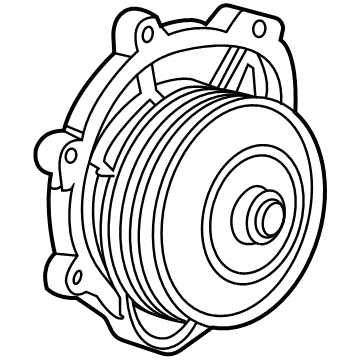

Cadillac Escalade Water Pump Part Number: 12713806
$71.14 MSRP: $128.76
You Save: $57.62 (45%)
ADD TO CART
Product Specifications
- Other Name: Pump Kit-Water
- Replaced by: 12716504
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 6 Cyl 3.0 L DIESEL
View related parts
Cadillac Escalade Water Pump Part Number: 12712953
$248.33 MSRP: $481.95
You Save: $233.62 (49%)
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly
- Replaced by: 12724894
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Water Pump Part Number: 12708893
$207.49 MSRP: $406.24
You Save: $198.75 (49%)
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly; Pump, Engine Coolant
- Replaced by: 12724892
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2022 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum | 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Pump Assembly Part Number: 25880378
$191.14 MSRP: $342.86
You Save: $151.72 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump, Engine Coolant; Engine Auxiliary Water Pump; Water Pump
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Cadillac Escalade | Hybrid, Hybrid Platinum | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)
View related parts
Cadillac Escalade Water Pump Assembly Part Number: 12725191
$901.58 MSRP: $1631.82
You Save: $730.24 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly-Water (W/Manifold); Pump, Engine Coolant
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023 Cadillac Escalade | V | 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Water Pump Part Number: 12725187
$193.98 MSRP: $351.10
You Save: $157.12 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump, Engine Coolant
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023 Cadillac Escalade | V | 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Water Pump Part Number: 89018166
Product Specifications
- Other Name: Pump Kit, Water; Water Pump Assembly
- Replaces: 12458935, 12456113, 88894290, 89017439, 89018040
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2006 Cadillac Escalade | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade Water Pump Part Number: 12600767
Product Specifications
- Other Name: Pump, Water; Engine Water Pump; Water Pump Assembly
- Replaces: 12587305
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2010 Cadillac Escalade | Base, Hybrid, Hybrid Platinum, Platinum | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

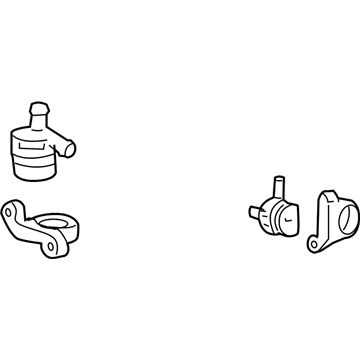

Cadillac Escalade Water Pump Part Number: 15293032
$177.72 MSRP: $318.78
You Save: $141.06 (45%)
Product Specifications
- Other Name: Pump, Engine Coolant; Pump; Pump, Heater
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2013 Cadillac Escalade | Hybrid, Hybrid Platinum | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV)

Cadillac Escalade Water Pump

Want to cut long-term maintenance and repair costs? Choose OEM Water Pump. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Escalade parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Escalade Water Pump includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac Escalade vehicles have the Water Pump thathelps in controlling engine temperature, through circulating coolant and passing through the throttle body and to the heater core. This circulation enables heat to be transfer from the engine to radiator then where it dissipates and does not over heat. The pump which is part of the weak is comprised by the shaft, impeller, bearings and seals to guard the bearings from the coolant. These water pumps have not been of the same style for many years but the basics of the Escalade water pump have remained the same. Some of the general problems include damaged bearings and seals due to wear and tear and thus cause leakage and overheating. There are several symptoms to a failing water pump and these include; the water pump coolant leaks, unusual noises and warning lights on the dashboard. Daily inspections are crucial, for instance if the pump is leaking, the seals have to be adjusted and tightened to increase the pump's durability and the engine's performance.

Cadillac Escalade Water Pump Parts and Q&A

Water Pump
89018166
Q: How to replace the water pump on Cadillac Escalade?
A:
Before beginning repair you must drain the cooling system of its fluid. Detach the air cleaner outlet duct clamps at both Throttle Body and maf sensor positions. Then take off the radiator inlet hose clip that secures the outlet duct and the air cleaner outlet duct. Detach either the sight shield or radiator vent hose from their nipples on the radiator clip. Unclip the inlet hose from its position at the Water Pump before you remove both the inlet hose and the Fan Blade with accessory Drive Belt. Before continuing position the surge tank outlet hose clamp then take off the surge tank outlet hose. Take out the heater inlet hose at this point as well and afterward extract the Water Pump bolts while disposing of the used gaskets. Before putting on the Water Pump place new gaskets and make sure gasket surfaces remain clean during installation. Start by screwing in the Water Pump bolts fourteen point two five and ten point two five newton meters then turn them to thirty newton meters. Install heater inlet and surge tank outlet hoses first with their secured clamps then connect outlet hose with its clamps and set the accessory Drive Belt and Fan Blade. Place the inlet hose back on the engine while securing its clamp. Connect the engine vent inlet hose to Radiator Hose clips and put on the engine sight shield if needed. Attach the air cleaner outlet duct over the Throttle Body by aligning the arrow panel with its attaching stud and connect the radiator inlet hose cut to the outlet duct. While tightening both clamps ensure the sensor and Throttle Body reach 7 n.m (62 lb in). Add coolant to finish the work.
