How to replace the Air Bag Clockspring on Cadillac Escalade?

In order to replace the inflatable restraint air bag clock spring, disable the sir system. Make sure that the wheels of the vehicle are pointing straight forward and the Steering Column is in the lock position, before removing the Steering Column or intermediate shaft from the steering gear to protect from sir coil assembly damages. Apply the Steering Column anti rotation pin (J 42640) to fix the Steering Column. Pull the Steering Wheel off the Steering Column after removing the Steering Wheel from the Steering Shaft and also after removing the Steering Column trim covers and wires harness straps from the Steering Wheel column wire harness. Next, take off the retaining ring and the sir coil off of the Steering Shaft; throwing the old coil out if one is replacing it. During the installation of the new sir coil assembly, ensure that it is centrally located and do not remove the centering tab until the installation is done. Mount the sir coil assembly against the horn tower on the turn signal cancel cam assembly and slide the sir coil onto the Steering Shaft assembly and ensure that the retaining ring is seated and locked in the groove in the Steering Shaft assembly. Take off the centering tab from the new sir coil and reinstall the Steering Column trim covers and Steering Wheel, and you can then enable the sir system.

How to service and repair the Air Bag Clockspring on Cadillac Escalade?

While servicing and repairing the inflatable restraint air bag clock spring, ensure to center the new sir coil assembly to avoid any damage and malfunctions. Before centering, make sure that the wheels of the vehicle are straight ahead, and the block tooth of the Steering Shaft assembly is at 12 o'clock position, and the Ignition Switch is also in lock position. At the center of the sir coil is a centering window at the front. Center the sir coil by positioning face up and turning the coil hub clockwise until the ribbon stops, then turning the hub counterclockwise until the centering window turns yellow (left-to-right direction) and both arrows are aligned. This means it is in the center position. With the same attitude only align the loop of the sir coil with that of the horn tower and slide it onto the Steering Shaft assembly. If you have a double wire harness strap, you should route the wires along the Steering Column, ensuring that one strap wraps one lead from the coil to the Steering Column while the second strap wraps all other leads to the Steering Column.

OEM Cadillac Escalade Air Bag Clockspring

Steering Wheel Airbag Coil

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Air Bag Clocksprings found

View related parts
Cadillac Escalade Clockspring Part Number: 23381964
$78.34 MSRP: $116.58
You Save: $38.24 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil, Inflatable Restraint System; Air Bag Clockspring
- Replaces: 22989630, 23381967, 23193462
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2018 Cadillac Escalade | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 23381963
$94.74 MSRP: $141.01
You Save: $46.27 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring
- Replaced by: 86599262
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2020 Cadillac Escalade | Base, Luxury, Platinum, Premium, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 25966964
$235.18 MSRP: $351.53
You Save: $116.35 (34%)
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Inflatable Restraint Steering Wheel Module (W/Accessory; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 15829093
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 Cadillac Escalade | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

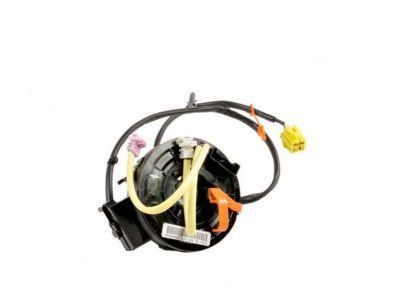

Cadillac Escalade Clockspring Part Number: 25966963
$208.39 MSRP: $311.51
You Save: $103.12 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Inflatable Restraint Steering Wheel Module (W/Accessory; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 15829094
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2013 Cadillac Escalade | Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium | 8 Cyl 6.0 L FULL HYBRID EV-FLEX (FHEV), 8 Cyl 6.0 L FULL HYBRID EV-GAS (FHEV), 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 22911593
$190.31 MSRP: $231.00
You Save: $40.69 (18%)
ADD TO CART
Product Specifications
- Other Name: Coil, Inflatable Restraint System; Air Bag Clockspring
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2013-2014 Cadillac Escalade | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX
View related parts
Cadillac Escalade Clockspring Part Number: 86773961
$70.24 MSRP: $104.54
You Save: $34.30 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring
- Replaced by: 86507598
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 86773960
$47.72 MSRP: $71.02
You Save: $23.30 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 84393467, 84966452, 84578696
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2023 Cadillac Escalade | Luxury, Premium Luxury, Premium Luxury Platinum, Sport, Sport Platinum, V | 6 Cyl 3.0 L DIESEL, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 84427141
$125.92 MSRP: $188.22
You Save: $62.30 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System
- Replaces: 84123759
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2020 Cadillac Escalade | Base, Luxury, Platinum, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 22911594
$191.69 MSRP: $362.53
You Save: $170.84 (48%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil, Inflatable Restraint System; Air Bag Clockspring
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2013-2014 Cadillac Escalade | Base, Luxury, Platinum, Premium | 8 Cyl 6.2 L FLEX
View related parts
Cadillac Escalade Clockspring Part Number: 26094620
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac Escalade | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 19330023
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Replaces: 26087300
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002 Cadillac Escalade | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 26101829
$303.56 MSRP: $453.74
You Save: $150.18 (34%)
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Replaces: 26103604
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Cadillac Escalade | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 84186645
Product Specifications
- Other Name: Coil Assembly-Steering Wheel Airbag; Air Bag Clockspring; Coil, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2020 Cadillac Escalade | Base, Luxury, Platinum, Premium Luxury | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 26101826
$321.60 MSRP: $480.81
You Save: $159.21 (34%)
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint Steering Wheel Module; Air Bag Clockspring; Coil Kit, Inflatable Restraint System
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2005 Cadillac Escalade | Base | 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade Clockspring Part Number: 19330851
Product Specifications
- Other Name: Coil Kit, Inflatable Restraint System; Air Bag Clockspring
- Replaces: 26072085, 26081119, 26087278, 26081118, 26080928, 26063963, 26049192, 26087318, 26072086
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2000 Cadillac Escalade | Base | 8 Cyl 5.7 L GAS

Cadillac Escalade Air Bag Clockspring

Want to cut long-term maintenance and repair costs? Choose OEM Air Bag Clockspring. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Escalade parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Escalade Air Bag Clockspring includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

This Air Bag Clockspring is a major part of the vehicle's Supplemental Restraint System SRS and plays a critical role in providing a stable electrical connection between the airbag module and the electrical system of Cadillac Escalade. This critical function enables the proper deployment of airbags during an impact and a drastic improvement in safety, or the lack of it, the chances of getting seriously injured or dying. This Air Bag Clockspring is famous and generally made with an alloy of Plastic material and Metal as it has the durability and can work on high pression. Likewise, compatibility with multiple Cadillac Escalade generations show its flexibility in designing, improving with time to meet new Cadillac Escalade contouring demands, and delivering optimal efficiency as well as safety. For Cadillac Escalade, the Air Bag Clockspring is not only an aspect of the vehicle, it is part of that brand as it signifies luxury and performance. These include its capacity to give optimal air bag performance while at the same time withstanding the test of use on the world's roads. With many more model years and technologies yearams to come for the Cadillac Escalade, the Air Bag Clockspring does remain quite relevant to the brand and is crucial to owning an Escalade. The Air Bag Clockspring is significant in the glamour of its engineering, and most of all, when it comes to safety, it does not leave much to chance.

Cadillac Escalade Air Bag Clockspring Parts and Q&A

Clockspring
25966963
Q: How to replace the Air Bag Clockspring on Cadillac Escalade?
A:
In order to replace the inflatable restraint air bag clock spring, disable the sir system. Make sure that the wheels of the vehicle are pointing straight forward and the Steering Column is in the lock position, before removing the Steering Column or intermediate shaft from the steering gear to protect from sir coil assembly damages. Apply the Steering Column anti rotation pin (J 42640) to fix the Steering Column. Pull the Steering Wheel off the Steering Column after removing the Steering Wheel from the Steering Shaft and also after removing the Steering Column trim covers and wires harness straps from the Steering Wheel column wire harness. Next, take off the retaining ring and the sir coil off of the Steering Shaft; throwing the old coil out if one is replacing it. During the installation of the new sir coil assembly, ensure that it is centrally located and do not remove the centering tab until the installation is done. Mount the sir coil assembly against the horn tower on the turn signal cancel cam assembly and slide the sir coil onto the Steering Shaft assembly and ensure that the retaining ring is seated and locked in the groove in the Steering Shaft assembly. Take off the centering tab from the new sir coil and reinstall the Steering Column trim covers and Steering Wheel, and you can then enable the sir system.
Clockspring
25966964
Q: How to service and repair the Air Bag Clockspring on Cadillac Escalade?
A:
While servicing and repairing the inflatable restraint air bag clock spring, ensure to center the new sir coil assembly to avoid any damage and malfunctions. Before centering, make sure that the wheels of the vehicle are straight ahead, and the block tooth of the Steering Shaft assembly is at 12 o'clock position, and the Ignition Switch is also in lock position. At the center of the sir coil is a centering window at the front. Center the sir coil by positioning face up and turning the coil hub clockwise until the ribbon stops, then turning the hub counterclockwise until the centering window turns yellow (left-to-right direction) and both arrows are aligned. This means it is in the center position. With the same attitude only align the loop of the sir coil with that of the horn tower and slide it onto the Steering Shaft assembly. If you have a double wire harness strap, you should route the wires along the Steering Column, ensuring that one strap wraps one lead from the coil to the Steering Column while the second strap wraps all other leads to the Steering Column.
