OEM Buick Rendezvous Exhaust Manifold

Buick Rendezvous Exhaust Manifold Parts and Q&A

• Exhaust Manifold, Passenger Side
  24506309
  Q: How to replace the right exhaust manifold on Buick Rendezvous?

  A:

  The process of replacing the right Exhaust Manifold starts with disconnecting the negative Battery Cable followed by removing the throttle body air inlet duct and the accelerator cable bracket from the throttle body and both the MAP Sensor and EGR Valve. Service access requires engine rotation before removing the ignition module with bracket and Ignition Coils as well as Spark Plug Wires from right bank engine plugs and the Oxygen Sensor electrical connector of the evaporative emissions (EVAP) solenoid bracket. The exhaust crossover pipe should be removed first before raising and supporting the vehicle so technicians can uninstall the Catalytic Converter, Exhaust Manifold heat shield bolts, heat shields, manifold nuts, and Exhaust Manifold with its attached gasket. Prepare the right side surfaces of the engine Exhaust Manifold and both sealing patches on the cylinder head for application. When replacing the Exhaust Manifold it is necessary to take out both the exhaust gas recirculation (EGR) valve pipe and the heated Oxygen Sensor (HO2S). To reinstall the heated Oxygen Sensor (HO2S) and exhaust gas recirculation (EGR) valve pipe the system must be raised with a supporting method. The work proceeds with installing the Exhaust Manifold Gasket followed by installing the Exhaust Manifold and torquing the manifold nuts to 16 n.m (12 lb ft). Secure the bolts at 10 n.m for lower and upper Exhaust Manifold heat shields to achieve 89 lb in torque. After replacing the parts install the Catalytic Converter followed by the exhaust crossover pipe and then the exhaust crossover pipe heat shield. Install Spark Plug Wires into the right bank spark plugs of the engine while connecting the evap solenoid bracket along with8615n.m (12 lb ft) torquing of the ignition module and ignition coils with bracket. The installation begins with the engine rotation to its original position followed by attachment of the EGR Valve to the intake manifold and the MAP Sensor then the accelerator cable bracket installation to the throttle body while completing the procedure by installing the throttle body air inlet duct before reconnecting the negative Battery Cable.

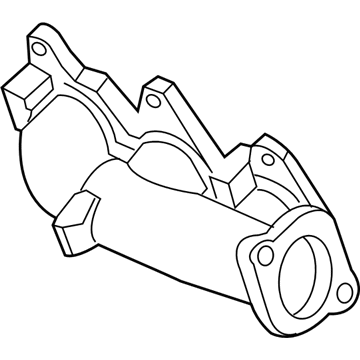

• Exhaust Manifold, Driver Side
  12571074
  Q: How to replace the Left Exhaust Manifold (LA1) on Buick Rendezvous?

  A:

  Start the replacement of left Exhaust Manifold (LA1) by removing the throttle body air inlet duct followed by draining the engine coolant from the cooling system. Start by eliminating the right engine mount strut bracket and disconnecting the inlet Radiator Hose between the engine while also removing the thermostat bypass pipe. Continue by taking out the exhaust crossover pipe and then the Exhaust Manifold heat shield bolts as well as the heat shield itself. Work to remove Exhaust Manifold nuts and Exhaust Manifold while keeping the Exhaust Manifold Gasket adjacent. You must prepare the new Exhaust Manifold Gasket and Exhaust Manifold by cleaning their sealing surfaces on the engine left side between the two components. Fasten the Exhaust Manifold nuts to a torque of 16 nm (12 ft. Lbs.) before installing the Exhaust Manifold heat shield along with its bolts which need to be tightened to 10 nm (89 inch lbs.). Place back the exhaust crossover pipe together with the thermostat bypass pipe before attaching the inlet Radiator Hose to the engine. Reinstall the right engine mount strut bracket while completing the filling of engine coolant into the cooling system and installing the throttle body air inlet duct.
