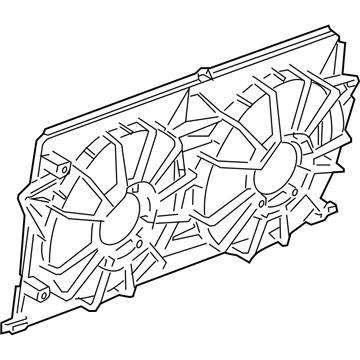

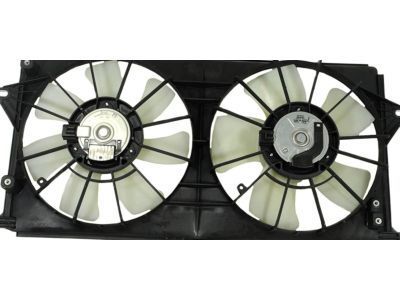

OEM Buick Lucerne Fan Shroud

Buick Lucerne Fan Shroud Parts and Q&A

• Fan Shroud
  21999691
  Q: How to replace the engine coolant fan shroud (LGD, LZ9) (3.9L) on Buick Lucerne?

  A:
