What Tools Are Required to Service and Repair the CV Joint Boot for the Wheel Drive Shaft Inner Joint and Seal Replacement on Buick Lucerne?

To service an repair the constant velocity joint boot especially service and repair the wheel drive shaft inner join and finalization of seal a following tool are required: drive axle seal clamp pliers (J 35910), drive axle swage ring clamp (J 41048), and snap ring pliers (J 8059). Start by checking the transmission sealing surface for corrosion and if there is any, clean it using 320 grit cloth. Cut through the swage ring with a hand grinder then take off the large seal retaining clamp with side cutters, being careful not to harm the inboard seal. Begin separating the halfshaft inboard seal from the trilobal tripot bushing and slide it to a distance from the joint. De-housing the tripot joint spider and trash out the trilobal tripot bushing and spacer rings and inboard boot. Clean the halfshaft bar and all components using cleaning solvent and check for any damage or wear. During assembly, position a new small swage ring onto the joint seal, positioning it at the top of the halfshaft bar. Secure the halfshaft assembly and ensure that no pinch points can be found by using j 41048. This bolt should be tightened until snug simultaneously with an opposite bolt. After that, you should install the spacer ring using j 8059. Place the housing back with grease and make sure that the trilobal tripot bushing is flush with the housing face. Mount the new bushing and place the larger seal retain clamp on the halfshaft inboard seal. Slide the housing onto the tripot joint spider assembly and make sure the proper vehicle dimension size is achieved. Crimp the seal retaining clamp with j 35910 to the torque specified, ensuring the gap dimension on the clamp ear is as required and adjust as needed.

OEM Buick Lucerne CV Joint

CV Joint Axle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 CV Joints found

View related parts
Buick Lucerne CV Joints, Front Part Number: 26075588
$269.62 MSRP: $609.63
You Save: $340.01 (56%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; CV Joint; Inner CV Joint; Inner Joint; Inner Joint Assembly
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Buick Lucerne | CXL, CXS, Super | 8 Cyl 4.6 L GAS
View related parts
Buick Lucerne CV Joints, Front Part Number: 26073382
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; CV Joint; Inner CV Joint; Inner Joint; Inner Joint Assembly; Tripod
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Buick Lucerne | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick Lucerne CV Joints, Front Part Number: 26073381
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; CV Joint; Inner CV Joint; Inner Joint; Inner Joint Assembly; Tripod
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Buick Lucerne | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick Lucerne CV Joints, Front Driver Side Part Number: 26073376
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; CV Joint; Inner CV Joint; Inner Joint; Inner Joint Assembly; Tripod
- Position: Front Driver Side
- Replaces: 26073378
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Buick Lucerne | CX, CXL, CXL Special Edition | 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts
Buick Lucerne CV Joints, Front Passenger Side Part Number: 26073375
Product Specifications
- Other Name: Joint Kit, Front Wheel Drive Axle; CV Joint; Inner CV Joint; Inner Joint; Inner Joint Assembly; Tripod
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Buick Lucerne | CX, CXL, CXL Special Edition | 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts
Buick Lucerne Outer CV Joint Part Number: 25766430
Product Specifications
- Other Name: Joint; CV Joint; Outer Joint Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2010 Buick Lucerne | CX, CXL, CXL Special Edition, CXS, Super | 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS, 8 Cyl 4.6 L GAS
View related parts

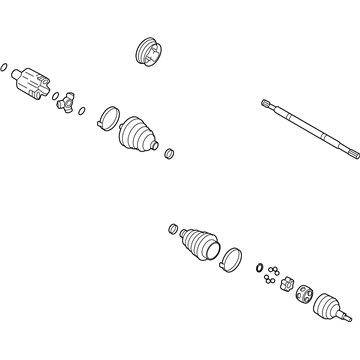

Buick Lucerne Axle Assembly, Front Part Number: 20984613
Product Specifications
- Other Name: Shaft Assembly-Front Wheel Drive; CV Axle Assembly; Axle Shaft; CV Joint; CV Axle; Outer CV Joint
- Position: Front
- Replaces: 15869612, 20859675, 26075603
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Buick Lucerne | CXL, CXS, Super | 8 Cyl 4.6 L GAS
View related parts
Buick Lucerne C.V. Joint, Outer Part Number: 19148843
Product Specifications
- Other Name: Outer CV Joint; CV Joint; CV Joints; Outer Joint; Outer Joint Assembly
- Position: Outer
- Replaces: 26044408, 26075595
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Buick Lucerne | CXL, CXS | 8 Cyl 4.6 L GAS
View related parts
Buick Lucerne C.V. Joint, Outer Part Number: 19122437
Product Specifications
- Other Name: Outer CV Joint; CV Joint; CV Joints; Outer Joint; Outer Joint Assembly
- Position: Outer
- Replaces: 26044410, 26045070
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Buick Lucerne | CX, CXL | 6 Cyl 3.8 L GAS

Buick Lucerne CV Joint

Want to cut long-term maintenance and repair costs? Choose OEM CV Joint. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick Lucerne parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick Lucerne CV Joint includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Buick Lucerne CV Joint is one of those secondary parts that play a central role in determining the car's ability and dependability in transmitting power from the transmission, to the wheels that drive the car. Originally being developed for the front wheel drive vehicles the CV Joint is also present in the modern rear wheel drive configuration's and is of paramount importance to any driving experience as it ensures constant velocity. Below are the high-quality CV Joints featured in Buick Lucerne produced from 2005 to 2011: This contains various models that benefit from these high-quality joints particularly those with the constrained 3.8-liter V-6 and high breaking hoisted 4.6-liter V-8 engines. The solidity of the CV Joint is served by flexible rubber boots to guard against dirt, thus raising the general safety and performance of the Lucerne. However, some sophisticated components like Magnetic Ride Control (MRC) integrated with the CV Joint offer the Lucerne the premier control and comfort. This is not only a great enhancement for the driving properties but it is also one of the factors that makes the Lucerne so dependable. This model has a good look and also the complete safety features such as dual-stage; frontal and side-impact airbags and an electronic stability system and so one can consider buying the Buick Lucerne. This CV Joint proves to be crucial in this luxury sedan and keeping Buick Lucerne as a top choice for many people are looking for functional and highly efficient car. In conclusion, the Buick Lucerne CV Joint has to be noted as a perfect example of the brand's Further aspirations of Buick to create only qualitative and innovative cars, which consolidated its position on the market of premium sedans.

Buick Lucerne CV Joint Parts and Q&A

CV Joints, Front
26075588
Q: What Tools Are Required to Service and Repair the CV Joint Boot for the Wheel Drive Shaft Inner Joint and Seal Replacement on Buick Lucerne?
A:
To service an repair the constant velocity joint boot especially service and repair the wheel drive shaft inner join and finalization of seal a following tool are required: drive axle seal clamp pliers (J 35910), drive axle swage ring clamp (J 41048), and snap ring pliers (J 8059). Start by checking the transmission sealing surface for corrosion and if there is any, clean it using 320 grit cloth. Cut through the swage ring with a hand grinder then take off the large seal retaining clamp with side cutters, being careful not to harm the inboard seal. Begin separating the halfshaft inboard seal from the trilobal tripot bushing and slide it to a distance from the joint. De-housing the tripot joint spider and trash out the trilobal tripot bushing and spacer rings and inboard boot. Clean the halfshaft bar and all components using cleaning solvent and check for any damage or wear. During assembly, position a new small swage ring onto the joint seal, positioning it at the top of the halfshaft bar. Secure the halfshaft assembly and ensure that no pinch points can be found by using j 41048. This bolt should be tightened until snug simultaneously with an opposite bolt. After that, you should install the spacer ring using j 8059. Place the housing back with grease and make sure that the trilobal tripot bushing is flush with the housing face. Mount the new bushing and place the larger seal retain clamp on the halfshaft inboard seal. Slide the housing onto the tripot joint spider assembly and make sure the proper vehicle dimension size is achieved. Crimp the seal retaining clamp with j 35910 to the torque specified, ensuring the gap dimension on the clamp ear is as required and adjust as needed.
